NUU GARDEN 7-Piece Outdoor Dining Set Instruction Manual

Introduction

Thank you for choosing the NUU GARDEN 7-Piece Outdoor Dining Set. This manual provides essential information for the safe assembly, operation, and maintenance of your new patio furniture. Please read these instructions carefully before assembly and retain them for future reference.

Image: Top-down view of the NUU GARDEN 7-Piece Outdoor Dining Set, showcasing the rectangular table and six chairs.

Key Features:

• Comfortable Textilene Chairs: Features breathable and elastic textilene fabric with soft foam padding for comfortable seating.
• C-Type Spring Motion: Chair legs are designed for a subtle rocking motion, enhancing relaxation.
• Ergonomic Design: High back and extra-wide seat accommodate various body types, with a weight capacity of 250 lbs per chair.
• Spacious Rectangular Table: A 61-inch table made with rust-resistant black powder-coated iron, suitable for 6+ people.
• Umbrella Hole: Integrated 1.57-inch umbrella hole for patio umbrellas (umbrella not included).

Safety Information

WARNING: Always assemble according to the provided instructions. Do not exceed the weight capacity of 250 lbs per chair. Avoid exposing the textilene fabric and foam padding to high temperatures. This product is designed for outdoor use only.

• Ensure all bolts and nuts are securely tightened before use.
• Place the furniture on a flat, stable surface to prevent wobbling.
• Keep children away from the assembly area.
• Do not stand on chairs or table.

Package Contents

Please verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

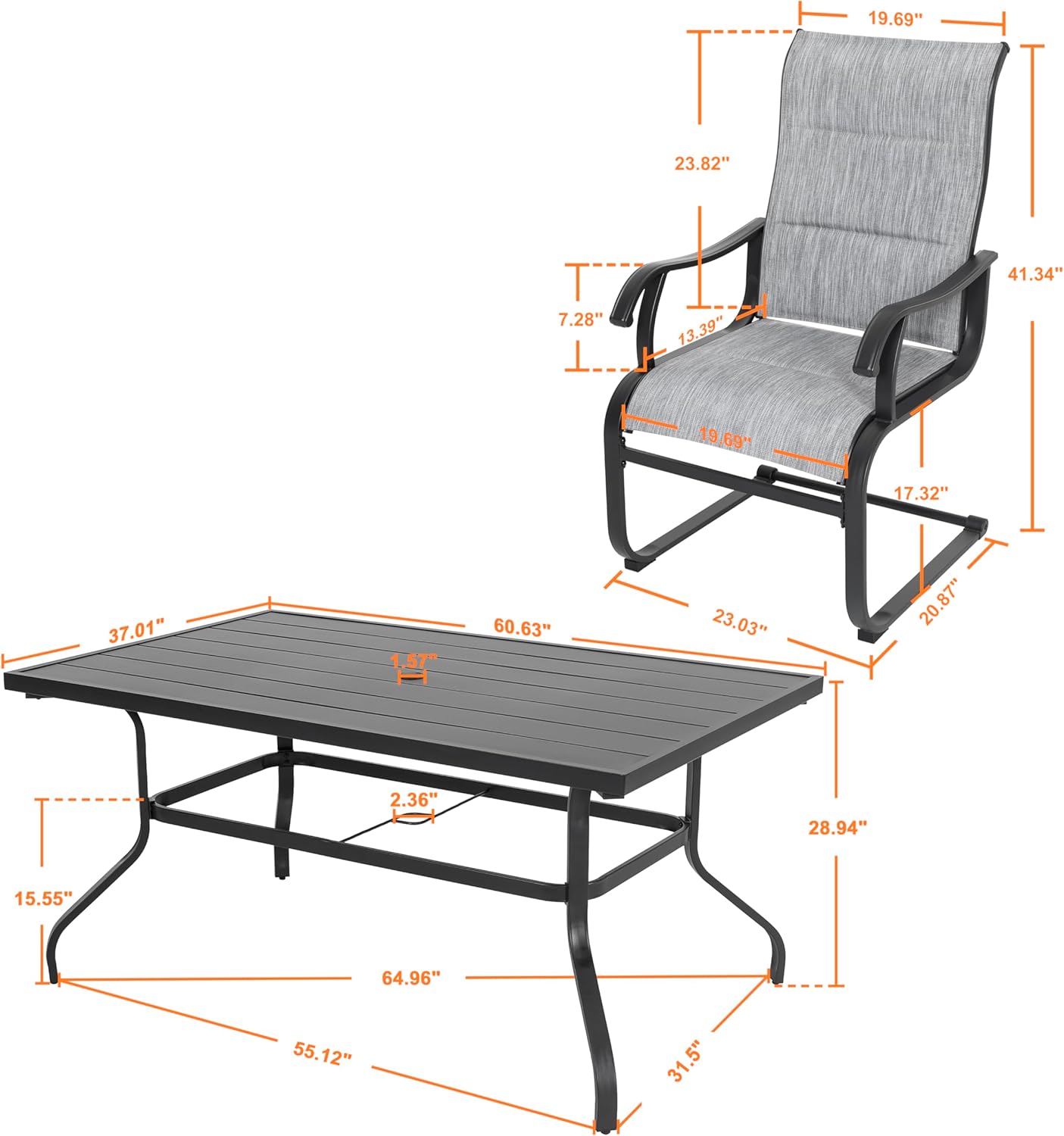

Image: Dimensional diagram of the dining table and a single chair, indicating overall measurements.

Typical Components (per chair):

• Chair Frame (C-type base with armrests)
• Padded Textilene Seat and Backrest
• Connecting Bars
• Hardware (bolts, washers, Allen wrench)

Typical Components (for table):

• Tabletop sections
• Table Legs
• Support Brackets
• Hardware (bolts, washers, Allen wrench)

Assembly Instructions

Assembly is required for both the chairs and the table. It is recommended to assemble on a soft, clean surface to prevent scratches. Do not fully tighten bolts until all components are loosely assembled.

Chair Assembly:

1. Attach the backrest to the main chair frame using the specified bolts (e.g., M6*30). Ensure proper alignment.
2. Connect the seat portion to the chair frame, securing it with the appropriate bolts (e.g., M6*15).
3. Attach the armrests to the chair frame, using the remaining bolts (e.g., M6*25).
4. Once all components are loosely attached, place the chair on a flat, level surface.
5. Gradually tighten all bolts evenly until secure. Do not overtighten.

Table Assembly:

1. Carefully unbox the tabletop and leg components.
2. Attach the table legs to the tabletop frame using the provided hardware.
3. Secure any crossbars or support brackets between the legs for stability.
4. Ensure the umbrella hole mechanism (if applicable) is correctly aligned and secured.
5. Place the table upright on a level surface and tighten all bolts evenly.

Operating Instructions

Using the Dining Table:

• The table is designed for outdoor dining and can comfortably seat 6 or more people.
• To use an umbrella, insert the umbrella pole through the 1.57-inch hole in the center of the tabletop. Ensure the umbrella base (not included) is stable and secure.

Using the Patio Chairs:

• The C-type spring motion allows for a gentle rocking movement. Sit back and relax.
• Avoid sudden movements or excessive force that could damage the chair frame or fabric.

Maintenance

Regular maintenance will extend the life and appearance of your outdoor dining set.

Cleaning:

• Table: Wipe with a dry cloth to remove dust and debris. For deeper cleaning, use a mild soap solution and a soft cloth, then rinse thoroughly and dry.
• Chairs (Textilene Fabric): Clean with a mild soap and water solution. Use a soft brush if necessary for stubborn dirt. Rinse thoroughly and allow to air dry completely.
• Avoid harsh chemicals, abrasive cleaners, or stiff brushes, as these can damage the finish or fabric.

Storage and Protection:

• During prolonged periods of non-use or inclement weather, it is recommended to cover the furniture or store it indoors to protect it from the elements.
• Periodically check and tighten all bolts and connections to ensure stability.

Troubleshooting

If you encounter any issues with your dining set, refer to the following common solutions:

• Wobbling Chairs/Table: Ensure the furniture is placed on a flat, level surface. Check all assembly bolts and tighten them evenly.
• Loose Connections: Periodically inspect all bolts and nuts. If any are loose, tighten them with the provided Allen wrench.
• Difficulty Assembling: Review the assembly video and instructions carefully. Ensure all parts are correctly oriented before tightening bolts. Do not force parts together.

Specifications

Warranty and Support

For warranty information or customer support, please refer to the contact details provided at the point of purchase or visit the official NUU GARDEN website. Keep your purchase receipt for warranty claims.
