1. Product Overview
The WOYO PDR007 is an advanced Paintless Dent Repair (PDR) tool designed for efficient and precise removal of soft dents on steel auto body surfaces. This kit includes an extension cable for enhanced reach and versatility. It utilizes rapid, focused heating induction to allow the dent to stretch and repair itself, making it a valuable tool for automotive body repair professionals.
The device features a large display screen for real-time control and monitoring, offering both Time Control Mode for dark-colored dents and Power Control Mode for light-colored dents. Its user-friendly design allows skilled individuals to quickly master its operation.
2. Safety Information
Please read and understand all safety instructions before operating the WOYO PDR007. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Intended Use: This product is specifically designed for paintless dent repair on steel auto body surfaces only. It is not suitable for aluminum or other materials.
- User Skill Level: Operation of this tool requires a background in metal composition and auto repair techniques. It is intended for skilled users.
- Electrical Safety: Ensure the power supply matches the device's requirements (100-120V). Do not operate with damaged cables or if the device shows signs of malfunction. Keep the device dry and away from liquids.
- Heat Hazard: The repair handle generates rapid, focused heat. Avoid direct skin contact with the heated area during and immediately after operation. Allow surfaces to cool before touching.
- Ventilation: Ensure adequate ventilation in the work area.
- Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses and gloves, during operation.
- Children and Bystanders: Keep children and unauthorized persons away from the work area.
3. Package Contents
Verify that all items listed below are present in your WOYO PDR007 kit:
- WOYO PDR007 Main Unit (1)
- Main Cable (1.8M) (1)
- Power Cable (1.5M) (1)
- Repair Handle (1)
- Instruction Manual (1)
- Plastic Tool Case (1)
- Extension Rod (1)
Figure 3.1: Complete WOYO PDR007 Kit contents, including the main unit, cables, repair handle, extension rod, and plastic tool case.
4. Setup Instructions
Follow these steps to set up your WOYO PDR007 unit for operation:
- Unpack: Carefully remove all components from the plastic tool case.
- Connect Main Cable: Connect the main cable to the designated port on the WOYO PDR007 main unit. Ensure a secure connection.
- Connect Repair Handle: Attach the repair handle to the other end of the main cable.
- Connect Power Cable: Plug the power cable into the WOYO PDR007 main unit.
- Power On: Plug the power cable into a suitable 100-120V AC power outlet. The device display should illuminate.
- Optional Extension Rod: For dents on roofs or hard-to-reach areas, connect the extension rod between the main cable and the repair handle.
Figure 4.1: WOYO PDR007 main unit with connected cables and repair handle, ready for operation.
Figure 4.2: Illustrates the use of the extension rod for accessing dents on vehicle roofs, enhancing reach and ease of maintenance.
5. Operating Instructions
The WOYO PDR007 is designed for ease of use, allowing skilled operators to quickly become proficient. The repair method involves rapid, focused heating induction on the area surrounding the dent, which causes the dent to stretch and repair itself.
5.1. Dent Application Suitability
The WOYO PDR007 is most effective on soft dents. The closer the dent is to the central part of a panel, the easier it will be to repair. This product is not suitable for sharp dents or dents on aluminum body material.
Figure 5.1: Diagram illustrating suitable (soft, central) and unsuitable (sharp) dent types for repair with the PDR007.
5.2. Time Control Mode (Suggested for Dark-Colored Dents)
In Time Control Mode, the working time can be preset while the power is fixed at 100%. This mode is particularly useful for precise heating durations to avoid overheating or burning the paint.
- Preset Time: Use the controls on the main unit to set the desired heating duration. The time setting range is from 0.5 seconds to 4 seconds.
- Operation: Once the time is set, activate the repair handle. The device will automatically stop heating after the preset time has elapsed.
- "MAX" Dial: An additional "MAX" dial is available to extend the working time beyond the preset range if needed for specific applications.
5.3. Power Control Mode (Suggested for Light-Colored Dents)
In Power Control Mode, the output power can be preset from 20% to 100%. This mode allows for manual control over the heating duration by activating and deactivating the repair handle.
- Preset Power: Adjust the power output percentage on the main unit's display.
- Operation: The working time is controlled by pressing and releasing the ON/OFF button on the repair handle. This allows for continuous monitoring and adjustment of the heating process.

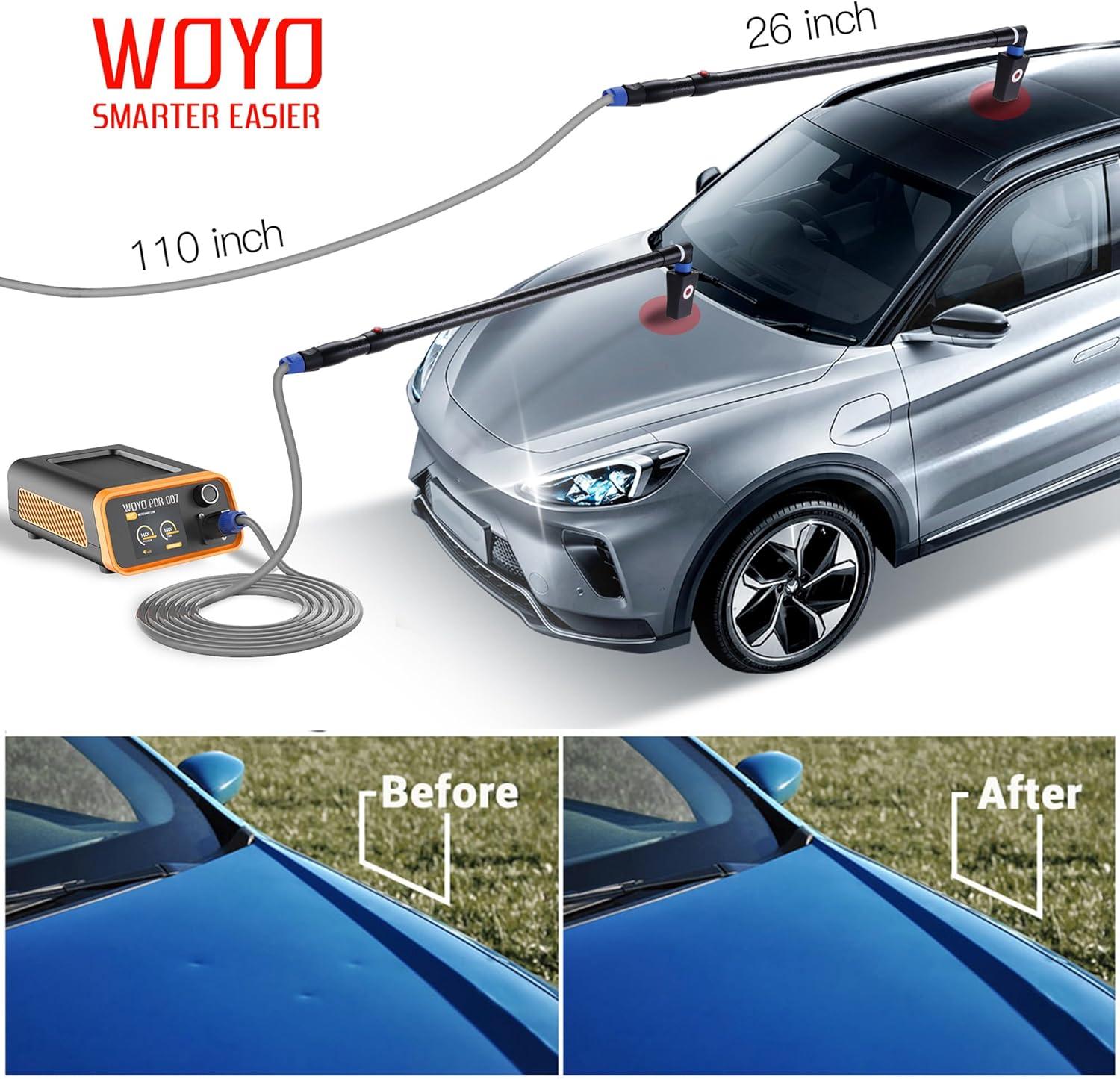

Figure 5.2: The WOYO PDR007 in action, demonstrating its application on a vehicle's body panel, with a visual comparison of a dent before and after repair.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your WOYO PDR007 kit.
- Cleaning: After each use, wipe down the main unit, cables, and repair handle with a clean, dry cloth. Do not use abrasive cleaners or solvents.
- Storage: Store the device and all accessories in the provided plastic tool case in a cool, dry place, away from direct sunlight and extreme temperatures.
- Cable Inspection: Regularly inspect all cables for any signs of wear, cuts, or damage. Replace damaged cables immediately to prevent electrical hazards.
- Handle Inspection: Check the repair handle for any physical damage or signs of excessive wear.
7. Troubleshooting
This section provides solutions to common issues you might encounter with your WOYO PDR007.
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on. | No power supply; loose power cable connection; faulty power outlet. | Ensure power cable is securely plugged into the unit and a working outlet. Check the circuit breaker. |
| No heat from repair handle. | Loose main cable connection; faulty handle; incorrect mode/settings. | Check main cable connection to both the unit and the handle. Verify operating mode and power settings on the display. |
| Dent not repairing effectively. | Dent type unsuitable (sharp dent, aluminum body); insufficient heating time/power; improper technique. | Confirm the dent is a soft dent on a steel body. Adjust heating time or power settings. Review operating instructions and technique. |
If you encounter issues not listed here or if the problem persists after attempting the solutions, please contact WOYO customer support.
8. Technical Specifications
| Feature | Specification |
|---|---|
| Model | PDR007ROD |
| Input Voltage | 100-120V |
| Output Power | 800W |
| Output Voltage | 150V |
| Output Current | 20A |
| Item Weight | 11.44 pounds (approx. 5.19 kg) |
| Package Dimensions | 10.63 x 8.66 x 8.27 inches (approx. 27 x 22 x 21 cm) |
| Suitable Material | Steel Auto Body |
| Certifications | CE, FCC, ROHS, PSE |
Figure 8.1: Visual representation of the WOYO PDR007 unit alongside a table detailing its electrical specifications.
9. Warranty and Support
Warranty: The WOYO PDR007 comes with an 18-month warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper maintenance.
Customer Support: For technical assistance, warranty claims, or any questions regarding the operation or maintenance of your WOYO PDR007, please contact WOYO customer support through the official WOYO website or your point of purchase. Please have your product model number (PDR007ROD) and purchase details ready when contacting support.
For more information, visit the official WOYO Store: WOYO Store on Amazon.
