1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your KAFF K-Series KES 60A Slant Filterless Auto Clean Kitchen Chimney. Please read these instructions thoroughly before using the appliance and retain them for future reference.
Image 1.1: Front view of the KAFF K-Series KES 60A Kitchen Chimney, showcasing its sleek matte black finish and control panel.
2. Safety Information
To prevent personal injury or property damage, always observe basic safety precautions when using electrical appliances. This chimney is designed for domestic kitchen use only.
- Ensure the power supply voltage matches the rating label on the appliance.
- Do not allow children to operate the chimney without supervision.
- Maintain adequate ventilation in the room when the chimney is in use, especially if other fuel-burning appliances are present.
- Do not flambé under the chimney.
- Regularly clean the chimney to prevent grease accumulation, which can pose a fire hazard.
- Disconnect the appliance from the power supply before any cleaning or maintenance.
- Installation should be performed by a qualified technician in accordance with local regulations.
3. Product Overview
The KAFF K-Series KES 60A is a 60 CM slant kitchen chimney featuring advanced technology for efficient smoke and odor extraction.
Key Features:
- Type: Slant Kitchen Chimney
- Technology: DHC (Dry Heat Auto Clean)
- Filter Type: Filterless design for reduced maintenance
- Air Suction Capacity: 1450 m³/hr
- Control Type: Thermostatic Touch Panel with 3 Speed Gesture Motion Control
- Lighting: Energy-saving LED lights
- Oil Collector: Built-in sleek oil collector for easy disposal of grease
Image 3.1: The elegant matte black finish of the chimney, designed to complement modern kitchen aesthetics.
Image 3.2: A detailed view of the sleek front black glass panel, featuring a digital display for intuitive control.
4. Setup and Installation
The KAFF K-Series KES 60A chimney is designed for wall-mounted installation. Professional installation is recommended to ensure proper functioning and safety.
Included Components for Installation:
- 1x Kitchen Chimney Exhaust Duct Pipe
- 1x Wall Mounting Bracket
- Screws and Rawl Plugs
Installation Guidelines:
- Ensure the installation area is structurally sound and can support the weight of the chimney.
- Maintain the recommended distance between the cooking surface and the bottom of the chimney as specified in the full installation guide (provided separately).
- Securely attach the wall mounting bracket to the wall using the provided screws and rawl plugs.
- Mount the chimney onto the bracket.
- Connect the exhaust duct pipe to the chimney outlet and route it to an external vent. Ensure the ducting is free from kinks and obstructions for optimal airflow.
- Connect the chimney to a suitable power outlet.
Image 4.1: Rear view of the chimney, illustrating the mounting points and exhaust outlet for installation.
5. Operating Instructions
Your KAFF K-Series KES 60A chimney features a user-friendly thermostatic touch panel and gesture motion control for convenient operation.
Control Panel Functions:
- Power Button: Press to turn the chimney ON/OFF.
- Speed Control: Select from 3 fan speeds (1, 2, 3) to adjust suction power based on cooking requirements.
- Light Button: Press to turn the LED lights ON/OFF.
- Auto Clean Button: Initiate the dry heat auto-clean cycle.
Gesture Motion Control:
The chimney can also be operated using hand gestures. Wave your hand in front of the motion sensor to control power and fan speed. Refer to the full user manual for specific gesture commands.
Image 5.1: Detailed view of the control panel, showing the touch buttons for power, speed, light, and auto-clean functions.
Image 5.2: An illustration demonstrating the use of hand gestures to control the chimney's functions.
6. Maintenance and Cleaning
Regular maintenance ensures optimal performance and extends the lifespan of your chimney. The KES 60A features Dry Heat Auto-Clean Technology for convenient cleaning.
Dry Heat Auto-Clean Function:
- Ensure the chimney is turned off and cool.
- Press the 'Auto Clean' button on the control panel. The chimney will initiate a dry heat cycle to melt and collect grease.
- Once the cycle is complete, the collected oil will drain into the oil collector.
Cleaning the Oil Collector:
- Periodically remove the oil collector located at the bottom of the chimney.
- Empty the collected oil and wash the collector with warm, soapy water.
- Ensure the oil collector is completely dry before reinserting it.
External Cleaning:
- Wipe the exterior surfaces of the chimney with a soft cloth dampened with mild detergent.
- Avoid abrasive cleaners or scouring pads, as they can damage the finish.
- Ensure no water enters the electrical components.

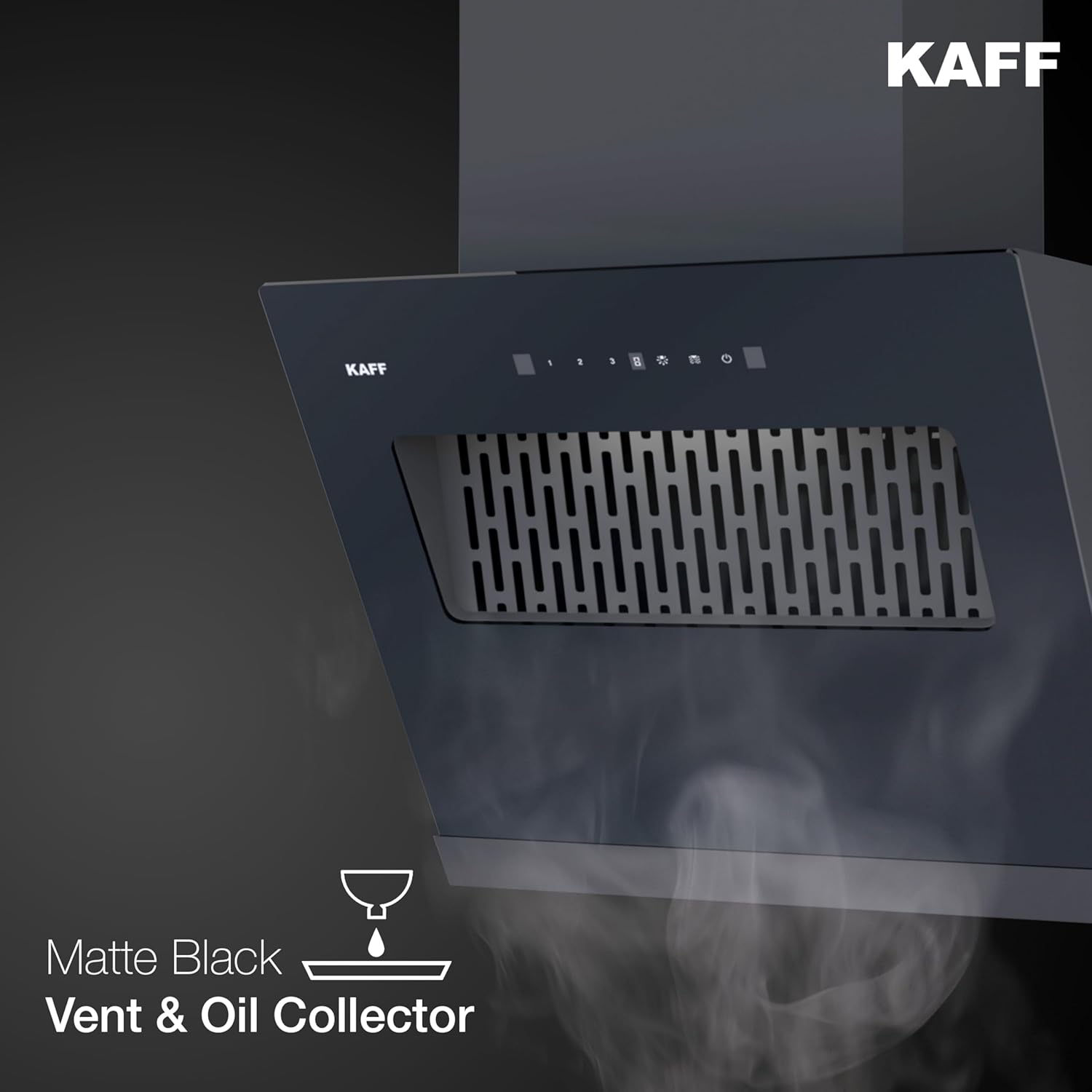

Image 6.1: The matte black vent and integrated oil collector, designed for efficient grease collection and easy cleaning.
7. Troubleshooting
If you encounter issues with your chimney, refer to the following common problems and solutions. If the problem persists, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chimney does not turn ON | No power supply; loose connection | Check power cord and circuit breaker; ensure secure connection. |
| Low suction power | Blocked ducting; grease accumulation; incorrect speed setting | Check duct for obstructions; run auto-clean cycle; select higher fan speed. |
| Unusual noise during operation | Loose components; motor issue | Ensure all parts are securely fastened; if noise persists, contact service. |
| LED lights not working | Bulb failure; electrical issue | Check light button; if still not working, contact service for bulb replacement. |
8. Specifications
Detailed technical specifications for the KAFF K-Series KES 60A Kitchen Chimney.
| Feature | Specification |
|---|---|
| Model | KES 60A |
| Air Flow Capacity | 1450 Cubic Meters Per Hour (m³/hr) |
| Size | 60 CM |
| Material | Stainless Steel |
| Noise Level | 58 Decibels (max) |
| Mounting Type | Wall Mount |
| Controls Type | Touch & Motion Sensor |
| Voltage | 220 Volts |
| Number of Speeds | 3 |
| Item Weight | 17.1 kg |
| Light Source Type | LED |
| Wattage | 232 Watts |
| Filter Type | Filterless |
| Product Dimensions (LxWxH) | 39D x 59.6W x 88H Centimeters |
| Annual Energy Consumption | 20 Kilowatt Hours |
| Country of Origin | India |
9. Warranty and Support
Your KAFF K-Series KES 60A Kitchen Chimney comes with comprehensive warranty coverage and dedicated customer support.
Warranty Details:
- Product Warranty: 2 Years Comprehensive Warranty on the product.
- Motor Warranty: Lifetime (10 Years) warranty on the motor.
Please retain your purchase receipt and the warranty card (included in the box) for any warranty claims.
Customer Support:
For service, technical assistance, or any queries, please contact KAFF Appliances (I) Pvt. Ltd. customer care:
- Toll-Free Number: 1800180222
- Email: customercare@kaff.in
