1. Important Safety Information
Read all instructions carefully before using the appliance. Keep this manual for future reference.
- Gas Safety: Ensure proper ventilation. Do not store flammable materials near the hob. In case of gas leakage, immediately turn off the main gas supply, open windows, and do not operate electrical switches or ignite any flames. Contact a qualified technician.
- Electrical Safety: The appliance must be properly grounded. Do not use extension cords. Disconnect power before cleaning or maintenance.
- Installation: Installation must be performed by a qualified technician in accordance with local regulations and standards. Incorrect installation can lead to gas leakage or electrical hazards.
- Children and Pets: Keep children and pets away from the appliance during operation and when it is hot.
- Hot Surfaces: Burners and surrounding areas become hot during use. Avoid touching hot surfaces. Use oven mitts or pot holders.
- Ventilation: Ensure adequate ventilation in the kitchen area when the hob is in use.
2. Product Overview
The KAFF FBB 604 is a 60 CM built-in hob/hobtop featuring four high-efficiency brass burners and an automatic electric ignition system. Its design includes an 8 mm bevelled black tempered glass surface for durability and aesthetics.
Image: Top-down view of the KAFF FBB 604 Built-in Hob, showcasing its four burners and control layout.
Key Features:
- Type: Built-in Hob / Hobtop
- Size: 60 CM
- Ignition: Automatic Electric Ignition
- Glass: 8 mm Bevelled Black Tempered Glass
- Burners: 4 Full Brass Burners (Two Triple Ring 3.0 kW, Two Dual Ring 1.5 kW)
- Pan Support: Matt Enameled Pan Support
- Drip Tray: Stainless Steel Drip Tray
- Knobs: Ergonomic Easy Grip Metal Knobs
Image: Detailed view highlighting the full brass black coated burners, enamelled matt finish grilles, ergonomic metal knobs, auto electric ignition, and bevelled black tempered glass.
3. Setup and Installation
This appliance requires professional installation. Ensure that the installation area meets the specified dimensions and ventilation requirements.
Installation Requirements:
- Cutting Dimensions: The inner cutting size for built-in installation is 555mm (width) x 475mm (depth).
- Outer Dimensions: The overall outer size of the hob is 600mm (width) x 510mm (depth).
- Gas Supply: Connect to a suitable gas supply line by a certified technician. Ensure all connections are leak-free.
- Electrical Supply: A grounded electrical outlet is required for the automatic electric ignition. Ensure the voltage matches the appliance specifications.
- Ventilation: Install in a well-ventilated area. Consider installing an exhaust hood above the hob.

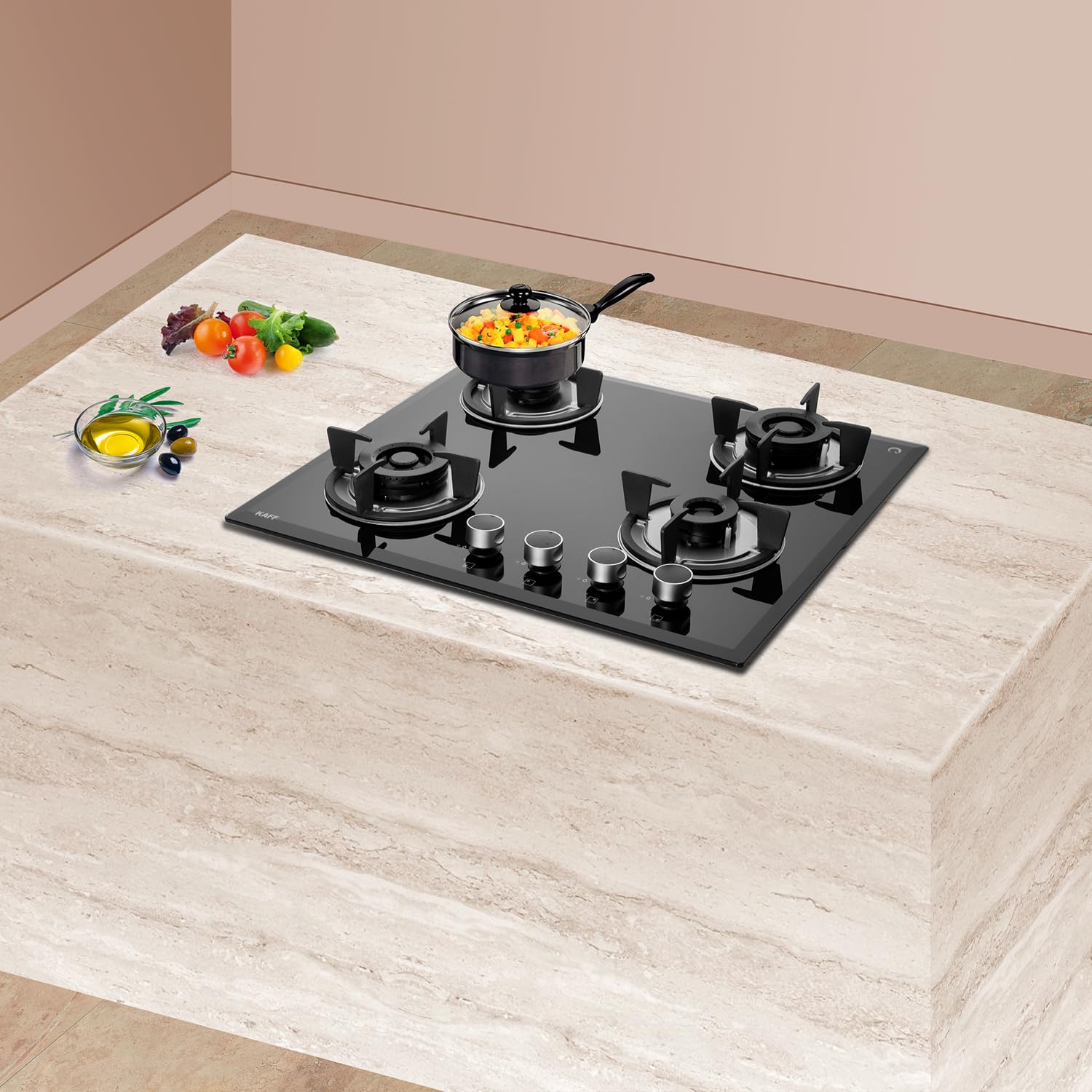

Image: The KAFF FBB 604 hob integrated into a kitchen countertop, demonstrating a typical installation.
4. Operating Instructions
Follow these steps to safely operate your KAFF FBB 604 hob.
Using the Burners:
- Place Cookware: Ensure your cooking vessel is centered on the pan support above the desired burner.
- Ignite Burner: Push down the corresponding control knob and turn it counter-clockwise to the 'Ignite' position. You will hear a clicking sound as the automatic electric ignition sparks.
- Adjust Flame: Once the flame ignites, hold the knob down for a few seconds to allow the thermocouple to heat up. Release the knob. If the flame extinguishes, repeat the ignition process. Adjust the flame intensity by turning the knob between the 'High' and 'Low' settings.
- Turn Off: To turn off a burner, turn the control knob clockwise to the 'Off' position.
Image: A close-up view of a burner in operation, demonstrating a stable blue flame.
Control Knobs:
The hob features ergonomic metal knobs for precise control over each burner's flame intensity.
Image: A detailed view of the ergonomic easy-grip metal control knobs.
5. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and efficient operation of your hob.
General Cleaning:
- Before Cleaning: Always ensure the hob is cool and disconnected from the power supply before cleaning.
- Glass Surface: Wipe the tempered glass surface with a soft cloth and a mild cleaning agent. Avoid abrasive cleaners or scouring pads that can scratch the glass.
- Burners and Pan Supports: Remove the pan supports and burner components (burner caps, crowns) when cool. Wash them with warm soapy water. For stubborn stains, a non-abrasive scrub can be used. Ensure all parts are completely dry before reassembling.
- Drip Tray: The stainless steel drip tray can be removed and cleaned with warm soapy water.
- Ignition Electrodes: Keep the ignition electrodes clean and dry to ensure reliable ignition. Do not use sharp objects to clean them.
6. Troubleshooting
Refer to this section for common issues and their solutions. If the problem persists, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not ignite. | No gas supply, power outage, wet/dirty ignition electrode, burner cap misalignment. | Check gas supply. Ensure power is on. Clean and dry ignition electrode. Realign burner cap correctly. |
| Irregular or yellow flame. | Burner ports clogged, incorrect gas pressure, burner components not seated properly. | Clean burner ports. Ensure burner components are correctly assembled. Contact a technician to check gas pressure. |
| Gas smell detected. | Gas leakage. | Immediately turn off main gas supply. Open windows and doors for ventilation. Do not operate electrical switches. Contact a qualified technician or emergency services. |
| Knob is stiff or difficult to turn. | Food debris or grease accumulation. | Clean around the knob base. Do not force the knob. |
7. Specifications
Detailed technical specifications for the KAFF FBB 604 Built-in Hob/Hobtop.
| Feature | Detail |
|---|---|
| Model Number | FBB 604 |
| Brand | KAFF |
| Colour | Black |
| Material (Glass) | 8mm Thick Black Tempered Glass |
| Material (Burners) | Full Brass |
| Material (Drip Tray) | Stainless Steel |
| Number of Heating Elements | 4 |
| Burner Configuration | 2 x Triple Ring 3.0 kW, 2 x Dual Ring 1.5 kW |
| Ignition Type | Automatic Electric Ignition |
| Controls Type | Knob |
| Power Source Type | Corded Electric |
| Item Dimensions (D x W x H) | 66D x 54.6W x 22.9H Centimeters |
| Inner Cutting Size | 555mm x 475mm |
| Item Weight | 18 Kilograms |
| Country of Origin | India |
| Included Components | 1x Built-in Hob, 1x Instruction Manual, 1x Warranty Card |
8. Warranty and Support
Your KAFF FBB 604 Built-in Hob/Hobtop comes with a manufacturer's warranty and dedicated customer support.
Warranty Information:
- Duration: 2 Years of Warranty.
- Coverage: Applies to Burners, Glass, Ignition Wire, Switch, Bypass, and Generator.
- Please retain your purchase receipt and warranty card for any warranty claims.
Customer Support:
For any queries, service requests, or technical assistance, please contact KAFF Appliances (I) Pvt. Ltd. customer care.
- Toll-Free Number: 18001802221
- Manufacturer: KAFF Appliances (I) Pvt. Ltd.
