Solar Ultrasonic Animal Repellent User Manual

1. Introduction and Overview

Thank you for choosing the Jahy2Tech Solar Ultrasonic Animal Repellent. This device is designed to humanely deter various animals from your property using a combination of ultrasonic sound, LED strobe lights, and an alarm. It is ideal for protecting gardens, yards, farms, and other outdoor areas from unwanted visitors such as cats, dogs, deer, raccoons, rabbits, birds, and more. Powered by solar energy, it offers an eco-friendly and low-maintenance solution for pest control.

Image: The Jahy2Tech Solar Ultrasonic Animal Repellent positioned in a lush green garden, demonstrating its effective range with green circular waves. Various animals like a bear, fox, and rabbit are shown being deterred.

Image: Four different outdoor settings illustrating the versatility of the repellent: a manicured garden, an open agricultural field, an apple orchard, and a residential backyard.

2. Key Features

• Solar Powered: Equipped with a solar panel for eco-friendly and continuous charging, reducing the need for manual intervention.
• PIR Motion Sensor: Detects animal movement within a 120-degree arc and up to 33 feet (10 meters) to activate the repellent functions.
• Multi-Frequency Ultrasonic Waves: Adjustable frequency settings to target specific types of animals without harming them.
• LED Strobe Light & Alarm: Features bright LED strobe lights and an audible alarm for enhanced deterrence, especially effective against larger or nocturnal animals.
• IP44 Waterproof Design: Built to withstand various outdoor weather conditions, ensuring reliable operation year-round.
• Dual Charging Methods: Can be charged via solar power or a USB port for use on cloudy or rainy days.

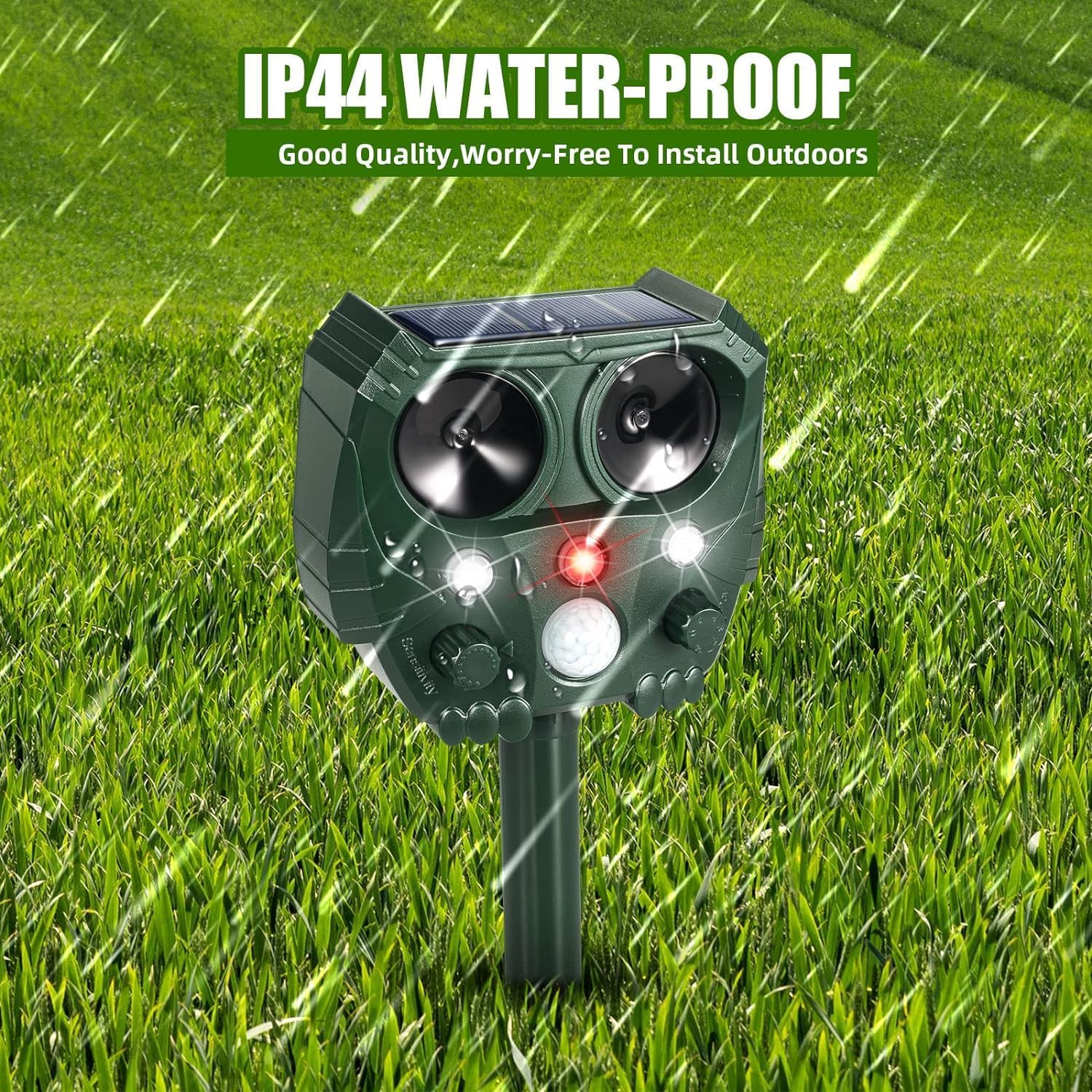

Image: The repellent device shown outdoors with simulated rain, highlighting its IP44 waterproof rating and suitability for all-weather installation.

Image: An illustration of the repellent device in a field, pointing out its solar power panel on top and the USB charge port located on the back, emphasizing its dual charging capabilities.

3. Setup and Installation

3.1 Package Contents

• 1 x Solar Ultrasonic Animal Repellent Unit
• 1 x Ground Stake (multi-part assembly)
• 1 x USB Charging Cable (optional, for initial charge or cloudy days)
• 1 x User Manual

3.2 Assembly

1. Carefully unpack all components.
2. Connect the ground stake sections together. The stake typically consists of two or three interlocking pieces.
3. Attach the assembled ground stake to the bottom of the repellent unit. Ensure it is securely fastened.

Image: A diagram from the product packaging illustrating the simple assembly process of connecting the ground stake sections and attaching them to the main unit.

3.3 Placement

• Choose an outdoor location that receives ample direct sunlight throughout the day to ensure optimal solar charging.
• Insert the assembled unit into the ground in the area you wish to protect. Ensure the top of the unit (where the solar panel and sensors are located) is above ground level and unobstructed.
• Position the unit so that the PIR motion sensor faces the area where animals are most likely to enter or pass through. The detection range is approximately 120 degrees horizontally and up to 33 feet (10 meters) depending on the animal's size and movement.
• Avoid placing the unit behind large objects or dense foliage that could block sunlight or obstruct the motion sensor's view.

Image: A visual representation of the repellent's 120-degree detection angle and 33-foot range, showing how it covers a wide area to protect your yard from various animals.

3.4 Initial Charging

For best performance, it is recommended to fully charge the unit before its first use. You can do this by:

• Placing the unit in direct sunlight for at least 8 hours.
• Alternatively, use the provided USB cable to charge the unit via a standard USB power adapter (not included) for 4-6 hours. The charging port is located on the back of the unit.

4. Operating Instructions

The Jahy2Tech Solar Ultrasonic Animal Repellent features adjustable settings to customize its operation based on the type of animal you wish to deter. There are two main dials on the unit: one for sensitivity (left dial) and one for frequency/mode (right dial).

4.1 Sensitivity Adjustment (Left Dial)

This dial controls the detection range of the PIR motion sensor. Turn the dial clockwise to increase sensitivity (longer detection range) and counter-clockwise to decrease sensitivity (shorter detection range). Adjust as needed for your specific area.

4.2 Frequency/Mode Adjustment (Right Dial)

This dial allows you to select different operating modes, each designed to target specific animals. Rotate the dial to choose from the following settings:

Image: A detailed graphic illustrating the five distinct frequency adjustment modes. Each mode is paired with icons of animals it is designed to repel, along with the corresponding frequency range.

• Mode 0: OFF. The unit is turned off.
• Mode 1: 13.5kHz - 20kHz. Primarily repels animals such as rats, mice, dogs, foxes, martens, etc.
• Mode 2: 15kHz - 25kHz. Primarily repels animals such as cats, raccoons, badgers, skunks, etc.
• Mode 3: 25kHz - 34.5kHz. Primarily repels animals such as birds, bats, rodents, etc.
• Mode 4: Strong LED Strobe Light & Alarm. This mode activates a powerful LED strobe light and an audible alarm sound, effective against larger wild animals like deer, boars, and bears.
• Mode 5: All Functions Combined. This mode cycles through all frequencies (Modes 1, 2, 3) and activates the strong LED strobe light and alarm (Mode 4) for comprehensive deterrence against a wide range of animals. This is often the most effective setting for general pest control.

4.3 Operation

Once the desired mode and sensitivity are set, the unit will automatically activate when an animal enters its detection range. The ultrasonic sound, LED light, and/or alarm will emit for a short period, then reset, waiting for the next detection. This intermittent operation helps conserve battery life and prevents animals from becoming accustomed to the deterrent.

5. Maintenance

• Cleaning: Periodically wipe the solar panel and the motion sensor lens with a soft, damp cloth to remove dust, dirt, or debris. A clean solar panel ensures efficient charging. Do not use harsh chemicals or abrasive materials.
• Obstruction Check: Regularly check that no plants, leaves, or other objects are blocking the solar panel or the motion sensor.
• Winter Storage: If storing the unit for an extended period, especially during winter months with limited sunlight, ensure it is fully charged. Store it in a dry place.
• Battery Life: The built-in rechargeable battery is designed for long-term use. If you notice a significant decrease in performance or charging ability after several years, the battery may need replacement. Contact customer support for assistance.

6. Troubleshooting

7. Specifications

Image: A collage of four images displaying the product's retail packaging, including details about its features and dimensions.

8. Warranty and Support

Jahy2Tech is committed to providing high-quality products. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the product packaging or contact our customer support for specific warranty terms and conditions.

For any questions, technical assistance, or warranty claims, please contact Jahy2Tech customer support through the retailer's platform or visit the official Jahy2Tech brand store on Amazon.
