1. Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Novilla Full Size Metal Platform Bed Frame with Headboard. Please read all instructions carefully before assembly and retain this manual for future reference.
The Novilla bed frame features a metal structure with wood slats for mattress support, eliminating the need for a box spring. It includes a headboard and is designed for stability and ease of assembly.
2. Safety Information
- Ensure all components are present and undamaged before beginning assembly. Do not use if any parts are missing or broken.
- Assemble the bed frame on a soft, clean surface to prevent scratches to the product or your floor.
- Do not overtighten screws during assembly, as this may damage the threads or components.
- Periodically check all bolts and connections to ensure they remain tight.
- Do not allow children to climb or play on the bed frame during or after assembly.
- The bed frame is designed to support a maximum weight of 1200 lbs. Do not exceed this weight limit.
- The wood slats are P2 grade, meeting strict formaldehyde emission standards for safe home use.
3. Package Contents
Verify that all items listed below are included in your package. If any parts are missing, please contact customer support.
- Headboard components
- Side rails (metal)
- Center support beam(s)
- Support legs (with anti-scratch pads)
- Wood slats (P2 grade)
- Assembly hardware (screws, bolts, washers, Allen wrench)
- Instruction manual
4. Setup and Assembly Instructions
Assembly is designed to be straightforward and can typically be completed by one person. All necessary tools are included.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent damage.
- Assemble the Headboard: Connect the headboard components as per the diagrams provided in the separate assembly sheet. Ensure all bolts are finger-tight initially.
- Attach Side Rails: Connect the side rails to the assembled headboard using the provided hardware. Do not fully tighten yet.
- Install Center Support: Attach the center support beam(s) and any associated support legs to the frame. Ensure the middle leg provides stable support to prevent shaking.
- Attach Footboard (if applicable): If your model includes a footboard, attach it to the side rails.
- Tighten All Connections: Once the main frame is assembled, go back and securely tighten all bolts and screws.
- Place Wood Slats: Lay the wood slats across the frame. The Novilla bed frame utilizes Velcro to connect the wood slats to the metal frame, which helps reduce noise and simplifies setup. Ensure the anti-slip strips are facing upwards to prevent mattress shifting.
- Final Check: Confirm all connections are secure and the frame is stable before placing your mattress.
Image: Fully assembled Novilla Full Size Bed Frame with Headboard, showcasing its cream white finish and under-bed clearance.
Image: Detail showing the anti-slip strips on the wood slats, designed to prevent mattress movement.
Image: Close-up of the Velcro and silent strips used to connect wood slats to the metal frame, reducing noise.
5. Operating Instructions
The Novilla bed frame is designed for use with a full-size mattress. No box spring is required due to the robust wood slat support system.
- Place your full-size mattress directly onto the assembled wood slats.
- The headboard provides a supportive backrest for comfort.
- The 10-inch clearance underneath the bed offers ample space for storage.
Image: The bed frame with a mattress and pillows, highlighting the headboard design.
Image: An illustration demonstrating the 12-inch clearance beneath the bed frame, suitable for storage.
6. Maintenance
- Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
- Inspection: Periodically inspect all bolts, screws, and connections to ensure they are tight. Retighten if necessary.
- Floor Protection: The bed legs are equipped with anti-scratch pads to protect your floors. Ensure these pads remain in place.
Image: Close-up view of a bed leg featuring an anti-scratch pad for floor protection.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame wobbles or shakes | Loose bolts or screws; uneven floor. | Ensure all assembly bolts and screws are securely tightened. Check if the floor is level; use shims if necessary. |
| Squeaking noises | Loose connections; slats rubbing against frame; mattress movement. | Retighten all bolts. Ensure wood slats are properly seated and the Velcro is engaged. Verify mattress is not shifting excessively on the anti-slip strips. |
| Mattress slides on frame | Anti-slip strips not properly applied or worn. | Ensure the anti-slip strips on the slats are clean and in good condition. If necessary, contact support for replacement strips. |
| Missing parts during assembly | Packaging error. | Contact Novilla customer support immediately with your purchase details. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | N-F10017-F-WH-New |
| Size | Full |
| Product Dimensions (L x W x H) | 76.18" x 53.94" x 38.11" |
| Color | Cream White |
| Material | Metal frame, Wood slats (P2 grade) |
| Weight Capacity | Up to 1200 lbs |
| Under-bed Clearance | 10 inches |
| Assembly Required | Yes |
| Special Features | No Box Spring Needed, Squeak Resistant (Velcro & silent strips), Anti-scratch pads, Thickened Metal Pipe |

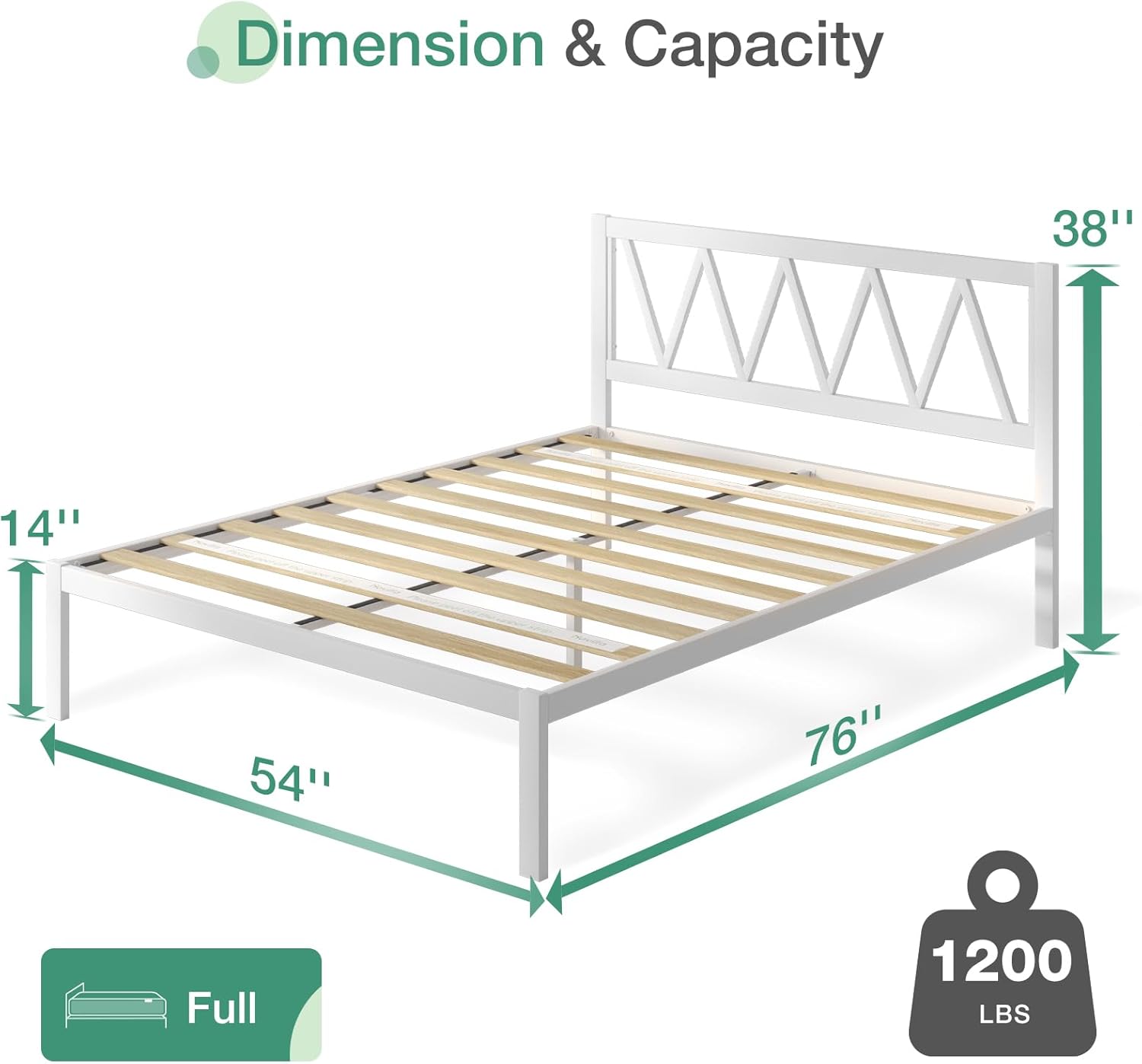

Image: Diagram illustrating the dimensions (76"L x 54"W x 38"H) and 1200 lbs weight capacity of the Full size bed frame.
Image: Close-up of the P2 grade environmental protection wood slats, highlighting their quality.
Image: Comparison showing the thickened metal pipe used in Novilla bed frames, indicating increased durability.
9. Warranty and Support
Novilla is committed to providing quality products. For any questions, concerns, or to report missing/damaged parts, please contact Novilla customer support.
For more information about Novilla products and support, please visit the official Novilla Store: Novilla Store on Amazon.
Please retain your proof of purchase for any warranty claims.
