Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Kwikset Dakota 687DA-LIP Single Cylinder Handleset. This handleset is designed for exterior use and features a single cylinder deadbolt for enhanced security. Please read all instructions carefully before beginning installation or operation.

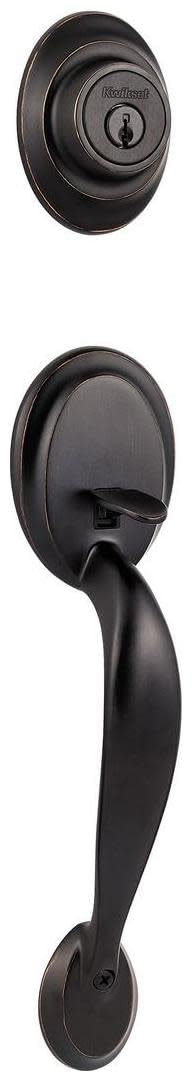

Image: Kwikset Dakota 687DA-LIP Single Cylinder Handleset in Venetian Bronze. This image displays the complete exterior handleset, including the deadbolt and the pull handle, in a dark, rich finish.
Setup and Installation
The Kwikset Dakota 687DA-LIP handleset is an exterior-only component. A compatible interior pack, which includes the necessary installation hardware, must be purchased separately to complete the installation. This handleset features a fully adjustable latch and deadbolt designed to fit all standard door preparations.
Pre-Installation Considerations:
- Ensure you have the corresponding interior pack and all required tools before starting.
- Verify door thickness. For doors thicker than 1-3/4 inches, an optional kit is available for 2-1/4 inch thick doors.
- Confirm door handing (right or left) to ensure correct orientation of the handleset.
Installation Steps:
- Prepare the Door: Ensure the door is properly bored and mortised according to standard door preparation specifications.
- Install Latch and Deadbolt: Insert the latch and deadbolt mechanisms into the door edge. Adjust as necessary to fit the backset.
- Mount Exterior Handleset: Position the exterior handleset onto the door, aligning it with the latch and deadbolt mechanisms.
- Attach Interior Pack: Secure the interior pack (sold separately) to the exterior handleset using the provided screws and hardware. Ensure all components are aligned and tightened securely.
- Test Operation: After installation, test the deadbolt and latch operation to ensure smooth functionality.
Images: Kwikset Dakota Handleset installed on a wooden door (left) and a white door (right). These images illustrate the handleset's appearance when properly installed on different door types.
Operating Instructions
The Kwikset Dakota Single Cylinder Handleset provides secure entry and exit functionality for your door.
Deadbolt Operation:
- To Lock from Exterior: Insert the key into the deadbolt cylinder and turn it to extend the 1-inch solid-core throw bolt into the door frame. Remove the key.
- To Unlock from Exterior: Insert the key into the deadbolt cylinder and turn it to retract the throw bolt. Remove the key.
- To Lock/Unlock from Interior: Use the thumb turn located on the interior pack (sold separately) to extend or retract the deadbolt.
Latch Operation:
- To Open from Exterior: Depress the thumb piece on the exterior handleset to retract the latch bolt.
- To Open from Interior: Rotate the grip or lever on the interior pack (sold separately) to retract the latch bolt.
Security Features:
This handleset incorporates patented side locking bar technology, which offers improved security by protecting against lock bumping and other common attack techniques. The deadbolt features a full 1-inch solid-core throw bolt for robust security.
Each lock is supplied with two keys. For orders of three or more items keyed alike, a total of six keys will be provided.
Maintenance
Proper maintenance ensures the longevity and smooth operation of your Kwikset handleset.
- Cleaning: Clean the handleset regularly with a soft, damp cloth. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Lubrication: Periodically apply a silicone-based lubricant to the internal mechanisms of the deadbolt and latch. Do not use oil-based lubricants, as they can attract dirt and dust.
- Inspection: Routinely check all screws and fasteners to ensure they are tight. Loose components can affect performance and security.
Troubleshooting
If you encounter issues with your handleset, refer to the following common problems and solutions:
- Key is difficult to turn or remove:
- Ensure the key is fully inserted.
- Apply a small amount of graphite lubricant to the keyway.
- Check for any obstructions in the keyway.
- Deadbolt or latch is sticking:
- Verify that the strike plate on the door frame is properly aligned with the bolt.
- Ensure all mounting screws are tightened correctly, but not overtightened.
- Lubricate the bolt mechanism with a silicone-based spray.
- Handleset feels loose:
- Tighten all visible mounting screws on both the exterior handleset and the interior pack.
If problems persist after attempting these solutions, contact Kwikset customer support for further assistance.
Specifications
- Model Number:
- 687DA-LIP
- Brand:
- Kwikset
- Material:
- Bronze
- Color:
- Venetian Bronze
- Style:
- Dakota
- Exterior Finish:
- Bronze
- Item Weight:
- 3.3 pounds
- Lock Type:
- Key Lock
- Hand Orientation:
- Right
- Indoor Outdoor Usage:
- Outdoor
- UPC:
- 883351935616
Warranty Information
The Kwikset Dakota 687DA-LIP Single Cylinder Handleset is backed by a Limited Lifetime Warranty. This warranty covers defects in material and workmanship under normal use. For specific terms and conditions, or to make a warranty claim, please refer to the official Kwikset warranty documentation or contact Kwikset customer support.
Customer Support
For further assistance, technical support, or to inquire about replacement parts, please contact Kwikset customer service. You can typically find contact information on the official Kwikset website or within the packaging materials that came with your product.
Online Resources: Visit the official Kwikset website for FAQs, additional product information, and support resources: www.kwikset.com
