Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of Birkosit Schulze AIS B010 Sealing Compound. Please read these instructions carefully before use and retain them for future reference. This product is designed for sealing metallic joints, particularly on steam turbines, ensuring a reliable and durable seal.

2. Safety Information

WARNING: Always follow safety precautions when handling chemical compounds.

• Wear appropriate personal protective equipment (PPE), including gloves and eye protection, to prevent skin and eye contact.
• Ensure adequate ventilation in the work area to avoid inhalation of fumes.
• Keep out of reach of children and pets.
• Do not ingest. In case of ingestion, seek immediate medical attention.
• Store in a cool, dry place away from direct sunlight and sources of ignition.
• Dispose of unused product and waste materials according to local regulations.

3. Product Description

The Birkosit Schulze AIS B010 is a high-quality sealing compound specifically formulated for demanding industrial applications. It is supplied in a 1 kg can, designed for sealing metallic joints, particularly effective in high-pressure and high-temperature environments such as those found in steam turbines.

Key features include:

• Birkosit Schulze AIS B010 sealing compound.
• Suitable for metallic joints.
• Ideal for steam turbine applications.

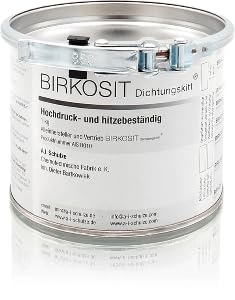

Figure 3.1: A 1 kg can of Birkosit Schulze AIS B010 Sealing Compound, showing the product packaging.

4. What's in the Box

The product package contains the following item:

• 1 x Birkosit Schulze AIS B010 Sealing Compound (1 kg can)

5. Setup and Preparation

Proper preparation of the surfaces is crucial for optimal sealing performance.

1. Surface Cleaning: Ensure all metallic joint surfaces are thoroughly clean, dry, and free from oil, grease, dirt, rust, or any other contaminants. Use a suitable degreaser if necessary.
2. Surface Roughening (Optional): For extremely smooth surfaces, a slight roughening (e.g., with fine sandpaper) may improve adhesion, but this is generally not required for typical metallic joints.
3. Temperature: Apply the compound at ambient temperatures, ideally between 15°C and 25°C (59°F and 77°F). Ensure the can is at room temperature before opening.

6. Operating Instructions

Follow these steps for effective application of the sealing compound:

1. Open the Can: Carefully open the 1 kg can of Birkosit Schulze AIS B010 Sealing Compound.
2. Stirring: If the compound has settled, gently stir it to achieve a consistent texture before application.
3. Application: Apply a thin, even layer of the compound to one or both mating surfaces of the metallic joint using a spatula, brush, or similar appropriate tool. Ensure complete coverage of the sealing area.
4. Assembly: Bring the prepared metallic joints together promptly after application. Apply even pressure to ensure proper contact and spread of the compound.
5. Curing: The compound will begin to cure upon exposure to air and pressure. The exact curing time can vary depending on temperature, humidity, and layer thickness. Allow sufficient time for the compound to set before subjecting the joint to full operational pressure or temperature. Consult specific project requirements for full curing times.

7. Maintenance

Proper storage and handling will ensure the longevity and effectiveness of the sealing compound.

• Storage: Store the can tightly closed in its original packaging in a cool, dry place, away from direct sunlight and extreme temperatures.
• Shelf Life: Refer to the product label for specific shelf life information. Ensure the lid is securely fastened after each use to prevent drying out.
• Cleaning Tools: Clean application tools immediately after use with a suitable solvent before the compound cures.

8. Troubleshooting

If you encounter issues during application or with the seal, consider the following:

• Poor Adhesion:
  • Ensure surfaces were thoroughly cleaned and dry before application.
  • Check for contaminants like oil or grease.
  • Verify the compound was applied evenly and with sufficient pressure during assembly.
• Compound Drying Out in Can:
  • Ensure the lid was securely closed after previous use.
  • Store in a cool, dry environment.
• Leakage After Curing:
  • Confirm sufficient curing time was allowed before subjecting the joint to pressure.
  • Re-evaluate surface preparation and application technique.
  • Check for proper alignment and even pressure during joint assembly.

If problems persist, contact the manufacturer or supplier for further assistance.

9. Specifications

10. Warranty and Support

Specific warranty information for the Birkosit Schulze AIS B010 Sealing Compound is not provided in the product details. For warranty claims, technical support, or further inquiries, please contact the manufacturer, Schulze, or your point of purchase directly.

It is recommended to retain your purchase receipt as proof of purchase.

11. Official Product Videos

No official product videos from the seller are available for this product based on the provided information.
