1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Eueiriup 60-inch Electric Fireplace. Please read all instructions carefully before installation and use, and retain this manual for future reference.
Figure 1: Eueiriup 60-inch Electric Fireplace with Remote Control
2. Important Safety Information
To reduce the risk of fire, electric shock, or injury, adhere to the following safety guidelines:
- Read all instructions before using this fireplace.
- This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains, at least 3 feet (0.9 meters) from the front of the fireplace.
- Extreme caution is necessary when any heater is used by or near children or invalids and whenever the fireplace is left operating and unattended.
- Do not operate any fireplace with a damaged cord or plug, or if the heater malfunctions or has been dropped or damaged in any manner.
- Do not run power cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
- Connect to properly grounded outlets only.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the fireplace.
- To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
- This fireplace is ETL approved, meeting high standards for safety and quality. It includes a built-in auto-heat kill feature to prevent overheating.
3. Package Contents
Verify that all components are present before beginning installation:
- Electric Fireplace Unit
- Remote Control
- Mounting Hardware (screws, wall anchors, mounting bracket)
- Decorative Media (e.g., crystal embers)
- Instruction Manual
4. Product Features
- Versatile Installation: Can be recessed into a wall or surface-mounted.
- Customizable LED Flames: Choose from 12 flame colors, 12 flame bed colors, 5 flame speed modes, and 5 flame brightness levels.
- Efficient Heating: Two heat modes (750W or 1500W) provide supplemental warmth.
- Slim Design: With a thickness of only 3.19 inches, it saves space and offers a sleek appearance.
- Control Options: Operate via the included remote control or the integrated touch screen.
- Safety Features: ETL approved with built-in auto-heat kill protection.
- Timer Function: Set the fireplace to automatically turn off after a specified duration (1-8 hours).
Figure 2: Customizable Flame and Bed Colors, Brightness, and Speed Options
Figure 3: Key Features Overview
5. Installation Instructions
Your Eueiriup electric fireplace can be installed in two ways: recessed into a wall or surface-mounted on a wall.
5.1. Recessed Installation
- Prepare the Opening: Create a framed opening in your wall with the following dimensions for the 60-inch model: Width: 52.24-52.64 inches, Height: 16.93-17.7 inches, Depth: 2.60-3.43 inches. Ensure the opening is structurally sound and near a grounded electrical outlet.
- Insert Fireplace: Carefully slide the fireplace unit into the prepared opening.
- Secure the Unit: Use the provided mounting screws to secure the fireplace to the wall studs through the designated mounting holes on the unit.
5.2. Wall Mounted Installation
- Choose Location: Select a suitable wall location away from drapes, furniture, and high-traffic areas. Ensure it is near a grounded electrical outlet.
- Install Mounting Bracket: Secure the wall mounting bracket to the wall studs using the provided screws. Ensure the bracket is level.
- Hang Fireplace: Carefully lift the fireplace unit and hook it onto the wall mounting bracket.
- Secure the Unit: Use additional screws to secure the bottom of the fireplace to the wall, if applicable, to prevent accidental dislodgement.

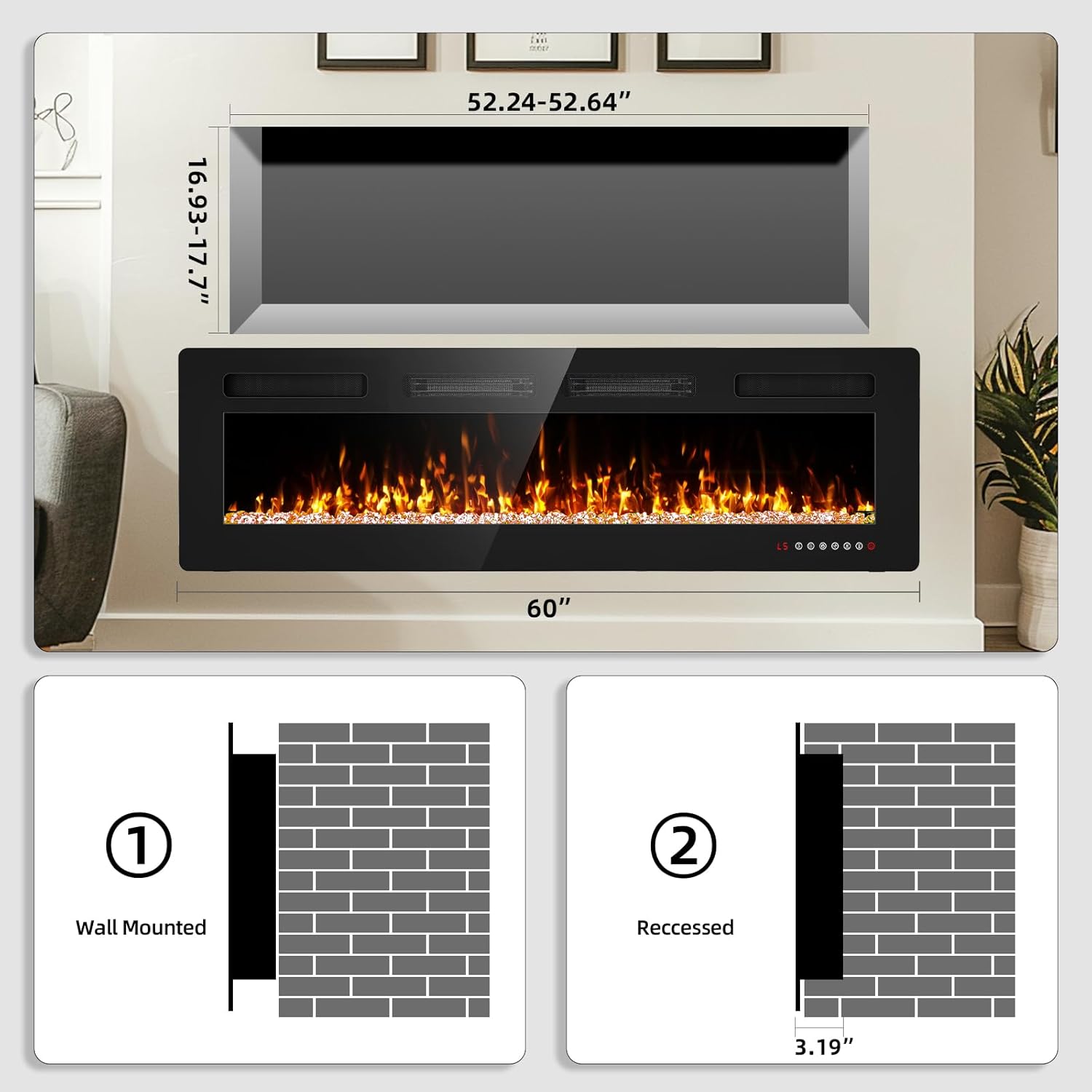

Figure 4: Installation Options (Wall Mounted and Recessed)
Figure 5: Detailed Installation Dimensions
6. Operating Instructions
Your fireplace can be operated using the remote control or the touch screen panel located on the unit.
6.1. Remote Control Functions
Figure 6: Remote Control and Touch Screen Functions
- Power ON/OFF: Press the power button to turn the unit on or off.
- Heater (750W/1500W): Toggle between low heat (750W), high heat (1500W), or no heat.
- Flamer (5 Flame Speed Settings): Adjust the speed of the flame effect.
- Dimmer (L1 to L5 Brightness): Control the brightness of the flame.
- Bed Color (12 Colors Options): Change the color of the flame bed.
- Flame Color (12 Colors Options): Change the color of the flames.
- Timer (1H-8H): Set an automatic shut-off timer from 1 to 8 hours.
6.2. Touch Screen Control
The clear and sensitive LED touch screen on the fireplace unit allows direct control of all functions. Each button operates independently. Avoid moving or removing the glass panel.
Figure 7: Remote Control vs. Touch Screen Control
6.3. Heat Output
The fireplace offers two heat settings: 750W for moderate warmth and 1500W for higher heat output. You can also operate the flame effects independently without heat for year-round ambiance.
Figure 8: Heat Output Options
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your electric fireplace.
- Cleaning: Always disconnect power before cleaning. Use a soft, damp cloth to clean the exterior surfaces. Do not use abrasive cleaners or sprays.
- Ventilation: Ensure that the air intake and exhaust vents are clear of dust and debris. Periodically vacuum these areas.
- Storage: If storing the fireplace for an extended period, unplug it and store it in a dry, dust-free location.
8. Troubleshooting
If you experience issues with your fireplace, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fireplace does not turn on. | No power to the unit; power switch off; remote control batteries dead. | Check power outlet and circuit breaker. Ensure main power switch is ON. Replace remote control batteries. |
| No heat output. | Heater function not activated; thermostat set too low; overheating protection activated. | Activate heater function via remote/touch screen. Increase thermostat setting. Unplug unit for 15 minutes to reset overheating protection. Clear any obstructions from vents. |
| Flame effect not working. | Flame effect not activated; LED lights malfunction. | Activate flame effect via remote/touch screen. If issue persists, contact customer support. |
| Remote control not working. | Batteries dead; remote out of range; sensor blocked. | Replace batteries. Ensure remote is within range and pointed at the fireplace sensor. Remove any obstructions. |
9. Specifications
- Brand: Eueiriup
- Model Name: 60B-GBL-SSDQ
- Power Source: Corded Electric
- Product Dimensions: 3.19"D x 60"W x 18.11"H
- Material: Metal
- Finish Type: Polished
- Installation Type: Wall Mount / Recessed
- Heat Output: 1500 Watts (also 750W option)
- Special Feature: Adjustable Flame, Dimmer, LED Flame
- Style: Modern
- Color: Black
- Room Type: Office (suitable for various rooms)
- Ventilation Type: Vent Free
- Included Components: Remote Control
- Burner Type: Quartz
- Item Weight: 52 pounds
- ASIN: B0CW3B4HRN
- UPC: 602835655570
10. Warranty and Support
This Eueiriup electric fireplace comes with a Limited Warranty. For detailed warranty information or customer support, please refer to the warranty card included with your product or contact Eueiriup customer service directly. Our professional customer service team is available to assist with any questions or concerns.
