EDISON ELECTRIC Coffee Machine Instruction Manual

1. Important Safety Instructions

Please read all instructions carefully before using your EDISON ELECTRIC Coffee Machine. Retain this manual for future reference.

• Do not immerse the appliance, power cord, or plug in water or any other liquid.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Close supervision is necessary when the appliance is used by or near children.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place the appliance on or near a hot gas or electric burner, or in a heated oven.
• Always fill the water reservoir first, then plug the cord into the wall outlet. To disconnect, turn any control to 'off', then remove the plug from the wall outlet.
• Do not use the appliance for other than intended use.
• Scalding may occur if the lid is removed during the brewing cycle.
• The carafe is designed for use with this appliance only. It must never be used on a range top.
• Do not set a hot carafe on a cold or wet surface.
• Do not use a cracked carafe or a carafe having a loose or weakened handle.
• Do not clean carafe with cleansers, steel wool pads, or other abrasive materials.

2. Product Overview

Familiarize yourself with the components of your EDISON ELECTRIC Coffee Machine before first use.

Image 2.1: The EDISON ELECTRIC Coffee Machine with a brewed cup of coffee, showcasing its sleek design.

Components:

• Water Reservoir: Holds water for brewing. Features a clear water level indicator.
• Lid: Covers the water reservoir and filter basket area.
• Filter Basket: Removable basket for holding ground coffee.
• Permanent Filter: Reusable filter for ground coffee.
• Control Knob/Dial: For setting brewing options or timer.
• Power Switch: On/Off button, often with an indicator light.
• Glass Carafe: Collects brewed coffee, with capacity markings.
• Warming Plate: Keeps the carafe warm after brewing.
• Measuring Scoop: For accurate coffee measurement.

Image 2.2: The coffee machine with its top lid open, revealing the filter basket area for adding coffee grounds and water.

Image 2.3: The glass carafe with a handle and measurement markings, designed to collect brewed coffee.

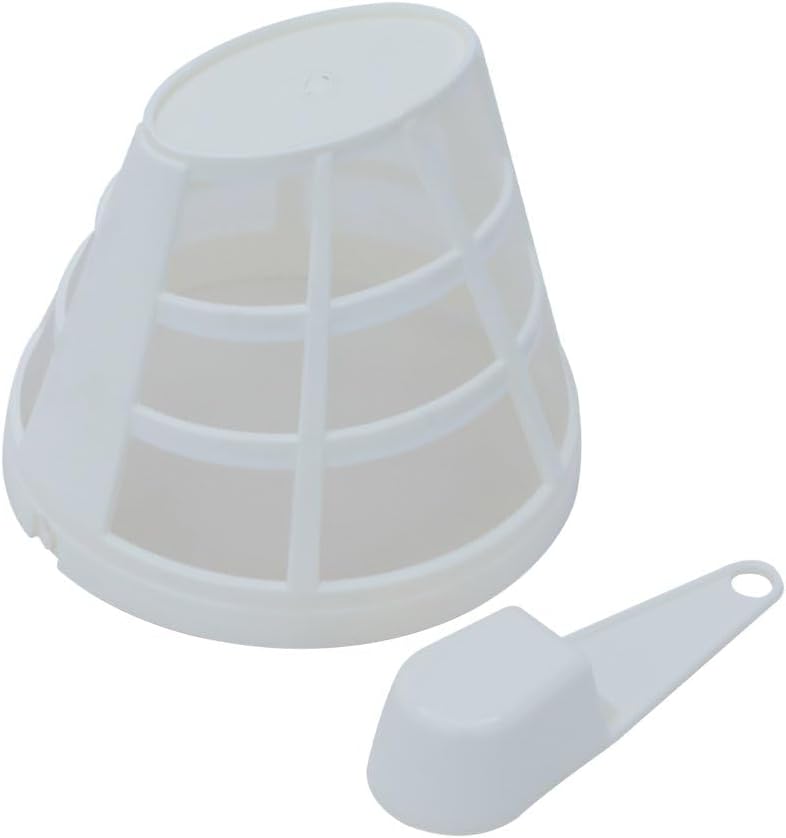

Image 2.4: The reusable permanent filter and a measuring scoop, essential accessories for preparing coffee.

3. Setup

Before first use, perform a cleaning cycle without coffee.

1. Unpack: Carefully remove all packaging materials and inspect the coffee machine for any damage.
2. Clean Components: Wash the glass carafe, permanent filter, and measuring scoop in warm, soapy water. Rinse thoroughly and dry.
3. Position: Place the coffee machine on a flat, stable, heat-resistant surface, away from water sources.
4. First Clean Cycle:
   • Fill the water reservoir with clean water up to the MAX level (1.25 Liters).
   • Place the permanent filter into the filter basket.
   • Close the lid and place the empty carafe on the warming plate.
   • Plug the power cord into a suitable electrical outlet.
   • Press the power switch to start a brewing cycle. Allow the cycle to complete.
   • Discard the water from the carafe. Your machine is now ready for use.

4. Operating Instructions

Brewing Coffee:

1. Fill Water Reservoir: Open the lid and fill the water reservoir with fresh, cold water to the desired level using the water level indicator. Do not exceed the MAX line.
2. Add Coffee Grounds: Place the permanent filter into the filter basket. Add the desired amount of ground coffee using the measuring scoop. A general guideline is one scoop (approximately 7g) per cup. Adjust to your taste.
3. Close Lid: Ensure the lid is securely closed.
4. Position Carafe: Place the empty glass carafe onto the warming plate. Ensure it is correctly positioned to activate the drip-stop mechanism.
5. Start Brewing: Plug the machine into a power outlet. Press the power switch. The indicator light will illuminate, and brewing will begin.
6. Serve: Once the brewing cycle is complete, the machine will automatically switch to the 'keep warm' function. You can remove the carafe to serve. The warming plate will keep the coffee hot for a period before automatically shutting off.

Timer Function:

Your EDISON ELECTRIC Coffee Machine features a timer function for delayed brewing.

1. Prepare Machine: Follow steps 1-4 of 'Brewing Coffee' (fill water, add coffee, close lid, position carafe).
2. Set Current Time: Refer to the control knob/dial. Rotate it to set the current time.
3. Set Program Time: Rotate the control knob/dial to the 'Program' setting. Set the desired time for brewing to start.
4. Activate Timer: Rotate the control knob/dial to the 'Timer' setting. The indicator light will show that the timer is active. The machine will automatically start brewing at the set program time.

5. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the life of your coffee machine.

Daily Cleaning:

1. Unplug: Always unplug the coffee machine from the power outlet and allow it to cool completely before cleaning.
2. Discard Grounds: Remove the filter basket and permanent filter. Discard used coffee grounds.
3. Wash Removable Parts: Wash the carafe, permanent filter, and filter basket in warm, soapy water. Rinse thoroughly and dry. These parts are generally top-rack dishwasher safe, but hand washing is recommended for longevity.
4. Wipe Exterior: Wipe the exterior of the coffee machine with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
5. Clean Warming Plate: Wipe the warming plate with a damp cloth. Do not use abrasive materials.

Descaling (Every 2-4 Weeks, depending on water hardness):

Mineral deposits from water can build up in your coffee machine, affecting performance and taste. Descaling helps remove these deposits.

1. Prepare Descaling Solution: Mix 1 part white vinegar with 2 parts water. Fill the water reservoir with this solution up to the MAX level.
2. Run Half Cycle: Place the empty carafe on the warming plate. Start a brewing cycle. After about half of the solution has brewed through, turn off the machine and let it soak for 15-20 minutes.
3. Complete Cycle: Turn the machine back on and allow the remaining solution to brew through.
4. Rinse Cycles: Discard the vinegar solution. Fill the water reservoir with clean water and run two full brewing cycles with only water to rinse out any residual vinegar taste.

6. Troubleshooting

Refer to this table for common issues and their solutions.

7. Specifications

Technical details of your EDISON ELECTRIC Coffee Machine.

8. Warranty and Support

This EDISON ELECTRIC Coffee Machine is covered by a manufacturer's warranty against defects in materials and workmanship under normal use. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period.

For technical support, service, or warranty claims, please contact EDISON ELECTRIC customer service through the retailer where the product was purchased or visit the official EDISON ELECTRIC website for contact information.

Please have your model number and purchase receipt available when contacting support.
