Beko FSE13040N Vertical Freezer Instruction Manual

1. Product Overview

The Beko FSE13040N is a compact and efficient vertical freezer designed for convenient food storage. Featuring a static cooling system and a reversible door, it offers flexibility in placement and ease of use. With a net capacity of 117 liters, it includes three freezer drawers and an ice cube tray, making it suitable for various freezing needs. Its Energy Class E rating ensures efficient operation.

Figure 1: Front view of the Beko FSE13040N Vertical Freezer, showcasing its white finish and compact design.

2. Safety Information

Please read this instruction manual carefully before using your appliance. Keep it for future reference. Always follow basic safety precautions to reduce the risk of fire, electric shock, and injury.

• Ensure the appliance is disconnected from the power supply before cleaning or maintenance.
• Do not damage the refrigerant circuit. The refrigerant R600a is flammable.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• This appliance is intended for household use only.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Children should be supervised to ensure that they do not play with the appliance.

3. Setup and Installation

3.1 Unpacking

Carefully remove all packaging materials. Inspect the appliance for any damage. Report any damage to your retailer immediately. Keep packaging materials out of reach of children.

3.2 Placement

Place the freezer on a firm, level surface. Ensure there is adequate ventilation around the appliance. Maintain a minimum distance of 10 cm (4 inches) from walls and other furniture to allow for proper air circulation and heat dissipation. Avoid placing the appliance in direct sunlight or near heat sources like radiators or ovens.

3.3 Door Reversal

The Beko FSE13040N features a reversible door, allowing the hinge to be mounted on either the right or left side to suit your kitchen layout. Refer to the detailed diagrams in the separate installation guide for step-by-step instructions on how to reverse the door. This process typically involves moving the hinges, door stopper, and handle to the opposite side.

3.4 Initial Power-on

After positioning the freezer, wait at least 4 hours before plugging it into the power outlet. This allows the refrigerant to settle. Once plugged in, the freezer will begin to cool. Allow it to operate for 2-3 hours empty before loading with food to ensure it reaches the optimal freezing temperature.

4. Operating Instructions

4.1 Temperature Control

The freezer is equipped with a thermostat to control the internal temperature. The recommended operating temperature for freezing food is -18°C. Adjust the thermostat dial or controls to set the desired temperature. Higher settings typically result in colder temperatures.

4.2 Fast Freeze Function

For rapid freezing of fresh food, activate the Fast Freeze function. This function quickly lowers the freezer temperature to preserve the quality and nutritional value of newly added items. Activate it approximately 24 hours before adding a large quantity of fresh food. Deactivate the function once the food is frozen, or it will automatically switch off after a certain period (refer to the appliance's display or indicator lights).

4.3 Food Storage Guidelines

Organize food within the three freezer drawers for efficient storage and easy access. Ensure food is properly sealed in airtight containers or freezer bags to prevent freezer burn and odor transfer. Do not place hot food directly into the freezer; allow it to cool down first.

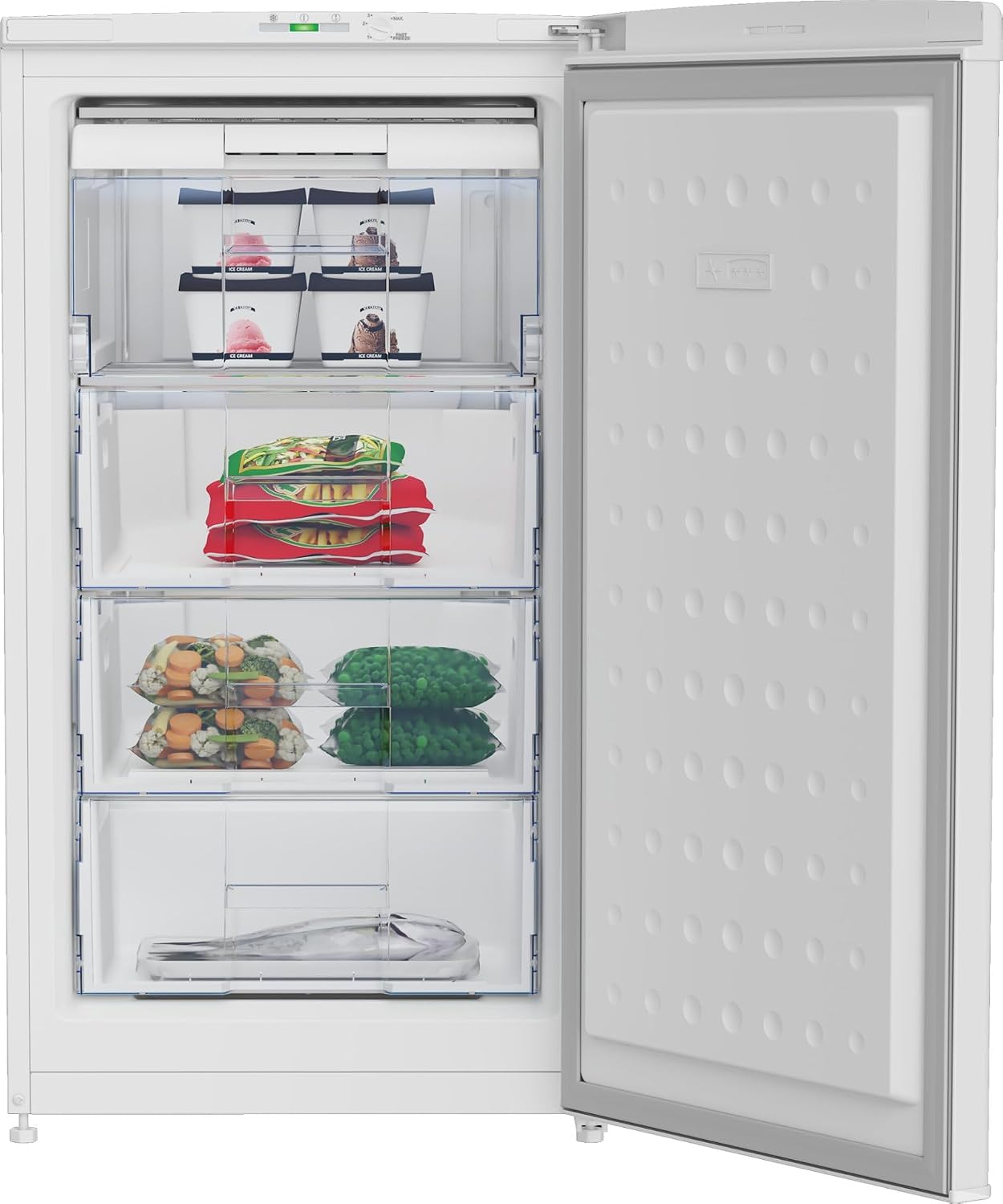

Figure 2: Interior view of the Beko FSE13040N Vertical Freezer, showing the three transparent drawers for organized storage of frozen goods.

5. Maintenance

5.1 Cleaning

Regular cleaning helps maintain the efficiency and hygiene of your freezer. Disconnect the appliance from the power supply before cleaning. Clean the interior with a solution of mild detergent and warm water. Wipe dry thoroughly. The exterior can be cleaned with a soft, damp cloth. Avoid abrasive cleaners or solvents.

5.2 Defrosting

As the Beko FSE13040N uses a static cooling system, manual defrosting is required periodically. Frost buildup reduces efficiency and storage capacity. Defrost when the frost layer reaches about 5 mm (0.2 inches) thick. To defrost:

1. Unplug the freezer from the power outlet.
2. Remove all frozen food and store it in a cool place or insulated container.
3. Leave the freezer door open to allow the frost to melt naturally. You can place towels at the bottom to absorb water. Do not use sharp objects or heating devices to speed up defrosting.
4. Once all frost has melted, clean and dry the interior thoroughly.
5. Plug the freezer back in and allow it to cool down before returning food.

6. Troubleshooting

Before contacting service, check the following common issues:

If the problem persists after checking these points, please contact qualified service personnel.

7. Specifications

Figure 3: Energy efficiency label for the Beko FSE13040N, indicating its Class E rating.

8. Warranty and Support

Beko provides a standard manufacturer's warranty for this appliance. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. For technical support, spare parts, or service inquiries, please contact Beko customer service or visit the official Beko website. Ensure you have your model number (FSE13040N) and purchase details ready when contacting support.
