1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Zerodis Generator Pull Starter, also known as the Starter Cover Assembly. Designed for durability and high performance, this component is a direct replacement part for specific generator models.
Key Features:
- Manufacturing Material: Constructed from high-quality plastic material, ensuring durability, wear resistance, and a long service life.
- High Performance: Professional manufacturing, superb craftsmanship, and high precision contribute to optimal performance.
- Wide Applicability: Compatible with MS231, MS251, and MS251C models.
- Easy to Use: Designed for straightforward installation and operation.
2. Product Overview

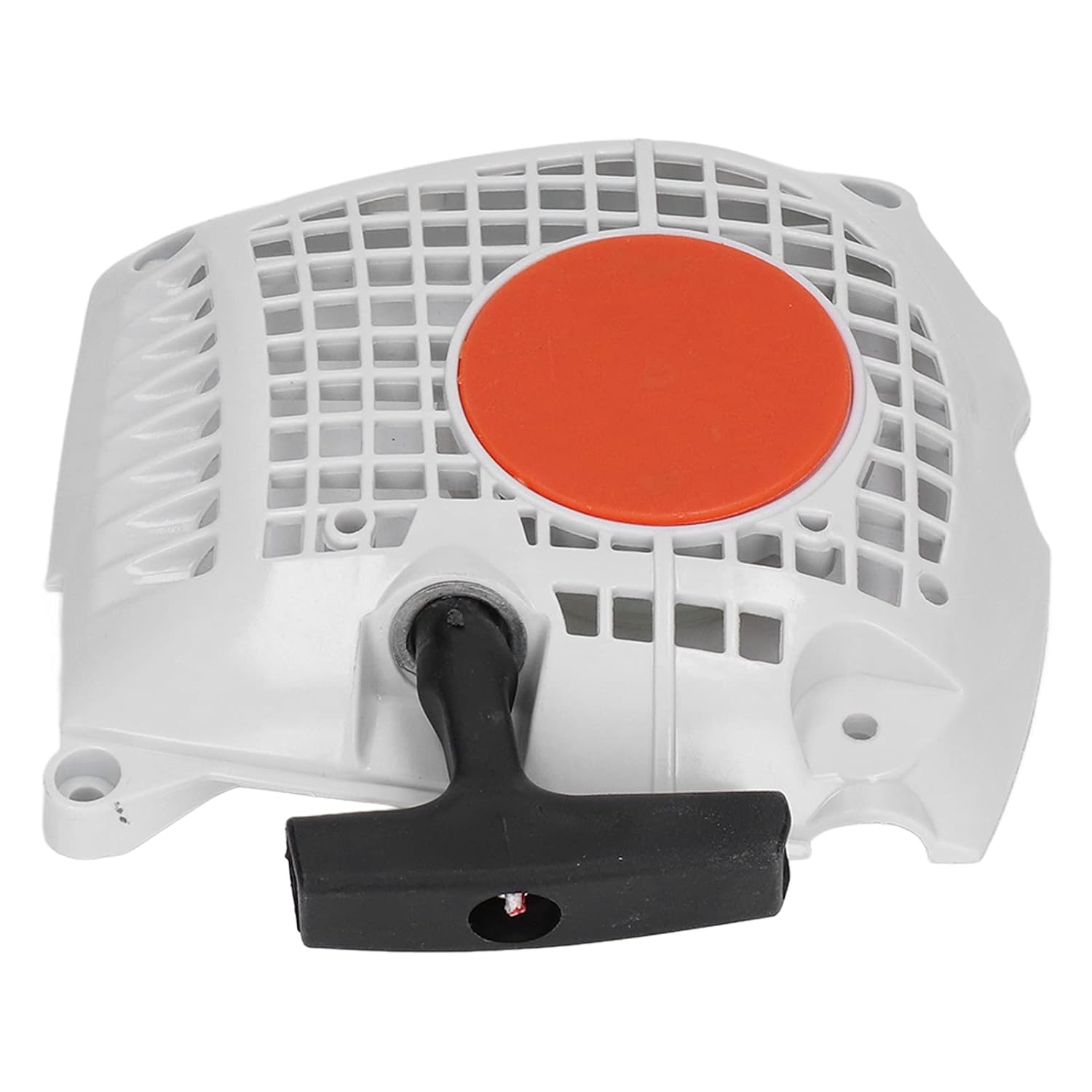

The Zerodis Generator Pull Starter is a critical component for initiating the engine of compatible generators. It consists of the starter cover and the pull cord mechanism.
3. Setup and Installation
The Starter Cover Assembly is designed for direct replacement. Ensure your equipment is turned off and cooled down before beginning installation.
- Preparation: Before installation, ensure you have the correct tools (e.g., screwdriver, wrench) and that the generator's engine is completely off and cool to the touch. Disconnect the spark plug wire to prevent accidental starting.
- Remove Old Starter: Locate the existing starter cover assembly on your generator. Carefully unbolt or unscrew the old assembly from the engine housing. Note the position of any springs or connecting parts.
- Inspect Area: Clean any debris or dirt from the mounting area on the engine. Inspect the recoil spring mechanism if it's separate from the cover for any damage.
- Install New Starter: Align the new Zerodis Starter Cover Assembly with the mounting holes on the engine. Secure it firmly using the original bolts or screws. Ensure the pull cord is freely accessible and the mechanism engages correctly.
- Test Functionality: Gently pull the starter cord a few times to ensure smooth operation and proper recoil. Reconnect the spark plug wire.
Note: The accessories for garden tools, such as this starter, are designed to effectively prolong the use time of the machine and provide stable performance.
4. Operating Instructions
Once the Starter Cover Assembly is correctly installed, operating your generator's pull starter is straightforward.
- Prime the Engine (if applicable): Follow your generator's specific instructions for priming the engine (e.g., setting the choke, fuel valve).
- Grip the Handle: Firmly grasp the pull starter handle.
- Pull the Cord: Pull the cord slowly until you feel resistance, then give a quick, strong pull. Do not pull the cord to its absolute maximum length or let it snap back. Guide the cord back gently.
- Repeat if Necessary: If the engine does not start on the first pull, repeat the process.
Important: Always refer to your generator's main instruction manual for complete starting procedures and safety guidelines.
5. Maintenance
Regular maintenance of your pull starter ensures its longevity and reliable performance.
- Cleaning: Periodically clean the exterior of the starter cover to remove dirt, dust, and debris. Use a damp cloth; avoid harsh chemicals.
- Cord Inspection: Regularly inspect the pull cord for signs of fraying, wear, or damage. Replace the cord if any damage is observed.
- Recoil Mechanism: Ensure the recoil mechanism operates smoothly. If the cord does not retract fully or feels stiff, the internal spring may need inspection or lubrication by a qualified technician.
- Storage: When not in use for extended periods, store the generator in a clean, dry environment to protect the starter assembly from moisture and extreme temperatures.
6. Troubleshooting
This section addresses common issues related to the pull starter assembly.
| Problem | Possible Cause | Solution |
|---|---|---|
| Cord does not retract fully. | Damaged or tangled recoil spring; debris inside mechanism. | Inspect the recoil spring. Clean out any debris. If spring is damaged, replacement by a professional may be required. |
| Cord is frayed or broken. | Normal wear and tear; excessive force during pulling. | Replace the pull cord. Ensure proper technique when starting the engine. |
| Starter mechanism feels stiff or jammed. | Internal components are dirty or corroded; misaligned parts. | Remove the assembly and clean thoroughly. Check for proper alignment of all parts. Lubricate moving parts if necessary. |
| Engine does not start after pulling. | This issue is likely not with the pull starter itself, but with the engine. | Check fuel level, spark plug, choke settings, and other engine-related components. Refer to your generator's main manual. |
7. Specifications
Detailed specifications for the Zerodis Generator Pull Starter.
- Item Type: Starter Cover Assembly
- Material: High-Quality Plastic
- Weight: Approximately 180g / 6.3oz
- Product Dimensions: 6.69 x 6.3 x 1.57 inches
- Applicability: Fit For MS231, MS251, MS251C
- OEM Part Numbers: 1143 080 2103, 1143 080 2107
- Manufacturer: Zerodis
8. Warranty and Support
For information regarding warranty coverage, technical support, or replacement parts, please refer to the official Zerodis website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
Contact Information:
- Brand Store: Visit the Zerodis Store on Amazon
- For further assistance, consult the product packaging or the retailer from whom the product was purchased.
