Introduction
The PAW International Pull Buddy 6-piece set is designed to assist in guiding electrical wires and cables through EMT conduit and junction boxes. This set helps prevent wire insulation damage, simplifies the wire pulling process, and can reduce the need for lubricants. It is suitable for both professional electricians and DIY enthusiasts.
The set includes:
- Two (2) 1/2-inch Pull Buddies (Blue)
- Two (2) 3/4-inch Pull Buddies (Red)
- Two (2) 1-inch Pull Buddies (White)
- One (1) split ring holder for convenient storage
Image: The complete PAW International Pull Buddy 6-piece set, including the blue, red, and white Pull Buddies, along with the metal split ring for organization.
Setup
Before beginning any wire pulling task, ensure all power is disconnected to prevent electrical hazards. Select the appropriate Pull Buddy size for your conduit. The Pull Buddies are color-coded for standard EMT conduit sizes:
- Blue: For 1/2-inch EMT conduit
- Red: For 3/4-inch EMT conduit
- White: For 1-inch EMT conduit
The Pull Buddies are designed to be self-retaining within the conduit opening of a junction box, providing a smooth guide for wires.
Image: A close-up view of the individual blue, white, and red Pull Buddy pieces, arranged next to the metal split ring. This illustrates the distinct colors and shapes of each guide.
Operating Instructions
Follow these steps for effective wire pulling using the Pull Buddy set:
- Select Correct Size: Choose the Pull Buddy that matches the diameter of the EMT conduit you are working with.
- Insert Pull Buddy: Place the selected Pull Buddy into the opening of the conduit at the junction box. The design allows it to sit securely and guide wires smoothly.
- Guide Wires: Feed the electrical wires through the opening of the Pull Buddy. The curved design acts as a shoehorn, guiding the wires around the edge of the conduit opening and into the box. This minimizes friction and prevents the wire insulation from being scraped or damaged.
- Pull Wires: Carefully pull the wires through the conduit. The Pull Buddy helps maintain the wire bundle, making the process easier, especially when working alone.
- Remove Pull Buddy: Once the wires are pulled through, the Pull Buddy can be easily removed from the conduit opening.

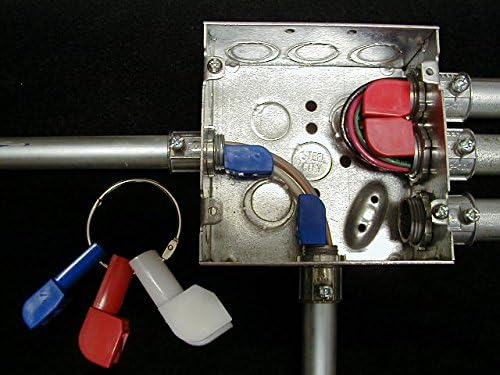

Image: A junction box with multiple conduits connected. Blue and red Pull Buddies are shown installed in the conduit openings, effectively guiding electrical wires into the box without sharp bends or contact with the metal edges.
Maintenance
The PAW International Pull Buddy set requires minimal maintenance:
- Cleaning: After use, wipe the Pull Buddies clean with a damp cloth to remove any dust or debris.
- Storage: Store the Pull Buddies on the provided split ring holder in a dry place to keep them organized and easily accessible.
- Inspection: Periodically inspect the Pull Buddies for any signs of wear or damage. While durable, excessive force or improper use can cause damage. Replace any damaged units to ensure optimal performance and prevent wire damage.
Troubleshooting
If you encounter issues while using the Pull Buddy set, consider the following:
- Pull Buddy does not fit: Ensure you are using the correct size Pull Buddy for the conduit. Each color corresponds to a specific conduit diameter (Blue for 1/2", Red for 3/4", White for 1").
- Wires are difficult to pull: While Pull Buddies reduce friction, extremely long runs or conduits with many bends may still require additional effort. Ensure the conduit path is clear of obstructions.
- Pull Buddy breaks: If a Pull Buddy breaks during use, it may indicate excessive force was applied or the conduit opening was too tight for the selected size. Always use the correct size and avoid forcing the tool.
Specifications
| Manufacturer | PAW International, Inc. |
| Part Number | 0013 |
| Item Model Number | 832155000013 |
| Item Weight | 3.8 ounces |
| Product Dimensions | 4 x 8 x 1.25 inches |
| Color | Red, White, Blue (color-coded by size) |
| Material | Plastic |
| Installation Method | Self-retaining |
| Item Package Quantity | 6 Pull Buddies |
| Number Of Pieces (Total) | 7 (6 Pull Buddies + 1 Split Ring) |
| Capacity Description | 1/2", 3/4", 1" EMT Conduit |
| Special Features | Split ring for storing |
Warranty Information
Specific warranty details for the PAW International Pull Buddy set are not provided in the product information. For warranty inquiries, please contact PAW International directly or refer to the product packaging.
Support
For further assistance, technical support, or questions regarding the PAW International Pull Buddy set, please contact the manufacturer, PAW International, Inc. Contact information may be available on their official website or product packaging.
