HOFTRONIC C-Series LED Basement Light - Model 2715915 Instruction Manual

Introduction

Thank you for choosing the HOFTRONIC C-Series LED Basement Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. The C-Series LED light is a versatile, energy-efficient, and durable lighting solution designed for various indoor and outdoor environments.

This oval wall and ceiling light delivers 12W of 4000K neutral white light, producing 1160 lumens for bright and clear illumination. With an IP54 rating, it is resistant to dust and water splashes, making it suitable for basements, garages, workshops, bathrooms, and covered outdoor areas. Its diffuse shade ensures glare-free lighting, and the 120-degree beam angle provides wide coverage.

Safety Information

Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.

Disconnect Power: Always ensure the main power supply is switched off at the circuit breaker before attempting any installation, maintenance, or repair.
Qualified Electrician: Installation should be performed by a qualified electrician or competent person in accordance with local electrical codes and regulations.
Voltage: Ensure the supply voltage matches the requirements of the fixture (230 Volts).
Mounting: Mount the fixture securely on a stable surface. Do not install on surfaces that are not structurally sound.
Wiring: Ensure all electrical connections are tight and properly insulated.
Operating Temperature: Do not operate the fixture outside its specified temperature range.
No User Serviceable Parts: This fixture contains no user-serviceable parts. Do not attempt to open or modify the unit.

Package Contents

Verify that all components are present in the package before proceeding with installation. This product is supplied as a set of two lights.

2x HOFTRONIC C-Series LED Basement Light Fixtures
Wall Mount Brackets
Electrical Cable (integrated or for connection)
Wall Fixings (screws and anchors)

Specifications

Feature	Specification
Brand	HOFTRONIC
Model Number	2715915
Product Dimensions (L x W x H)	19 x 10 x 5.5 cm
Weight	5 Kilograms (for the set)
Material	Plastic
Color	White
Style	Modern
Power Source	Corded Electric
Voltage	230 Volts
Wattage	12 Watts
Luminous Flux	1160 Lumens
Color Temperature	4000 Kelvin (Neutral White)
Color Rendering Index (CRI)	>80
Beam Angle	120 Degrees
IP Rating	IP54 (Dust and Water Splash Resistant)
Special Features	Wall and ceiling mountable, Easy installation, Diffuse light (glare-free), Rust-resistant
Usage	Indoor/Outdoor (House, Garden, Garage, Workshop, Bathroom)
Energy Label	F (as per 2019/2015 regulation)

For detailed product information, refer to the official EPREL database: EPREL Product Information

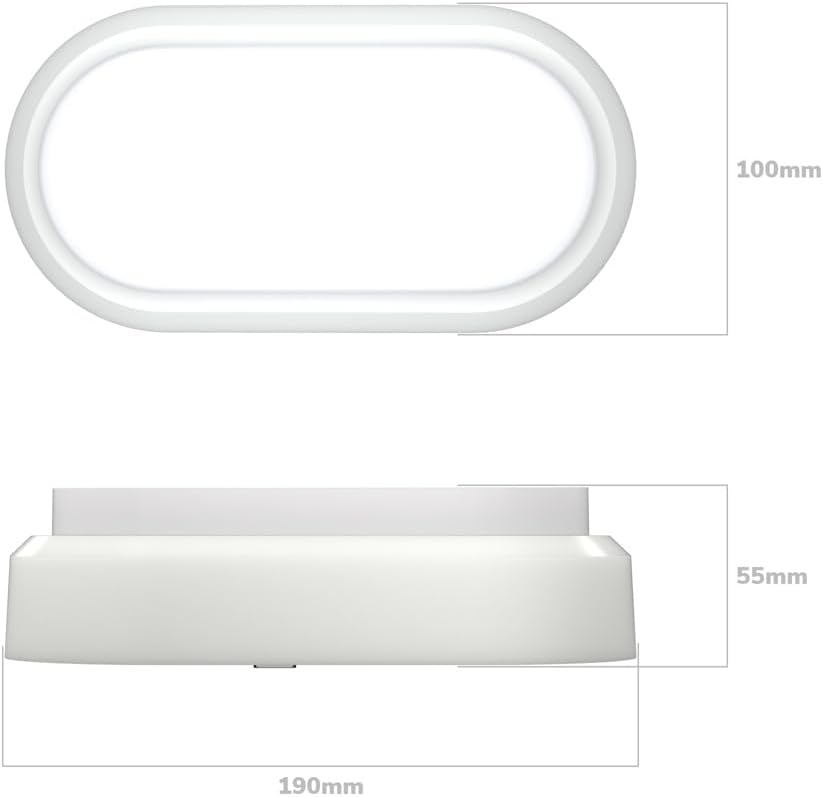

Diagram showing the dimensions of the oval LED light fixture: 190mm length, 100mm width, and 55mm height. — Figure 1: Product Dimensions. The fixture measures 190mm in length, 100mm in width, and 55mm in height.

EU Energy Label for HOFTRONIC 2715915, showing energy efficiency class F and 12 kWh per 1000 hours. — Figure 2: Energy Label. This label indicates the energy efficiency class F for the HOFTRONIC 2715915, consuming 12 kWh per 1000 hours.

Setup and Installation

Follow these steps for safe and proper installation. It is recommended to have a qualified electrician perform the installation.

Prepare for Installation:
- Ensure the main power supply to the installation area is switched off at the circuit breaker.
- Gather necessary tools: drill, screwdriver, wire strippers, measuring tape, pencil.
Choose Mounting Location:
- Select a suitable wall or ceiling location that can support the fixture's weight and provides adequate illumination.
- Consider the 120-degree beam angle for optimal light distribution.
Mark Drilling Points:
- Use the fixture or mounting bracket as a template to mark the drilling points on the wall or ceiling.
Drill Holes and Insert Anchors:
- Drill holes at the marked points using an appropriate drill bit size for the provided wall anchors.
- Insert the wall anchors flush with the surface.
Wire the Fixture:
- Open the fixture to access the wiring terminals.
- Connect the electrical supply wires to the fixture's terminals: Live (L), Neutral (N), and Earth (E) if applicable, following local wiring codes. Ensure connections are secure.
- Close the fixture securely, ensuring no wires are pinched.
Mount the Fixture:
- Align the fixture with the drilled holes and secure it using the provided screws. Do not overtighten.
Restore Power:
- Once installation is complete and all connections are secure, restore power at the circuit breaker.
- Test the light fixture to ensure it functions correctly.

Two oval LED lights installed on a wooden ceiling in a hallway leading to a door, providing illumination. — Figure 3: Example Installation. The C-Series LED lights are suitable for hallways, stairwells, and similar areas.

A collage showing the oval LED light used in various locations: a modern bathroom, an outdoor house entrance, and a garage workshop, highlighting its IP54 dust and water proof rating. — Figure 4: Versatile Application. The IP54 rating allows for use in bathrooms, outdoor covered areas, and workshops.

Operating Instructions

The HOFTRONIC C-Series LED Basement Light is designed for simple operation.

Power On/Off: The light fixture operates via a standard wall switch connected to its electrical supply. Flip the switch to turn the light on or off.
Light Output: The fixture provides a consistent 1160 lumens of 4000K neutral white light. This color temperature is ideal for tasks requiring good visibility, such as in workshops, garages, or utility rooms.
Diffuse Illumination: The integrated diffuse shade minimizes glare, providing comfortable lighting that reduces eye strain, even when looking directly at the fixture.
Wide Coverage: The 120-degree beam angle ensures that light is distributed broadly, effectively illuminating larger areas.

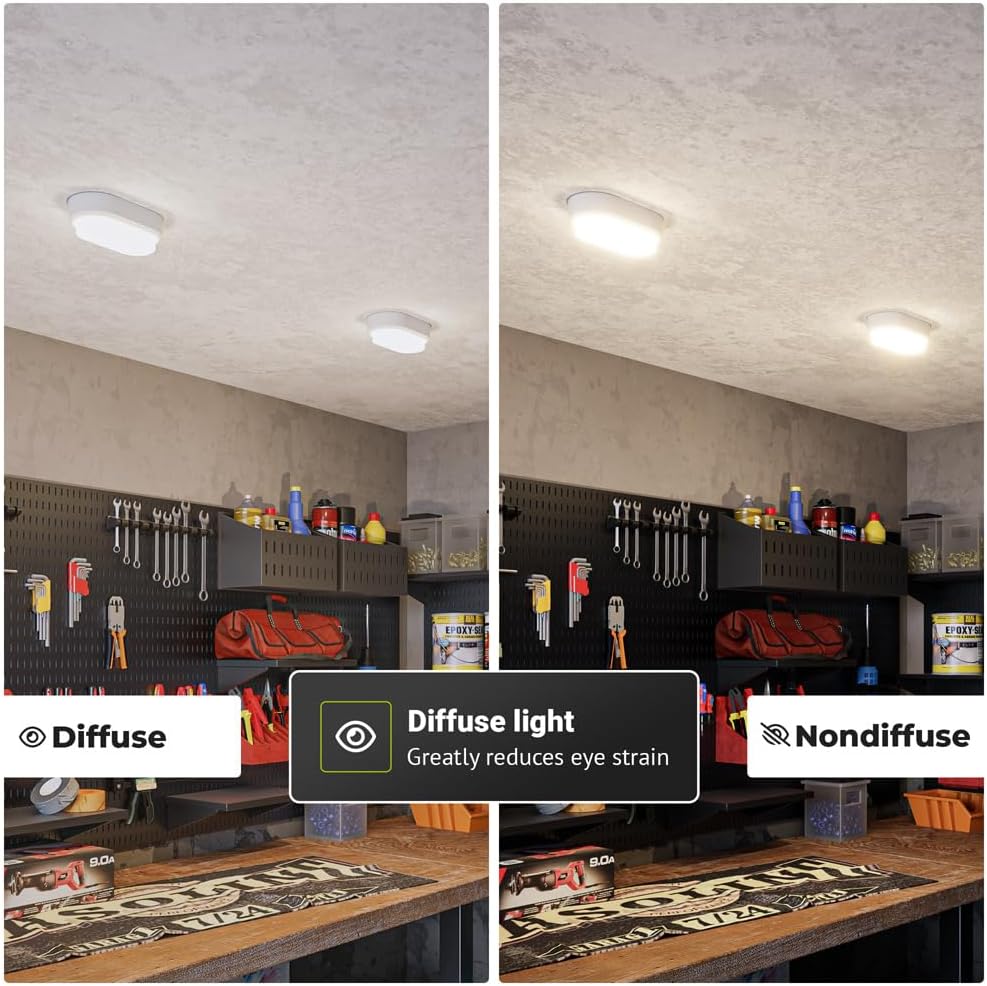

A side-by-side comparison in a garage showing the effect of diffuse light versus non-diffuse light from an oval LED fixture. The diffuse light on the left appears softer and less harsh. — Figure 5: Diffuse Light Benefit. The diffuse lens greatly reduces eye strain by softening the light output.

An oval LED light installed on a garage ceiling, with dashed lines illustrating a 120-degree beam angle, indicating wide light distribution. — Figure 6: Functional Lighting. The 120-degree beam angle ensures a large area is illuminated effectively.

An image illustrating the Color Rendering Index (CRI) of the C-Series light, showing a CRI of 80+ with a comparison of apples under different CRI values (80+, 70+, 60+). — Figure 7: Color Rendering Index. With a CRI of over 80, the light accurately renders colors, making objects appear natural.

Maintenance

The HOFTRONIC C-Series LED Basement Light requires minimal maintenance.

Cleaning: To clean the fixture, ensure the power is off. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
No Bulb Replacement: This fixture uses integrated LED technology, meaning there are no bulbs to replace. The LEDs are designed for a long operational lifespan.

Close-up image of the oval LED light fixture being splashed with water, illustrating its IP54 water and dust resistant feature. — Figure 8: IP54 Rating. The fixture's IP54 rating ensures resistance to dust and water splashes, simplifying maintenance.

Troubleshooting

If you encounter issues with your HOFTRONIC C-Series LED Basement Light, refer to the following common problems and solutions:

Problem	Possible Cause	Solution
Light does not turn on.	No power supply. Loose wiring connection. Faulty switch.	Check the circuit breaker and ensure power is restored. Verify all wiring connections are secure (with power off). Test the wall switch with another device or replace it if faulty.
Light is dim or flickers.	Incorrect voltage. Loose connection. Fixture damage.	Ensure the supply voltage is 230V. Check wiring connections (with power off). If the fixture is damaged, discontinue use and contact support.
Water or dust inside the fixture.	Improper installation. Damaged seal.	Ensure the fixture is properly sealed and mounted according to instructions. Inspect the gasket and housing for damage. If damaged, contact support.

If the problem persists after attempting these solutions, please contact customer support.

Warranty

This HOFTRONIC C-Series LED Basement Light comes with a 2-year warranty from the date of purchase. During this period, defective parts will be replaced free of charge. The warranty covers manufacturing defects under normal use conditions. It does not cover damage resulting from improper installation, misuse, accidents, modifications, or unauthorized repairs.

Please retain your proof of purchase for warranty claims.

Support

For technical assistance, warranty claims, or any questions regarding your HOFTRONIC C-Series LED Basement Light, please contact your retailer or the manufacturer's customer service. When contacting support, please have your model number (2715915) and proof of purchase readily available.

HOFTRONIC aims to respond to inquiries within 24 hours.

HOFTRONIC 2715915
