Klein Tools 44303 FLICKBLADE Folding Utility Knife with Blade Storage Instruction Manual

Introduction

The Klein Tools 44303 FLICKBLADE Folding Utility Knife with Blade Storage is designed for durability and convenience. Crafted from aluminum, it offers compact storage and easy portability. This manual provides essential information for the safe and effective use, setup, and maintenance of your utility knife.

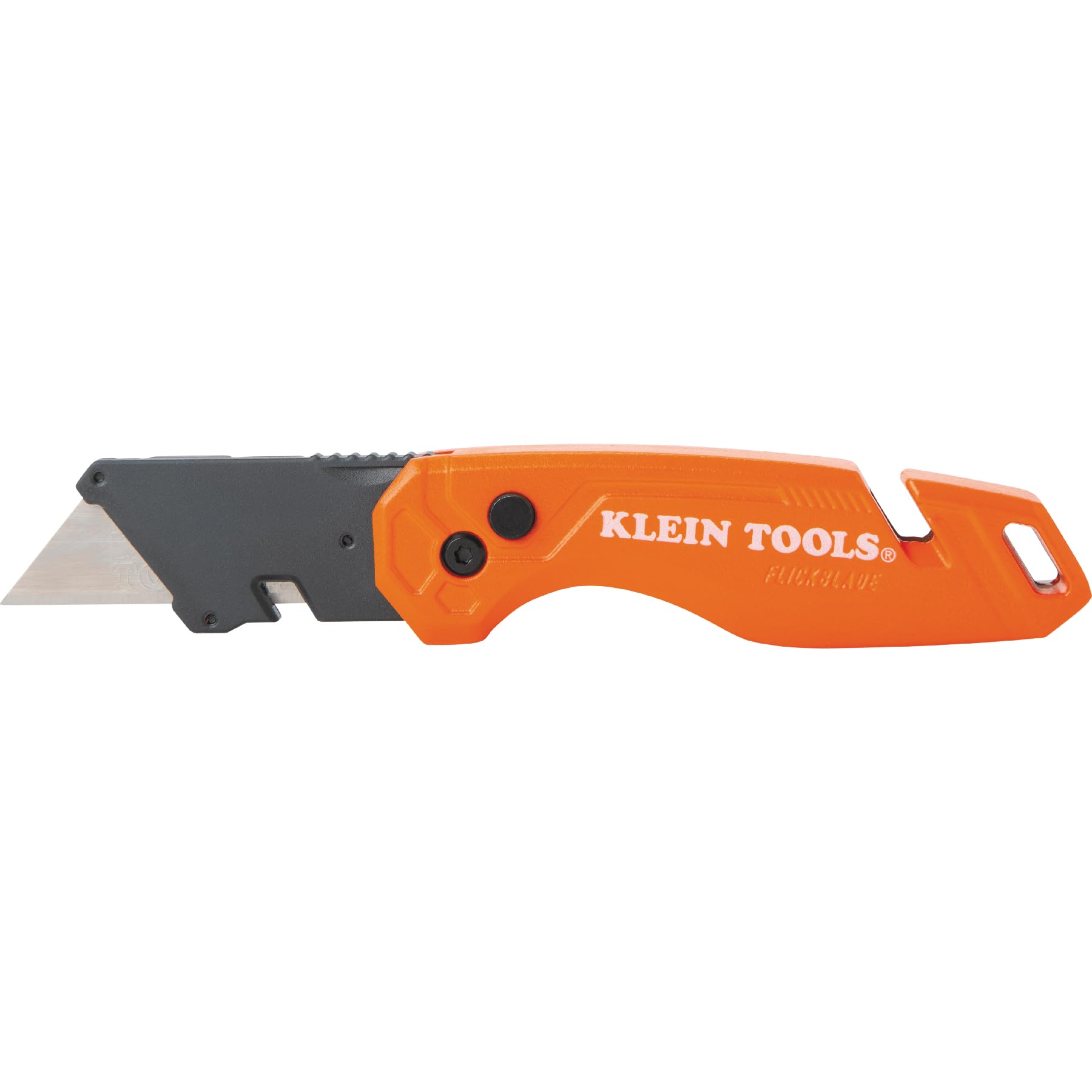

Figure 1: Klein Tools 44303 FLICKBLADE Folding Utility Knife with Blade Storage, fully extended.

Safety Information

WARNING: Utility knives contain extremely sharp blades. Improper use can result in severe injury. Always exercise caution when handling, operating, and replacing blades.

• Keep out of reach of children.
• Always wear appropriate personal protective equipment, such as safety glasses and gloves, when using the knife.
• Ensure the blade is fully locked in position before use.
• Close the knife and store it safely when not in use.
• Dispose of used blades responsibly in a puncture-proof container.
• Do not use the knife for tasks it was not designed for.

Product Features

• Dual Locking Positions: The blade locks at 135-Degree and 180-Degree for versatile cutting tasks.
• Integrated Blade Storage: A fold-out compartment holds five additional blades.
• Side Button Release: Allows for quick and easy blade deployment.
• Strap Cutting Slot: Enables cutting of straps even when the knife is closed.
• Pocket Clip: For convenient and secure carrying on tool pouches or pockets.
• Ergonomic Design: Engineered for enhanced comfort and fit during use.
• Tether Hole: Located on the handle for secure attachment.

Figure 2: The utility knife locked at its 135-degree cutting position.

Figure 3: The utility knife fully extended and locked at 180 degrees.

Setup: Blade Installation and Replacement

Your Klein Tools FLICKBLADE comes pre-loaded with five extra blades in its storage compartment. Follow these steps to install or replace a blade:

1. Ensure the knife is in the closed position for safety.
2. Locate the blade storage compartment on the side of the knife handle.
3. Gently pull the blade storage compartment outwards to open it.


Figure 4: Opening the blade storage compartment.

4. Carefully remove a new blade from the storage or dispose of an old blade. The compartment is designed for easy access, even with gloves.
5. To replace the active blade, press the blade release button near the blade holder and slide the old blade out.
6. Insert the new blade into the blade holder until it clicks securely into place.
7. Close the blade storage compartment by pushing it back into the handle until it latches.

Operating Instructions

This utility knife is designed for quick and efficient operation.

1. Opening the Knife: Press the side button release and flick the blade open. It will lock into either the 135-degree or 180-degree position. Ensure the blade is fully locked before applying pressure.
2. Using Dual Locking Positions: The 135-degree position is ideal for ergonomic cutting, reducing wrist strain for certain tasks. The 180-degree position provides a straight, full-length blade for standard cutting.
3. Using the Strap Cutting Slot: The knife features a strap cutting slot at the end of the handle. With the knife closed, insert the strap into the slot and pull to cut. This allows for safe cutting without exposing the main blade.


Figure 5: The integrated strap cutting slot.

4. Closing the Knife: Press the side button release and fold the blade back into the handle until it is fully closed and secured.

Maintenance

Proper maintenance ensures the longevity and safe operation of your utility knife.

• Blade Replacement: Replace blades regularly as they become dull to maintain cutting efficiency and safety. Refer to the "Setup: Blade Installation and Replacement" section for detailed instructions.
• Cleaning: Keep the knife clean from debris, dust, and moisture. Use a dry cloth to wipe down the handle and blade holder. Avoid using harsh chemicals that may damage the materials.
• Lubrication: Periodically apply a small amount of light oil to the pivot points to ensure smooth opening and closing action.
• Storage: Store the knife in a dry place, away from extreme temperatures and corrosive environments. Always store with the blade closed.

Troubleshooting

If you encounter issues with your utility knife, consider the following common solutions:

• Blade not locking securely: Ensure the blade is correctly seated in the holder. Check for any debris obstructing the locking mechanism. If the issue persists, replace the blade.
• Difficulty opening/closing: Clean any dirt or debris from the pivot points and the side button release mechanism. Apply a small amount of lubricant if necessary.
• Dull blade: Replace the blade immediately. A dull blade requires more force to cut, increasing the risk of injury.

If problems persist after attempting these solutions, please contact Klein Tools customer support.

Specifications

Warranty Information

For specific warranty details regarding your Klein Tools 44303 FLICKBLADE Folding Utility Knife, please contact the manufacturer directly. Warranty terms and conditions may vary.

Manufacturer Warranty Description: Call vendor for warranty.

Support

For further assistance, technical support, or to inquire about replacement parts, please visit the official Klein Tools website or contact their customer service department.

Website: www.kleintools.com
