1. Introduction
Thank you for choosing the Antetek 3-in-1 Convertible Sleeper Sofa Bed. This versatile furniture piece is designed to function as a loveseat, a chaise lounge, and a sleeper bed, making it ideal for small spaces and accommodating guests. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and optimal use of your product.
Key features include:
- 3-in-1 Functionality: Easily converts from a loveseat to a chaise lounge or a full sleeper bed.
- Adjustable Backrest: Features 3 reclining angles (105°, 135°, 180°) for customized comfort.
- Durable Construction: Built with a sturdy wood frame, sinuous springs, and high-density foam for support up to 500 lbs.
- Comfortable Upholstery: Soft velvet fabric and high-density sponge cushions provide a comfortable seating and sleeping experience.
- Space-Saving Design: Perfect for apartments, living rooms, studios, and home offices.
- Convenient Features: Includes two toss pillows and side pockets for storage.
2. Safety Information
Please read all safety information before assembly and use.
- All foam and upholstered surfaces meet flammability standards.
- Keep the product away from open flames or high heat sources.
- Supervise children and pets to avoid entrapment risks, especially during conversion.
- Ensure all components are securely fastened before use.
- Do not exceed the maximum weight capacity of 500 pounds.
3. Package Contents
Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Sofa main body (1)
- Armrests (2)
- Legs (6)
- Caster Wheels (2)
- Toss Pillows (2)
- Hardware pack (screws, screwdriver)
- Instruction Manual (this document)
4. Assembly Instructions (Setup)
Assembly is straightforward and typically requires two people. A screwdriver is provided in the hardware pack.
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches.
- Attach Legs: Locate the pre-drilled holes on the underside of the sofa main body. Screw the 6 legs into these holes. Ensure they are tightened securely.
- Attach Caster Wheels: Locate the designated areas for the 2 caster wheels on the pull-out section of the sofa. Screw the caster wheels into place. These wheels facilitate the conversion to a bed.
- Install Armrests: Attach the removable armrests to both sides of the sofa main body. Follow the specific instructions in the included hardware guide for proper alignment and fastening.
- Final Check: Once all components are attached, gently lift and place the sofa in its desired location. Verify that all legs and armrests are stable and secure.
Image: Overall dimensions of the sofa and bed configurations, including height, width, and depth measurements. Max capacity is 500 lbs.
Image: Rear view of the sofa, illustrating the back panel and the structural base where legs are attached.
5. Operating Instructions
5.1 Converting Sofa to Sleeper Bed or Chaise Lounge
The Antetek sofa bed can be easily converted into a chaise lounge or a full sleeper bed using the integrated pull-out mechanism.
- Locate Straps: Identify the two auxiliary hand straps located at the front base of the sofa.
- Pull Out: Gently pull the auxiliary straps outwards. The hidden bed section will slide out smoothly on its caster wheels.
- Extend Fully: Continue pulling until the bed section is fully extended and locked into place, forming a flat sleeping surface.
- Retract: To convert back to a sofa, push the extended section back into the sofa base until it is fully retracted and secured.
Image: Step-by-step visual guide demonstrating the conversion of the sofa from a loveseat to a chaise lounge and finally to a full sleeper bed.
Image: Detail of the auxiliary hand straps used to pull out the sleeper bed section.
Video: Demonstration of the 3-in-1 convertible sleeper bed functionality, showing how to transform it from a sofa to a bed.
5.2 Adjusting the Backrest
The backrest offers three adjustable positions for various activities:
- 105° (Upright): Ideal for gaming or active sitting.
- 135° (Reclined): Comfortable for watching TV or reading.
- 180° (Flat): Fully reclined for sleeping.
To adjust the backrest, push it forward until you hear a click, then gently recline it to your desired position. Repeat the process to move between positions.
Image: Visual representation of the three adjustable backrest angles and their recommended uses.
Image: Illustrates the sofa's dual functionality for daytime activities and nighttime sleeping.
6. Care and Maintenance
Proper care will extend the life and appearance of your Antetek sofa bed.
- Cleaning: For general cleaning, use a soft brush to remove dust and debris from the velvet fabric. For spills, blot immediately with a clean, dry cloth. Avoid harsh chemicals or abrasive cleaners.
- Fabric Protection: Consider applying a fabric protector suitable for velvet to help resist stains.
- Cushion Care: Rotate and fluff the toss pillows regularly to maintain their shape and comfort.
- Frame Inspection: Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary.

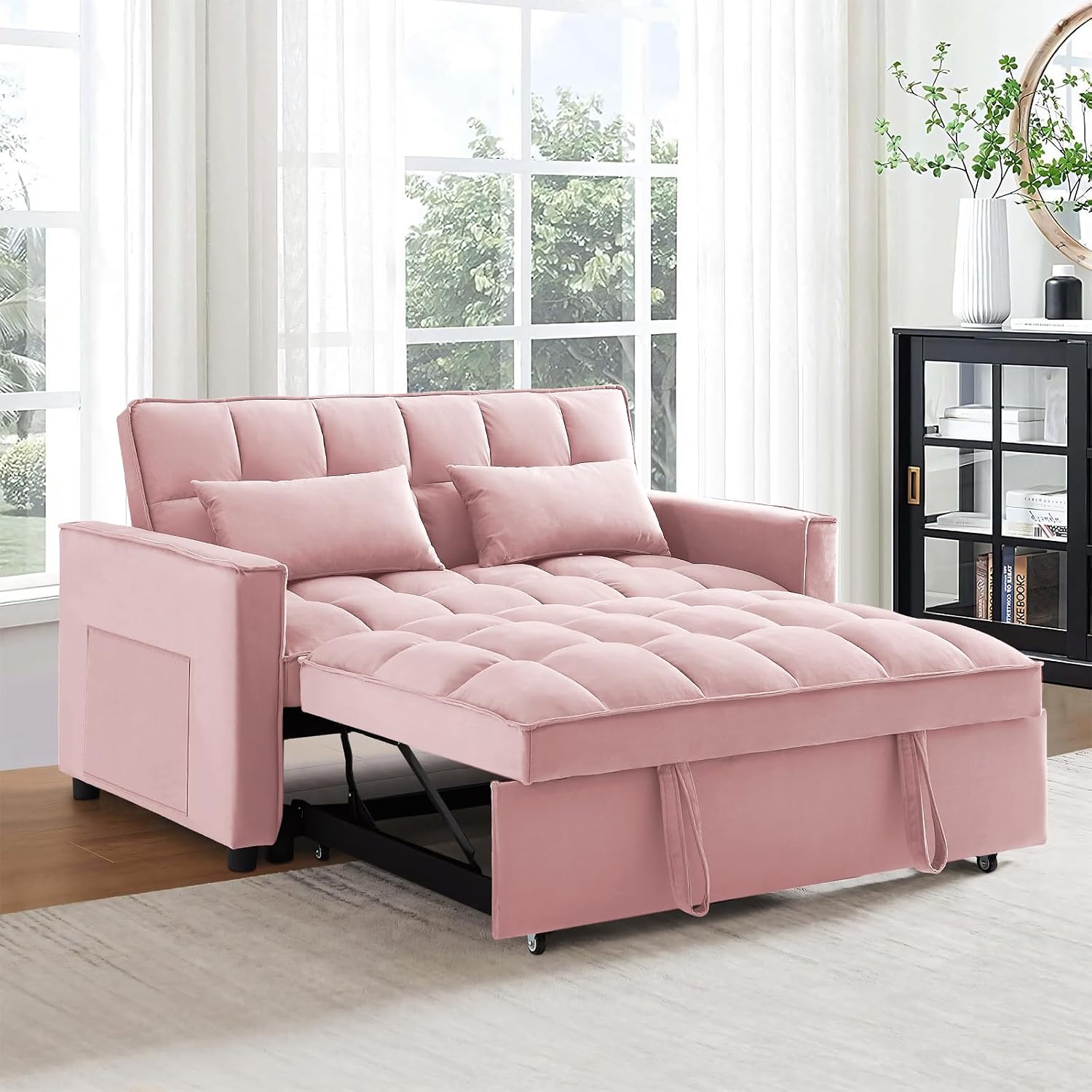

Image: Highlights key details such as the velvet fabric, side pockets, and the construction of the legs and wheels.
7. Troubleshooting
If you encounter any issues with your sofa bed, please refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Sofa feels unstable or wobbly. | Loose legs or fasteners. | Check and tighten all leg screws and assembly fasteners. Ensure the sofa is on a level surface. |
| Difficulty pulling out or retracting the bed. | Obstruction, misaligned mechanism, or loose wheels. | Ensure no objects are blocking the mechanism. Check that caster wheels are securely attached and moving freely. Apply gentle, even pressure when pulling/pushing. |
| Backrest does not adjust properly. | Mechanism stuck or not fully engaged. | Push the backrest fully forward until it clicks, then recline. Ensure no fabric or debris is obstructing the mechanism. |
| Squeaking noises during use. | Loose connections or friction between parts. | Tighten all visible screws. If the noise persists, identify the source and consider applying a silicone-based lubricant to moving metal parts (avoiding fabric). |
If these solutions do not resolve the issue, please contact Antetek customer support for further assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Antetek |
| Overall Sofa Dimensions (L x D x H) | 54" x 33.5" x 31.5" |
| Sleeper Bed Dimensions (L x W) | 70" x 43" (approximate, based on 70.5" L and 43.3" W from image) |
| Seat Depth | 20.8 inches |
| Seat Height | 16.5 inches (from description) / 17.7 inches (from specifications) - using 16.5 as it's in the main description. |
| Weight Limit | 500 pounds |
| Seating Capacity | 2 |
| Upholstery Material | Velvet |
| Frame Material | Wood |
| Leg Material | Plastic |
| Suspension Type | Sinuous Spring |
| Backrest Positions | 3 (105°, 135°, 180°) |
| Included Components | 2 Toss Pillows |
| Assembly Required | Yes (minimal, 2 people recommended) |
9. Warranty and Support
Your Antetek 3-in-1 Convertible Sleeper Sofa Bed comes with a Limited Warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage duration and what is covered.
For product support, missing parts, or warranty claims, please contact Antetek customer service through the retailer where you purchased the product or visit the official Antetek website for contact information.
Customer Service Contact:
- Refer to your purchase documentation for specific contact details.
- Visit the Antetek Store on Amazon for more information.
Please have your purchase receipt and product model information ready when contacting support.
