1. Product Overview
The HOSOM Dummy Door Knob is a non-turning, single-sided knob designed for doors that require only a pull function, such as pantry doors, closet doors, or French doors. It does not include a latch or locking mechanism, serving primarily as a decorative pull handle.
2. Product Features
- Easy Installation: Designed for quick and straightforward installation with a Phillips screwdriver.
- Dummy Functionality: Single-sided knob with no latch or lock, providing a decorative pull for interior doors.
- Universal Fit: Compatible with door thicknesses ranging from 1-3/8" (35mm) to 1-3/4" (40mm).
- Durable Construction: Made from solid steel and stainless steel with a smooth satin nickel finish for enhanced durability and appearance.
- Safe Operation: Features no protruding flanges, screws, or rough edges for completely safe and easy use.
3. Package Contents
Verify that all components are present before beginning installation.
Figure 3.1: Package Contents (2 Dummy Door Knobs, 4 Assembly Screws)
- Dummy Door Knob (x2)
- Assembly Screw (x4)
4. Specifications
| Attribute | Detail |
|---|---|
| Brand | HOSOM |
| Model Number | 1c5fe679-da78-4cee-9ebe-37e4f9233519 |
| Material | Zinc, Stainless Steel, Steel |
| Color | Argentée (Satin Nickel) |
| Style | Dummy |
| Product Dimensions | 18.01 x 10.49 x 10.49 cm |
| Item Weight | 358 g |
| Door Thickness Compatibility | 1-3/8" (35mm) to 1-3/4" (40mm) |
| Special Features | Easy to Install, Keyless, Non-Turning |
Figure 4.1: Product Dimensions
5. Installation Instructions
This dummy door knob is designed for simple surface mounting on doors where only a pull function is needed. No complex latch or lock mechanism installation is required.
- Prepare the Door: Ensure the door surface is clean and smooth. If replacing an existing knob, remove it completely. For new installations, mark the desired position for the dummy knob. Typically, dummy knobs are installed at the standard door knob height.
- Position the Knob: Place the dummy knob base against the door at your marked position. Ensure it is level and aligned as desired.
- Secure the Knob: Using the provided assembly screws, fasten the dummy knob securely to the door. A Phillips screwdriver is required. Do not overtighten the screws to avoid damaging the door or the knob.
- Verify Installation: Gently pull the knob to ensure it is firmly attached and does not wobble. The knob should not turn, as it is a dummy (non-functional) type.
Figure 5.1: Dummy Door Knob Installed on a Standard Door

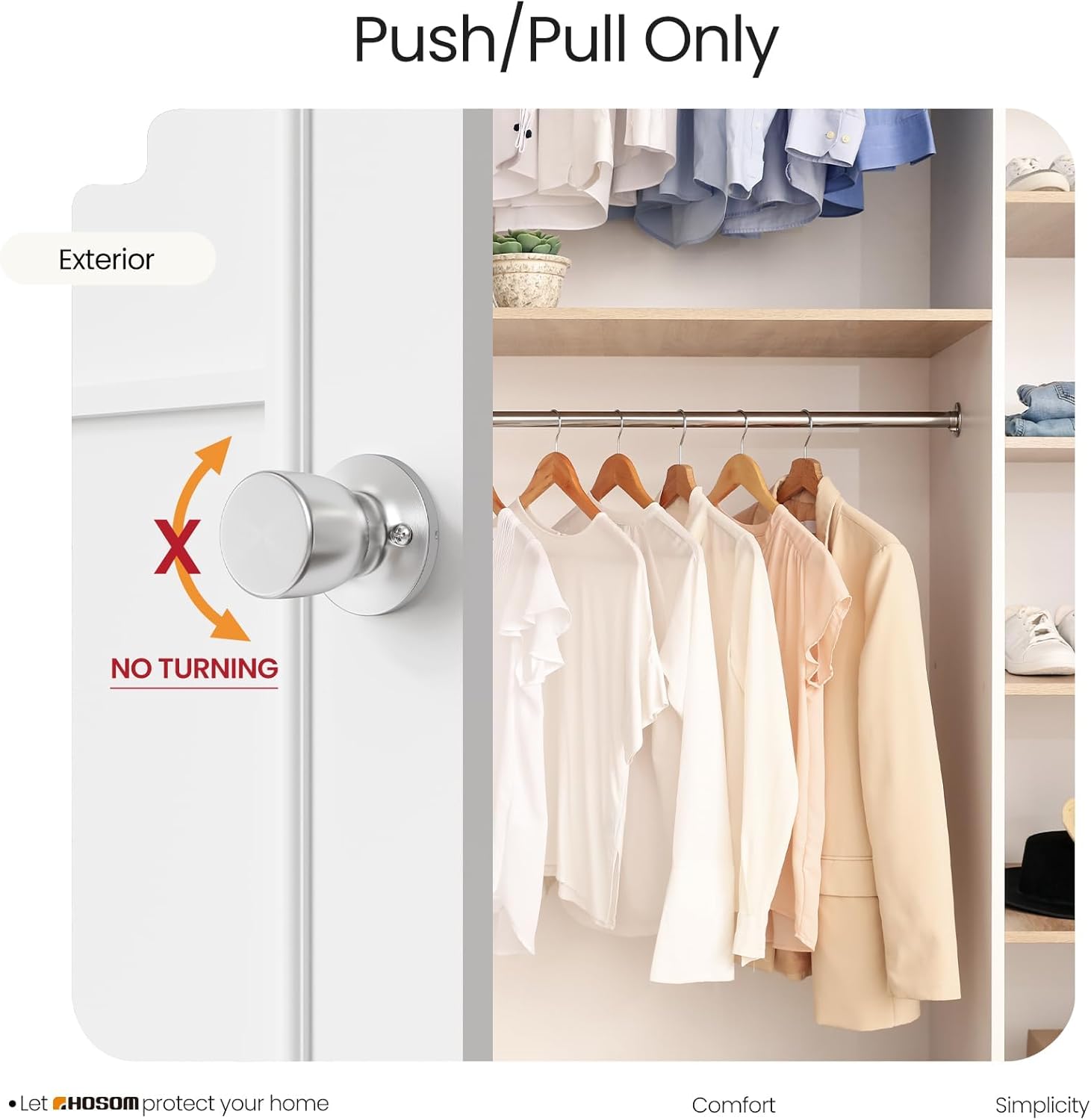

Figure 5.2: Dummy Knob Functionality: Push/Pull Only
Figure 5.3: Heavy-Duty Construction of the Dummy Knob
Installation Video (for similar dummy knob)
Video 5.1: Installation guide for a similar square-base dummy door knob. While the design differs, the general surface-mount installation principles for a non-turning knob are comparable.
6. Usage Guidelines
The HOSOM Dummy Door Knob is intended for use as a fixed pull handle. It is suitable for:
- Closet doors
- Pantry doors
- French doors
- Any interior door where a non-turning pull is desired for opening and closing.
It does not provide security or privacy locking functions.
Figure 6.1: Understanding Dummy Knob Functionality
Figure 6.2: Dummy Knob on a Closet Door
7. Maintenance
To ensure the longevity and appearance of your HOSOM Dummy Door Knob:
- Clean regularly with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
- Periodically check the assembly screws for tightness. If they become loose, gently tighten them with a Phillips screwdriver.
- Avoid excessive force when pulling the knob, as this can stress the mounting points.
8. Troubleshooting
If you encounter any issues with your dummy door knob, refer to the following:
- Knob feels loose: Check the assembly screws. They may need to be tightened.
- Knob is difficult to pull: Ensure there is no obstruction on the door or frame. The knob itself should offer minimal resistance.
- Scratches or finish wear: While durable, heavy use or impact can cause cosmetic damage. Regular cleaning and careful handling can minimize this.
For further assistance, please contact HOSOM customer support.
9. Warranty and Support
HOSOM products are manufactured to high-quality standards. For specific warranty details and customer support, please refer to the documentation included with your purchase or visit the official HOSOM website. Keep your purchase receipt for warranty claims.
