Introduction
The Creality CR-Scan Raptor is an advanced 3D scanner designed for capturing objects with high precision and versatility. It integrates blue laser lines and Near-Infrared (NIR) light sources to accommodate a wide range of scanning scenarios, from small components to large structures. This manual provides essential information for setting up, operating, and maintaining your CR-Scan Raptor to achieve optimal scanning results.
What's in the Box
The Creality CR-Scan Raptor 3D scanner package includes the following items:
- CR-Scan Raptor 3D Scanner
- High-precision glass calibration board
- Necessary cables for connection and power
- Markers for scanning (if applicable)
- User Manual (this document)
Figure 1: Contents of the Creality CR-Scan Raptor package, including the scanner unit, cables, and calibration board.
Setup
1. Unboxing and Component Identification
Carefully unpack all components from the product box. Familiarize yourself with the scanner unit, cables, and any included accessories. Ensure all listed items are present.
Video 1: This video demonstrates the unboxing process and initial setup steps for the Creality CR-Scan Raptor, including connecting the device to a computer and launching the software.
2. Connecting the Scanner
Connect the CR-Scan Raptor to your computer using the provided USB 3.0 cable. Ensure a stable connection for optimal data transfer. The scanner can also be used with mobile devices (iOS/Android) via a wireless bridge (sold separately or included in some kits) for enhanced portability.
Figure 2: The CR-Scan Raptor connected to a laptop, illustrating the wired setup for scanning operations.
3. Software Installation
Download and install the CrealityScan software from the official Creality website. The software is compatible with Windows, macOS, iOS, and Android systems. Follow the on-screen instructions to complete the installation. Upon first connection, the software may prompt for a firmware upgrade; proceed with the upgrade to ensure full functionality.
Operating Instructions
1. Scanning Modes and Object Versatility
The CR-Scan Raptor features a hybrid system combining blue laser lines and Near-Infrared (NIR) structured light. This allows for versatile scanning of objects ranging from 5x5x5 mm³ to 2000x2000x2000 mm³.
- Blue Laser Mode: Utilizes 7 parallel blue laser lines for fine detail scanning, achieving accuracy up to 0.02mm. Ideal for objects requiring high precision and sharp edges.
- NIR Mode: Employs infrared structured light for markerless scanning, suitable for feature-rich objects and larger items.
Figure 3: The CR-Scan Raptor utilizing its 7 blue laser lines to capture intricate details with high accuracy.
Figure 4: Illustration of the CR-Scan Raptor's capability to scan objects of diverse sizes, from small bolts to human bodies and vehicle components.
2. Scanning Process
Before starting a scan, select the appropriate mode (Blue-light or Infrared) and object size (Small, Medium, Large) in the CrealityScan software. Ensure the object is placed on a stable surface. For marker-based scanning, apply markers evenly on the object's surface.
- Optimal Distance: Maintain the scanner at an optimal distance from the object, indicated by green feedback in the software. Red indicates too far, blue indicates too close.
- Smooth Tracking: The One-Shot 3D imaging technology provides anti-shaking capabilities and fast backtracking speed, ensuring stable handheld scanning.
- Speed: Blue light scanning speed up to 60fps, NIR scanning speed up to 20fps.
Video 2: This video demonstrates how the Creality CR-Scan Raptor can be used to scan large objects effectively, showcasing its tracking and real-time feedback features.
3. Full-Color Scanning
The CR-Scan Raptor is equipped with a million-pixel full-color RGB camera and an exclusive color mapping algorithm. Dual-color circular LED texture lights (12 white LEDs) enhance brightness in dark environments, ensuring accurate reproduction of object colors and textures (24-bit full-color scanning).
Figure 5: Examples of objects scanned with 24-bit full-color, highlighting the scanner's ability to capture vibrant textures and details.
4. Scanning Challenging Objects
The CR-Scan Raptor can scan black and metallic objects without the need for scanning spray, making it suitable for automotive components and other industrial applications.

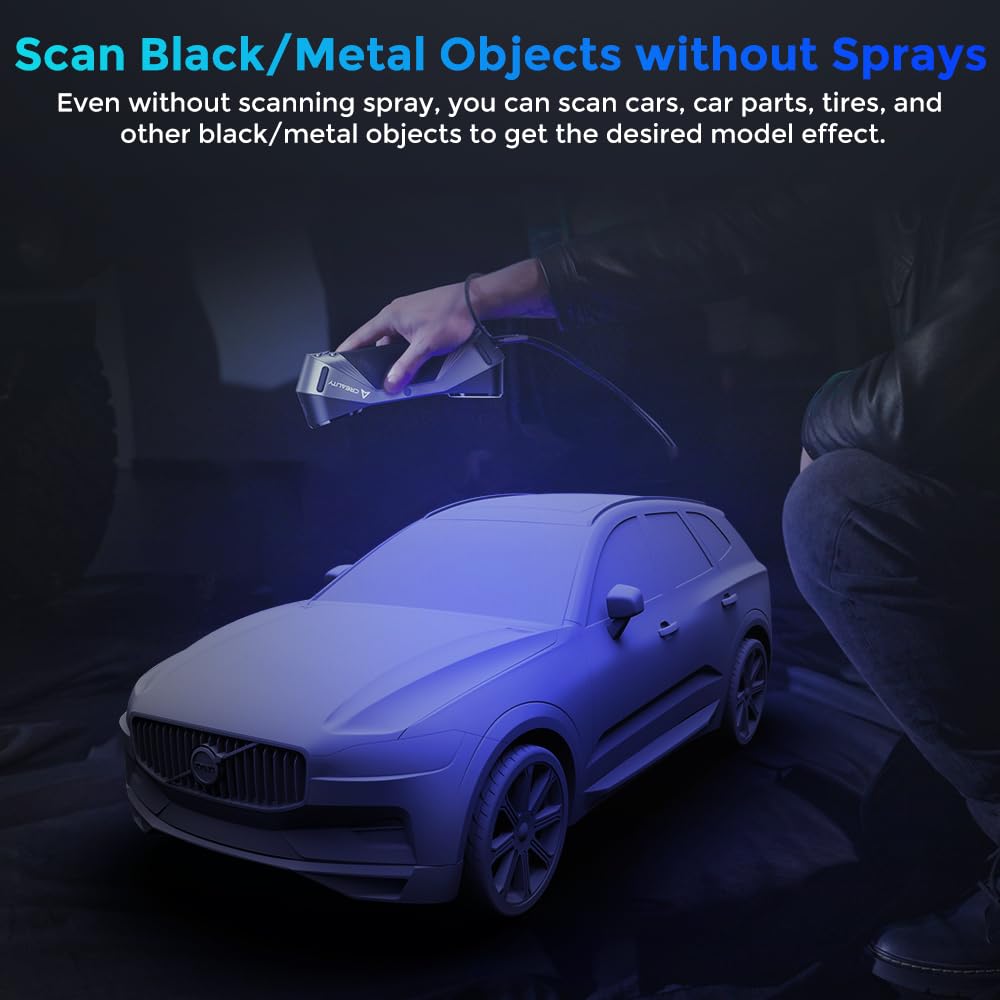

Figure 6: The CR-Scan Raptor scanning a black car, demonstrating its capability to capture details on challenging surfaces without pre-treatment.
5. Post-Processing
After scanning, the CrealityScan software offers one-click model processing and editing features. You can optimize the mesh, smooth surfaces, and fill holes to refine your 3D models. Export options are available for various formats (OBJ/STL/PLY).
Specifications
| Feature | Specification |
|---|---|
| Product Dimensions | 5 x 5 x 5 inches; 3.68 ounces |
| Item Model Number | CR-Scan Raptor |
| Manufacturer | Creality 3D |
| Scanning Mode | Blue Light (7-line laser) & NIR (Infrared binocular structured light) |
| Accuracy | Up to 0.02mm @ 100mm (Blue Light) / Up to 0.1mm (NIR) |
| 3D Resolution | 0.02-2mm (Blue Light) / 0.1-2mm (NIR) |
| Scanning Speed | Up to 60fps (Blue Light) / Up to 20fps (NIR) |
| Min. Scan Volume | 5mm x 5mm x 5mm |
| Max. Scan Volume | 2000mm x 2000mm x 2000mm |
| Color Mapping | Yes |
| Alignment Mode | Marker / Geometry / Texture |
| 3D Imaging Camera Resolution | 1920x1200 |
| Color Supplemental Light | 12 white LEDs |
| Marker Recognition Enhancement | 12 Infrared LEDs |
| Laser Safety | Class I (eye safe) |
| Output Format | OBJ/STL/PLY |
| System Support | Windows 10/11 (64 bit): i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory or higher; macOS: 11.7.7 and above, Apple M1/M1/M2/M3 series processors, RAM: 16GB or higher |
Maintenance
To ensure the longevity and optimal performance of your CR-Scan Raptor, follow these maintenance guidelines:
- Keep the scanner clean and free from dust and debris. Use a soft, dry cloth for cleaning.
- Store the scanner in its protective case when not in use to prevent damage.
- Regularly check for software updates to ensure you have the latest features and bug fixes.
- Avoid exposing the scanner to extreme temperatures or humidity.
Troubleshooting
If you encounter issues with your CR-Scan Raptor, consider the following common troubleshooting steps:
- Tracking Loss: Ensure optimal scanning distance (green indicator in software) and sufficient overlap between scanned areas. Return to a previously scanned area to re-establish tracking.
- Insufficient Valid Scan Data: Adjust IR exposure or scanning distance as prompted by the software.
- Connection Issues: Verify all cables are securely connected. Restart the CrealityScan software and your computer if necessary.
- Software/Firmware Updates: Ensure both the software and scanner firmware are up to date.
- Calibration: If accuracy issues persist, perform a calibration using the provided high-precision glass calibration board.
