SUPERLEX 2-Tier Stainless Steel Egg Cooker and Steamer Manual

1. Introduction

Thank you for choosing the SUPERLEX 2-Tier Stainless Steel Egg Cooker and Steamer. This appliance is designed for efficient and versatile cooking, allowing you to prepare perfectly cooked eggs and steam various foods. Please read this manual thoroughly before first use to ensure safe operation and optimal performance.

2. Important Safety Instructions

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse the cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• The appliance features an automatic shut-off function when the water has evaporated, preventing dry burning and ensuring safety.

3. Product Components

Familiarize yourself with the parts of your SUPERLEX Egg Cooker and Steamer:

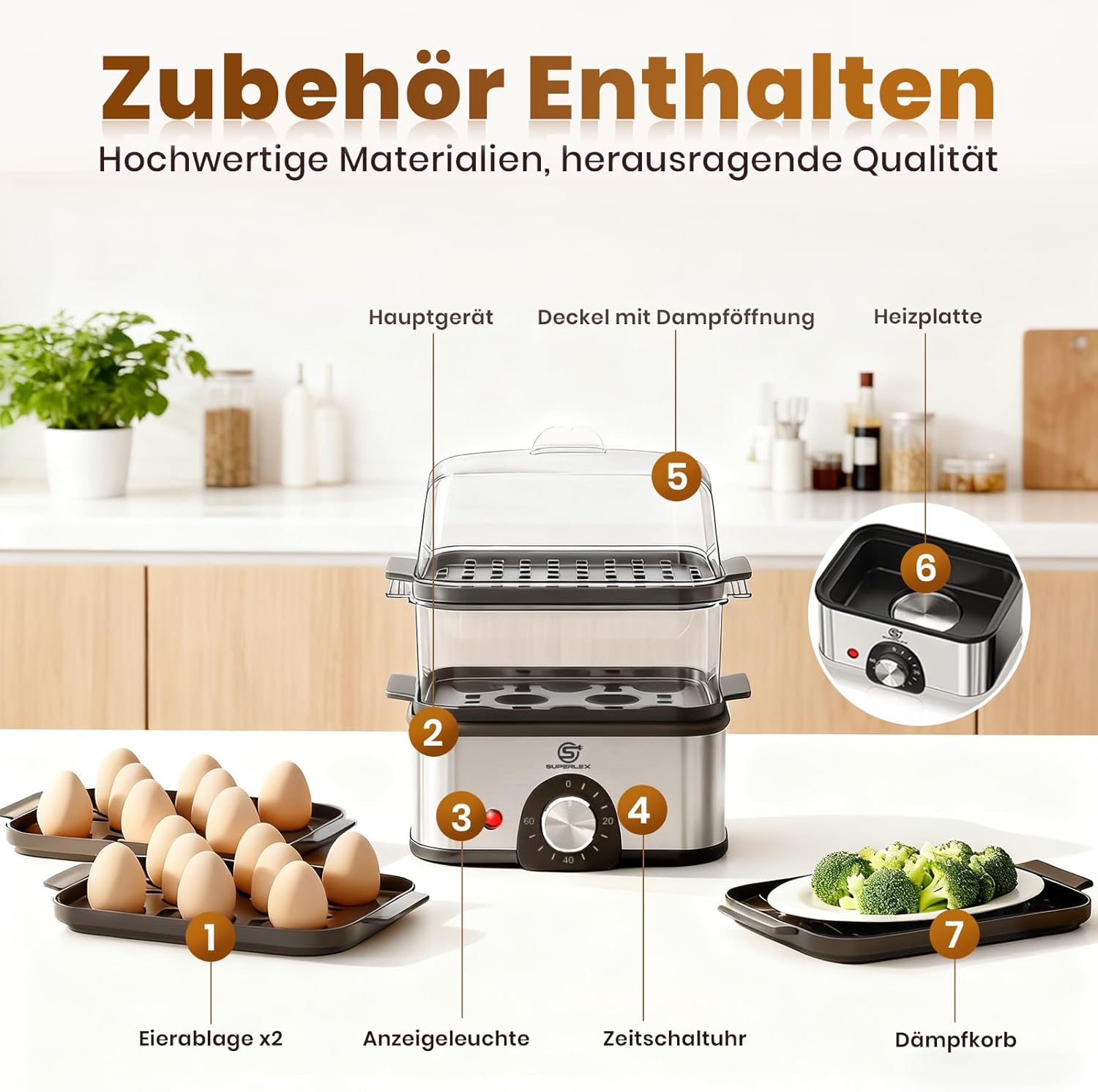

Image: Labeled components of the SUPERLEX Egg Cooker. Key parts include the main unit, lid, heating plate, egg trays, indicator light, timer, and steaming basket.

1. Egg Trays (x2): For holding eggs during cooking.
2. Main Unit: Contains the heating element and controls.
3. Indicator Light: Illuminates when the appliance is operating.
4. Timer Dial: Used to set the cooking time and desired egg hardness.
5. Lid with Steam Vent: Covers the cooking area, allowing steam to circulate.
6. Heating Plate: Where water is added for steaming.
7. Steaming Basket: For steaming vegetables, fish, or other foods.

4. Setup

Before first use, wash all removable parts (egg trays, steaming basket, lid) in warm, soapy water, rinse thoroughly, and dry. Wipe the main unit with a damp cloth. Ensure the appliance is placed on a stable, heat-resistant surface.

5. Operating Instructions

5.1. Cooking Eggs

1. Add the appropriate amount of water to the heating plate. The amount of water determines the hardness of the eggs. Refer to the water level markings or a measuring cup (if included) for guidance on soft, medium, or hard-boiled eggs.
2. Place the egg trays onto the heating plate. You can use one or two tiers depending on the number of eggs (up to 16 eggs).
3. Carefully place eggs into the designated slots on the egg trays.
4. Cover the unit with the lid.
5. Plug the appliance into a power outlet.
6. Turn the timer dial to your desired cooking time. The indicator light will illuminate.
7. Once the water has evaporated and the cooking cycle is complete, the appliance will automatically shut off, and the indicator light will turn off.
8. Carefully remove the lid (steam will be hot) and the egg trays. Cool the eggs under cold water to stop the cooking process.

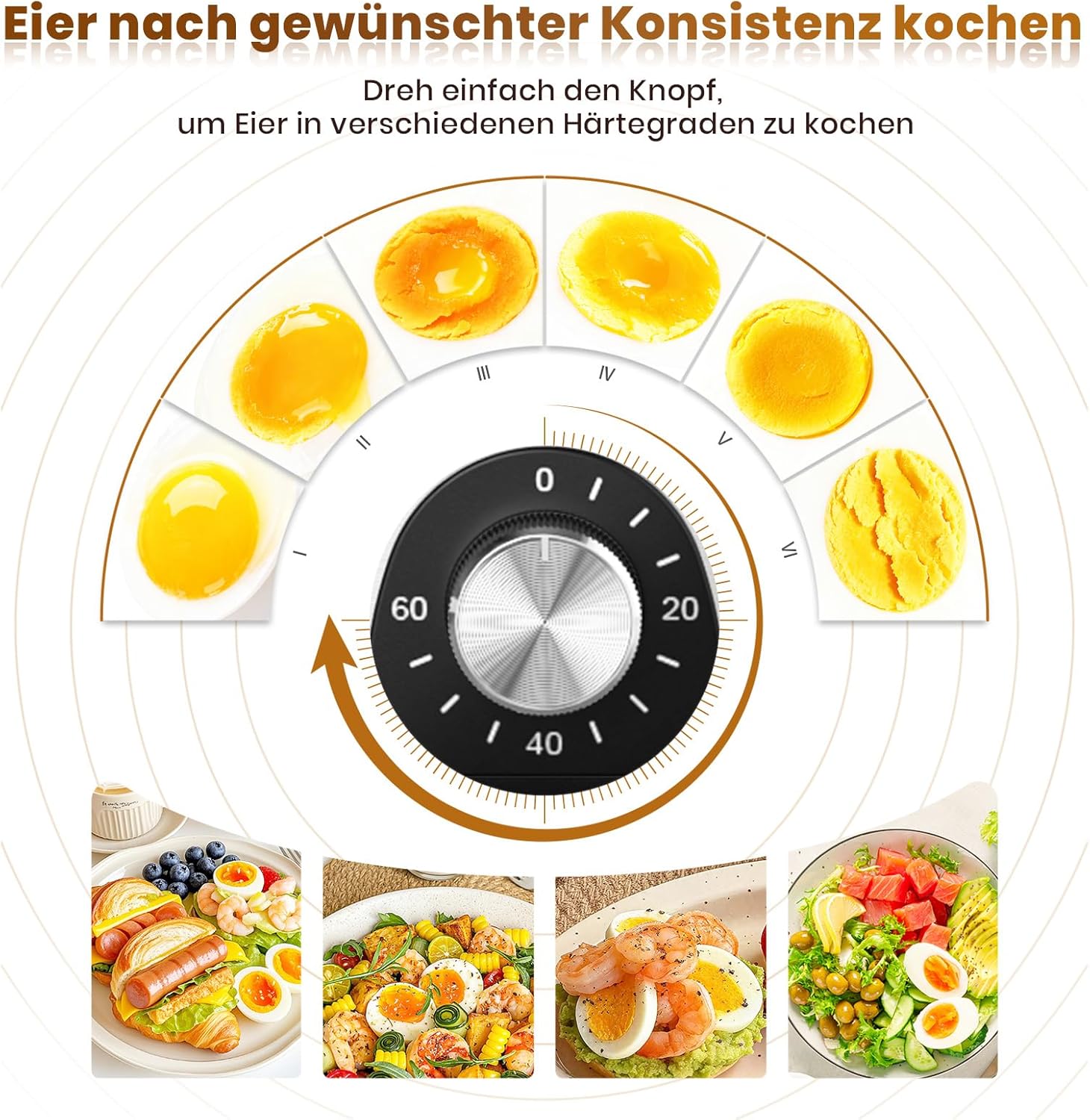

Image: Timer dial for selecting desired egg consistency (soft, medium, hard).

5.2. Steaming Food

This appliance can also be used as a food steamer for vegetables, fish, and other items.

1. Add the appropriate amount of water to the heating plate.
2. Place the steaming basket onto the heating plate. You can use one or two tiers.
3. Arrange your food (e.g., chopped vegetables, fish fillets) in the steaming basket.
4. Cover the unit with the lid.
5. Plug the appliance into a power outlet.
6. Turn the timer dial to the desired steaming time. The indicator light will illuminate.
7. The appliance will automatically shut off when the water has evaporated.
8. Carefully remove the lid and the steaming basket.

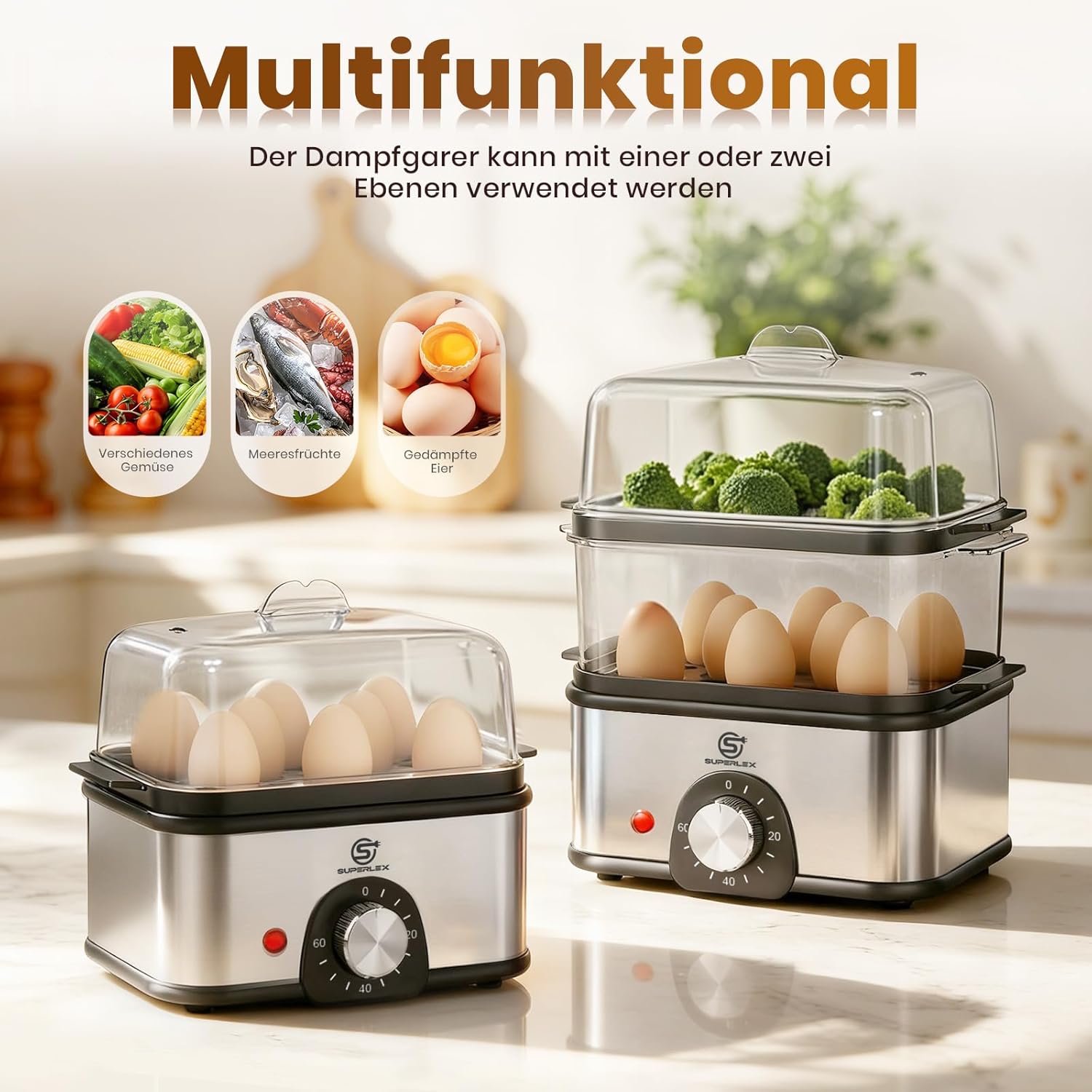

Image: The SUPERLEX Egg Cooker used in single and double-tier configurations for steaming various foods.

6. Cleaning and Maintenance

Regular cleaning ensures the longevity and hygiene of your appliance.

1. Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
2. The egg trays, steaming basket, and lid are removable and can be washed by hand with warm, soapy water or placed in a dishwasher.
3. Wipe the main unit and heating plate with a damp cloth. Do not immerse the main unit in water or any other liquid.
4. For stubborn mineral deposits on the heating plate, you can use a small amount of vinegar mixed with water and let it sit for a few minutes before wiping clean.
5. Ensure all parts are completely dry before storing or next use.

Image: Removable parts are dishwasher safe. The main unit should not be cleaned in a dishwasher.

7. Troubleshooting

If you encounter any issues, please refer to the following common problems and solutions:

8. Specifications

• Brand: SUPERLEX
• Model Number: Eierkocher
• Color: Stainless Steel
• Material: Stainless Steel
• Power: 500 Watts
• Item Weight: 1.2 Kilograms
• Package Dimensions: 29.5 x 24 x 19 cm
• Features: Automatic Shut-off, Rotary Knob, Countdown Timer, Food Steamer

Image: Product dimensions and key specifications.

9. Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact SUPERLEX customer service through the retailer where the product was purchased. Keep your proof of purchase for warranty claims.
