Carrera GO!!! Max Competition Race Track Set - Model 20062574

Introduction

Welcome to the world of Carrera GO!!! Max Competition. This race track set, model 20062574, offers an exciting Formula 1 racing experience with 1:43 scale cars and dynamic track elements. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure optimal performance and enjoyment of your race track.

For additional information and products, please visit the official Carrera website: www.carrera-toys.com

Safety Information

Please read all safety instructions carefully before operating the race track. Failure to follow these instructions may result in injury or damage to the product.

• This product is suitable for children aged 6 years and older. Adult supervision is recommended.
• Keep small parts away from young children to prevent choking hazards.
• Ensure all electrical connections are secure and dry. Do not operate the track near water.
• Only use the power adapter supplied with the set.
• Do not modify the track or cars in any way not specified by the manufacturer.
• Disconnect the power supply when the track is not in use or during assembly/disassembly.

Setup and Assembly

Package Contents

Before starting assembly, verify that all components are present. Refer to the "IN THE BOX" diagram below.

Figure 1: Contents of the Carrera GO!!! Max Competition Race Track Set. Includes two Formula 1 cars, track sections, speed controllers, and accessories.

• 2 x Carrera GO!!! Formula 1 Slot Cars (Mercedes-AMG F1 W14 E Performance "L. Hamilton" and Red Bull Racing RB19 "M. Verstappen")
• 2 x Speed Controllers with Turbo Button
• Track sections (straight tracks, curves, looping action, junction, lap counter)
• Power Supply (CEE 7/16 Europlug)
• Track barriers and supports
• Instruction Manual

Track Assembly

The Carrera GO!!! Max Competition set features a track length of 6.3 meters (20.67 ft) and an assembled dimension of approximately 175 x 122 cm (5.74 x 4.00 ft). Assembly typically takes about 30 minutes.

1. Choose a suitable location: Select a flat, stable surface large enough for the track layout.
2. Connect track sections: Carefully connect the track pieces by sliding the connectors together. Ensure a snug fit for good electrical contact. Refer to the assembly diagram for the standard layout.
3. Install special track elements: Integrate the looping action, junction, and lap counter as shown in the diagram. Use supports for elevated sections like the loop.
4. Attach track barriers: Secure the red track barriers to the outer edges of curves to prevent cars from derailing.
5. Connect power and controllers: Plug the power supply into the connection track section. Connect the two speed controllers to the designated ports on the connection track.
6. Place cars on track: Position the slot cars onto the track, ensuring the guide keels are correctly seated in the track slot.

Figure 2: Standard track layout and assembly information for the Carrera GO!!! Max Competition set.

The set allows for multiple track layout options to enhance your racing experience. Experiment with different configurations as shown in the "Race Track Options" diagram.

Figure 3: Examples of multiple race track layout options.

Operating Instructions

Once assembled, the race track is ready for immediate use. The set is designed for up to two players.

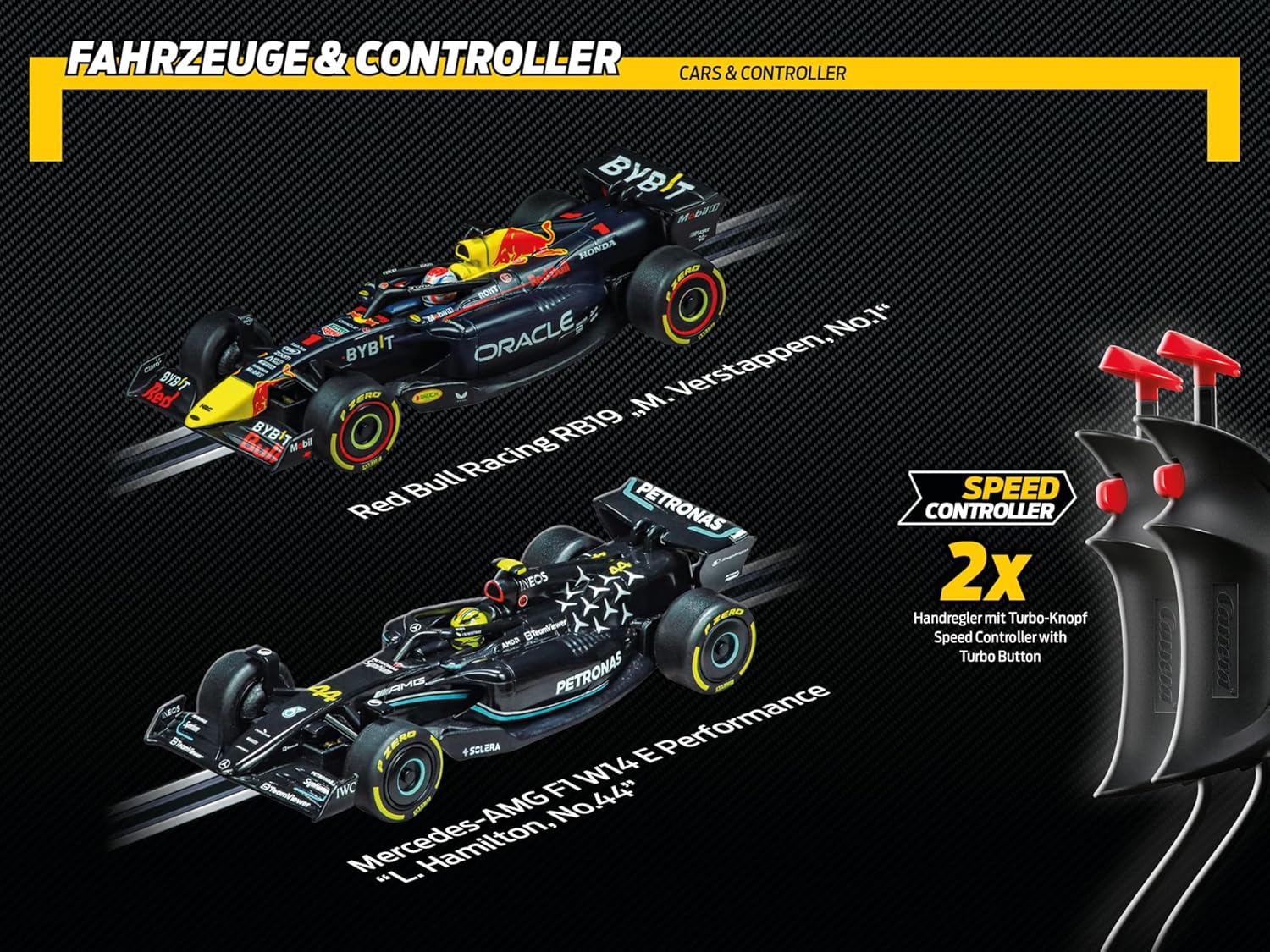

Figure 4: The included Formula 1 cars and speed controllers.

1. Power On: Plug the power adapter into a wall outlet.
2. Start Racing: Use the hand controller to control the speed of your car. Press the trigger to accelerate.
3. Turbo Boost: Each controller is equipped with a turbo button. Press this button for a temporary burst of speed, useful for overtaking or navigating straight sections. Use with caution on curves to avoid derailing.
4. Lap Counter: The integrated lap counter will automatically record the laps completed by the cars.

Tip: Practice controlling your car's speed, especially around corners and through the loop, to master the track and prevent derailing.

General Carrera Track Demonstration

The following video demonstrates general operation principles of a Carrera track set. While it features a different model (Carrera First Mario Kart), the basic concepts of car placement, controller use, and track interaction are similar.

Maintenance

• Track Cleaning: Regularly wipe the track rails with a clean, dry, lint-free cloth to remove dust and debris. This ensures good electrical contact for the cars.
• Car Maintenance: Check the car's guide keel and contact brushes periodically. Replace worn brushes to maintain optimal performance. Ensure the wheels are clean and free of hair or fibers.
• Storage: When not in use, store the track and cars in a dry, dust-free environment. Disassemble the track carefully if storing for extended periods.

Troubleshooting

Specifications

• Model Number: 20062574
• Brand: Carrera
• Scale: 1:43
• Track Length: 6.3 meters (20.67 ft)
• Assembled Dimensions (L x W x H): 175 x 122 x 40 cm (approx. 5.74 x 4.00 ft)
• Power Source: Electric with cord (CEE 7/16 Europlug)
• Number of Players: 2
• Recommended Age: 6+ years
• Assembly Time: Approximately 30 minutes
• Weight: 2.5 kg
• Educational Objective: Hand-eye coordination, Concentration, Strategic thinking
• Special Features: Authentic Formula 1 experience, Turbo button on controllers, Looping action, Junction, Lap counter.

Warranty and Support

This Carrera GO!!! Max Competition Race Track Set comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for warranty claims.

For technical support, spare parts, or further inquiries, please contact Carrera customer service or visit their official website: www.carrera-toys.com.

Availability of spare parts in the EU is guaranteed for 1 year.
