VIMAR K42931 Double Family Video Door Phone Kit Instruction Manual

1. Introduction

Thank you for choosing the VIMAR K42931 Double Family Video Door Phone Kit. This comprehensive kit provides a secure and convenient way to manage access to your property. Designed for two-family or quad-family configurations, it features two 7-inch LCD color hands-free video door phones with capacitive keypads, an audiovisual outdoor plate with an RFID reader, and all necessary power supplies and distributors for a complete wired system. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and longevity of your device.

2. Product Overview

The VIMAR K42931 kit is engineered for reliability and ease of use, offering advanced features for home security and communication.

2.1. Kit Components

• 2 x 7" LCD Colour Hands-Free Video Door Phones: Indoor monitors with capacitive keypads for intuitive control.
• 1 x Audiovisual Plate with RFID Reader: Outdoor unit featuring a camera, speaker, microphone, RFID reader, and two call buttons, suitable for bi-family or quad-family setups.
• Raincover Frame: Provides additional protection for the outdoor plate.
• 2 x 40103 Power Supply: Essential for powering the system components.
• 1 x 4-Way Bus Distributor: Facilitates connection and communication between multiple indoor and outdoor units.
• Fixing Brackets: For secure wall mounting of components.

Image 2.1: Overview of the VIMAR K42931 Double Family Video Door Phone Kit components, including two indoor monitors, an outdoor call panel, and power supplies.

2.2. Key Features

• Expandability: The system can be expanded to include up to 3 monitors and 2 outdoor plates, offering flexibility for larger properties.
• Intercommunication: Allows for internal communication between indoor units within the same housing unit.
• Capacitive Keyboard: Soft-touch capacitive keyboard on indoor monitors for easy navigation and control.
• Durable Outdoor Plate: Made of anodised aluminium with IP54 and IK07 protection ratings, ensuring resistance against dust, water, and impact.
• Lock and Auxiliary Services: Supports connection to electric locks and other auxiliary services, with a dedicated connection for a door opener button.
• Wired Connectivity: Ensures stable and reliable communication.

Image 2.2: Diagram illustrating key features and specifications of the VIMAR K42931 system, including expandability, intercommunication, and protection ratings.

3. Setup & Installation

Proper installation is crucial for the optimal performance of your video door phone system. It is highly recommended that installation be performed by a qualified electrician or technician.

3.1. Safety Precautions

• Always disconnect power before beginning any installation or maintenance work.
• Ensure all wiring complies with local electrical codes and regulations.
• Do not expose components to excessive moisture or extreme temperatures.

3.2. Installation Steps (General Guidelines)

1. Mount the Outdoor Plate:

   Select a suitable location near your entrance, ensuring it is at an appropriate height for visitors and protected from direct weather exposure (though the unit is IP54/IK07 rated, a raincover frame is included for added protection). Use the provided fixing brackets to securely mount the outdoor plate. Ensure proper cable routing for power and communication.



   Image 3.1: Example of the outdoor call panel installed on a gate post, demonstrating typical placement.

2. Mount the Indoor Monitors:

   Choose convenient locations inside your home for the 7-inch LCD monitors. Mount them using the provided brackets, ensuring they are easily accessible and visible. Route the necessary wiring from the bus distributor to each monitor.



   Image 3.2: The indoor monitor mounted on a wall, showing its sleek design and placement within a home environment.
3. Connect Power Supplies and Bus Distributor:

   Install the two 40103 power supplies and the 4-way bus distributor in a secure, accessible location, typically near your main electrical panel. Follow the wiring diagrams provided in the full installation manual (not included here) to connect the outdoor plate, indoor monitors, and power supplies to the bus distributor. Ensure all connections are secure and correctly polarized.

4. Connect Electric Lock (Optional):

   If using an electric lock, connect it to the designated terminals on the outdoor plate or bus distributor as per the wiring diagram. Test the lock operation after connection.

5. Power On and Test:

   Once all components are securely mounted and wired, restore power to the system. Test all functions: calling from the outdoor plate, answering on indoor monitors, two-way audio, video display, door release, and intercommunication between monitors.

For detailed wiring diagrams and specific installation instructions, please refer to the complete installation guide provided with your VIMAR K42931 kit.

4. Operating Instructions

The VIMAR K42931 system is designed for intuitive operation. Here are the basic functions:

4.1. Answering a Call from the Outdoor Plate

1. When a visitor presses a call button on the outdoor plate, the indoor monitor(s) will ring and display the visitor's video feed.
2. To answer the call, touch the Answer icon (typically a telephone receiver symbol) on the monitor's capacitive keypad.
3. You can now communicate with the visitor using the two-way audio function.

4.2. Opening the Door

• During a call, or when viewing the outdoor camera, touch the Door Release icon (typically a key or unlock symbol) on the monitor to activate the electric lock and open the door or gate.
• The system also supports an auxiliary service button for other connected devices.

4.3. Monitoring the Outdoor Area

• To view the outdoor camera feed without a call, touch the Monitor icon (typically a camera symbol) on the indoor monitor. This allows you to check the entrance at any time.

4.4. Intercommunication Between Indoor Monitors

• If multiple indoor monitors are installed within the same housing unit, you can initiate a call between them. Refer to the full user manual for specific instructions on using the intercommunication function, typically involving selecting the desired monitor from a list or using a dedicated intercommunication button.

4.5. Using the RFID Reader (Outdoor Plate)

• The outdoor plate includes an RFID reader for access control. Present a pre-programmed RFID key fob or card to the designated area on the outdoor plate to unlock the door without needing to use the indoor monitor. Programming of RFID credentials is detailed in the advanced setup section of the complete manual.

5. Maintenance

Regular maintenance ensures the longevity and reliable operation of your VIMAR K42931 system.

5.1. Cleaning

• Indoor Monitors: Clean the screen and capacitive keypad with a soft, dry, lint-free cloth. For stubborn marks, slightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid harsh chemicals.
• Outdoor Plate: Wipe the anodised aluminium surface and camera lens with a soft, damp cloth. Ensure the camera lens is free from dirt or smudges for clear video quality. Do not use abrasive materials that could scratch the surface or lens.

5.2. System Checks

• Regular Functionality Test: Periodically test all functions, including calling, answering, door release, and intercommunication, to ensure everything is working correctly.
• Wiring Inspection: Annually, or if issues arise, visually inspect all visible wiring and connections for any signs of wear, damage, or corrosion. Ensure all connections remain secure.
• Outdoor Plate Protection: Verify that the raincover frame is securely in place and free from obstructions.

6. Troubleshooting

If you encounter issues with your VIMAR K42931 system, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact VIMAR customer support or a qualified technician.

7. Specifications

Below are the technical specifications for the VIMAR K42931 Double Family Video Door Phone Kit:

Image 7.1: Detailed dimensions of the outdoor call panel.

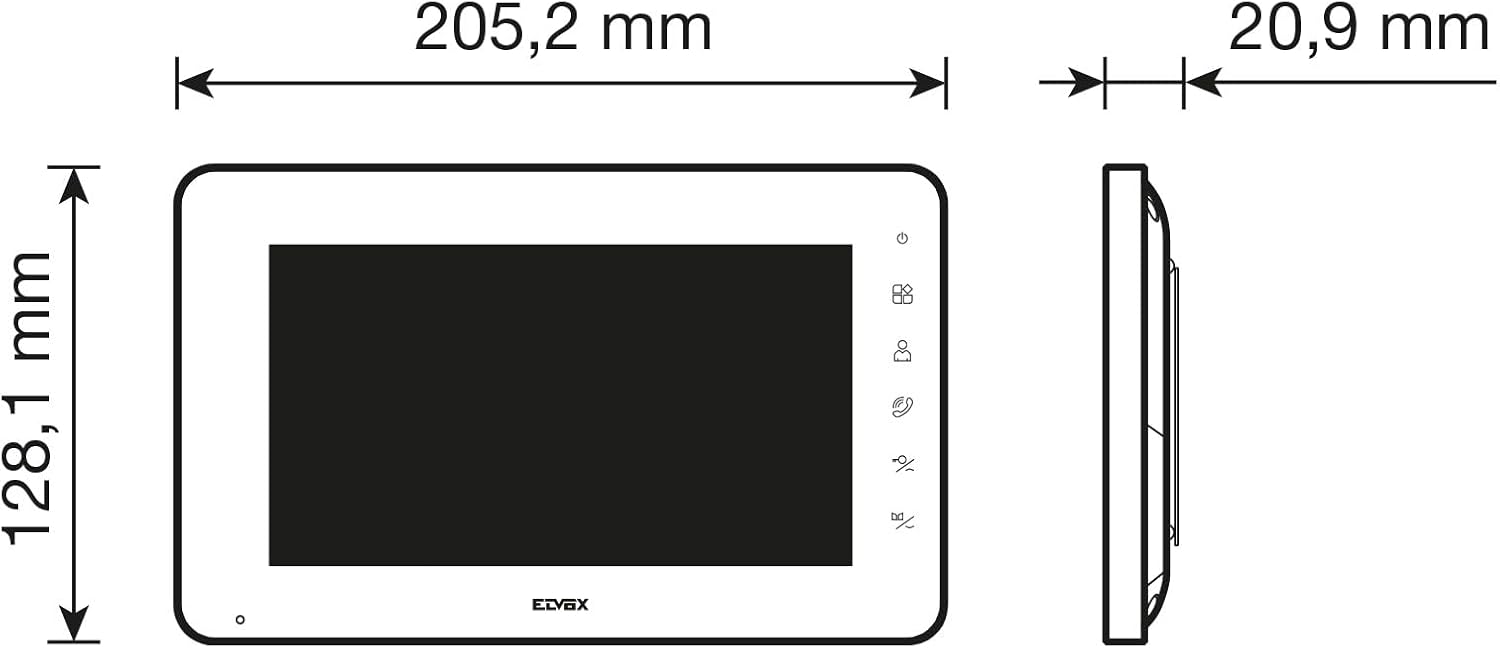

Image 7.2: Detailed dimensions of the indoor monitor.

8. Warranty & Support

VIMAR products are manufactured to high-quality standards. For information regarding the warranty period and terms for your K42931 Video Door Phone Kit, please refer to the warranty card included in the product packaging or visit the official VIMAR website.

For technical assistance, troubleshooting beyond this manual, or to inquire about spare parts, please contact VIMAR customer support. Contact details can typically be found on the VIMAR website or in your product documentation.

VIMAR Official Website: www.vimar.com
