1. Introduction
This manual provides essential instructions for the safe and proper use, assembly, and maintenance of your Chicco Seety Stroller. Please read this manual thoroughly before using the product and retain it for future reference.
Image 1.1: The Chicco Seety Stroller, fully assembled.
2. Safety Information
Always prioritize your child's safety. Failure to follow these instructions could result in serious injury.
- Never leave your child unattended in the stroller.
- Ensure all locking devices are engaged before use.
- Do not overload the stroller or the storage basket. Maximum weight capacity is 22 kg.
- Always use the 5-point harness system to secure your child.
- Keep children clear of moving parts when adjusting the stroller.
- Do not use accessories or spare parts other than those approved by Chicco.
- This stroller is suitable from birth up to 22 kg (approximately 4 years).
- Engage the brakes when parking the stroller.
3. Package Contents
Verify that all components are present and undamaged upon unpacking.
- Chicco Seety Stroller Frame with Wheels
- Stroller Seat Unit
- Canopy
- Rain Cover
- Instruction Manual
4. Setup and Assembly
4.1 Unfolding the Stroller
- Place the folded stroller on a flat surface.
- Release the folding lock mechanism.
- Lift the handlebar until the frame locks into the open position. Ensure both sides are securely locked.
4.2 Attaching the Wheels
- Insert the front wheels into their respective slots until they click into place.
- Attach the rear wheels by pushing them onto the axle until they are secure.
4.3 Attaching the Seat Unit and Canopy
- Align the seat unit with the frame connectors and push down until it clicks securely.
- Attach the canopy to the designated points on the seat unit.
Image 4.1: Easy attachment of components, such as a carrycot, without adapters.
5. Operating Instructions
5.1 Folding the Stroller
The Chicco Seety Stroller features a one-hand automatic folding mechanism for convenience.
- Ensure the seat is in an upright position.
- Locate the folding mechanism on the handlebar.
- Activate the mechanism and push the handlebar forward/downward until the stroller folds compactly.
- Confirm the folding lock engages automatically.
Image 5.1: The stroller in its compact folded state, highlighting its portability.
Image 5.2: The stroller's lightweight design, weighing only 7 kg when folded.
5.2 Reversible Seat
The seat unit can be easily reversed to face either the parent or the street.
- Ensure the child is removed from the seat.
- Locate the release buttons on both sides of the seat unit.
- Press the buttons and lift the seat unit off the frame.
- Rotate the seat unit to the desired direction and reattach it to the frame until it clicks securely.
Image 5.3: Demonstrating the reversible seat feature.
5.3 Reclining Backrest and Adjustable Footrest
The backrest can be fully reclined, and the footrest adjusted, making the stroller suitable from birth.
- To recline the backrest, locate the lever or strap behind the seat and adjust to the desired position.
- To adjust the footrest, press the buttons on either side and move it up or down.
Image 5.4: The stroller's full recline and adjustable footrest for infant comfort.
5.4 Canopy Operation
The large canopy provides protection from sun and rain.
- Extend or retract the canopy by pushing or pulling its front edge.
- Utilize the peek-a-boo mesh window for ventilation and to check on your child.
- The canopy offers UV50+ protection and is water-repellent.
Image 5.5: Detail of the protective and ventilated canopy.
5.5 Harness System
Always secure your child using the 5-point harness.
- Place your child in the seat.
- Fasten the shoulder straps, waist straps, and crotch strap into the central buckle.
- Adjust the straps to ensure a snug but comfortable fit.
5.6 Brakes
Engage the brakes whenever the stroller is stationary.
- Push down on the brake pedal located near the rear wheels until it locks.
- To release, lift the brake pedal.
- Always check that the brakes are fully engaged before releasing the handlebar.
5.7 Travel System Compatibility
The Seety Stroller is compatible with the Seety carrycot and Kory i-Size car seat without the need for additional adapters.
- To attach a compatible car seat or carrycot, remove the stroller seat unit.
- Align the car seat/carrycot with the frame connectors and push down until it clicks securely into place.
- Always ensure the car seat/carrycot is firmly attached before use.
Image 5.6: The Seety Stroller integrated with a Kory i-Size car seat.
Image 5.7: The Seety Carrycot, featuring a mesh window for optimal air circulation.
Image 5.8: The Seety Carrycot equipped with a warm cover for colder weather.
Image 5.9: The Seety Carrycot's canopy offering comprehensive protection.
6. Maintenance and Care
6.1 Cleaning
- Fabric Parts: Hand wash only. Do not bleach, tumble dry, iron, or dry clean.
- Frame and Plastic Parts: Wipe clean with a damp cloth and mild soap. Dry thoroughly.
- Do not use abrasive cleaners or solvents.
6.2 Wheel Maintenance
- Regularly check wheels for wear and tear.
- Remove any debris (e.g., dirt, hair) from the wheel axles.
- The wheels feature shock absorbers and ball bearings for a smooth ride. Ensure they are free from obstruction.

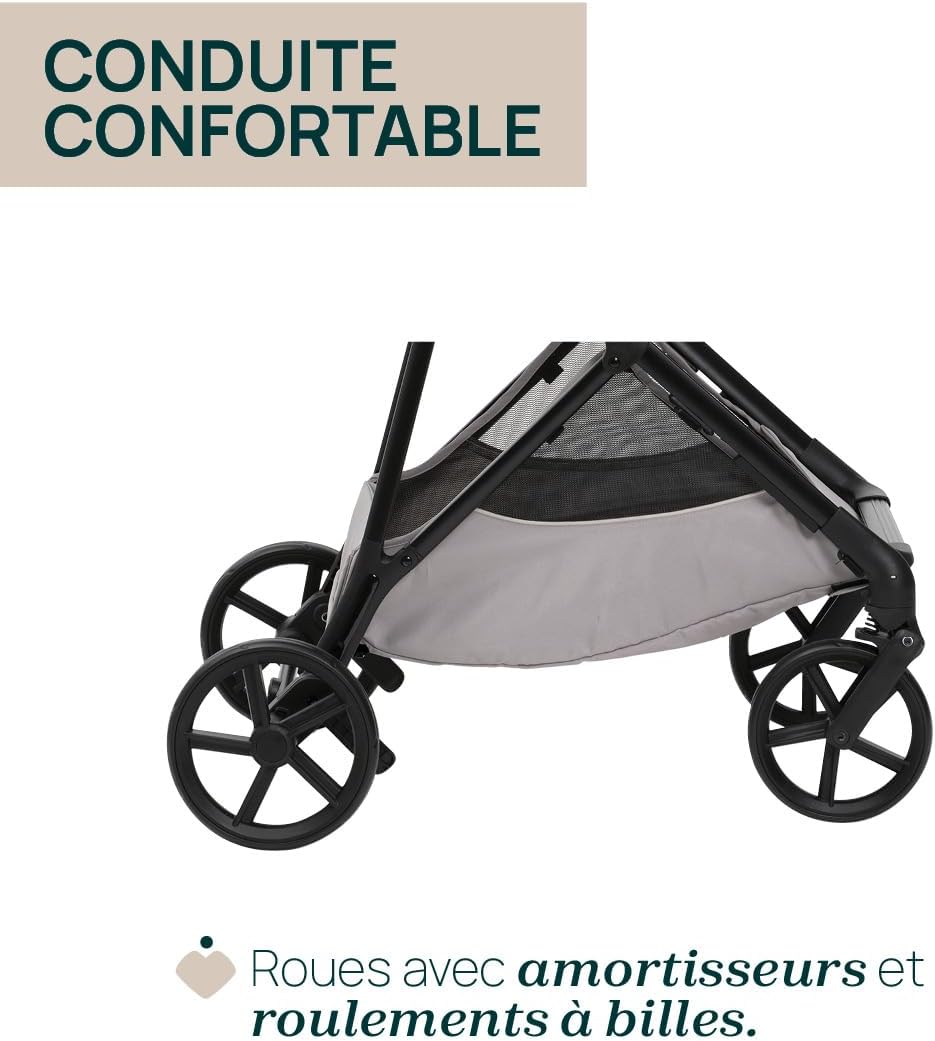

Image 6.1: Detail of the stroller's wheels, designed for a smooth ride.
6.3 Storage
- Store the stroller in a dry, well-ventilated area away from direct sunlight and extreme temperatures.
- Ensure the stroller is clean and dry before storing to prevent mold or mildew.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Stroller does not fold/unfold smoothly. | Folding mechanism obstructed or not fully engaged. | Ensure all components are clear of the folding mechanism. Refer to section 5.1. |
| Wheels squeak or do not turn freely. | Debris in axles or lack of lubrication. | Clean wheels and axles. Apply a silicone-based lubricant if necessary. |
| Seat unit not attaching securely. | Misalignment or obstruction. | Ensure seat unit is correctly aligned with frame connectors and push firmly until it clicks. Check for any obstructions. |
| Brakes not engaging or releasing. | Mechanism obstructed or damaged. | Check for debris around the brake mechanism. If problem persists, contact customer support. |
8. Specifications
- Brand: Chicco
- Model: Seety Stroller
- Model Numbers: 05087097070000, 80487097530000
- Maximum Supported Weight: 22 kg
- Recommended Age Range: From birth up to 4 years
- Main Material: Polyester
- Frame Composition: PA, PP, POM, EVA, Steel, Aluminum
- Harness Type: 5-point
- Seating Capacity: 1 child
- Wheel Material: Rubber and Metal
- Unfolded Dimensions (L x W x H): 73 x 55 x 110 cm
- Folded Dimensions (L x W x H): 74 x 55 x 34 cm
- Stroller Weight: 7 kg
- Chassis Weight (approx.): 5 kg
- Special Features: Lightweight, shock absorbers, ball bearings, one-hand fold, integrated carry handle, self-standing when folded, reversible seat, large canopy with UV50+ and water-repellent treatment, spacious basket, compatible with Seety carrycot and Kory i-Size car seat without adapters.
Image 8.1: Visual representation of the stroller's weight and dimensions.
9. Warranty and Support
For warranty information, product registration, or customer support, please refer to the official Chicco website or contact their customer service department. Keep your proof of purchase for any warranty claims.
Additional resources and product information can be found via the Chicco Digital Catalogue:
Image 9.1: QR codes for Chicco's digital catalogues.
