1. Introduction
Thank you for choosing the Braun CareStyle 5 IS5249BK Steam Generator Iron. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your appliance. Please read these instructions carefully before first use and keep them for future reference.
2. Important Safety Instructions
- Always ensure the voltage indicated on the appliance corresponds to your mains voltage.
- Do not immerse the iron or the base unit in water or any other liquid.
- Never leave the iron unattended while it is switched on or connected to the power supply.
- Keep the iron and its cord out of reach of children and persons with reduced physical, sensory, or mental capabilities.
- The soleplate and steam emitted are extremely hot and can cause burns. Avoid direct contact.
- Unplug the appliance from the mains socket before filling the water tank, cleaning, or after each use.
- Do not operate the appliance if it has been dropped, if there are visible signs of damage, or if it is leaking.
- Only use the appliance for its intended household purpose.
3. Product Overview
Components
The Braun CareStyle 5 IS5249BK consists of the iron unit, a steam generator base with a removable water tank, and a steam hose connecting the two.
Image 1: Overall view of the Braun CareStyle 5 IS5249BK steam generator iron and base unit.
Key Features
- PowerSteam Technology: Delivers a continuous steam output of 150 g/min for efficient wrinkle removal.
- iCare Mode: Intelligent mode that automatically sets a safe temperature for all fabric types, preventing burns and simplifying ironing.
- FreeGlide 3D Soleplate: Uniquely curved soleplate allows for 360° glide over any obstacle, such as buttons and pockets, without snagging.
- Vertical Ironing Function: Enables easy steaming of hanging garments, curtains, and delicate fabrics.
- 2L Removable Water Tank: Large capacity for longer ironing sessions and easy refilling.
- 2400W Power: Ensures rapid heat-up and powerful steam performance.
Image 2: Close-up view of the FreeGlide 3D soleplate, highlighting its unique design for effortless gliding.
4. Setup
Unpacking
- Remove all packaging materials and labels from the appliance.
- Ensure all components are present and undamaged.
Filling the Water Tank
- Remove the 2-liter water tank from the base unit by pulling it upwards.
- Open the filling cap and fill the tank with tap water up to the 'MAX' level indicator. For areas with very hard water, consider using a mixture of 50% tap water and 50% distilled water. Do not use 100% distilled water or additives.
- Close the filling cap securely and place the water tank back into the base unit until it clicks into place.
Initial Use
- Place the steam generator on a stable, heat-resistant surface.
- Unwind the power cord and plug it into a grounded electrical outlet.
- Press the power button. The iron will begin to heat up.
- During the first use, a small amount of steam or water droplets may be released. This is normal. Iron an old cloth for a few minutes to clear any residue.
5. Operating Instructions
Powering On
After plugging in the appliance, press the power button. The indicator light will flash during heating and remain steady when ready for use (approximately 2 minutes).
Selecting Ironing Mode (iCare)
The CareStyle 5 IS5249BK features an intelligent iCare mode. This mode automatically adjusts the soleplate temperature to a safe level for all ironable fabrics, from delicate silks to sturdy denim, eliminating the need for manual temperature selection and preventing fabric damage.
- When the iron is ready, the iCare mode is typically active by default.
- No further temperature adjustments are required for different fabrics.
Ironing with Steam
- Once the iron is ready (indicator light steady), place the iron on the garment.
- Press the steam trigger located under the handle to release continuous steam.
- For stubborn creases, you can use the steam shot function by pressing the steam trigger multiple times quickly.
Image 3: A user demonstrating ironing a shirt with the Braun CareStyle 5, showing the iron in action.
Image 4: The Braun CareStyle 5 iron gliding smoothly over fabric on an ironing board, with visible steam.
Vertical Ironing
The vertical steam function is ideal for refreshing hanging clothes, drapes, or delicate items.
- Hang the garment on a hanger.
- Hold the iron vertically, a few centimeters away from the fabric.
- Press the steam trigger to release steam. Move the iron up and down the garment.

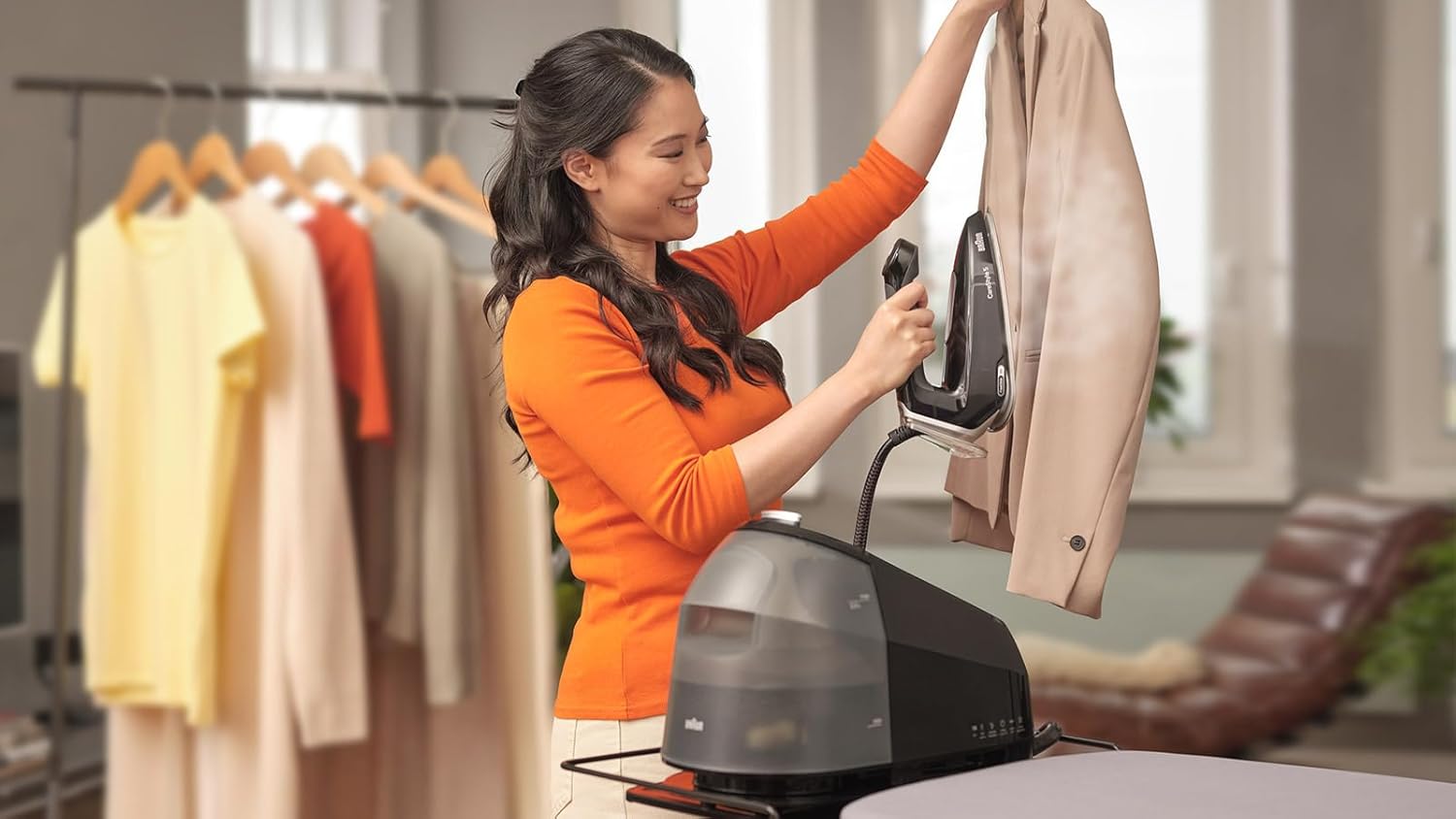

Image 5: A user performing vertical steaming on a jacket with the Braun CareStyle 5, demonstrating its versatility.
Dry Ironing
To iron without steam, simply do not press the steam trigger. The iCare mode will still maintain a safe soleplate temperature.
Auto Shut-off
For safety and energy saving, the appliance features an auto shut-off function. If the iron is left unused for a certain period, it will automatically switch off.
6. Maintenance and Cleaning
Emptying the Water Tank
After each ironing session, or when storing the iron for an extended period, it is recommended to empty the water tank. Unplug the appliance, remove the tank, open the cap, and pour out any remaining water.
Cleaning the Soleplate
To clean the soleplate, ensure the iron is unplugged and completely cool. Wipe the soleplate with a damp cloth and a non-abrasive liquid cleaner if necessary. Do not use abrasive pads or harsh chemicals.
Descaling (Calc-Clean System)
Regular descaling is crucial to maintain optimal steam performance and prolong the life of your appliance. Your CareStyle 5 IS5249BK is equipped with a descaling system. Refer to the full product manual for detailed instructions on how to perform the Calc-Clean procedure. The frequency depends on water hardness and usage.
Storage
Once the iron has cooled down completely, secure the iron to its base. Wrap the steam hose and power cord neatly. Store the appliance in a dry, safe place, out of reach of children.
Image 6: The Braun CareStyle 5 steam generator iron and base unit stored neatly on an ironing board, alongside folded laundry.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No steam is produced. | Water tank is empty. Iron not heated sufficiently. Steam trigger not pressed. | Refill water tank. Wait for the iron to reach operating temperature (steady light). Press the steam trigger. |
| Water droplets leak from the soleplate. | Iron not hot enough. Steam used too frequently. | Allow the iron to heat up fully. Reduce the frequency of steam bursts. |
| Iron does not heat up. | Not plugged in. Power button not pressed. | Check power connection. Press the power button. |
| Calc-Clean indicator light is on. | Descaling is required. | Perform the descaling procedure as per the detailed manual. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | IS5249BK |
| Power | 2400 Watts |
| Voltage | 240 Volts |
| Continuous Steam Output | 150 g/min |
| Water Tank Capacity | 2 Liters (removable) |
| Soleplate Type | FreeGlide 3D |
| Dimensions (L x W x H) | 38 x 22 x 0.1 cm (approximate, iron unit) |
| Weight | 4.3 Kilograms |
| Color | Black |
9. Warranty and Support
Warranty Information
The Braun CareStyle 5 IS5249BK comes with a 5-year warranty. This includes the standard legal warranty plus an additional 3-year extended warranty. This warranty reflects Braun's commitment to quality and durability. For full terms and conditions, please refer to the official Braun household website or your purchase documentation.
Customer Support
For further assistance, technical support, or warranty claims, please contact Braun customer service. Contact details can typically be found on the Braun official website or within your product packaging.
