Yaheetech Garden Umbrella Instruction Manual

Introduction

Thank you for choosing the Yaheetech Garden Umbrella. This manual provides essential information for the safe assembly, operation, and maintenance of your new umbrella. Please read these instructions carefully before use and retain them for future reference.

Safety Information

• Always ensure the umbrella base is stable and sufficiently weighted to prevent tipping, especially in windy conditions. (Base not included).
• Do not use the umbrella during strong winds, heavy rain, or storms. Close and secure the umbrella to prevent damage or injury.
• Keep children and pets away from the umbrella during opening and closing operations.
• Avoid placing the umbrella near open flames or heat sources.
• Regularly inspect all components for wear and tear. Replace damaged parts immediately.

Package Contents

Verify that all components are present before assembly:

• Umbrella Canopy with Ribs
• Upper Pole Section
• Lower Pole Section with Crank Mechanism
• Securing Strap (attached to canopy)
• Instruction Manual (this document)

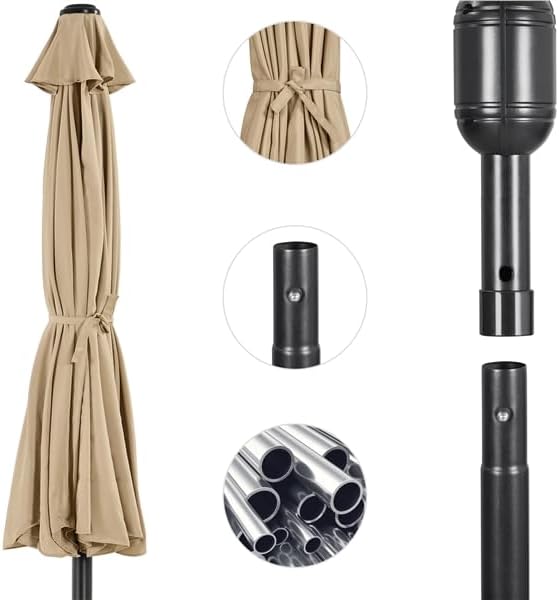

Image: Components of the umbrella, showing the folded canopy, securing strap, and two pole sections.

Setup Instructions

1. Prepare the Base: Ensure you have a suitable, weighted umbrella base (not included) placed on a flat, stable surface.
2. Assemble the Pole: Connect the upper pole section to the lower pole section. Align the spring button on one section with the hole on the other and push until it clicks into place.
3. Insert into Base: Carefully insert the assembled pole into your umbrella base. Tighten any securing knobs on the base to hold the pole firmly.
4. Unfurl Canopy: Gently unfasten the securing strap around the folded canopy.

Image: Close-up of the push-button tilt mechanism, the fabric tie strap, and the crank handle, illustrating key operational components.

Operating Instructions

Opening the Umbrella:

1. Locate the crank handle on the lower pole section.
2. Turn the crank handle clockwise to slowly open the umbrella canopy. Continue turning until the canopy is fully extended and taut. Do not overtighten.

Closing the Umbrella:

1. Turn the crank handle counter-clockwise to slowly retract the umbrella canopy.
2. Once fully closed, secure the canopy with the attached strap to prevent it from unfurling unexpectedly.

Tilting the Umbrella:

1. Locate the tilt button or mechanism on the upper pole section, near the canopy.
2. Press the button and gently tilt the canopy to your desired angle. Release the button to lock it in place.

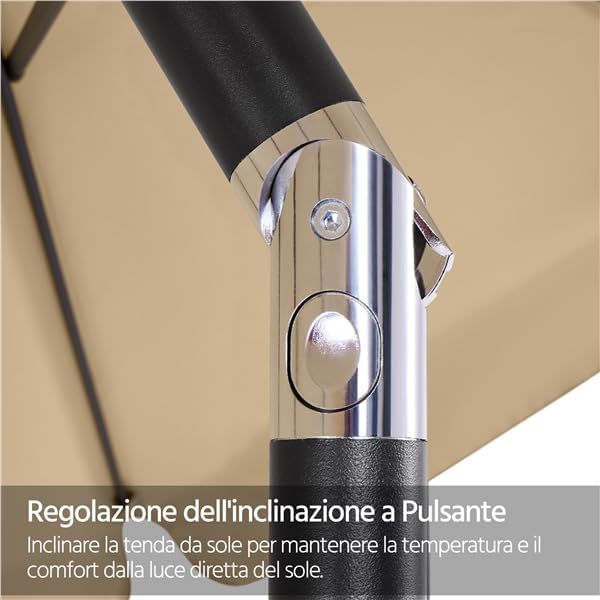

Image: Push-button tilt adjustment mechanism, allowing the umbrella to be angled for continuous shade.

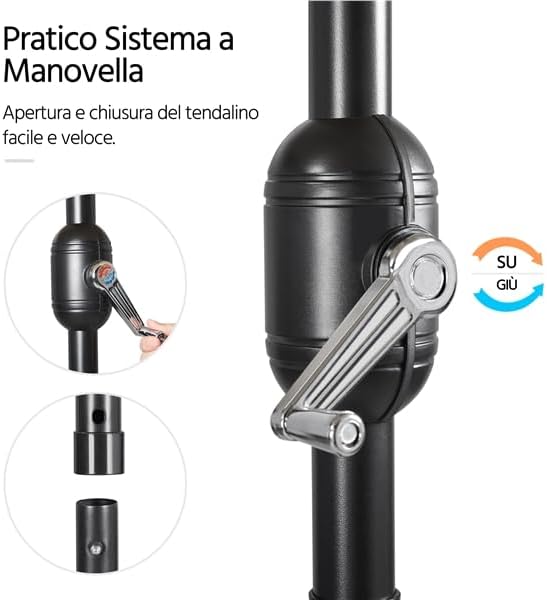

Image: Practical crank system for easy opening and closing of the umbrella canopy.

Maintenance

• Cleaning: Clean the canopy with a damp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners. Allow the canopy to dry completely before folding and storing.
• Storage: When not in use for extended periods, or during inclement weather, close the umbrella, secure it with the strap, and store it in a dry, protected area.
• Inspection: Periodically check all screws, bolts, and moving parts to ensure they are tight and functioning correctly.
• Frame Care: The powder-coated iron frame is resistant to rust, but regular cleaning will help maintain its appearance and longevity.

Troubleshooting

Specifications

Image: Detailed dimensions of the umbrella, including canopy diameter, overall height, and pole diameter.

Image: Construction details highlighting the robust metal frame, 180g polyester fabric, and ventilation feature.

Warranty and Support

For warranty information or technical support, please refer to the retailer's policy or contact Yaheetech customer service directly. Contact details can typically be found on the product packaging or the official Yaheetech website.

Manufacturer: Yaheetech

Country of Origin: China
