LIZHOUMIL Air Climate Control Mix Servo Damper (OE: 87106-48020) Instruction Manual

Introduction

This manual provides essential instructions for the installation, operation, and maintenance of your LIZHOUMIL Air Climate Control Mix Servo Damper, OE part number 87106-48020. This component is designed for precise air conditioning and heating system control in compatible vehicles.

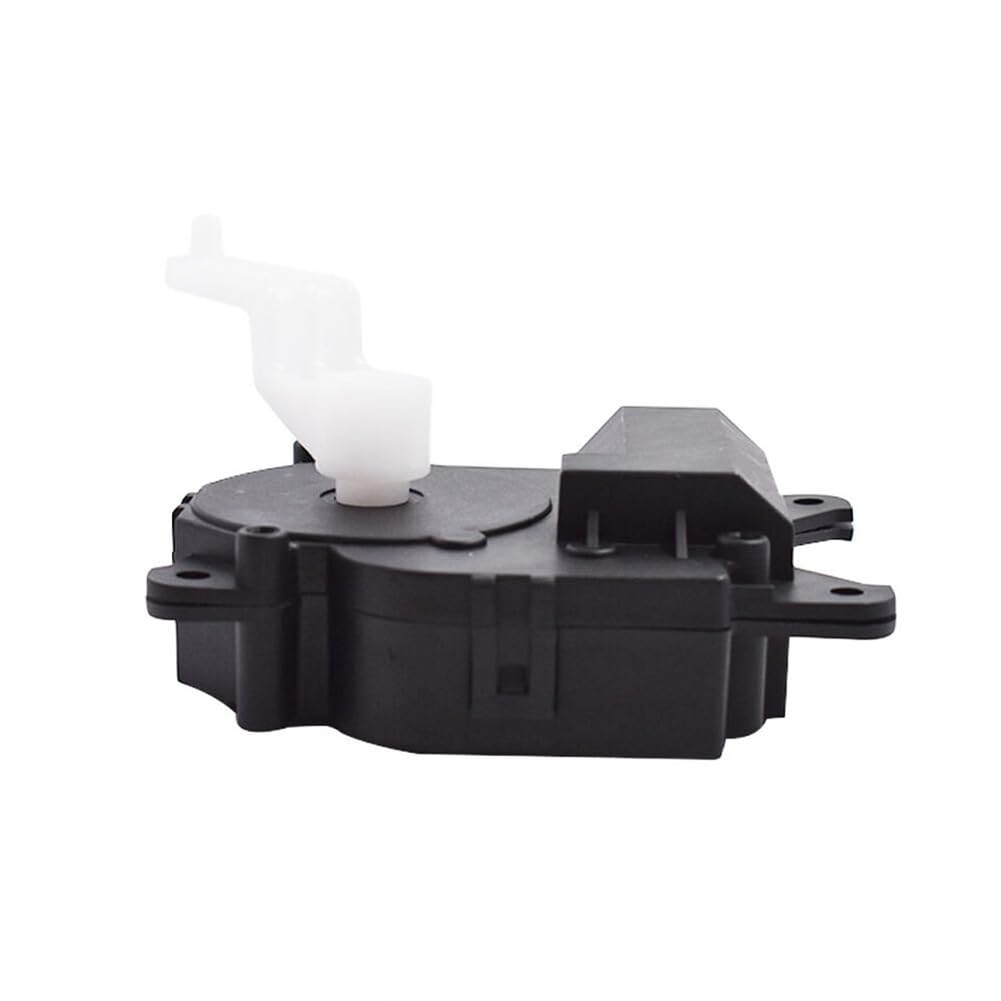

Image: LIZHOUMIL Air Climate Control Mix Servo Damper. This image shows the black ABS unit, which is a direct replacement part for the vehicle's air conditioning servo motor.

Safety Information

Always observe the following safety precautions:

• Ensure the vehicle's ignition is off and the battery is disconnected before beginning any installation or maintenance.
• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
• If you are unsure about any step, consult a qualified automotive technician.
• Keep children and pets away from the work area.

Setup and Installation

This unit is designed for direct fitting. Professional installation is recommended to ensure correct connection and optimal performance.

1. Preparation: Park the vehicle on a level surface, engage the parking brake, and turn off the ignition. Disconnect the negative terminal of the vehicle's battery.
2. Locate Existing Unit: Identify the location of the existing air conditioning servo motor unit in your vehicle. Refer to your vehicle's service manual for specific instructions.
3. Removal: Carefully disconnect any electrical connectors and mounting screws securing the old servo motor. Remove the old unit.
4. Installation of New Unit: Position the LIZHOUMIL servo motor (OE: 87106-48020) in the correct orientation. Secure it with the appropriate mounting screws.
5. Connection: Reconnect the electrical connectors to the new servo motor. Ensure connections are secure and correctly seated. This unit is designed for correct connection without the need for cutting or splicing.
6. Final Steps: Reconnect the vehicle's battery. Start the vehicle and test the air conditioning and heating system to verify proper operation of the new servo motor.

Operating Instructions

The LIZHOUMIL Air Climate Control Mix Servo Damper operates automatically as part of your vehicle's climate control system. Once installed, it requires no manual operation. Its function is to precisely control the air mix damper, regulating the temperature of the air flowing into the cabin.

• Adjust the temperature settings on your vehicle's climate control panel as usual.
• The servo motor will respond to these inputs, adjusting the air mix damper to achieve the desired cabin temperature.
• The unit features high sensitivity and fast response speed for stable performance.

Maintenance

The LIZHOUMIL Air Climate Control Mix Servo Damper is a sealed unit and generally requires no routine maintenance. However, regular inspection of your vehicle's overall climate control system is recommended.

• Visual Inspection: Periodically check the area around the servo motor for any loose connections or visible damage.
• Cleaning: Keep the surrounding area free from excessive dust or debris, which could potentially impede its function.
• Professional Check: If you experience any issues with your climate control system, have it inspected by a qualified technician.

Troubleshooting

If you encounter problems with your vehicle's climate control system after installing this servo motor, consider the following:

• No Air Temperature Change:
  • Check Connections: Ensure all electrical connectors to the servo motor are securely attached.
  • Verify Installation: Confirm the servo motor is correctly seated and mounted.
  • System Diagnostics: A diagnostic scan tool may be required to check for fault codes related to the climate control system.
• Unusual Noises from Climate Control:
  • Inspect for Obstructions: Check if anything is obstructing the movement of the air mix damper or the servo motor itself.
  • Professional Inspection: If noises persist, it may indicate an issue with the servo motor or other components within the HVAC system.
• Intermittent Operation:
  • Electrical Check: Inspect wiring for any signs of damage or corrosion.
  • OE Compatibility: Double-check that the OE part number 87106-48020 is indeed the correct replacement for your specific vehicle model.

If troubleshooting steps do not resolve the issue, it is recommended to seek assistance from a certified automotive technician.

Specifications

Warranty and Support

Specific warranty information for this LIZHOUMIL product is not provided in the product details. Please refer to the retailer or manufacturer's official website for detailed warranty terms and conditions.

For technical support or inquiries, please contact the LIZHOUMIL customer service through their official channels or the platform where the product was purchased.
