Introduction
This manual provides comprehensive instructions for the safe and efficient operation of your Silver Crest 589G XL Air Fryer with Glass Basket. Designed for healthy cooking, this appliance features a 4.5L capacity glass basket and six pre-set functions. Please read this manual thoroughly before first use and retain it for future reference.
Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. These include:
- Read all instructions before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Do not use the appliance for other than intended use.
- Ensure adequate ventilation around the appliance during use.
Product Overview
The Silver Crest 589G XL Air Fryer is designed for ease of use and efficient cooking. It features a transparent glass basket for monitoring food and a user-friendly control panel.

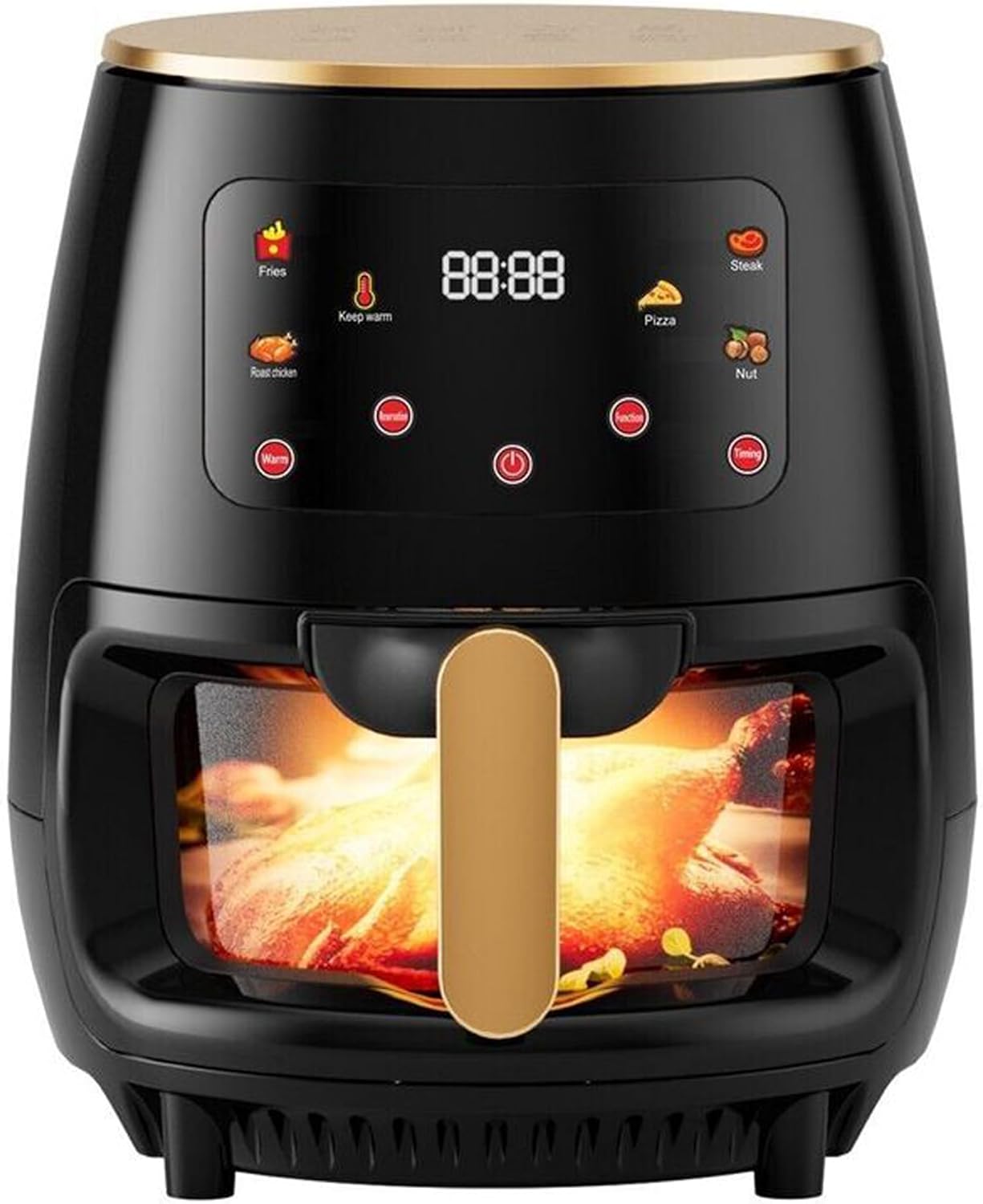

Image: Front view of the Silver Crest 589G XL Air Fryer, highlighting its digital display and visible glass cooking basket.
Components
- Main Air Fryer Unit
- Glass Basket (4.5L capacity)
- Oil Filter Tray (Nonstick Steaming Rack)
- Control Panel with Digital Display

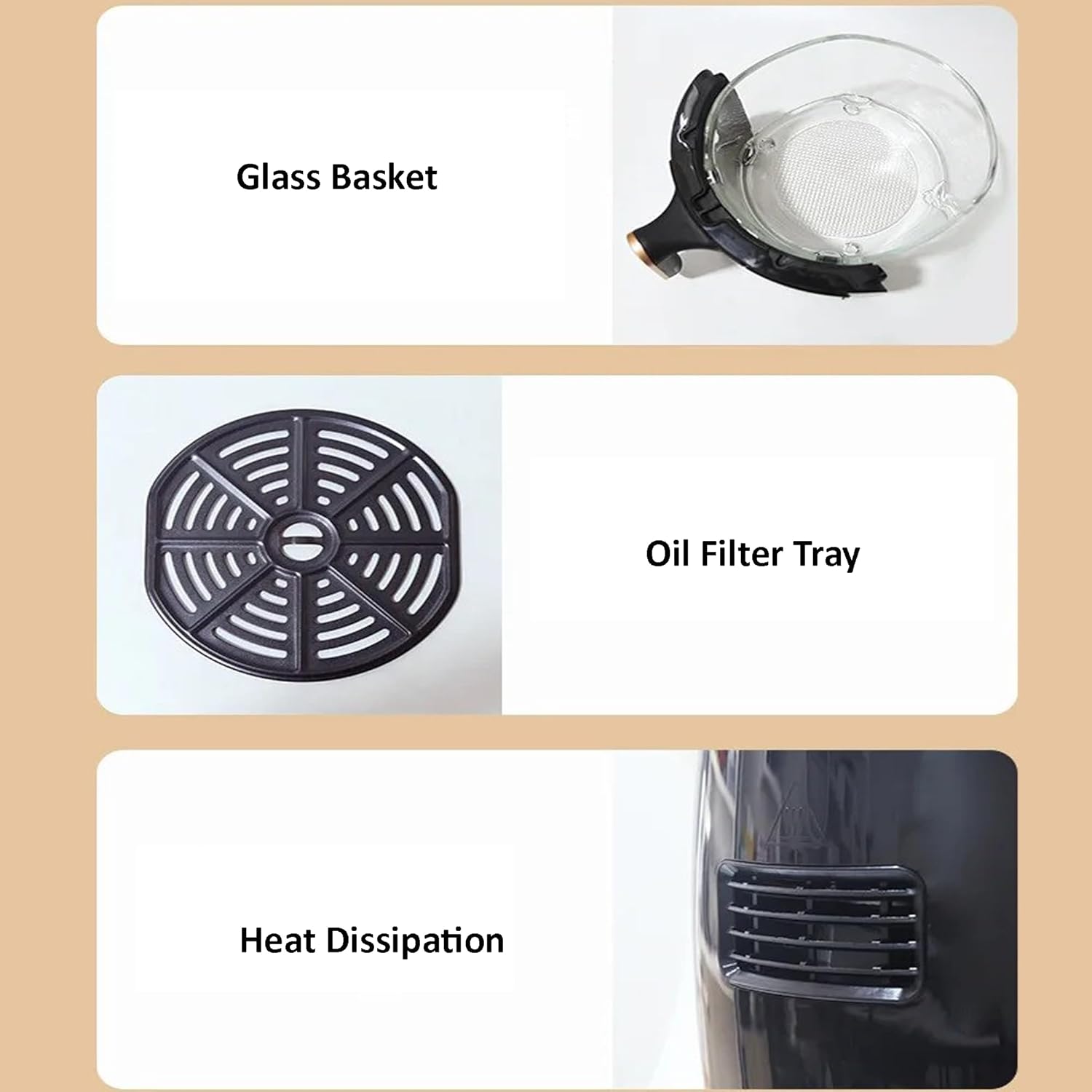

Image: Detailed view of the air fryer's key components: the removable glass basket, the oil filter tray, and the heat dissipation vent.
Control Panel
The intuitive control panel allows for easy selection of cooking functions and adjustments.
Image: Close-up of the air fryer's control panel, illustrating the various one-touch preset buttons and manual adjustment controls.
- Power Button: Turns the appliance on/off.
- Preset Function Buttons: One-touch selection for common dishes (Fries, Roast Chicken, Keep Warm, Steak, Pizza, Nut).
- Temperature Button (Warm): Adjusts cooking temperature.
- Timing Button: Adjusts cooking time.
- Reservation Button (Delayed Start): Activates the delayed start function.
- Function Button: Cycles through or confirms selections.
Before First Use (Setup)
Before using your Silver Crest 589G Air Fryer for the first time, follow these steps to ensure proper function and eliminate any manufacturing odors. Perform these steps in a well-ventilated area.
- Clean and Dry: Remove the glass frying basket from the unit. Clean it thoroughly with a damp cloth or sponge using dish soap and water. NOTE: Do not use metal kitchen utensils or abrasive cleaning materials, as these can damage the unit's surfaces. Ensure the basket is completely dry before proceeding.
- Test Run: Place the empty, dry glass basket back into the air fryer. Plug in the appliance. Set the temperature to 200°C and the time to 30 minutes. Run the air fryer without any food inside. This process helps to burn off any residual manufacturing oils and odors.
- Cool Down: After the test run, unplug the air fryer and allow it to cool down completely.
- Clean Again: Once cooled, repeat step one to clean and dry the glass basket. The air fryer is now ready for use.
Operating Instructions
Using Preset Functions
The air fryer comes with six convenient preset functions for common dishes:
- Fries: 40 minutes at 180°C
- Roast Chicken: 35 minutes at 175°C
- Keep Warm: 20 minutes at 185°C
- Steak: 35 minutes at 170°C
- Pizza: 15 minutes at 190°C
- Nut: 120 minutes at 60°C
To use a preset:
- Place food in the glass basket.
- Press the Power button to turn on the air fryer.
- Select the desired preset function by pressing its corresponding button. The display will show the default time and temperature.
- The cooking process will begin automatically after a few seconds, or you can press the Function button to start immediately.
Manual Temperature and Time Adjustment
For custom cooking, you can manually set the temperature and time:
- Place food in the glass basket.
- Press the Power button.
- Press the Temperature button (Warm) to adjust the temperature between 60°C and 200°C.
- Press the Timing button to adjust the cooking time between 0 and 60 minutes.
- Press the Function button to start cooking.
Delayed Start Function (Reservation)
The delayed start function allows you to set a specific time for the air fryer to begin cooking.
- Prepare your food and place it in the glass basket.
- Press the Power button.
- Select a preset function or manually set the desired temperature and time.
- Press the Reservation button. Use the Timing button to set the delay time (e.g., how many hours until cooking starts).
- Press the Function button to confirm and activate the delayed start. The air fryer will begin cooking after the set delay period.
Image: The Silver Crest 589G XL Air Fryer with its transparent glass basket removed, showcasing cooked fried chicken.
Image: The air fryer positioned on a kitchen counter, emphasizing the clear glass basket that allows for visual monitoring of the cooking process.
Cleaning and Maintenance
Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.
- Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool down completely before cleaning.
- Clean the Glass Basket and Oil Filter Tray: Remove the glass basket and the oil filter tray. Wash them with warm water and mild dish soap using a non-abrasive sponge or cloth. NOTE: Do not use metal scouring pads or harsh abrasive cleaners, as these can scratch or damage the surfaces. The nonstick steaming rack (oil filter tray) is designed for easy cleaning.
- Clean the Interior: Wipe the interior of the air fryer with a damp cloth. For stubborn residue, use a small amount of mild dish soap on the cloth, then wipe with a clean, damp cloth to remove soap residue.
- Clean the Exterior: Wipe the exterior of the air fryer with a soft, damp cloth. Do not use abrasive cleaners.
- Dry Thoroughly: Ensure all parts are completely dry before reassembling and storing the air fryer.
Image: The nonstick steaming rack (oil filter tray) being cleaned, demonstrating its ease of maintenance.
Troubleshooting
If you encounter any issues with your air fryer, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance is not plugged in. Power outlet is not functioning. | Ensure the power cord is securely plugged into a working electrical outlet. Check the circuit breaker. |
| Food is not cooked evenly. | Basket is overloaded. Food pieces are too large. Temperature or time settings are incorrect. | Do not overload the basket; cook in smaller batches if necessary. Cut food into smaller, uniform pieces. Adjust temperature and time settings as needed. Shake the basket halfway through cooking for even results. |
| White smoke coming from the appliance. | Cooking fatty foods. Grease residue from previous use. | This is normal when cooking very fatty foods. Ensure the basket and oil filter tray are thoroughly cleaned after each use to prevent residue buildup. |
| Food is not crispy. | Too much moisture in food. Not enough oil (if applicable). Basket overloaded. | Pat food dry before air frying. Lightly spray or toss food with a small amount of oil. Do not overload the basket. Increase cooking time or temperature slightly. |
Specifications
Detailed technical specifications for the Silver Crest 589G XL Air Fryer:
| Feature | Specification |
|---|---|
| Model | 589G |
| Food Basket Capacity | 4.5 Liters |
| Rated Voltage | 220V-50HZ |
| Rated Power | 1400W |
| Liner Material | Glass |
| Time Range | 0-60 minutes |
| Temperature Range | 60°C to 200°C |
| Product Dimensions (D x W x H) | 29 x 26.5 x 31 cm |
| Item Weight | 4.68 kg |
| UPC | 780627721266 |
Warranty and Support
Information regarding the product warranty is not provided in the available data. For warranty details, technical support, or service inquiries, please contact the retailer or the manufacturer directly. Retain your proof of purchase for any warranty claims.
