Freddo 24V Can Am Renegade Ride-On ATV for Kids - Instruction Manual

1. Safety Information

This product is designed for children aged 36 months to 8 years. Adult supervision is required at all times during assembly, operation, and charging to ensure safe use and prevent accidents.

• Always ensure the child wears appropriate safety gear, such as a helmet.
• Do not operate the ATV near streets, cars, steep inclines, swimming pools, or other bodies of water.
• Ensure the child is securely fastened with the two-point seat belt.
• Only one rider at a time.
• Keep hands, hair, and clothing away from moving parts.
• Do not modify the electrical system. Any modifications can cause a fire, explosion, or other hazards.
• Charge the battery only with the provided charger.

2. Product Overview

The Freddo 24V Can Am Renegade Ride-On ATV is an electric vehicle designed for children, offering an engaging and safe outdoor experience. It features a robust design with four 200W motors, a 24V lead-acid battery, and EVA tires for stable operation.

Key Features:

• Comfort and Safety: Premium leather seat with a two-point seat belt.
• Visibility: Bright LED lights for enhanced visibility and aesthetic appeal.
• Durability: Sturdy EVA tires suitable for various terrains.
• Entertainment: MP3/AUX input, USB connection, and Bluetooth for audio streaming.
• Performance: Four 200W motors with a versatile speed mode switch (22/44).
• Age Range: Suitable for riders from 36 to 96 months old, supporting up to 66 lbs (30 kgs).

This image displays the overall design of the Freddo 24V Can Am Renegade Ride-On ATV, highlighting its robust structure, LED headlights, and large EVA tires.

This image shows the detailed stitching and material of the comfortable leather seat, emphasizing the product's quality and design.

3. Setup and Assembly

Before first use, ensure all components are present and the battery is fully charged. Adult assembly is required.

3.1. What's in the Box:

• Freddo 24V Can Am Renegade Ride-On ATV (main body)
• Charger
• User's Manual
• Wheels (typically 4)
• Handlebars
• Seat
• Assembly hardware (screws, washers, etc.)

3.2. Initial Battery Charging:

1. Locate the charging port on the ATV (refer to Figure 3.1).
2. Connect the charger to the charging port.
3. Plug the charger into a standard wall outlet.
4. Charge the battery for 8-12 hours before the first use. Do not overcharge for more than 20 hours.
5. The charger indicator light will typically change color (e.g., red to green) when charging is complete.

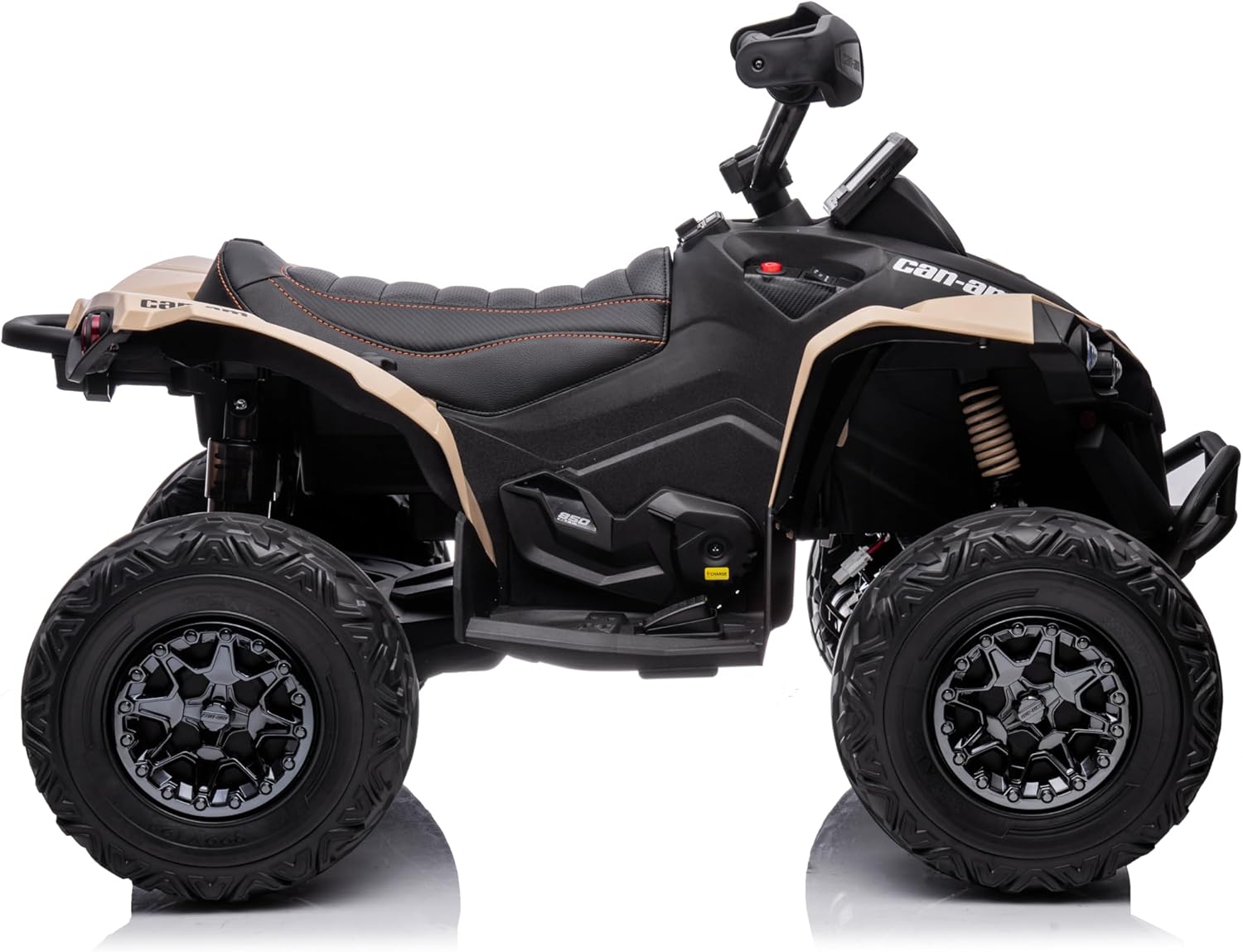

This image provides a side profile of the ATV, highlighting the position of the charging port, typically found near the footrest area with a yellow 'CHARGE' sticker.

3.3. Basic Assembly Steps:

While detailed steps are in the included manual, general assembly involves:

1. Attaching the wheels to the axles.
2. Securing the handlebars to the steering column.
3. Installing the seat.
4. Connecting any necessary electrical wires (e.g., battery terminals, motor connections) as per the detailed manual.

This image shows the detail of the durable EVA tire and wheel, which are key components for assembly and provide traction.

4. Operating Instructions

4.1. Starting the ATV:

1. Ensure the battery is charged.
2. Press the power button (often a button start feature) to turn on the ATV.
3. Check the electricity display for battery level.

4.2. Driving the ATV:

• Forward/Reverse: Use the gear selector switch to choose between forward and reverse motion.
• Acceleration: Press the foot pedal to accelerate. Release to brake.
• Steering: Turn the handlebars to steer the ATV.
• Speed Mode: Utilize the 22/44 switch to adjust between different speed settings (e.g., low and high speed). Always start with the lower speed for new riders.

This image shows the control panel, including the power button, gear selector, and potentially the speed mode switch and electricity display for operation.

4.3. Entertainment System:

The ATV is equipped with an entertainment system for music playback.

• MP3/AUX Input: Connect an external device using an AUX cable.
• USB Connection: Insert a USB drive with MP3 files.
• Bluetooth: Pair your mobile device via Bluetooth to stream audio wirelessly. Refer to the specific instructions on the ATV's media panel for pairing.
• Radio: Tune into available radio stations.

This image highlights the entertainment console, showing the USB port and AUX input for connecting external audio devices, along with other media controls.

4.4. LED Lights:

The ATV features functional LED lights. These can typically be turned on/off via a dedicated switch on the dashboard.

5. Maintenance

5.1. Battery Care:

• Recharge the battery after each use, even if only for a short period.
• If storing the ATV for an extended period, charge the battery fully once a month to prolong its lifespan.
• Do not store the battery in temperatures below freezing or above 100°F (38°C).
• Only use the charger supplied by Freddo.

5.2. Cleaning:

• Wipe the ATV with a soft, damp cloth.
• Do not use abrasive cleaners or solvents.
• Avoid spraying water directly onto electrical components.

5.3. General Inspection:

• Regularly check all screws and fasteners to ensure they are tight.
• Inspect the wheels and tires for wear or damage.
• Ensure the seat belt is in good working condition.
• Check the charger cord and plug for any damage.

6. Troubleshooting

If you encounter issues not listed here, please refer to the detailed troubleshooting section in your included user manual or contact customer support.

7. Specifications

8. Warranty and Support

For warranty information, please refer to the documentation included with your product or contact the retailer where the product was purchased. Freddo provides customer support for product inquiries and assistance.

If you require technical assistance, have questions about parts, or need to report a defect, please contact Freddo customer service. Contact details are typically found in the included manual or on the manufacturer's official website.

Note: This item is subject to hazardous materials regulation for transportation. Please follow all safety guidelines.
