PRORUN PCST215 CA 25.4cc 15-inch Gas 2-Cycle Curved Shaft Trimmer User Manual

1. Safety Information

Read and understand all safety warnings and instructions before operating this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

General Safety Rules

• Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, long pants, and sturdy footwear.
• Keep children, bystanders, and pets at least 15 meters (50 feet) away from the operating area.
• Inspect the work area for objects that could be thrown or entangled in the cutting line. Remove all debris.
• Do not operate the trimmer in wet conditions or rain.
• Ensure all guards and handles are properly installed before use.
• Never modify the trimmer or use it for purposes other than its intended use.
• Maintain a firm grip on both handles during operation.

Fuel Handling Safety

• Gasoline is highly flammable. Handle fuel with extreme care.
• Mix and store fuel in an approved container in a well-ventilated area.
• Do not smoke or bring any flame or sparks near the fuel or the trimmer.
• Fill the fuel tank outdoors, away from ignition sources.
• Wipe up any spilled fuel immediately.
• Allow the engine to cool before refueling.

2. Product Overview

The PRORUN PCST215 CA is a 25.4cc gas-powered curved shaft trimmer designed for clearing grass and light brush. Familiarize yourself with its components and features for safe and effective use.

Components Diagram

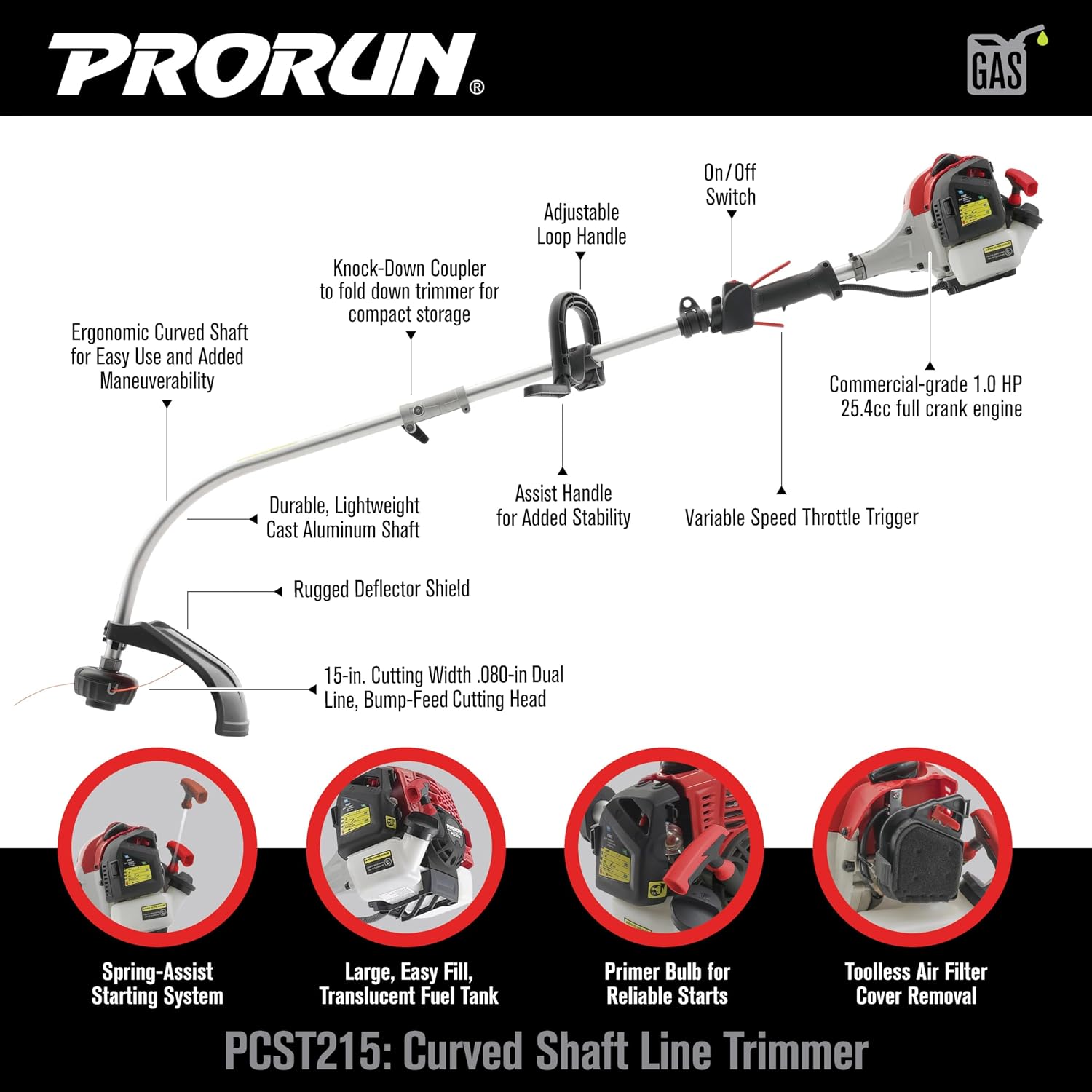

Figure 2.1: Labeled diagram showing the ergonomic curved shaft, adjustable loop handle, on/off switch, variable speed throttle trigger, 25.4cc full-crank engine, knock-down coupler, assist handle, rugged deflector shield, and 15-inch bump-feed cutting head.

Key Features

• Engine: Commercial-grade 1.0 HP 25.4cc full-crank 2-cycle engine for reliable power.
• Runtime: Up to 60 minutes of operation at full throttle on a full tank.
• Cutting Swath: 15-inch cutting path with .080-inch dual line and a bump-feed head for line advancement.
• Shaft Design: Curved shaft for improved maneuverability and clear line of sight during trimming.
• Starting System: Spring-Assist Starting mechanism reduces pulling effort for easier engine starts.
• Ergonomics: Adjustable ergonomic handle and a total weight under 12 lbs (5.44 kg) for user comfort.
• Engine Internals: Features durable chrome piston rings and a 3-piece crankshaft for extended engine life.

Figure 2.2: View of the engine's internal components, highlighting the full crank engine design, durable chrome piston rings, and 3-piece crankshaft.

3. Setup

Assembly

The trimmer may require minor assembly before first use. Ensure all components are securely fastened.

1. Attach the Assist Handle: Slide the assist handle onto the shaft and secure it at a comfortable operating position using the provided fasteners. Ensure it is tightened firmly.
2. Install the Deflector Shield: Position the deflector shield over the cutting head and secure it to the shaft using the designated screws. This shield protects against thrown debris.
3. Check Connections: Verify that the shaft sections are securely connected at the knock-down coupler, if applicable, and that the cutting head is firmly attached.

Figure 3.1: The PRORUN PCST215 CA trimmer fully assembled, showing the engine, shaft, handles, and cutting head with deflector shield.

Fuel Mixing

This trimmer uses a 2-cycle engine and requires a specific gasoline/oil mixture. Use fresh, unleaded gasoline with an octane rating of 89 or higher, mixed with a high-quality 2-cycle engine oil at a ratio of 50:1 (50 parts gasoline to 1 part oil).

1. Obtain an approved fuel container.
2. Pour half of the required gasoline into the container.
3. Add the entire amount of 2-cycle oil.
4. Add the remaining gasoline.
5. Securely close the container and shake it vigorously to ensure thorough mixing.
6. Fill the trimmer's fuel tank (refer to Figure 2.1 for fuel tank location), ensuring not to overfill.

Note: Do not use E85 gasoline or automotive oil. Always use fresh fuel mixture; stale fuel can cause starting difficulties and engine damage.

Figure 3.2: Close-up view of the engine, showing the primer bulb and the translucent fuel tank for easy level monitoring.

4. Operating Instructions

Starting the Trimmer

1. Place the trimmer on a flat, stable surface.
2. Set the ON/OFF switch to the "ON" position.
3. Push the primer bulb 5-10 times until fuel is visible in the clear return line.
4. Engage the choke lever to the "FULL CHOKE" position.
5. Grip the assist handle firmly and place one foot on the base of the trimmer for stability.
6. Pull the starter rope with a smooth, steady motion until the engine attempts to start (usually 1-3 pulls).
7. Once the engine "pops" or attempts to start, move the choke lever to the "HALF CHOKE" position.
8. Pull the starter rope again until the engine starts.
9. Allow the engine to warm up for 30-60 seconds, then move the choke lever to the "RUN" position.

Stopping the Trimmer

To stop the engine, simply move the ON/OFF switch to the "OFF" position. The engine should shut down immediately.

Trimming Techniques

• Maintain a balanced stance and hold the trimmer with both hands.
• Use a sweeping motion, moving the cutting head from side to side.
• For optimal cutting, use the tip of the cutting line.
• To advance the cutting line, tap the bump-feed head gently on the ground while the engine is running at full throttle.
• The curved shaft design provides a clear view of the cutting area, allowing for precise trimming around obstacles.

Figure 4.1: An operator demonstrating proper handling and use of the PRORUN PCST215 CA trimmer for lawn maintenance.

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your trimmer. Always disconnect the spark plug wire before performing any maintenance.

Air Filter

• Inspection: Check the air filter every 5 hours of operation or more frequently in dusty conditions.
• Cleaning: Remove the air filter cover (refer to Figure 3.2 for location). Carefully remove the filter element. Clean it with warm, soapy water, rinse thoroughly, and allow it to air dry completely. Alternatively, tap out loose debris.
• Replacement: Replace the air filter if it is damaged or cannot be cleaned effectively.

Spark Plug

• Inspection: Inspect the spark plug annually or every 25 hours of operation.
• Cleaning/Adjustment: Remove the spark plug. Clean any carbon deposits with a wire brush. Check the electrode gap and adjust if necessary according to the specifications (typically 0.025 inches or 0.63 mm).
• Replacement: Replace the spark plug if it is heavily fouled, damaged, or if the engine experiences consistent starting issues.

Cutting Head and Line Replacement

The bump-feed cutting head requires periodic line replacement. Use .080-inch diameter trimmer line.

1. Ensure the engine is off and the spark plug wire is disconnected.
2. Locate the tabs or arrows on the cutting head. Press the tabs or align the arrows to open the spool housing.
3. Remove the old line and any remaining debris.
4. Cut a new length of .080-inch trimmer line (typically 15-20 feet).
5. Fold the line in half and insert the folded end into the designated slot in the spool.
6. Wind the line evenly and tightly onto the spool in the direction indicated by arrows on the head. Ensure both ends of the line are of equal length.
7. Feed the ends of the line through the eyelets on the cutting head.
8. Reassemble the spool housing, ensuring it clicks securely into place.

Figure 5.1: Detailed view of the bump-feed cutting head, showing the trimmer line exiting the eyelets.

Storage

• For short-term storage, ensure the fuel cap is tight and store in a cool, dry place.
• For long-term storage (over 30 days), drain the fuel tank completely or use a fuel stabilizer. Run the engine until it stops from lack of fuel to clear the carburetor.
• Clean the trimmer thoroughly before storage.
• Store the trimmer in a secure location, out of reach of children.

6. Troubleshooting

This section addresses common issues you might encounter with your PRORUN PCST215 CA trimmer.

7. Specifications

8. Warranty and Support

Warranty Information

The PRORUN PCST215 CA Trimmer is backed by a PRORUN Limited Warranty:

• Residential Use: 3-Year Limited Warranty
• Commercial Use: 1-Year Limited Warranty

This warranty covers defects in materials and workmanship under normal use. For full warranty terms and conditions, please refer to the warranty card included with your product or contact PRORUN customer service.

Customer Support

For technical assistance, parts, or warranty claims, please contact PRORUN Customer Service:

• Phone: 1-844-905-0882
• Email: info@proruntech.com
• Website: www.proruntech.com

Please have your model number (PCST215) and proof of purchase available when contacting support.
