Mayer MMRC08D-BK 0.8L Ceramic Pot Rice Cooker

1. Introduction

Thank you for purchasing the Mayer MMRC08D-BK 0.8L Ceramic Pot Rice Cooker. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before first use and keep it for future reference.

Important Safety Precautions

• Always ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Do not immerse the main unit, cord, or plug in water or any other liquid.
• Keep the appliance out of reach of children.
• Do not operate the appliance if the cord or plug is damaged, or if the appliance malfunctions or has been damaged in any way.
• Use only original accessories and parts provided by the manufacturer.
• Always unplug the appliance from the power outlet when not in use, before cleaning, and before moving.
• Avoid touching hot surfaces. Use handles or knobs. Steam released during cooking is hot.
• Ensure proper ventilation around the appliance during operation.

2. Product Overview

The Mayer MMRC08D-BK is a compact and versatile rice cooker designed for convenience and optimal cooking performance. It features a sensor-touch control panel and a durable ceramic inner pot.

Components

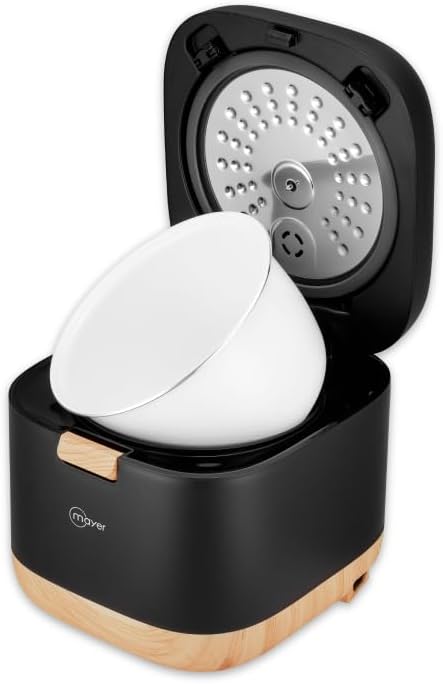

Figure 2.1: Mayer MMRC08D-BK Rice Cooker with lid open, displaying the ceramic inner pot and steam rack. This image illustrates the main unit, inner pot, and steam rack.

• Main Unit: Houses the heating element and control panel.
• Ceramic Coated Inner Pot: Non-stick, 2mm thick with 5 layers for even heating.
• Lid: With detachable inner cap for easy cleaning.
• Sensor-Touch Control Panel: With LED display for easy operation.
• Steam Rack: For steaming vegetables or other foods.
• Rice Spatula: For serving rice.
• Measuring Cup: For accurate rice and water measurements.
• Power Cord: Detachable cord for power supply.

Key Features

• Sensor-touch control panel with LED display.
• 6 Preset cooking functions for various dishes.
• Non-stick ceramic coated inner pot.
• 2mm thick inner pot with 5 layers for enhanced durability and heat distribution.
• Automatic keep warm function for up to 24 hours.
• Preset timer function for up to 24 hours.
• Dual temperature sensor for optimum cooking performance.
• Detachable inner cap for easy cleaning.
• Overheating protection for safety.
• Non-slip feet for stability.

3. Setup

3.1 Unpacking

1. Carefully remove all packaging materials from the rice cooker and its accessories.
2. Check that all components listed in the 'Components' section are present and undamaged.
3. Keep packaging materials away from children.

3.2 First Use Cleaning

1. Wash the inner pot, steam rack, rice spatula, and measuring cup with warm soapy water. Rinse thoroughly and dry completely.
2. Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
3. Ensure all parts are dry before assembly and use.

3.3 Placement

1. Place the rice cooker on a stable, flat, heat-resistant surface.
2. Ensure there is adequate space around the cooker for ventilation, especially above the steam vent.
3. Keep away from direct sunlight, heat sources, and moisture.

4. Operating Instructions

4.1 Basic Rice Cooking

1. Measure the desired amount of rice using the provided measuring cup. Rinse the rice thoroughly until the water runs clear.
2. Place the rinsed rice into the ceramic inner pot.
3. Add the appropriate amount of water. A general ratio is 1 cup of rice to 1.2-1.5 cups of water, but this may vary based on rice type. Refer to the water level markings inside the inner pot.
4. Wipe the exterior of the inner pot dry and place it into the main unit. Close the lid securely.
5. Plug the power cord into a suitable electrical outlet. The LED display will light up.
6. Select the desired cooking function (e.g., "Rice" or "White Rice") using the sensor-touch control panel.
7. Press the "Start" button. The cooker will begin the cooking process.
8. Once cooking is complete, the cooker will automatically switch to the "Keep Warm" mode.
9. Allow the rice to rest for 5-10 minutes in "Keep Warm" mode before serving for best results.
10. Unplug the cooker after serving.

4.2 Using Preset Cooking Functions

The Mayer MMRC08D-BK offers 6 preset cooking functions for various dishes. These functions are optimized for specific cooking times and temperatures.

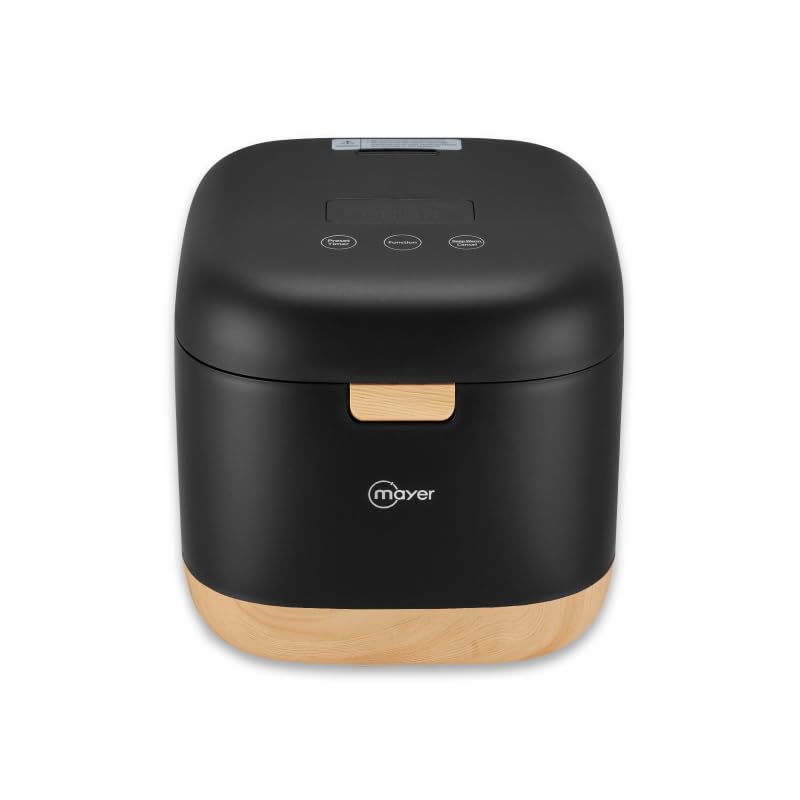

Figure 4.1: Front view of the Mayer MMRC08D-BK Rice Cooker, highlighting the sensor-touch control panel and LED display. This image shows the interface for selecting cooking functions.

To use a preset function:

1. Prepare ingredients as required for your chosen dish.
2. Place ingredients into the inner pot and close the lid.
3. Plug in the cooker.
4. Press the "Function" button repeatedly until the desired preset function (e.g., Porridge, Soup, Steam) is selected on the LED display.
5. Press the "Start" button to begin cooking.
6. The cooker will automatically adjust cooking time and temperature.

4.3 Preset Timer Function

The preset timer allows you to delay the start of cooking for up to 24 hours.

1. Prepare ingredients and place them in the inner pot.
2. Select your desired cooking function.
3. Press the "Preset" button. The display will show a default delay time.
4. Use the "+" or "-" buttons to adjust the delay time in hours.
5. Press "Start". The cooker will count down the delay time and then automatically begin cooking.

4.4 Automatic Keep Warm

After cooking is complete, the rice cooker automatically switches to "Keep Warm" mode for up to 24 hours, maintaining the food at an optimal serving temperature.

5. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your rice cooker. Always unplug the appliance and allow it to cool completely before cleaning.

5.1 Cleaning the Inner Pot and Accessories

• Remove the inner pot, steam rack, rice spatula, and measuring cup.
• Wash these items with warm water and a mild dish soap. The ceramic non-stick coating is delicate; avoid abrasive cleaners or metal scouring pads.
• Rinse thoroughly and dry completely before storing or reassembling.

5.2 Cleaning the Detachable Inner Cap

• Gently detach the inner cap from the lid.
• Wash it with warm soapy water, rinse, and dry.
• Reattach the inner cap securely to the lid after cleaning.

5.3 Cleaning the Main Unit Exterior

• Wipe the exterior of the main unit with a soft, damp cloth.
• Do not use abrasive cleaners, harsh chemicals, or immerse the main unit in water.
• Ensure the heating plate and sensor are clean and free of food debris.

6. Troubleshooting

If you encounter issues with your rice cooker, please refer to the following common problems and solutions before contacting customer support.

7. Specifications

Technical details for the Mayer MMRC08D-BK Rice Cooker.

• Model Name: MMRC08D-BK
• Brand: Mayer
• Capacity: 0.8 Liters
• Product Dimensions (D x W x H): 24D x 21.5W x 21.5H centimetres
• Power Source: Corded Electric
• Colour: Black
• Inner Pot Material: Ceramic Coated (Non-stick, 2mm thick, 5 layers)
• Special Features: Detachable inner cap, Dual temperature sensor, Non-slip feet, Over-Heating Protection, Preset timer up to 24 hours
• Included Components: Instruction Manual, Steam Rack, Rice Spatula, Measuring Cup
• Product Care Instructions: Hand Wash (for inner pot and accessories)

Figure 7.1: Side view of the Mayer MMRC08D-BK Rice Cooker, illustrating its compact dimensions and design.

8. Warranty and Support

Mayer products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship under normal household use.

Warranty Information

• Please retain your proof of purchase for warranty claims.
• The warranty typically covers manufacturing defects and does not cover damage caused by misuse, accident, unauthorized modification, or normal wear and tear.
• For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Mayer website.

Customer Support

If you have any questions, require technical assistance, or need to make a warranty claim, please contact Mayer customer support:

• Website: www.mayer.sg (example link, please refer to actual product documentation)
• Email: support@mayer.sg (example email)
• Phone: +65 1234 5678 (example number)

Please have your model number (MMRC08D-BK) and purchase date ready when contacting support.
