Introduction
Thank you for choosing the HOMCOM 3-Tier Foldable Clothes Drying Rack. This manual provides essential information for the safe assembly, operation, and maintenance of your new drying rack. Please read these instructions thoroughly before use and retain them for future reference.
Image: The HOMCOM 3-Tier Foldable Clothes Drying Rack, fully assembled and in use, showcasing its capacity.
Safety Information
- Ensure all parts are securely assembled before placing items on the rack.
- Do not exceed the maximum weight capacity of 66 pounds (approximately 30 kg).
- Distribute weight evenly across the tiers to maintain stability.
- Keep the drying rack away from open flames, heaters, or other heat sources.
- Supervise children and pets around the drying rack to prevent accidents.
- When moving the rack, ensure the brakes on the casters are disengaged. Engage brakes when stationary.
- Avoid using the rack in strong winds outdoors unless securely anchored, as it may tip over.
Package Contents
Please verify that all components are present before beginning assembly. Refer to the assembly diagram for visual identification of parts.
- Main Vertical Support Poles (Stainless Steel)
- Horizontal Drying Rods (Stainless Steel)
- Tier Support Frames (Plastic)
- Side Wings with Hanging Slots (Plastic)
- Base Supports with Casters (6 total, 2 with brakes)
- Connecting Rods for Base
- Assembly Hardware (screws, nuts, adjustment knobs)
- Instruction Manual
Assembly Instructions
Assembly is required. Follow these steps carefully. It is recommended to have two people for certain steps to ensure stability during construction.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Check against the parts list.
- Assemble Base: Attach the base supports with casters to the main vertical support poles. Ensure the connecting rod is properly inserted between the base supports for stability. Secure with provided hardware.
- Install Tiers: Slide the tier support frames onto the vertical poles. The rack features 3 adjustable tiers. Position them at your desired height and secure them using the adjustment knobs.
- Insert Drying Rods: Place the stainless steel drying rods into the designated slots on the tier support frames. Ensure they are firmly seated.
- Attach Side Wings: Mount the two rotatable side wings to the upper section of the vertical poles. These provide additional hanging space for smaller items.
- Final Check: Verify that all connections are tight and the rack is stable before use.
Image: Visual guide for assembling the drying rack, detailing component connections.

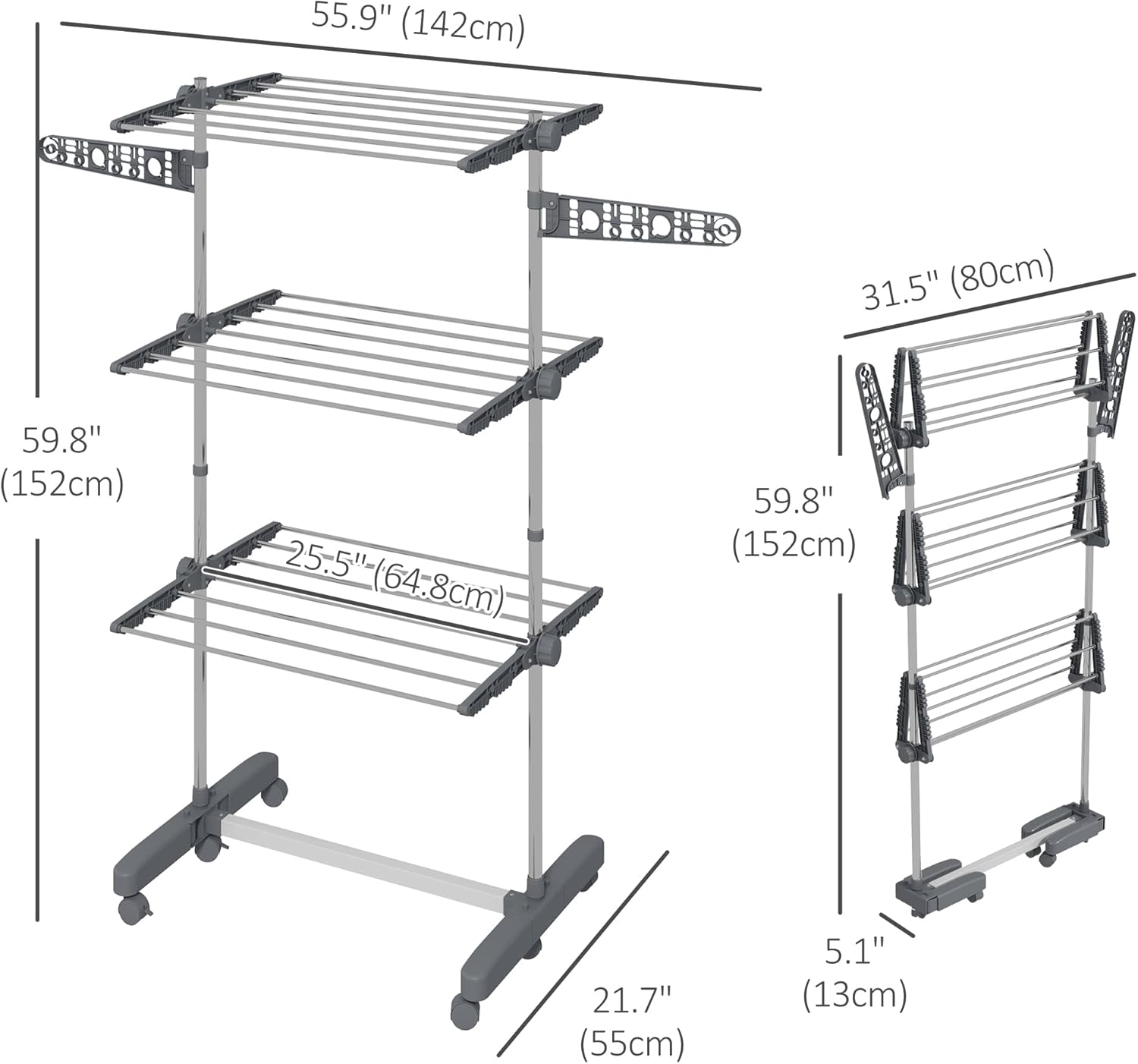

Image: Dimensions of the drying rack, useful for planning placement and understanding its size.
Operating Instructions
Adjusting Height
The three tiers of the drying rack are height adjustable. To adjust a tier, loosen the corresponding adjustment knobs on the vertical poles, slide the tier to the desired height, and then tighten the knobs securely. This allows for drying items of various lengths.
Image: Demonstration of the adjustable height feature, showing how tiers can be moved up and down.
Folding and Storage
The drying rack features a foldable design for compact storage. To fold, remove any clothes, then collapse the tiers inward. The side wings can also be folded down. This reduces the rack's footprint, making it suitable for small spaces or when not in use.
Image: The drying rack in its folded state, demonstrating its space-saving design.
Moving the Rack
The rack is equipped with 6 universal casters for easy movement. Two of these casters have brakes. To move the rack, ensure the brakes are disengaged. To keep the rack stationary, engage the brakes on the two designated casters.
Image: Detail of the casters and brake system for easy movement and stability.
Utilizing Hanging Space
The rack offers ample hanging capacity with its three tiers and two rotatable side wings. The wave clips on the side wings are designed for hanging smaller items like socks or towels. The main tiers are suitable for larger garments, blankets, and linens.
Image: The drying rack fully loaded with laundry, demonstrating its large capacity.
Maintenance
- Cleaning: Wipe down the stainless steel rods and plastic components with a damp cloth and mild detergent. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Drying: Ensure the rack is completely dry before folding and storing to prevent mildew or rust, especially if used outdoors.
- Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
- Storage: Store the folded rack in a dry, cool place when not in use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Rack is unstable or wobbly. | Loose connections; uneven weight distribution. | Ensure all assembly hardware is tightened. Redistribute clothes evenly across tiers. |
| Casters do not roll smoothly. | Brakes engaged; debris in casters. | Disengage caster brakes. Clean any lint or debris from around the caster wheels. |
| Tiers slide down after adjustment. | Adjustment knobs not tightened sufficiently. | Ensure adjustment knobs are fully tightened after setting the desired height. |
| Side wings do not stay in position. | Loose attachment or excessive weight. | Check the attachment points of the side wings and ensure they are secure. Avoid overloading the side wings. |
Product Specifications
| Feature | Detail |
|---|---|
| Brand | HOMCOM |
| Model Number | CA850-294V00GY0231 |
| Colour | Grey |
| Overall Dimension (Extended) | 55.9"W x 21.7"D x 59.8"H (142 x 55 x 152 cm) |
| Material | Stainless Steel, Plastic |
| Maximum Weight Capacity | 66 Pounds (30 kg) |
| Special Features | Adjustable Height, Foldable, Lightweight, Movable, Portable |
| Item Weight | 4.08 kg |
| Casters | 6 universal casters (2 with brakes) |
Warranty and Customer Support
HOMCOM products are designed for quality and durability. For warranty information, product support, or to inquire about replacement parts, please contact HOMCOM customer service. Please have your model number (CA850-294V00GY0231) and purchase date available when contacting support.
Manufacturer: Aosom Canada
Place of Business: Markham, Ontario, CA
Telephone: 1-416-792-6088
