Qaba Toddler Tricycle Instruction Manual

1. Product Overview

The Qaba Toddler Tricycle is designed for children aged 2-5 years, providing a fun and engaging way to develop balance and coordination. This tricycle features an adjustable seat, a functional bell, a storage basket, and durable EVA wheels for a smooth ride.

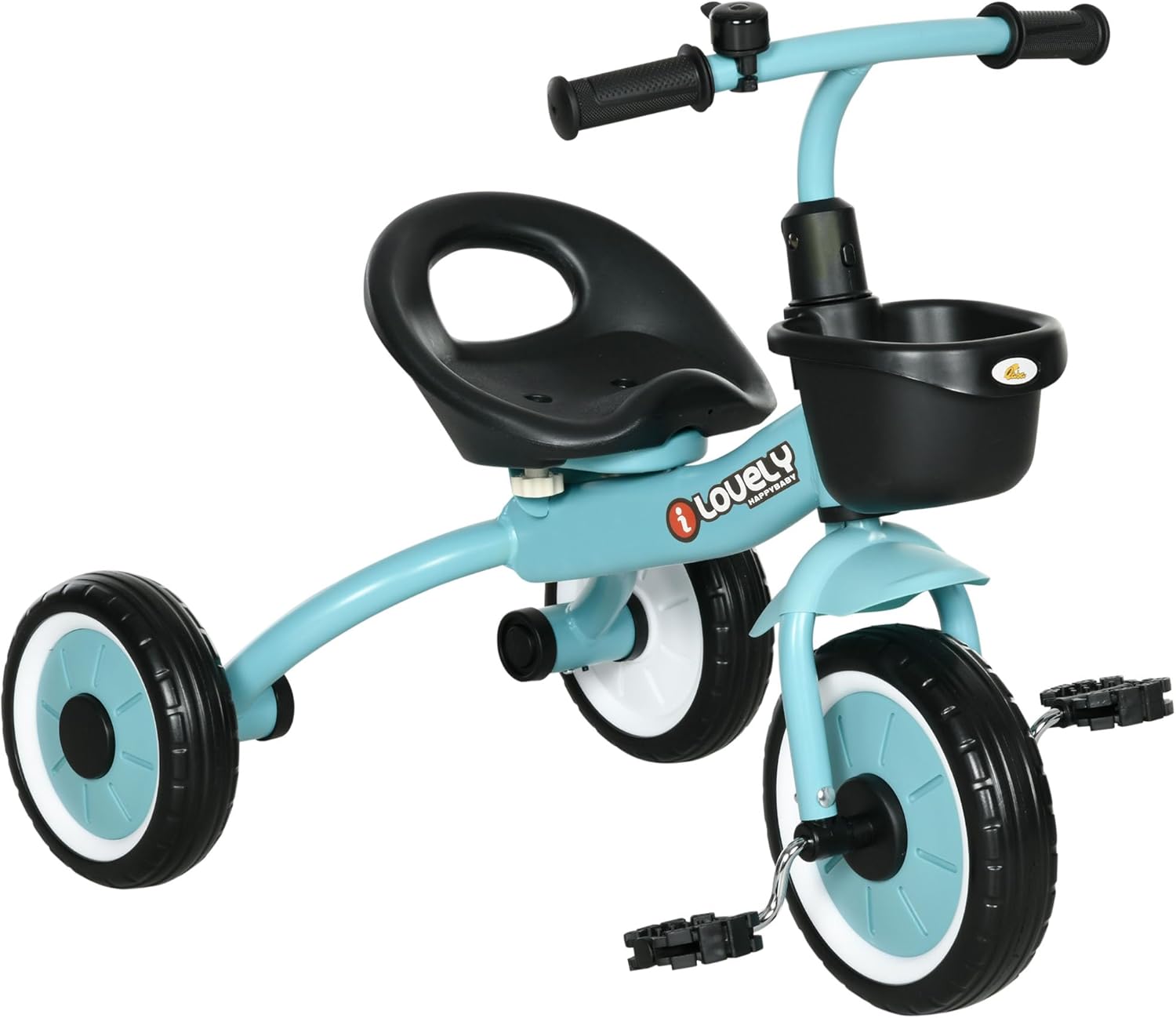

Figure 1: Overall view of the Qaba Toddler Tricycle.

Key Features:

• Adjustable Seat: The seat can be adjusted by 1.2 inches to accommodate growing children.
• Fully Equipped: Includes a bell and a basket for toys or snacks.
• Robust & Stylish: Features solid construction and durable EVA wheels (10" front, 8" rear).
• Easy to Assemble: Designed for straightforward assembly.

2. Safety Information

Always monitor your children while they are riding.

• Ensure all parts are securely fastened before each use.
• Do not use on public roads or near motor vehicles.
• Children should wear appropriate safety gear, including a helmet.
• Maximum weight capacity: 55 lbs.

3. Package Contents

Before assembly, please ensure all components listed below are present and undamaged:

• Tricycle Frame
• Front Wheel (10 inches)
• Rear Wheels (8 inches, 2 units)
• Adjustable Seat
• Handlebar with Grips
• Pedals (2 units)
• Bell
• Storage Basket
• Assembly Tools (if included)

4. Assembly Instructions

Assembly is designed to be straightforward. Follow these steps to set up your Qaba Toddler Tricycle.

Step 1: Attach the Front Wheel and Pedals

Secure the front wheel to the main frame. Insert the pedals into the designated slots on the front wheel assembly.

Figure 2: The tricycle is designed for easy assembly, allowing more time for play.

Step 2: Install the Handlebar

Insert the handlebar into the front fork assembly. Ensure it is firmly in place and the bell is attached securely.

Step 3: Attach the Rear Wheels and Basket

Attach the two rear wheels to the rear frame. Then, secure the storage basket to the rear of the tricycle.

Figure 3: The tricycle comes equipped with a bell and a basket for added fun and utility.

Step 4: Adjust the Seat

The seat height can be adjusted by 1.2 inches to fit your child's leg length. Loosen the adjustment mechanism under the seat, slide the seat to the desired position, and then tighten it securely.

Figure 4: The seat is adjustable to ensure a comfortable fit as your child grows.

5. Operating Instructions

Once assembled, ensure your child is seated comfortably with their feet able to reach the pedals or the ground for pushing. Encourage them to practice steering and pedaling in a safe, open area.

Riding:

• Encourage your child to push off with their feet or use the pedals to move forward.
• Guide them in steering the handlebars to change direction.
• The bell can be used to alert others of their presence.

Figure 5: A child enjoying their Qaba Toddler Tricycle, learning to ride and explore.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your tricycle.

• Cleaning: Wipe down the tricycle with a damp cloth and mild soap. Avoid harsh chemicals.
• Inspections: Periodically check all screws, bolts, and fasteners to ensure they are tight.
• Wheels: Inspect EVA wheels for any damage or excessive wear.
• Storage: Store the tricycle in a dry place away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter any issues, please refer to these common troubleshooting tips:

• Tricycle feels unstable: Ensure all assembly steps were followed correctly and all fasteners are tightened.
• Difficulty pedaling: Check if the pedals are installed correctly and rotate freely. Ensure the child's feet can comfortably reach the pedals.
• Steering issues: Verify the handlebar is securely attached and moves smoothly.

8. Specifications

Figure 6: Detailed dimensions of the tricycle for reference.

9. Warranty and Support

For warranty information or technical support, please contact the manufacturer, Aosom LLC, or your retailer. Keep your purchase receipt for proof of purchase.
