Introduction
The SmallRig Mini Quick Release Tripod (Model 4117) is a compact and versatile support solution designed for various camera equipment, including stabilizers, cameras, and cages. Its quick-release mechanism and universal compatibility make it an efficient tool for content creators.
Package Contents
- Mini Quick-Release Tripod x 1
Image: The SmallRig Mini Quick Release Tripod, showing its compact form factor and a small protective cap, alongside its product and package dimensions.
Key Features
- Quick Setup: Designed for rapid deployment, ideal for dynamic shooting environments.
- Slide Up Mechanism: Patented technology allows for quick extension of support feet by sliding the top plate.
- Universal Compatibility: Equipped with a 1/4"-20 threaded screw for broad device compatibility.
- Ergonomic Design: Features an anti-pinching design for comfortable handling and operation.
- Enhanced Grip: Silicone anti-slip pads on the support feet provide a secure grip and protect equipment from scratches.
- Lightweight and Portable: Weighing only 192g (6.8oz) with a load-bearing capacity of 10.0kg (22.0lb).
Image: The SmallRig Mini Quick Release Tripod with dimensions, illustrating its compact size and light weight, emphasizing portability and a 10kg load capacity.
Setup and Installation
- Attaching to Device: Screw the 1/4"-20 threaded screw on top of the tripod into the corresponding threaded hole at the bottom of your camera, cage, or stabilizer. Ensure it is securely tightened.
- Deploying the Legs: With the tripod attached, slide the top plate upwards. The support feet will automatically extend and lock into position, forming a stable base.
- Folding the Legs: To fold the legs, gently push them inwards until they click into their closed position.
Image: A pair of hands demonstrating the patented slide-up technology to deploy the tripod's support feet from a stabilizer.
Image: Two views of a gimbal, one with the SmallRig Mini Tripod folded as a handle, and the other with the tripod legs deployed for stable placement.
Operation
The SmallRig Mini Quick Release Tripod can be used in two primary configurations:
- As a Tripod: When the legs are deployed, the unit provides a stable base for your equipment on flat surfaces. This is suitable for static shots, time-lapses, or when you need to set your gear down securely.
- As a Handgrip: When the legs are folded, the tripod functions as an ergonomic handgrip, offering improved stability and comfort when holding your camera or stabilizer for handheld shooting. The anti-pinching design ensures comfortable use.

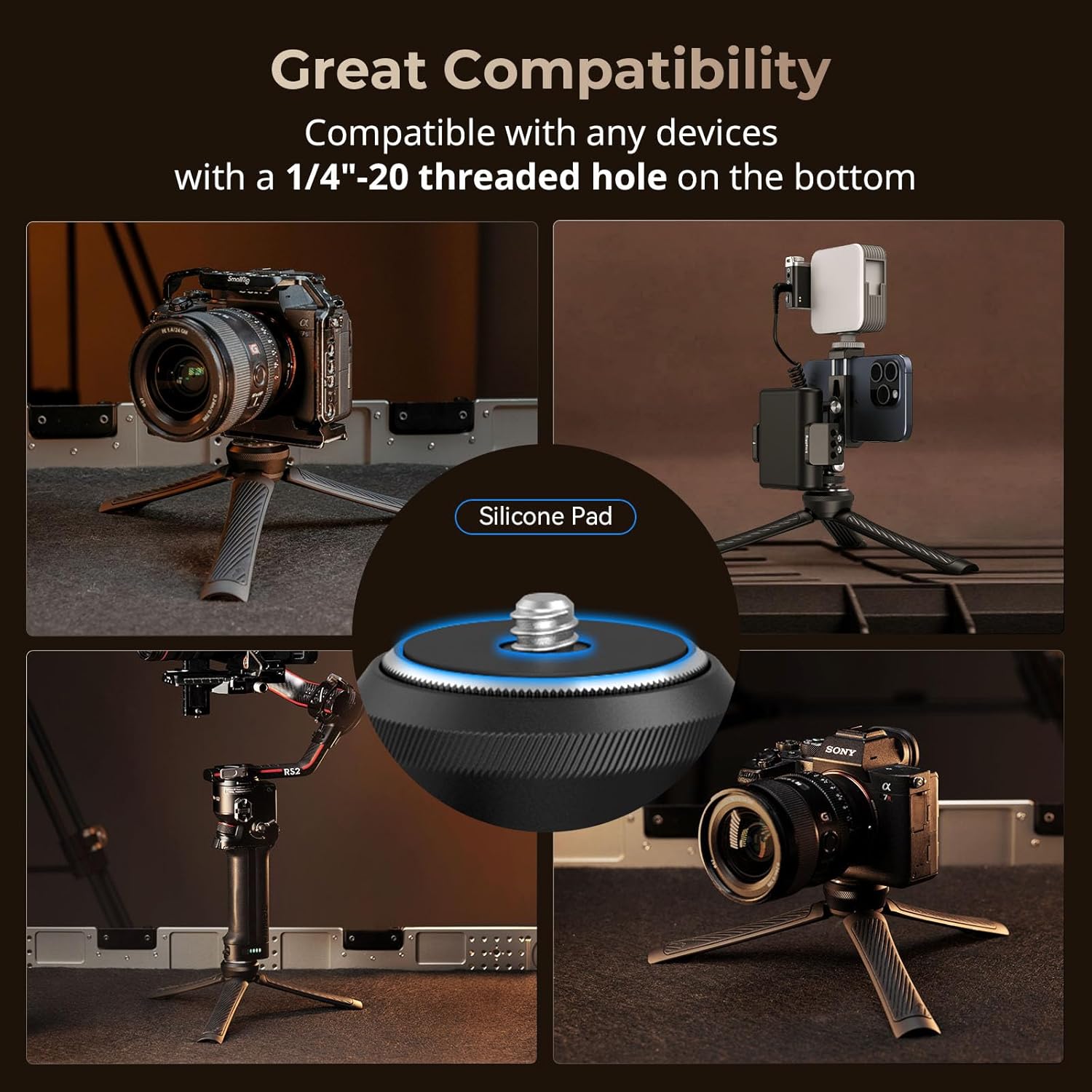

Image: Demonstrates the tripod's compatibility with different devices, including a camera in a cage, a smartphone rig, a gimbal, and a standalone camera, all mounted on the tripod.

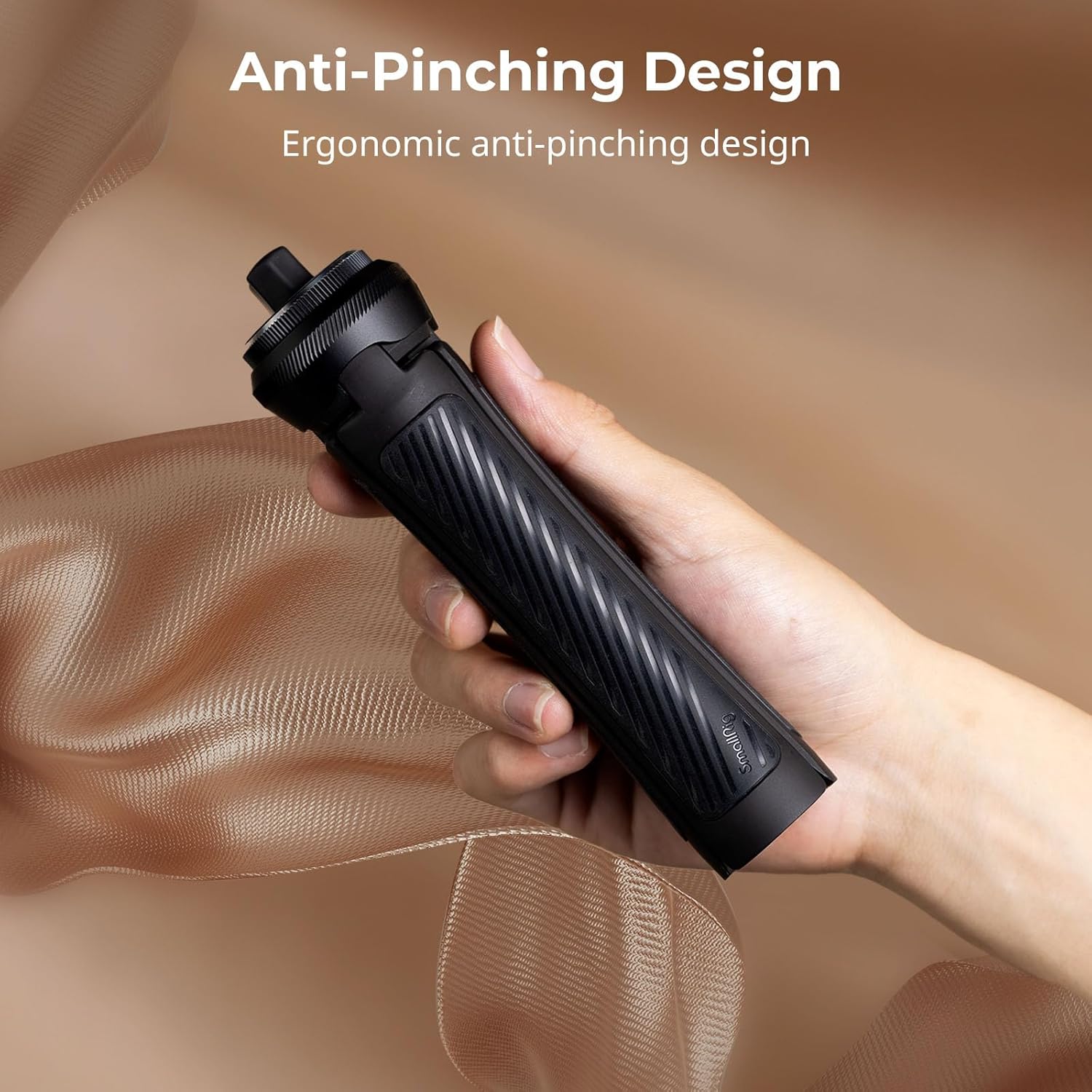

Image: A hand holding the SmallRig Mini Quick Release Tripod in its folded, handgrip configuration, highlighting its ergonomic and anti-pinching design.
Maintenance
To ensure the longevity and optimal performance of your SmallRig Mini Quick Release Tripod, follow these maintenance guidelines:
- Cleaning: Wipe the tripod with a soft, dry cloth after each use to remove dust and debris. For stubborn dirt, use a slightly damp cloth and then dry thoroughly. Avoid harsh chemicals or abrasive cleaners.
- Storage: Store the tripod in a dry, cool place away from direct sunlight and extreme temperatures.
- Inspection: Periodically check all moving parts and the 1/4"-20 screw for any signs of wear or damage. Ensure the leg deployment mechanism operates smoothly.
- Avoid Overloading: Do not exceed the maximum load-bearing capacity of 10.0kg (22.0lb) to prevent damage to the tripod and attached equipment.
Troubleshooting
- Legs Not Deploying/Folding Smoothly:
Ensure no debris is obstructing the sliding mechanism. Clean the area around the top plate and leg hinges. If the issue persists, avoid forcing the mechanism.
- Device Feels Unstable:
Verify that the 1/4"-20 screw is securely tightened to your device. Ensure the tripod legs are fully deployed and locked. Check that the combined weight of your equipment does not exceed the tripod's maximum load capacity.
- Scratches on Equipment:
The tripod features silicone anti-slip pads designed to protect equipment. Ensure these pads are clean and intact. Always handle equipment carefully during attachment and removal.
Specifications
| Attribute | Detail |
|---|---|
| Model Name | SmallRig Mini Tripod |
| Item Model Number | 4117 |
| Product Dimensions | 1.97 x 1.97 x 2.36 inches (157.0 x 34.0 x 33.0 mm) |
| Item Weight | 6.8 ounces (192 Grams) |
| Material | Aluminum Alloy, Stainless Steel, Silicone |
| Color | Black |
| Maximum Load Capacity | 10.0kg (22.0lb) |
| Compatible Devices | Any devices with a 1/4"-20 threaded hole at the bottom |
Contact and Support
For further assistance, technical support, or warranty inquiries regarding your SmallRig Mini Quick Release Tripod (Model 4117), please visit the official SmallRig website or contact their customer service department.
Official SmallRig Website: www.smallrig.com
