YAMAZEN ESR-Q100(B) Electric Shichirin Grill User Manual

1. Safety Precautions

Please read all instructions carefully before using the appliance to ensure safe and proper operation. Keep this manual for future reference.

• Always place the grill on a stable, heat-resistant surface.
• Do not immerse the main unit in water or any other liquid.
• Ensure proper ventilation when operating the grill, even with its reduced smoke feature.
• Keep out of reach of children and pets.
• Do not touch hot surfaces during or immediately after operation. Use oven mitts or heat-resistant gloves.
• Unplug the appliance from the power outlet when not in use and before cleaning.
• Do not use abrasive cleaners or scouring pads on the grill net or main unit.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.

2. Product Overview

2.1 Components

• Main Grill Unit (ESR-Q100(B))
• Grill Net (25cm x 10cm)
• Drip Tray
• Power Cord (integrated)

2.2 Key Features

• Reduced Smoke & Oil Splatter: Utilizes a side-heater heating system to minimize smoke and oil splatter, making it suitable for indoor use.
• Compact Design: Space-saving tabletop size, ideal for individual use or small family gatherings.
• Stepless Temperature Control: A simple dial allows for continuous temperature adjustment from "warm" (keep warm) to "high" (strong heat) to suit various ingredients.
• Easy to Clean: The grill net and drip tray are washable, simplifying post-use cleaning.

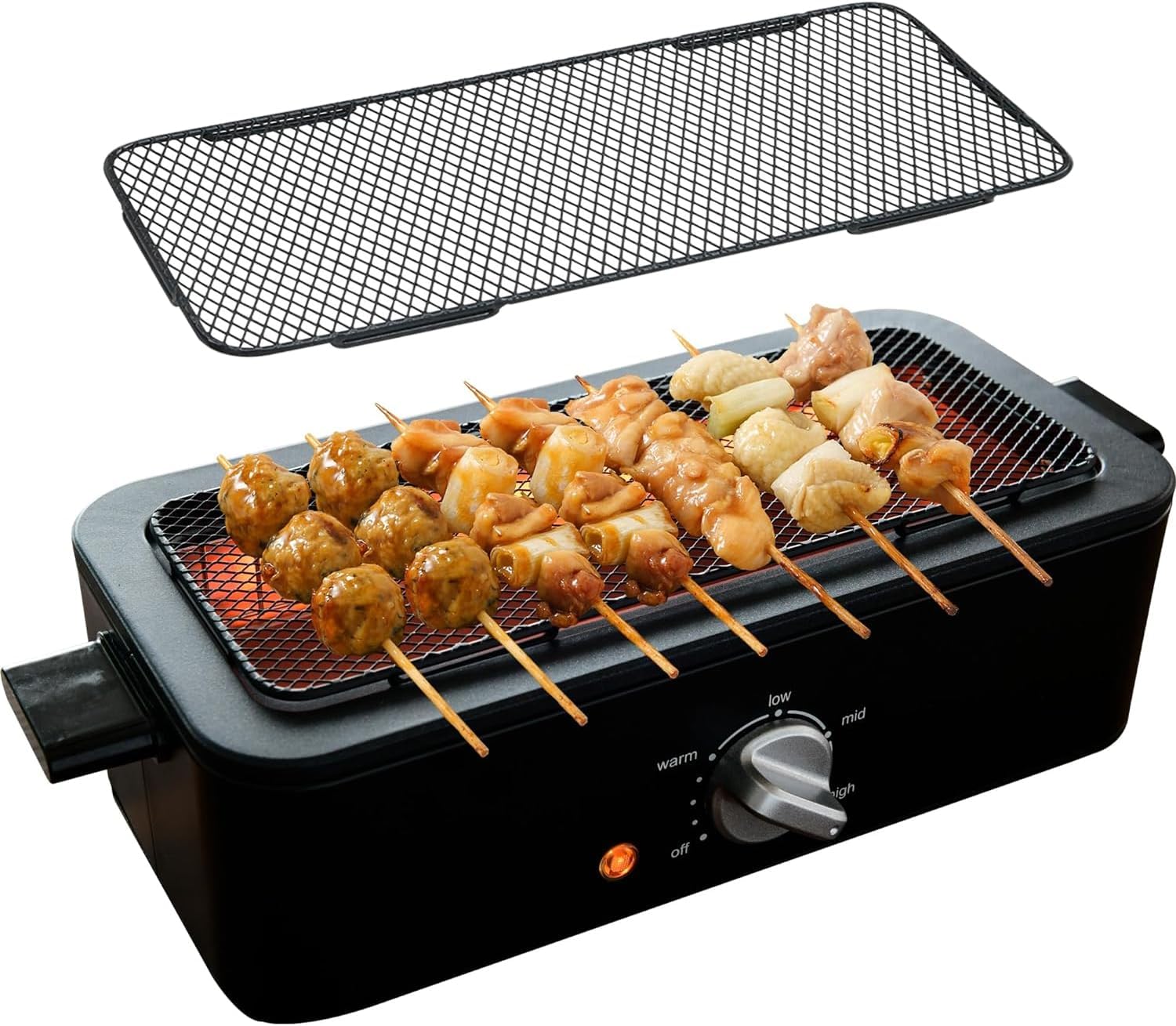

Figure 2.1: The YAMAZEN ESR-Q100(B) Electric Shichirin Grill, showcasing the main unit with food grilling on the net, and a separate replacement grill net. This compact grill is designed for tabletop use, perfect for enjoying grilled dishes at home.

Figure 2.2: The YAMAZEN Electric Shichirin Grill in operation, demonstrating its compact size suitable for a single person. The image highlights the temperature control dial, allowing users to adjust heat levels for optimal grilling.

3. Setup

1. Unpack: Carefully remove all components from the packaging.
2. Placement: Place the main grill unit on a flat, stable, and heat-resistant surface, ensuring adequate space around the unit for ventilation.
3. Insert Drip Tray: Slide the drip tray into its designated slot at the bottom of the main unit. This tray collects excess oil and drippings during grilling.
4. Place Grill Net: Position the grill net securely on top of the heating element.
5. Connect Power: Plug the power cord into a standard electrical outlet.

Figure 3.1: This image illustrates the compact dimensions of the main unit: approximately 34.5 cm in width, 14 cm in depth, and 10 cm in height. The grill net measures 25.3 cm in width and 10 cm in depth. These measurements confirm its suitability for tabletop use.

4. Operating Instructions

1. Preheat: Turn the temperature control dial from "OFF" to your desired heat setting (e.g., "warm", "low", "mid", "high"). Allow the grill to preheat for 5-10 minutes until the heating element glows.
2. Place Food: Carefully place food items directly onto the grill net. Avoid overcrowding the grill to ensure even cooking.
3. Adjust Temperature: Use the stepless temperature control dial to adjust the heat as needed for different types of food and desired doneness.


   Figure 4.1: The temperature control dial offers stepless adjustment from "warm" (keep warm) to "high" (strong heat). This allows precise control over the grilling process, adapting to various ingredients and cooking preferences. The simple dial operation ensures ease of use for anyone.

4. Grilling: Monitor the food and turn it as necessary to ensure even grilling. The side-heater design helps reduce smoke and oil splatter, making for a cleaner grilling experience.


   Figure 4.2: This image shows a person enjoying freshly grilled food using the compact YAMAZEN Electric Shichirin Grill. Its small footprint makes it ideal for tabletop use, perfect for solo dining or intimate family meals, bringing the joy of freshly grilled food right to your home.



   Figure 4.3: This comparison illustrates the significant smoke and oil splatter reduction achieved by the YAMAZEN Electric Shichirin Grill (left) compared to a conventional product (right). The bottom image provides a close-up of the side-heater heating element, which is key to minimizing smoke and oil, allowing for comfortable indoor grilling without strong odors.
5. Finish: Once cooking is complete, turn the temperature control dial to "OFF" and unplug the appliance from the power outlet.

5. Maintenance and Cleaning

Regular cleaning ensures the longevity and optimal performance of your grill.

1. Cool Down: Always allow the grill to cool completely before cleaning.
2. Remove Components: Carefully remove the grill net and drip tray from the main unit.
3. Clean Grill Net & Drip Tray: The grill net and drip tray are washable. Wash them with warm soapy water and a soft sponge. For stubborn residue, soak them before cleaning. Rinse thoroughly and dry completely before reassembling.


   Figure 5.1: This image demonstrates the ease of cleaning the grill net and drip tray after use. The grill net is designed for healthy cooking, allowing excess fat to drip away. Both the grill net and the water tray are washable, making cleanup simple even if they get dirty.
4. Clean Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not use abrasive cleaners or immerse the main unit in water.
5. Storage: Store the clean and dry grill in a cool, dry place.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official YAMAZEN website.

Keep your purchase receipt as proof of purchase for warranty claims.

For further assistance, you may contact YAMAZEN customer service through their official channels.
