1. Introduction
This manual provides essential information for the safe and efficient use of your AFI Santa Fe Murphy Bed Chest. This product is designed to maximize living space by transforming from a compact chest into a comfortable full-size bed, complete with a 6-inch mattress and a built-in USB charging station. Please read these instructions thoroughly before assembly and operation to ensure proper use and longevity of your furniture.
2. Safety Information
- Adult Assembly Required: This product requires adult assembly. Ensure all steps are followed carefully.
- Heavy Item: The Murphy Bed Chest is a heavy item. It is recommended that two or more adults assist with moving and assembly to prevent injury.
- Weight Capacity: The bed is designed to support a maximum weight of 800 pounds. Do not exceed this limit.
- No Wall Mounting Required: This unit is designed to be free-standing and does not require wall mounting.
- Clearance: Ensure adequate space around the unit for safe operation when converting between chest and bed configurations.
3. Package Contents
Verify that all components are present before beginning assembly. Refer to the detailed parts list included in your separate assembly guide for specific hardware and panel identification.
- Murphy Bed Chest Frame
- 6-inch Fold-A-Way Memory Foam Mattress
- Built-in USB Charging Station (pre-installed)
- Assembly Hardware Kit
4. Setup and Assembly
Assembly of the Santa Fe Murphy Bed Chest is required. Please follow the step-by-step instructions provided in the dedicated assembly manual that accompanied your product. It is crucial to identify all parts and hardware before starting. Two adults are recommended for assembly due to the size and weight of the components.
Figure 4.1: Dimensions of the Santa Fe Murphy Bed Chest. The chest measures 55.19 inches wide by 22.83 inches deep by 39.17 inches high when closed. When open, the bed extends to 74.57 inches in length.
Figure 4.2: Internal structure of the Murphy Bed Chest, illustrating the slatted bed base that supports the mattress.
5. Operating Instructions
5.1 Converting from Chest to Bed
- Ensure the area in front of the chest is clear of obstructions.
- Unlatch any securing mechanisms on the front panel of the chest.
- Gently pull the front panel outwards and downwards. The bed frame will unfold as you do so.
- Continue unfolding until the bed frame is fully extended and the support legs are securely in place.
- The 6-inch Fold-A-Way mattress will unfold automatically as the bed extends. Adjust the mattress as needed for comfort.

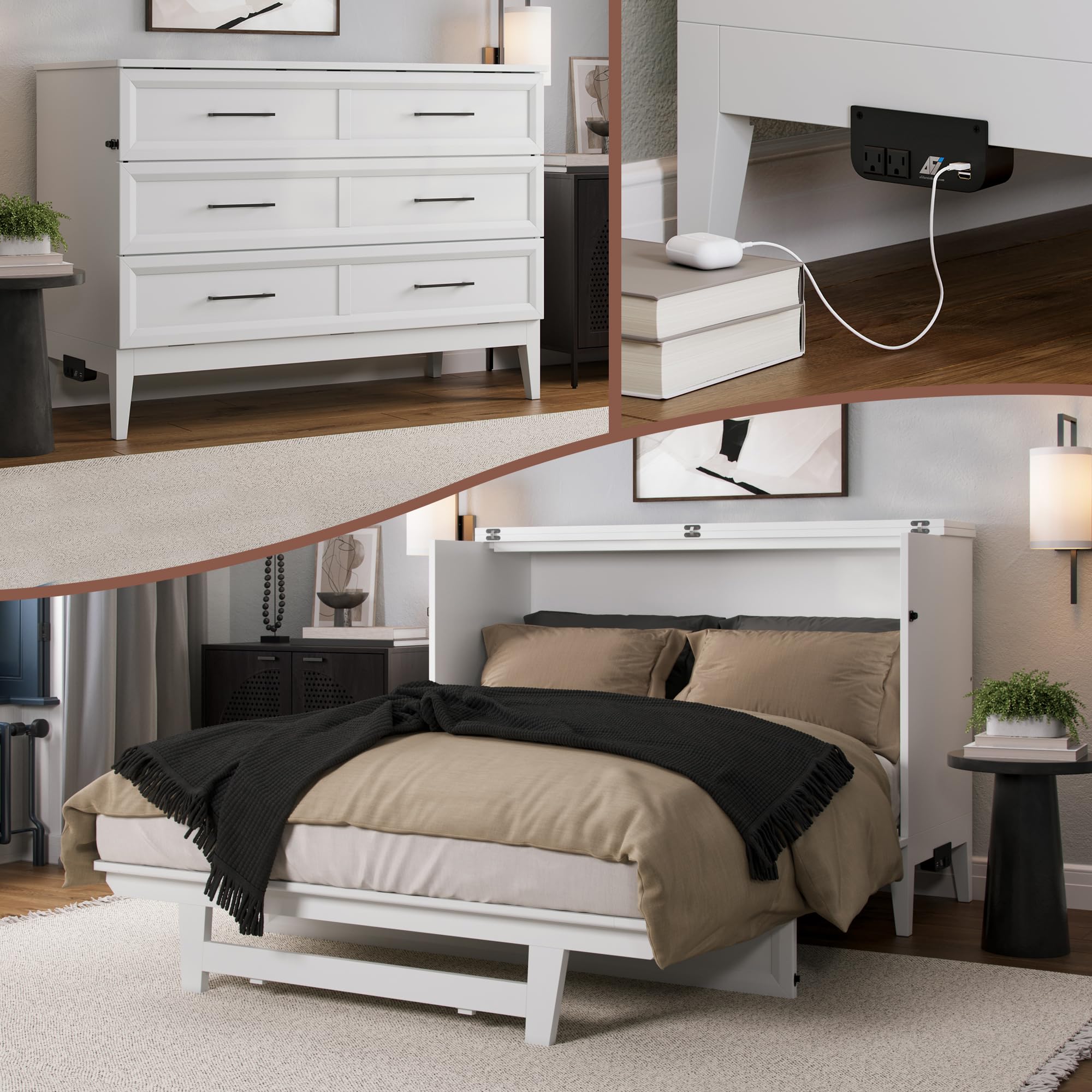

Figure 5.1: The Santa Fe Murphy Bed Chest in its fully open, bed configuration.
Figure 5.2: The 6-inch mattress unfolding as the bed frame extends from the chest.
5.2 Converting from Bed to Chest
- Remove all bedding (sheets, blankets, pillows) from the mattress.
- Lift the foot of the bed frame, allowing the support legs to fold inwards.
- Gently push the bed frame and mattress back into the chest cavity. The mattress will fold as the frame retracts.
- Close the front panel of the chest and secure any latches.
Figure 5.3: The Santa Fe Murphy Bed Chest in its closed, space-saving chest configuration.
5.3 Using the Built-in USB Charging Station
The Santa Fe Murphy Bed Chest features a built-in power source with a 9-foot cord, two standard outlets, and two USB ports, conveniently located on the side of the unit.
- Plug the power cord into a standard wall outlet.
- Connect your electronic devices to the USB ports or standard outlets for charging.

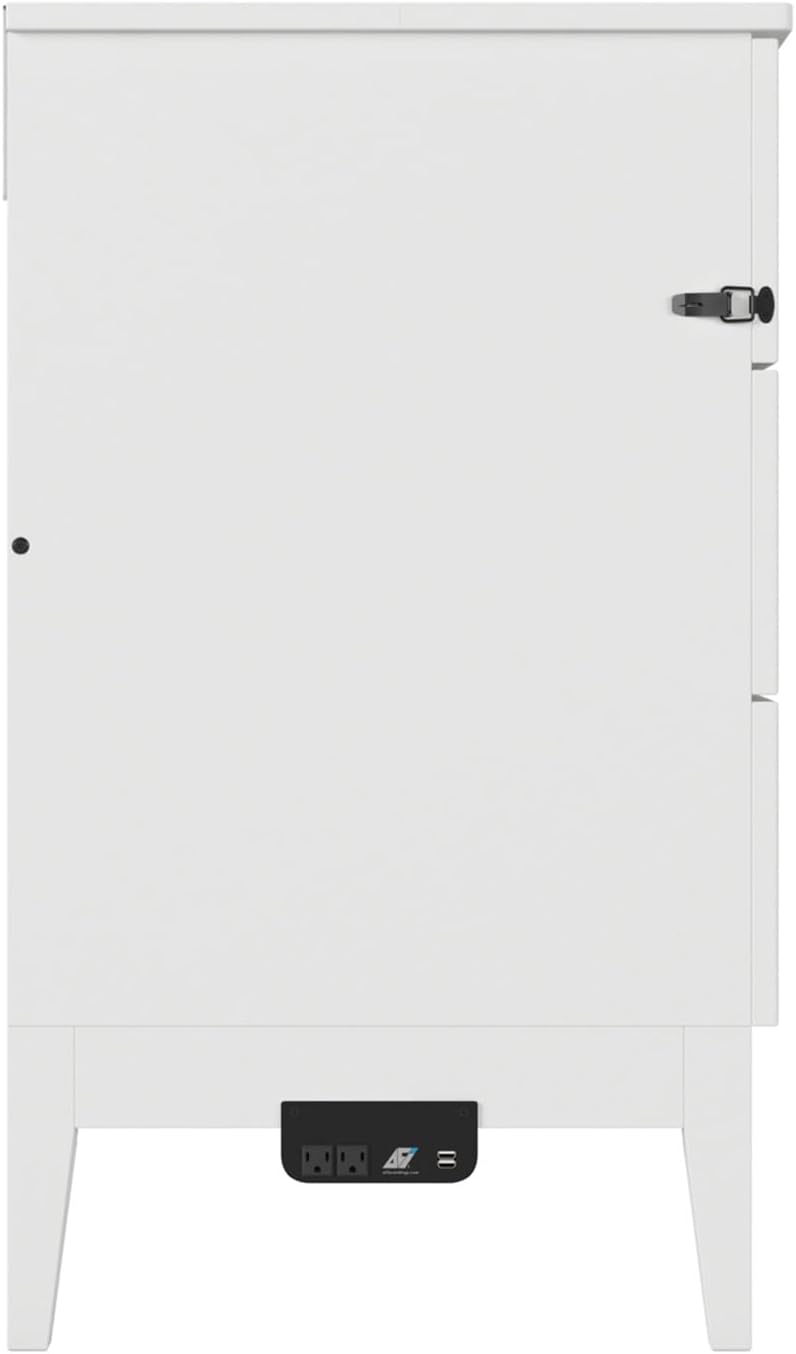

Figure 5.4: Detail of the integrated USB charging station.
Figure 5.5: Example of a device charging using the built-in USB port.
Video 5.1: This video demonstrates the transformation of the Santa Fe Murphy Bed Chest from its closed chest form to an open bed, showcasing its ease of use and space-saving functionality.
6. Maintenance
- Cleaning: Wipe the wooden surfaces with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, which may damage the finish.
- Mattress Care: The included 6-inch memory foam mattress should be spot cleaned with a mild detergent and allowed to air dry. Do not machine wash or dry.
- Hardware: Periodically check all assembly hardware to ensure it remains tight. Retighten as necessary.
7. Troubleshooting
If you encounter any issues with your Santa Fe Murphy Bed Chest, please refer to the detailed troubleshooting section in your complete assembly guide. Common issues may include:
- Difficulty in opening/closing: Ensure no obstructions are present and that all mechanisms are free of debris.
- USB charger not working: Verify the power cord is securely plugged into a functional wall outlet.
For further assistance, consult the full assembly manual or contact customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Model | Santa Fe Murphy Bed Chest |
| Dimensions (Closed) | L: 22.83 inches x W: 55.19 inches x H: 39.17 inches |
| Dimensions (Open) | L: 74.57 inches x W: 55.79 inches x H: 39.17 inches |
| Weight Capacity | 800 lbs |
| Frame Material | Solid Hardwood (Rubberwood), Wood |
| Finish | Painted, Non-Toxic Veneer |
| Color (as reviewed) | White (also available in Walnut, Grey, Light Toffee) |
| Mattress Included | Yes, 6-inch Fold-A-Way Memory Foam Mattress (1-inch aerated foam topper, 2 inches Cooling Gel foam, 3 inches resilient support foam) |
| USB Charging Station | Built-in, with 9-foot cord, 2 standard outlets, and 2 USB ports |
| Assembly Required | Yes |
| Care Instructions | Wipe with Dry Cloth |
9. Warranty and Support
9.1 Warranty Information
The AFI Santa Fe Murphy Bed Chest comes with a limited warranty. For specific details regarding coverage and duration, please refer to the product description on the retailer's website or the AFI Furnishings store page.
9.2 Customer Support
Should you require further assistance with assembly, operation, or any other inquiries regarding your AFI Santa Fe Murphy Bed Chest, please contact AFI customer service. Contact information can typically be found on the AFI Furnishings website or through your product retailer.
