COVERONICS 10' x 13' Wall-Mounted Hardtop Gazebo Instruction Manual

1. Introduction

Thank you for choosing the COVERONICS 10' x 13' Outdoor Polycarbonate Hardtop Gazebo. This wall-mounted aluminum frame gazebo is designed to provide a durable, waterproof, and UV-resistant outdoor living space. Its slope roof design ensures efficient water runoff, while the robust aluminum frame offers stability against various weather conditions. This manual provides essential information for the safe assembly, operation, and maintenance of your new gazebo.

2. Safety Information

Please read and understand all safety warnings and instructions before assembly and use. Failure to follow these instructions may result in serious injury or property damage.

• Professional Installation Recommended: Due to the size and complexity, professional installation is highly recommended.
• Secure Mounting: We recommend mounting this gazebo on concrete or wooden boards using expansion screws to ensure maximum stability. Ensure the mounting surface is level and structurally sound.
• Snow Removal: In winter, it is crucial to clear snow from the roof promptly to prevent excessive weight accumulation, which could lead to structural collapse.
• Wind Precautions: While designed to withstand wind, in extreme wind conditions, it is advisable to secure the curtains and netting, or temporarily remove them if necessary, to prevent damage.
• Check Packaging: The gazebo is packed in three boxes. These boxes may arrive at different times. Please ensure all boxes are received before beginning assembly.
• Inspect Components: Before assembly, carefully inspect all components for any damage. Do not proceed with assembly if parts are damaged. Contact customer service for replacements.
• Children and Pets: Keep children and pets away from the assembly area.

3. Product Components

Your COVERONICS gazebo includes the following main components. Refer to the detailed parts list in your separate assembly manual for specific quantities and hardware.

• Polycarbonate Slope Roof Panels
• Powder-Coated Aluminum Frame (Posts, Beams, Brackets)
• Wall Mounting Hardware
• Zippered Netting
• Privacy Curtains
• Ground Stakes / Anchoring Plates
• Assembly Hardware (bolts, screws, washers, etc.)

4. Setup and Assembly

Assembly of the COVERONICS gazebo requires multiple people and can be complex. Please refer to the dedicated assembly manual included in your packaging for step-by-step instructions, diagrams, and a complete parts list. The following is a general overview:

1. Site Preparation: Choose a level, stable surface for installation. Ensure adequate clearance around the gazebo for assembly and future use.
2. Unpack and Identify Parts: Carefully unpack all three boxes and lay out all components. Verify against the parts list in your assembly manual.
3. Assemble Frame: Follow the instructions to assemble the aluminum frame structure, ensuring all connections are secure.
4. Attach to Wall: Securely attach the wall-mounted side of the gazebo to your chosen structure (concrete or wooden board) using the provided wall mounting hardware and appropriate expansion screws.
5. Install Roof Panels: Carefully install the polycarbonate roof panels onto the frame. Ensure they are properly seated and sealed to provide waterproof protection.
6. Install Netting and Curtains: Attach the zippered netting and privacy curtains to the dual tracks.
7. Secure to Ground: Anchor the gazebo posts to the ground using the stable ground stakes or anchoring plates for added stability.

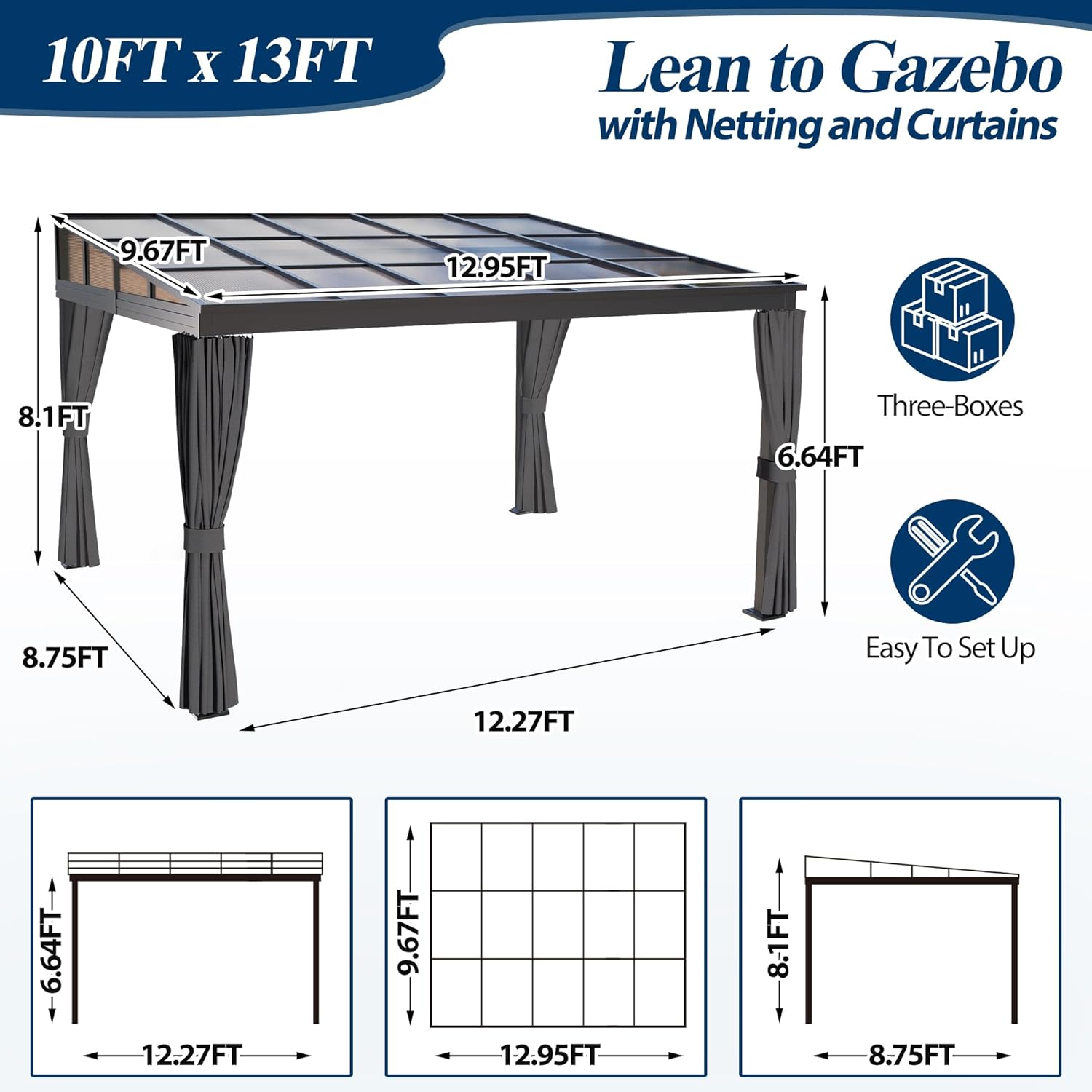

This diagram illustrates the key dimensions of the gazebo, including its length (12.95 ft / 12.27 ft), width (9.67 ft / 8.75 ft), and height (8.1 ft / 6.64 ft). It also indicates that the product ships in three boxes and is designed for easy setup.

This image provides detailed views of critical components: the wall mounting hardware for secure attachment, the sturdy roofing reinforcement, the durable aluminum frame, and the stable ground stakes designed for enhanced stability.

5. Operating Instructions

Your gazebo is designed for ease of use and year-round enjoyment.

• Netting and Curtains: The gazebo features dual tracks with hooks for the zippered netting and privacy curtains. These can be easily adjusted to open or close by sliding the hooks along the track. Straps are provided to tie back the sidewalls when not in use.
• Weather Protection: The polycarbonate roof provides excellent UV protection, keeping the area cooler in sunlight. Its waterproof design ensures protection during rain.
• Airflow: The breathable netting allows for full airflow while protecting from insects.

This image demonstrates the gazebo's performance in various weather conditions. It highlights its ability to block UV rays in sunny weather, its water-resistant properties during rain, and its capacity to withstand heavy snow, ensuring year-round usability.

6. Maintenance

Regular maintenance will extend the life and appearance of your gazebo.

• Cleaning Frame: Clean the aluminum frame with a mild soap and water solution. Rinse thoroughly with clean water and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
• Cleaning Roof Panels: Gently clean polycarbonate panels with a soft cloth or sponge and mild soapy water. Do not use brushes or abrasive materials that could scratch the surface.
• Cleaning Fabric: The netting and curtains can be spot cleaned with mild soap and water. For deeper cleaning, follow care instructions on the fabric tags if available. Ensure they are completely dry before storing or tying back for extended periods to prevent mildew.
• Snow Removal: As noted in safety, clear snow from the roof regularly during winter to prevent structural strain.
• Hardware Check: Periodically check all bolts and screws to ensure they remain tight and secure. Tighten as necessary.

7. Troubleshooting

If you encounter issues with your gazebo, consider the following common solutions:

• Wobbly Structure: Ensure all bolts and screws are tightened. Verify that the gazebo is securely anchored to a level surface using expansion screws or ground stakes.
• Water Leakage: Check that all roof panels are correctly installed and sealed. Inspect for any gaps or damage to the panels.
• Curtains/Netting Sticking: Ensure the tracks are clean and free of debris. Check that the hooks are not bent or damaged.
• Missing/Damaged Parts: If you received damaged or missing parts upon delivery, do not proceed with assembly. Contact COVERONICS customer service immediately for assistance.

For issues not covered here, please contact our customer service team.

8. Specifications

9. Customer Support

COVERONICS is committed to providing excellent customer service. If you have any questions, concerns, or require assistance with your gazebo, please do not hesitate to contact us. Our service team is ready to provide premium support to help resolve any issues you may encounter.

Please refer to the contact information provided on your purchase receipt or the product packaging for the most direct way to reach our support team.
