IHOTDER 8 PCS Fuel Injector Connector Pigtail Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your IHOTDER 8 PCS Fuel Injector Connector Pigtail. Please read these instructions carefully before use to ensure optimal performance and safety.

2. Product Overview

The IHOTDER Fuel Injector Connector Pigtail is designed to connect fuel injectors within a vehicle's fuel system. Proper functioning of this component is crucial for engine performance and fuel economy. This set includes 8 connectors.

2.1 Key Features

• Premium Materials: The plug contacts are made of phosphor bronze, designed to prevent sparks during connection and resist heating, ensuring good electrical conductivity and high fatigue resistance. The outer shell is made of nylon, offering high waterproof performance.
• 2-Wire System: Each harness wire is 5.3 inches long, providing flexibility for installation.
• Easy Installation: Designed as a cut and splice type with a plug-and-play socket for convenient operation.

2.2 Applicable and Compatible Models

This fuel injector connector is a replacement for OEM part numbers: 5013995AA, 5161919AA, 89046836, 89046838, 88988313, 89046636, S824, 15306318, 1U2Z14S411ANA, 1P1344, PT2160, 1U2Z14S411BPA.

It is compatible with a wide range of vehicle makes, including but not limited to: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, Land Rover, Lincoln, Mazda, Mercury, Mini, Mitsubishi, Oldsmobile, Plymouth, GMC, Hummer, Hyundai, Isuzu, Jaguar, Jeep, Kia, Pontiac, Ram, Saab, Saturn, Subaru, Suzuki, Volkswagen, and Volvo.

Figure 1: Overview of applicable OEM numbers and compatible vehicle models.

Figure 2: The fuel injector connectors are suitable for various vehicle types.

3. Installation Instructions

Installation of the fuel injector connector pigtail involves electrical connections and should be performed by individuals with appropriate automotive electrical knowledge. Always ensure the vehicle's battery is disconnected before beginning any electrical work.

3.1 Preparation

1. Ensure the vehicle's ignition is off and the battery is disconnected to prevent electrical hazards.
2. Locate the existing fuel injector connectors that need replacement.
3. Gather necessary tools, which may include wire cutters, strippers, crimpers, and heat shrink tubing or electrical tape.

3.2 Connection Steps

1. Carefully disconnect the old fuel injector connector from the fuel injector.
2. Cut the wires of the old connector, leaving enough length on the vehicle's wiring harness to work with.
3. Strip a small portion of insulation from the ends of the vehicle's wiring harness wires and the new IHOTDER connector pigtail wires.
4. Connect the wires of the new pigtail to the vehicle's wiring harness. Ensure correct polarity (typically red to positive, black to negative, but always verify with vehicle-specific wiring diagrams if unsure). Use appropriate connectors (e.g., crimp connectors) and secure them properly.
5. Insulate all connections using heat shrink tubing or high-quality electrical tape to protect against moisture and corrosion.
6. Plug the new IHOTDER connector securely onto the fuel injector. Ensure it clicks into place for a firm connection.

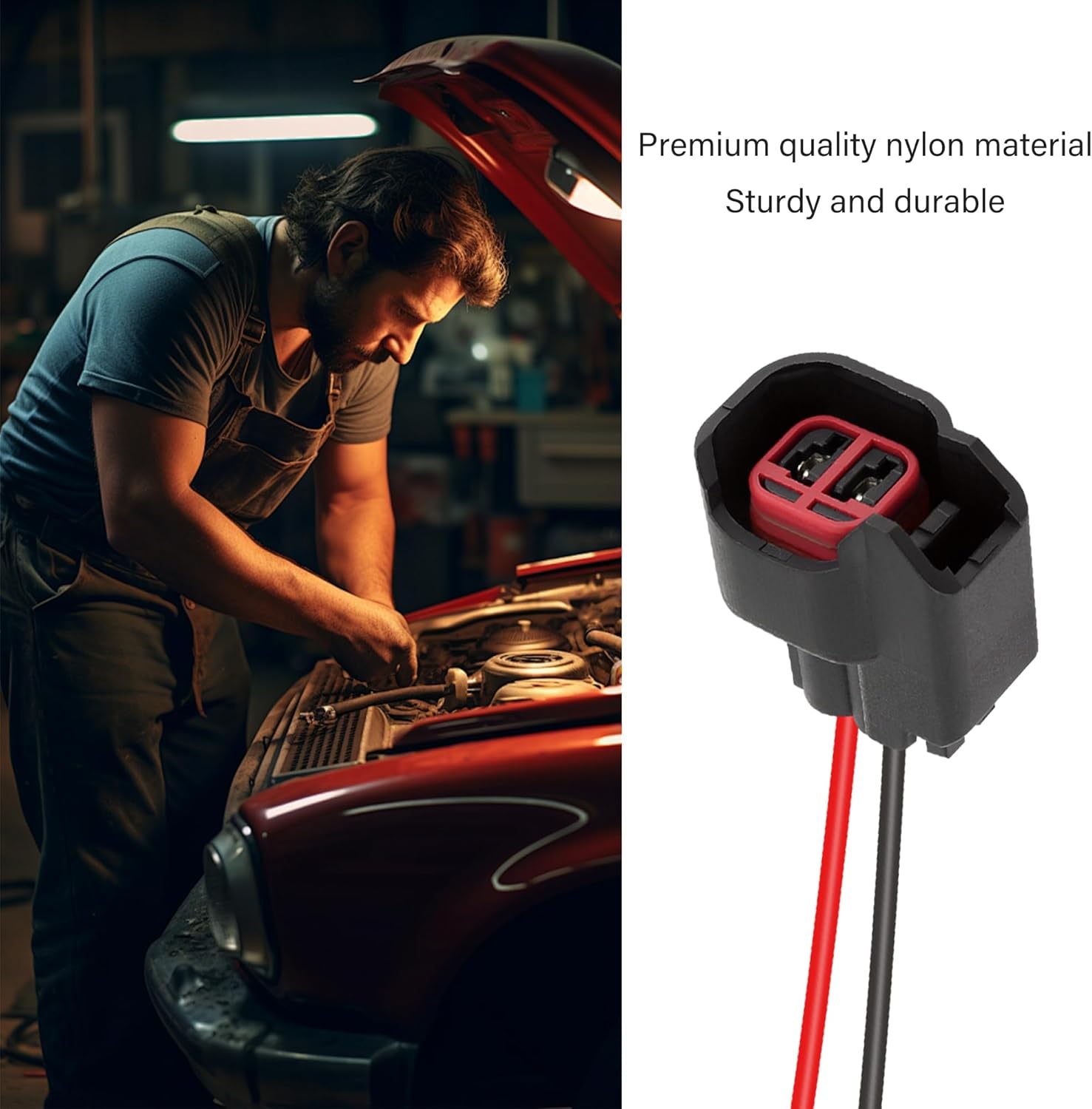

Figure 3: The fuel injector connector pigtail being prepared for installation in an engine bay.

4. Operating Instructions

Once properly installed, the fuel injector connector pigtail operates automatically as part of the vehicle's fuel injection system. No user intervention is required for its operation.

• Ensure all connections are secure and free from debris or moisture.
• After installation, reconnect the vehicle's battery and start the engine to verify proper function. Listen for any unusual noises or observe any warning lights.

5. Maintenance

The IHOTDER Fuel Injector Connector Pigtail is designed for durability and requires minimal maintenance. Regular inspection is recommended.

• Periodically inspect the connectors for any signs of wear, cracking, or corrosion.
• Ensure the connections remain tight and secure.
• Keep the engine bay clean and free from excessive oil or debris that could affect electrical components.

6. Troubleshooting

If you experience issues after installing the fuel injector connector pigtails, consider the following troubleshooting steps:

• Engine Misfire or Rough Idling:
  • Check all connections to ensure they are secure and properly seated on the fuel injectors.
  • Verify that the wiring connections (splice points) are correctly made and insulated.
  • Inspect for any damaged wires or connectors.
• Check Engine Light:
  • A check engine light could indicate a fault in the fuel injection system. Use an OBD-II scanner to retrieve diagnostic trouble codes (DTCs) for further diagnosis.
  • Ensure the correct OEM replacement part was used for your vehicle.
• No Start Condition:
  • Confirm that the battery is properly reconnected and charged.
  • Re-check all electrical connections related to the fuel system.

If problems persist, it is recommended to consult a qualified automotive technician.

7. Specifications

Figure 4: Product dimensions and cable length.

Figure 5: Detail of the phosphor bronze contacts within the connector.

8. Warranty and Support

For warranty information or technical support regarding your IHOTDER Fuel Injector Connector Pigtail, please refer to the product packaging or contact IHOTDER customer service directly. Keep your purchase receipt for warranty claims.
