LEVOIT Pedestal Fan User Manual

1. Introduction

Thank you for choosing the LEVOIT LPF-R432-WEU Pedestal Fan. This fan is designed to provide powerful and efficient air circulation, ensuring a comfortable environment in your home or office. With its quiet operation, versatile oscillation, and smart features, it offers a superior cooling experience. Please read this manual thoroughly before use to ensure proper operation and maintenance.

Image: The LEVOIT LPF-R432-WEU Pedestal Fan, showcasing its sleek white design and integrated remote control.

2. Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, please observe the following safety precautions:

• Always unplug the fan from the power outlet before cleaning, performing maintenance, or when not in use.
• Do not operate the fan with a damaged cord or plug. If the cord or plug is damaged, contact customer support.
• Keep the power cord away from heated surfaces.
• Do not immerse the fan in water or other liquids.
• Do not insert fingers or foreign objects into any openings of the fan.
• Ensure the fan is placed on a stable, level surface to prevent it from tipping over.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not use the fan outdoors or in wet locations.

3. Package Contents

Please check the package for the following items:

• LEVOIT Pedestal Fan (Main Unit)
• Base Assembly
• Remote Control
• Power Cord
• User Manual (This document)

4. Setup and Assembly

The LEVOIT Pedestal Fan requires minimal assembly. Follow these steps to set up your fan:

1. Carefully remove all components from the packaging.
2. Attach the main fan unit to the base assembly. Ensure it clicks securely into place.
3. Place the fan on a firm, level surface.
4. Connect the power cord to the fan and then plug it into a standard electrical outlet.

Image: Diagram illustrating the simple assembly process of the LEVOIT Pedestal Fan, showing the main unit connecting to the base.

5. Operating Instructions

Your LEVOIT Pedestal Fan offers various settings for optimal comfort.

5.1. Power On/Off

Press the power button on the fan's control panel or the remote control to turn the fan on or off.

5.2. Speed Settings

Adjust the fan speed using the '+' and '-' buttons on the control panel or remote. The fan features 12 adjustable speed levels to suit your preference, from a gentle breeze to powerful air circulation.

5.3. Oscillation

Activate the oscillation feature to distribute air across a wider area. The fan supports both horizontal (up to 90°) and vertical (up to 120°) oscillation for comprehensive room coverage.

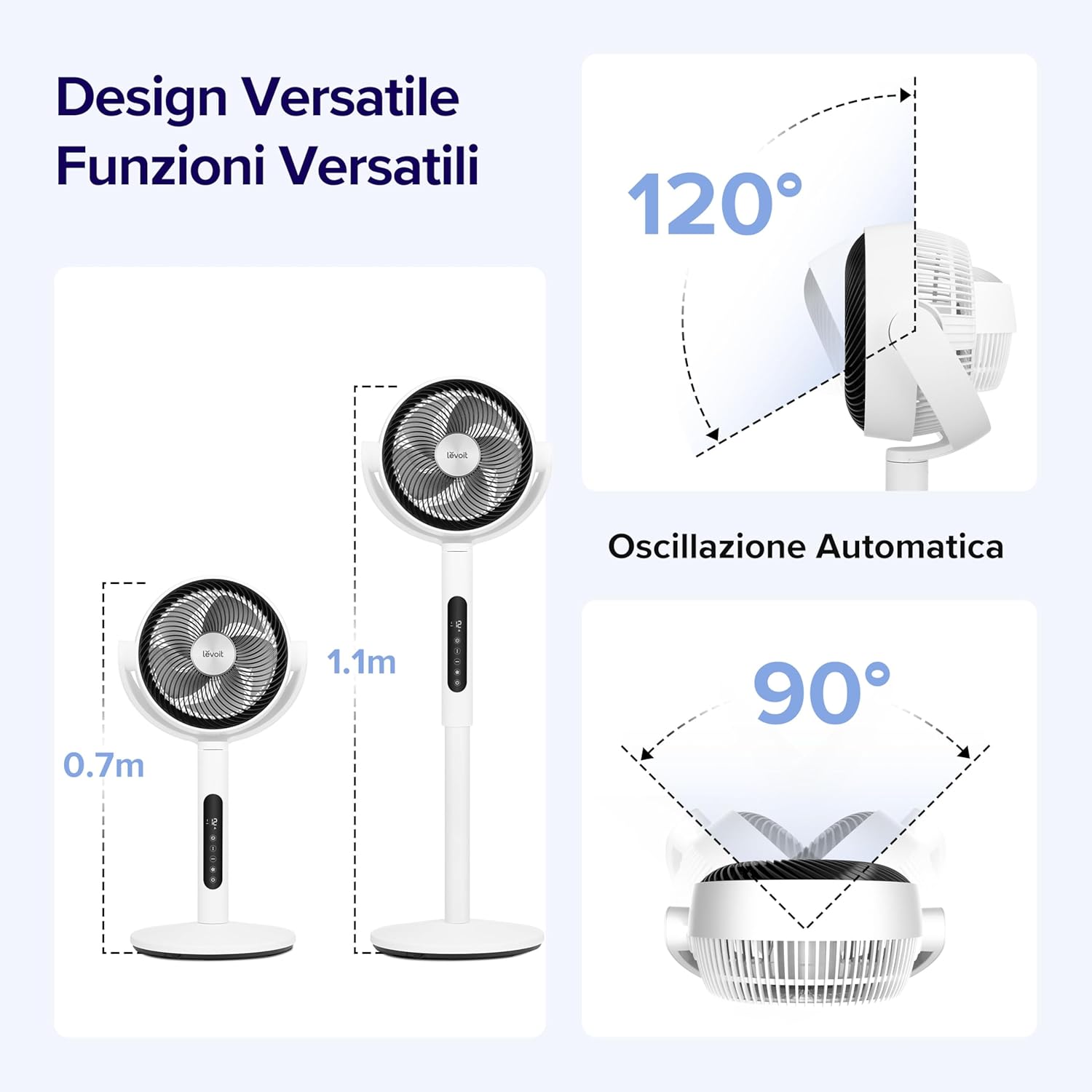

Image: Visual representation of the LEVOIT Pedestal Fan's automatic oscillation capabilities, showing 90° horizontal and 120° vertical movement for wide air distribution.

5.4. Timer Function

Set the fan to automatically turn off after a specified period using the timer button. This is useful for energy saving or for use during sleep.

5.5. Night Mode

For undisturbed sleep, activate the Night Mode. In this mode, the fan operates at a very low noise level (as low as 20 dB) and the display lights can be turned off.

Image: The LEVOIT Pedestal Fan operating in a bedroom setting, illustrating its quiet 20 dB operation and screen dimming feature for peaceful sleep.

5.6. Smart Sensor

The integrated smart sensor can automatically adjust the fan speed based on the room's temperature, optimizing comfort and energy consumption.

Image: A visual demonstrating the smart sensor technology of the LEVOIT Pedestal Fan, which intelligently adjusts fan speed according to ambient room temperature for energy efficiency.

5.7. Remote Control

The fan comes with a convenient remote control for easy operation from a distance. The remote control is magnetic and can be stored securely on the fan unit itself.

Image: Close-up view of the magnetic remote control for the LEVOIT Pedestal Fan, showing it being attached to the fan for convenient storage.

6. Maintenance

Regular cleaning and maintenance will help prolong the life of your fan and ensure optimal performance.

6.1. Cleaning the Fan

1. Always unplug the fan before cleaning.
2. Wipe the exterior of the fan with a soft, damp cloth. Do not use abrasive cleaners or solvents.
3. For thorough cleaning, the front grille and fan blades can be easily detached. Rotate the front grille to unlock and remove it.
4. Wash the detached grille and blades with mild soap and water. Ensure they are completely dry before reattaching.
5. Reassemble the fan by aligning the components and rotating the grille back into its locked position.

Image: Illustration showing the ease of disassembling the LEVOIT Pedestal Fan's front grille and blades for cleaning, emphasizing the simple rotation and washing process.

6.2. Storage

When not in use for extended periods, store the fan in a cool, dry place, preferably in its original packaging, to protect it from dust and damage.

7. Troubleshooting

If you encounter any issues with your fan, please refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official LEVOIT website. Do not attempt to repair the fan yourself, as this may void the warranty.
