Introduction
This manual provides essential information for the safe and efficient operation of your CMTOOL 24V 20A Smart Trickle Charger. Designed for 24V lead-acid batteries, this fully automatic charger is suitable for various vehicles including forklifts, pallet jacks, floor scrubbers, and golf carts. Please read this manual thoroughly before use to ensure proper function and longevity of the product.
Image: The CMTOOL 24V 20A Forklift Battery Charger, showing its main unit, power cord, Anderson plug, and terminal pins. The digital display shows "20.20".
Safety Information
Always prioritize safety when operating electrical equipment. Adhere to the following guidelines:
- Ensure the charger is used in a well-ventilated area.
- Do not expose the charger to rain or excessive moisture.
- Verify that the battery voltage matches the charger's output (24V).
- Connect the charger to the battery before plugging it into the AC power outlet.
- Disconnect the AC power before disconnecting the battery.
- Avoid short-circuiting the output terminals.
- Do not attempt to charge non-rechargeable batteries.
- The charger will automatically shut down for protection if the ambient temperature exceeds 65°C (149°F). The operating temperature range is 0°C to +45°C (32°F to 113°F).
Product Features
The CMTOOL 24V 20A Smart Trickle Charger is equipped with several features to ensure efficient and safe battery charging:
20A 600W Charging & Fan Design & Overheating Protection
This fully automatic smart charger is suitable for all vehicles equipped with 24V lead-acid batteries, such as forklifts, floor washers, sightseeing cars, and golf carts. The fan always runs during charging to effectively cool the charger and ensure stable operation. The operating temperature range of the 24 volt battery charger is 0℃~+45℃. When the ambient temperature exceeds 65℃, the charger will automatically shut down for protection.
Image: An illustration highlighting the cooling fan of the CMTOOL charger, showing airflow for effective heat dissipation during operation.
Voltage and Current Display & Charging Completion Prompt
The 24 volt charger adopts constant voltage and constant current mode for intelligent charging. The display shows "2420" to indicate that this is a 24V20A charger. When charging, the display will alternately show the charging voltage and current (the last letter "U" means "Voltage" and "R" means "Current"). After the battery is fully charged, the forklift battery charger will automatically stop output and the display will show "FULL".

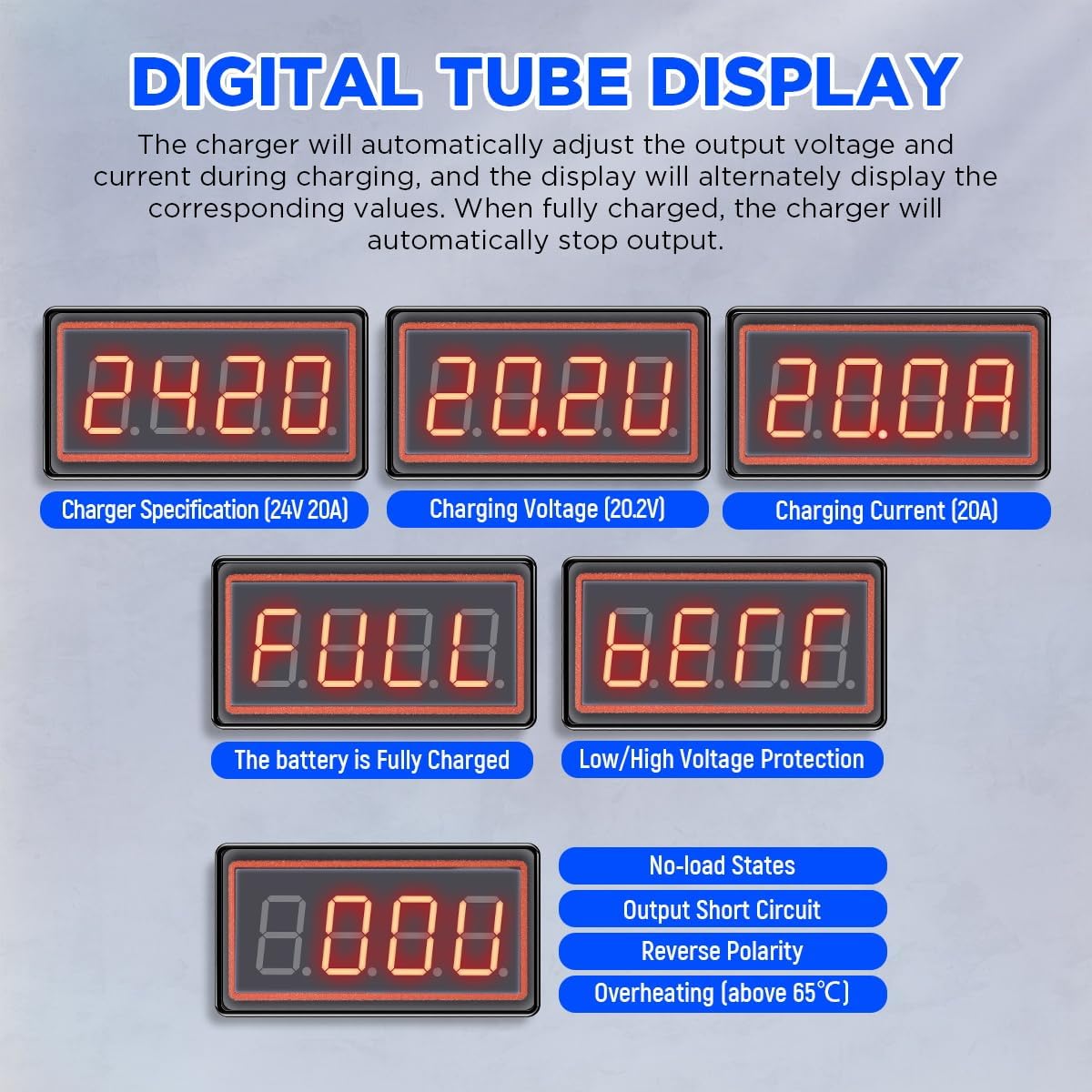

Image: Examples of the digital display on the charger, showing various states like charger specification (24V 20A), charging voltage (20.2V), charging current (20A), battery full, low/high voltage protection, and fault codes.
Fault Code Prompt and Fan Stops Working
When the 24v charger has the following six conditions, the corresponding fault code will be displayed on the screen, the fan will stop rotating, and the charger will stop working: (1) No-load state; (2) When the connected battery pack voltage is lower than the pre-charge voltage limit; (3) When the voltage of the connected battery pack is higher than the trickle charging voltage; (4) The temperature exceeds 65°C; (5) Short circuit; (6) Reverse polarity.
Output Protection Device & Charging Time Control
During the charging process, the 24v battery charger will automatically adjust the output voltage and current. When the battery is reverse-connected and the output is short-circuited, the internal circuit of the 24v charger is disconnected from the battery and will not damage the charger. The 24 volt charger is set with a maximum charging time (15 hours), which can effectively avoid battery damage caused by overcharging.
Image: Diagram illustrating the various powerful output protection features of the charger, including low/high voltage, overcurrent, output short circuit, reverse polarity, charging time control, anti-overcharge, and overheating protection.
Image: An illustration showing the charger's 15-hour maximum charging time control feature, designed to prevent overcharging and battery damage.
7.4ft Cable & Anderson Plug
The 24v lead acid battery charger comes with a 4ft power cord, 3.4ft charging cable and battery quick connector to charge your vehicle quickly and safely. The 24 volt forklift battery charger also comes with a spare plug connector and 2 terminal pins for wider use.
Image: A detailed diagram showing the dimensions of the charger and its components, including the cooling fan, portable handle, power cord, Anderson plug, and terminal pins.
FCC and ETL Certification & Portable Handle
This 24v battery charger has an input voltage of AC 100-240V, has FCC and ETL certification, and can also repair batteries with vulcanized plates. The 24v battery charger weighs 4.6 pounds and has an easy-to-carry handle on the top, so you can easily carry it anywhere.
Setup
Before operating the charger, ensure proper setup:
- Unpack the charger and inspect for any physical damage.
- Ensure the charging environment is dry and well-ventilated.
- Connect the Anderson plug of the charging cable to the battery's corresponding port on your vehicle (forklift, pallet jack, etc.). Ensure a secure connection.
- Plug the AC power cord into a standard AC 100-240V electrical outlet.
- The charger will automatically begin the charging process.
Image: Examples of vehicles compatible with the CMTOOL charger, including a forklift, golf cart, floor scrubber, and sightseeing car, highlighting its wide application.
Operating Instructions
The CMTOOL charger operates automatically once connected. Observe the LCD display for charging status:
- Initial Display: Upon connection, the display will show "2420", indicating it is a 24V 20A charger.
- Charging Status: During charging, the display will alternately show the current charging voltage (e.g., "27.0U" for 27.0 Volts) and charging current (e.g., "20.0R" for 20.0 Amps).
- Charging Completion: Once the battery is fully charged, the charger will automatically stop output, and the display will show "FULL".
Video: Demonstration of the CMTOOL 24V Battery Charger's display in different states: "No-Load" (showing 00.00), "Charging" (showing alternating voltage and current), and "Full" (showing FULL). This video is provided by the seller.
Maintenance
To ensure optimal performance and extend the lifespan of your charger:
- Keep the charger clean and free from dust and debris. Use a dry cloth for cleaning.
- Store the charger in a cool, dry place when not in use.
- Regularly check cables and connectors for any signs of wear or damage. Replace if necessary.
- The charger is capable of repairing batteries with vulcanized plates, contributing to battery longevity.
Troubleshooting
The charger's display provides fault codes to help diagnose issues. If the charger stops working and the fan stops rotating, check for the following conditions:
| Fault Condition | Description |
|---|---|
| No-load state | The charger is powered on but not connected to a battery, or the connection is not detected. |
| Battery voltage too low | Connected battery pack voltage is lower than the pre-charge voltage limit. |
| Battery voltage too high | Connected battery pack voltage is higher than the trickle charging voltage. |
| Over temperature | The internal temperature of the charger exceeds 65°C (149°F). Allow the charger to cool down. |
| Short circuit | A short circuit is detected at the output terminals. Disconnect and check connections. |
| Reverse polarity | The battery is connected with incorrect polarity (+/- reversed). Correct the connection. |
If the issue persists after checking these conditions, please contact CMTOOL customer support for assistance.
Specifications
| Feature | Detail |
|---|---|
| Applicable Batteries | All types of 24V lead-acid batteries |
| Input Voltage | AC 100-240V |
| Input Frequency | 47HZ-63HZ |
| Input Current | ≤10A |
| Output Voltage and Current | 24V 20A |
| Output Power | 600W |
| Work Efficiency | ≥92% |
| Power Factor | ≥0.98 |
| Certification | ETL, FCC |
| Working Temperature | 0°C-40°C (32°F-104°F) |
| Working Mode | Switch-type microcomputer single-chip control |
| Product Dimensions | 7.6 x 5.1 x 2.8 inches (19.3 x 13 x 7 cm) |
| Item Weight | 4.6 pounds |

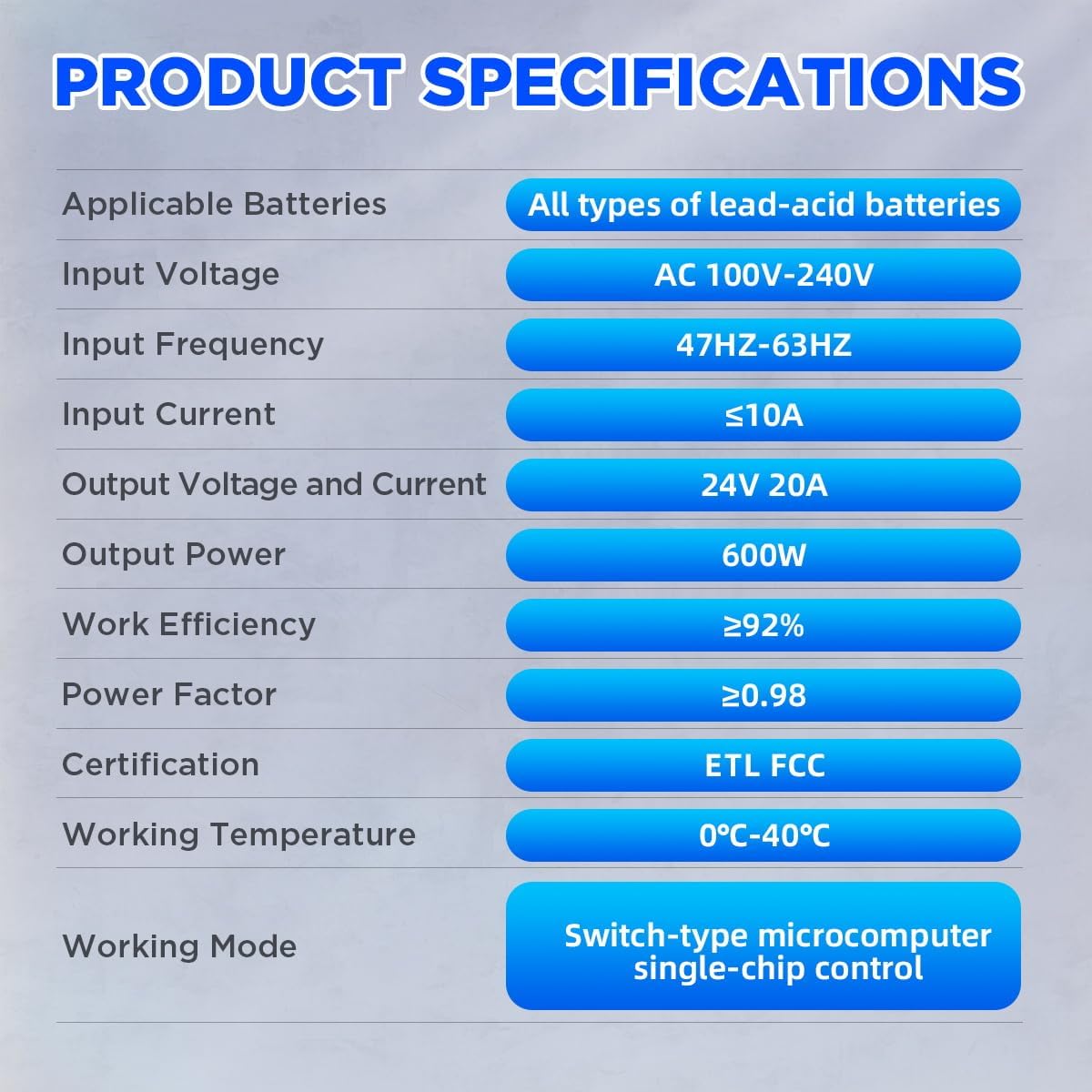

Image: A visual representation of the product specifications table, detailing various technical parameters of the CMTOOL charger.
Warranty and Support
For warranty information or technical support, please contact CMTOOL customer service. Refer to the product packaging or the official CMTOOL website for contact details.
CMTOOL is committed to providing professional pre-sales services and satisfactory after-sales solutions.
