EMKK 10x8 FT Galvanized Steel Outdoor Storage Shed Instruction Manual

1. Product Overview

The EMKK 10x8 FT Outdoor Storage Shed provides a spacious and durable solution for organizing your outdoor equipment and tools. Constructed from galvanized steel, it is designed for year-round outdoor use and features a sloped roof to prevent water accumulation.

Key features include:

• Spacious Interior: Offers ample space for garden tools, lawn care equipment, and pool supplies.
• Double Sliding Doors: Facilitates easy access for larger items like bikes or lawnmowers.
• Good Ventilation: Four ventilation slots on the front and back promote airflow, preventing odors and keeping contents dry.
• Weather-Ready Construction: Galvanized steel frame ensures durability and resistance to weather conditions.
• Sloped Roof: Designed to shed rainwater effectively, preventing damage and maintaining structural integrity.
• Enhanced Stability: Includes a base with windproof ground pegs and middle fixed base accessories.

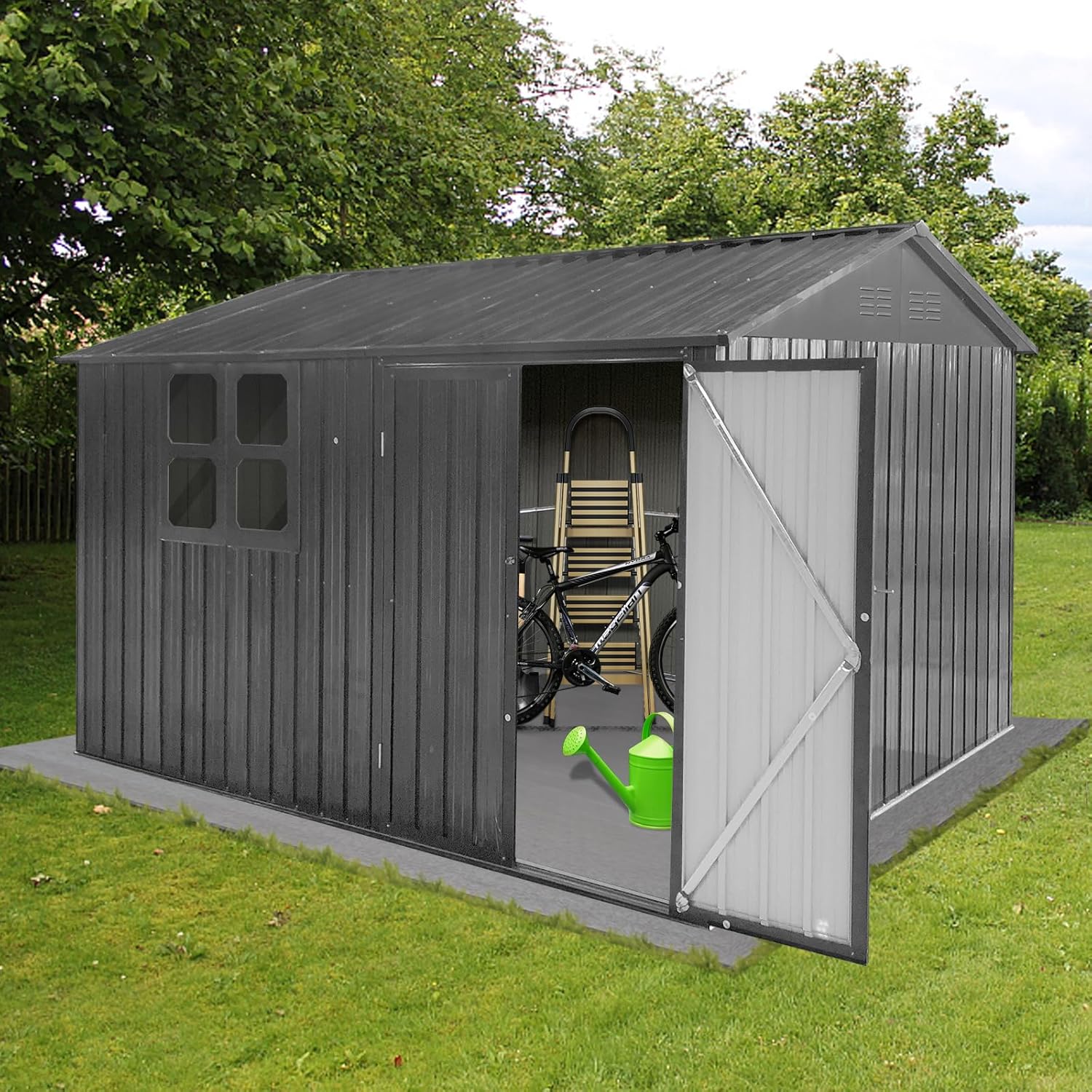

Image 1: EMKK 10x8 FT Outdoor Storage Shed with one door open, showcasing the interior storage capacity.

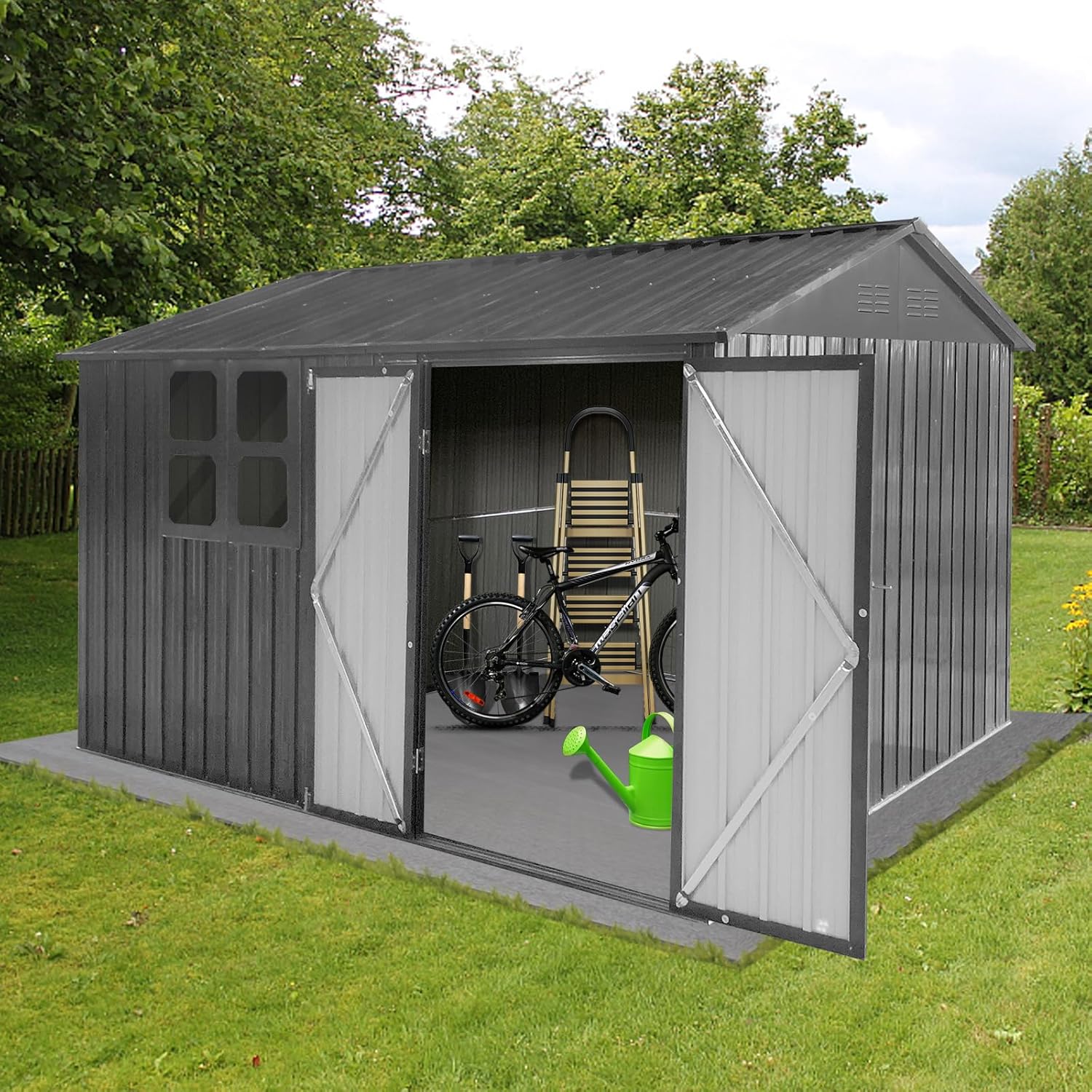

Image 2: EMKK 10x8 FT Outdoor Storage Shed with both doors open, illustrating its use for storing various garden and outdoor items.

2. Assembly Instructions

This section provides a step-by-step guide for assembling your EMKK 10x8 FT Outdoor Storage Shed. Please read all instructions carefully before beginning assembly. It is recommended to have at least two people for assembly.

2.1 Safety Precautions

• Always wear protective gloves to avoid injury from sharp edges.
• Wear safety glasses to protect your eyes.
• Ensure the assembly area is clear and level.
• Do not attempt assembly in strong winds or adverse weather conditions.
• Keep children and pets away from the assembly area.

2.2 Tools Required

The following tools are recommended for assembly:

• Cordless Drill/Screwdriver (with M4 and M6 bits)
• Measuring Tape
• Spirit Level
• Adjustable Wrench
• Step Ladder
• Protective Gloves
• Safety Glasses

2.3 Parts Identification

Before starting, unpack all components and verify against the parts list provided in your package. Organize parts by their labels (e.g., S1, S2, etc.) for easier access during assembly.

2.4 Step-by-Step Assembly Guide

For a visual guide, please refer to the official installation video below. The following steps summarize the assembly process:

1. Foundation and Base Assembly:

   Lay out the base rails on a level surface. Connect the corner pieces and secure them using the provided screws and a drill. Ensure the base forms a perfect rectangle and is stable. Add internal support beams as indicated in the manual.

2. Side Wall 1 Assembly:

   Attach the first set of wall panels to the base frame. Secure each panel to the base and to adjacent panels using screws. Ensure panels are aligned correctly and upright.

3. Side Wall 2 Assembly:

   Continue attaching the remaining wall panels, following the same procedure as for Side Wall 1. Ensure all panels are securely fastened to the base and to each other, forming the complete wall structure.
4. Roof Supports Assembly:

   Assemble the roof support beams. These typically involve connecting several metal pieces to form the triangular roof structure. Pay attention to the orientation of the ventilation panels if present.

5. Roof Panels Installation:

   Carefully place the roof panels onto the assembled roof supports. Secure them using the designated screws, ensuring an overlap for weather resistance. Work from one end to the other, maintaining alignment.

6. Door Assembly and Installation:

   Assemble the double sliding doors, attaching any necessary bracing or hardware. Install the doors into the designated opening, ensuring they slide smoothly and can be securely latched. Attach the door handles and locking mechanism.

3. Operation

The EMKK Outdoor Storage Shed is designed for straightforward operation.

• Opening/Closing Doors: The shed features double sliding doors. To open, slide the doors along their tracks. To close, slide them back until they meet in the middle.
• Locking Mechanism: Use the integrated latch and padlock (if included) to secure the doors. Ensure the doors are fully closed before attempting to lock.
• Ventilation: The shed's ventilation slots are designed for passive airflow. No manual operation is required for ventilation.

4. Maintenance

Regular maintenance will extend the lifespan and appearance of your EMKK Outdoor Storage Shed.

• Cleaning: Clean the shed exterior periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the galvanized steel finish. Rinse thoroughly.
• Rust Inspection: Inspect the shed annually for any signs of rust, especially in areas where paint might be chipped or scratched. Touch up any affected areas with rust-inhibiting paint to prevent further corrosion.
• Door Tracks: Keep the door tracks clean and free of debris to ensure smooth operation. Lubricate with a silicone-based spray if doors become stiff.
• Fasteners: Periodically check all screws and fasteners to ensure they are tight. Re-tighten as necessary to maintain structural integrity.
• Ventilation: Ensure the ventilation slots remain clear of obstructions (e.g., leaves, dirt) to maintain proper airflow.
• Snow Load: In areas with heavy snowfall, regularly clear snow from the roof to prevent excessive weight accumulation, which could cause damage.

5. Troubleshooting

This section addresses common issues you might encounter with your storage shed.

• Missing Parts: If you find any missing parts upon unpacking, please contact EMKK customer service immediately with your purchase details and the specific missing part numbers.
• Damaged Panels/Parts: If any components are damaged during shipping, do not proceed with assembly. Contact customer service for replacement parts.
• Holes Not Aligning: During assembly, ensure all panels and frame pieces are correctly oriented as per the manual. Sometimes, slight adjustments or gentle manipulation may be required to align holes. Avoid forcing components, which could cause damage.
• Doors Sticking/Not Sliding Smoothly: Check the door tracks for any debris or obstructions. Clean the tracks and apply a silicone lubricant. Ensure the shed base is level, as an uneven base can affect door operation.
• Water Leakage: Verify that all roof panels are properly overlapped and all screws are securely tightened, especially those with plastic washers. Ensure the shed is on a level surface to prevent water pooling around the base. Consider applying a silicone sealant along roof seams if leaks persist.
• Shed Instability: Ensure the base is securely anchored to the ground using the provided windproof ground pegs. Double-check all fasteners for tightness.

6. Specifications

Detailed specifications for the EMKK 10x8 FT Outdoor Storage Shed:

Image 3: Product Dimension Diagram for EMKK 10x8 FT Outdoor Storage Shed.

7. Warranty and Support

EMKK provides professional customer service to assist with any product-related inquiries.

• 24H Professional Services: For missing parts, damaged products, or installation problems, please contact EMKK customer support. They will provide professional guidance and assistance.
• Package Delivery: The product is shipped in two packages. If you receive only one package, please wait patiently for the second package to arrive.

For further assistance, please refer to the contact information provided with your purchase or visit the official EMKK store page.
