SHARP XL-B530 Micro Component System

Introduction

Thank you for purchasing the SHARP XL-B530 Micro Component System. This system is designed to provide high-quality audio playback from various sources, including Bluetooth wireless streaming, CD, USB, AM/FM radio, and auxiliary input. This manual provides detailed instructions for setting up, operating, and maintaining your new audio system to ensure optimal performance and longevity.

Important Safety Information

• Read all instructions carefully before use.
• Keep this manual for future reference.
• Do not expose the unit to rain or moisture.
• Ensure proper ventilation around the unit. Do not block ventilation openings.
• Do not place the unit near heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel.

Package Contents

Please check that all the following items are included in your package:

• Main Unit (Micro Component System)
• Speaker Units (x2)
• Remote Control
• Power Cord
• FM Antenna
• AM Loop Antenna
• User Manual (this document)

Product Overview

Familiarize yourself with the components and controls of your SHARP XL-B530 system.

Main Unit and Speakers

Overall view of the SHARP XL-B530 Micro Component System, including the main unit, two speakers, and the remote control.

Front panel of the main unit, showing the LCD display, volume knob, CD tray, and control buttons.

Rear Panel Connections

The rear panel of the main unit, featuring speaker terminals, FM antenna input, AM antenna input, and auxiliary input ports.

Remote Control

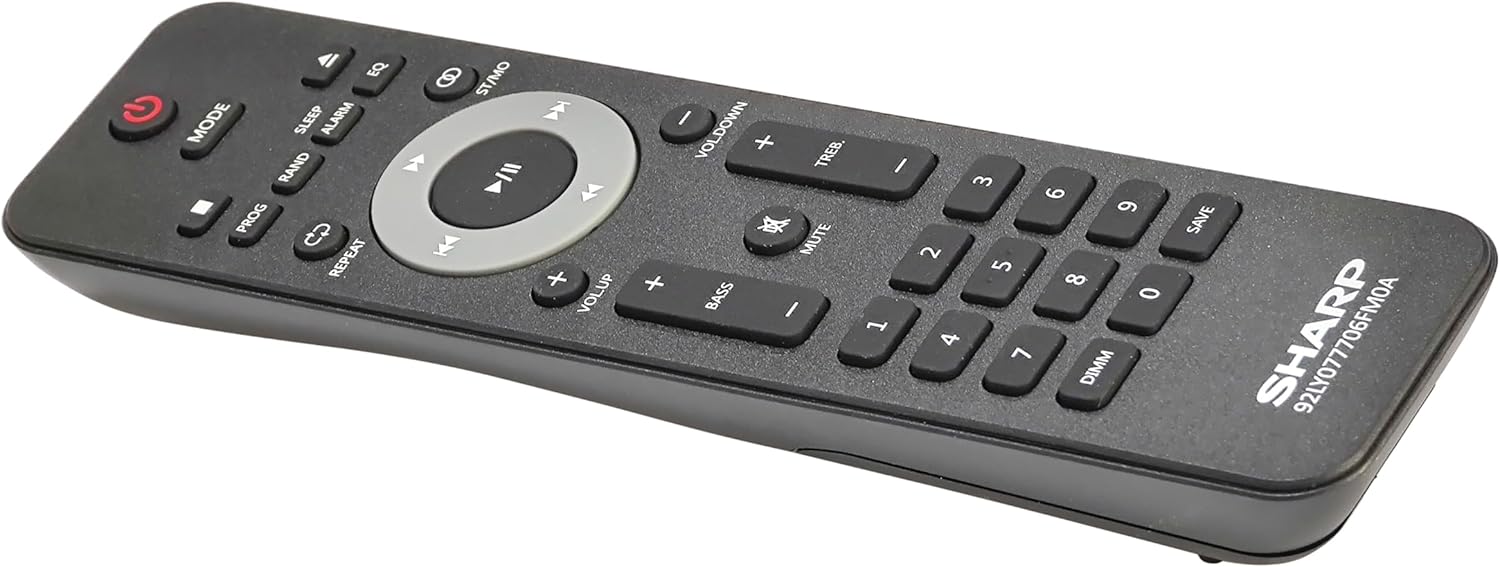

Detailed view of the remote control, showing various function buttons for power, mode, playback, volume, and sound adjustments.

Setup

Follow these steps to set up your micro component system.

1. Speaker Connection

1. Identify the left and right speaker cables.
2. Connect the red (+) wire from each speaker to the red (+) terminal on the main unit's rear panel.
3. Connect the black (-) wire from each speaker to the black (-) terminal on the main unit's rear panel.
4. Ensure a secure connection for both speakers.

2. Antenna Connection

• FM Antenna: Connect the supplied FM wire antenna to the FM antenna jack on the rear panel. Extend the wire fully for best reception.
• AM Antenna: Assemble the AM loop antenna and connect its wires to the AM antenna terminals on the rear panel. Rotate the antenna for optimal AM reception.

3. Power Connection

1. Ensure all other connections are made.
2. Plug the power cord into the AC IN jack on the rear of the main unit.
3. Insert the other end of the power cord into a wall outlet.

Operating Instructions

This section details how to use the various functions of your SHARP XL-B530 system.

Power On/Off

• Press the POWER button on the main unit or remote control to turn the system on or off.

Source Selection

• Press the MODE button on the main unit or remote control repeatedly to cycle through available sources: CD, Bluetooth, USB, FM, AM, AUX.

CD Playback

1. Press the MODE button to select 'CD' mode.
2. Press the OPEN/CLOSE button to open the CD tray.
3. Place a CD (CD/MP3/WMA/CD-R/CD-RW) with the label side up into the tray.
4. Press the OPEN/CLOSE button again to close the tray. Playback will start automatically.
5. Use PLAY/PAUSE, STOP, SKIP (forward/backward), and SEARCH buttons for control.

Bluetooth Pairing

1. Press the MODE button to select 'Bluetooth' mode. The display will show 'BT' and flash, indicating it's ready for pairing.
2. On your Bluetooth device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
3. Select 'SHARP XL-B530' from the list.
4. Once paired, the display will stop flashing and show 'BT CONNECTED'. You can now stream audio from your device.

USB Playback

1. Insert a USB flash drive into the USB port on the front panel.
2. Press the MODE button to select 'USB' mode.
3. The system will automatically detect and begin playing compatible audio files (MP3/WMA).
4. Use playback controls similar to CD mode.

AM/FM Radio

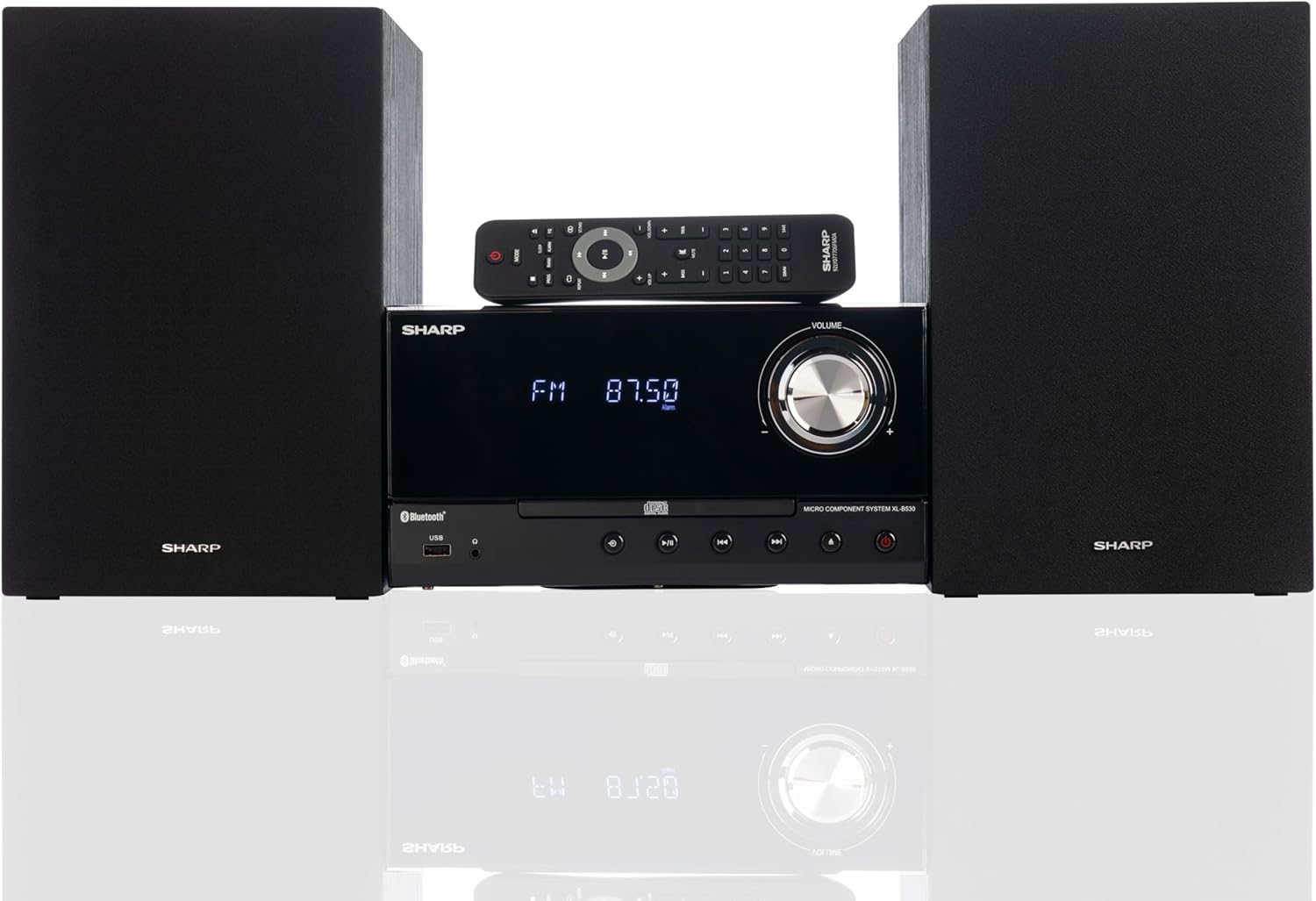

The SHARP XL-B530 system displaying an FM radio frequency, highlighting its digital tuner capabilities.

1. Press the MODE button to select 'FM' or 'AM' mode.
2. Auto Scan: Press and hold the PLAY/PAUSE button to automatically scan and save available stations.
3. Manual Tuning: Use the SKIP buttons to manually tune to desired frequencies.
4. Preset Stations: Use the number buttons on the remote to directly select saved preset stations.

Volume and Sound Adjustment

A close-up of one of the SHARP XL-B530 speakers, illustrating the adjustable bass and treble sound output.

• Volume: Rotate the VOLUME knob on the main unit or use the VOL+ / VOL- buttons on the remote control.
• Bass/Treble: Use the BASS+ / BASS- and TREB+ / TREB- buttons on the remote control to adjust sound characteristics.
• Loudness: Press the LOUDNESS button on the remote to enhance bass and treble at low volumes.
• EQ: Press the EQ button on the remote to cycle through preset equalizer modes.

Maintenance

Proper care will ensure the longevity of your system.

• Cleaning: Use a soft, dry cloth to clean the exterior of the unit. For stubborn stains, dampen the cloth lightly with water. Do not use abrasive cleaners or solvents.
• CD Care: Handle CDs by their edges. Clean dirty CDs with a soft, lint-free cloth, wiping from the center outwards.
• Ventilation: Ensure the ventilation openings are not blocked by dust or debris.
• Storage: If storing the unit for an extended period, unplug it from the power outlet and store it in a cool, dry place.

Troubleshooting

If you encounter issues with your system, refer to the following common problems and solutions.

Specifications

Warranty and Support

For warranty information and technical support, please refer to the warranty card included with your product or visit the official SHARP website. Keep your purchase receipt as proof of purchase for any warranty claims.

For further assistance, you may contact SHARP customer service through their official channels.
