1. Important Safety Information
Please read and understand all instructions before using these heaters. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always plug heaters directly into a 120V AC wall outlet. Never use with an extension cord, power strip, or surge protector.
- Place heaters on a firm, level surface at least 3 feet (0.9 meters) away from any combustible materials such as furniture, pillows, bedding, papers, clothes, and curtains.
- Do not cover the heater or block air intake/output vents. This can lead to overheating and fire.
- Exercise extreme caution when any heater is used by or near children or individuals with reduced physical, sensory, or mental capabilities.
- Do not operate any heater with a damaged cord or plug, or after the heater malfunctions or has been dropped or damaged in any manner.
- Unplug the heater when not in use.
- Do not use in bathrooms, laundry areas, or similar indoor locations where water may be present.
2. Product Overview
This manual provides detailed instructions for the PELONIS PHTPU1501 Ceramic Tower Heater with Oscillation and the PELONIS PHO15A2AGW Basic Electric Oil Filled Radiator. These devices are designed to provide supplemental heating for indoor spaces, offering different heating technologies and features to suit various needs.

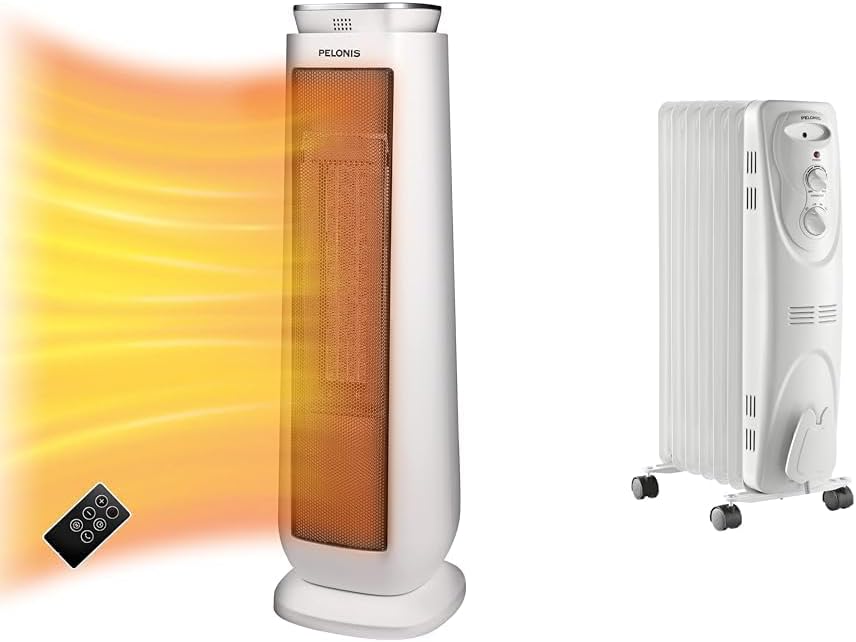

Figure 1: PELONIS PHTPU1501 Ceramic Tower Heater and PHO15A2AGW Oil Filled Radiator.
3. PELONIS PHTPU1501 Ceramic Tower Heater
3.1 Setup
- Unpack the ceramic tower heater and all accessories from the packaging.
- Place the heater on a firm, level surface. Ensure it is stable and upright.
- Ensure the power cord is fully extended and plugged directly into a 120V AC wall outlet. Avoid using extension cords or power strips.
3.2 Operating Instructions
Figure 2: Ceramic Tower Heater with remote control.
- Power On/Off: Use the touch control panel on the top of the unit or the provided remote control to power the unit on or off.
- Heat Settings: Select from three heating options: High, Low, or ECO mode. ECO mode automatically adjusts power consumption based on the ambient room temperature to maintain efficiency and warmth.
- Temperature Adjustment: Set your desired temperature using the up/down arrows on the control panel or remote. The heater will work to maintain this temperature.
- Oscillation: Activate the oscillation feature to enable the heater to rotate, distributing warmth across a wider area.
- Timer: Utilize the 8-hour timer function for automatic shut-off. This can be set for specific durations.
3.3 Features
- Fast Heating & Constant Temperature: Equipped with reliable ceramic heating technology, it can quickly heat up to 70°F in approximately 3 seconds, providing a steady and comfortable temperature.
- Safety to Use: Constructed from high-quality cool-touch flame-resistant material. Features overheating protection and a tip-over switch that automatically shuts off the unit if it falls over.
- Programmable Thermostat: Offers 3 heating options (High, Low, ECO mode) for customized temperature settings and maximized efficiency. The ECO setting helps save energy based on ambient temperature.
- User Friendly: Includes touch controls, a remote control, oscillation, an 8-hour timer, and a convenient carry handle. Operates quietly at approximately 50dB, making it suitable for bedrooms, living rooms, and offices.
Figure 3: Ceramic Tower Heater providing widespread heating coverage.
Figure 4: Internal view illustrating instant heating with PTC technology.
Figure 5: Tip-over protection feature of the Ceramic Tower Heater.
3.4 Maintenance
- Always unplug the heater and allow it to cool completely before cleaning.
- Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Ensure the air intake and output vents are free from dust and debris. Use a vacuum cleaner with a brush attachment to clean these areas.
- Store the heater in a cool, dry place when not in use.
3.5 Specifications
| Attribute | Value |
|---|---|
| Brand | PELONIS |
| Model Number | PHTPU1501 |
| Heat Output | 1500 Watts |
| Form Factor | Tower |
| Indoor/Outdoor Usage | Indoor |
| Recommended Uses | Bedroom, Living Room, Office |
| Fuel Type | Electric |
| Number of Speeds | 3 (High, Low, ECO) |
| Voltage | 120 Volts (AC) |
| Special Feature | Tip-Over Protection, Oscillation, Remote Control, Timer |
4. PELONIS PHO15A2AGW Oil Filled Radiator
4.1 Setup
Figure 6: PELONIS PHO15A2AGW Oil Filled Radiator.
- Unpack the oil-filled radiator and its components, including the casters.
- Attach the 4 heavy-duty universal casters to the base of the radiator. Follow the instructions provided in the separate assembly guide for secure attachment.
- Place the radiator on a stable, level surface.
- Plug the power cord directly into a 120V AC wall outlet.
4.2 Operating Instructions
- Heat Settings: Select your desired heat output using the control knobs. Options typically include LOW (600W), MID (900W), and HIGH (1500W).
- Adjustable Thermostat: Use the mechanical adjustable thermostat knob to set and maintain your preferred room temperature. The heater will cycle on and off to maintain this setting.
- Power Indicator: A red power indicator light will illuminate when the unit is receiving power and actively heating.
4.3 Features
- Efficient Heating & Adjustable Thermostat: Features 3 heat settings (600, 900, and 1500 watts) and a mechanical adjustable thermostat, allowing you to customize heating needs with high energy-efficiency. Provides a gentle, consistent warmth.
- Portability: Equipped with 4 heavy-duty universal casters and a front carry handle for easy movement from room to room.
- Safety First: Includes a power indicator light, built-in over-heat protection, and a tip-over safety switch that automatically shuts off the heater if accidentally knocked over.
- Quiet Operation: Enjoy a peaceful environment as the radiator operates without a fan, eliminating annoying heater sounds that could disturb sleep, work, or other activities.
Figure 7: Oil Filled Radiator providing warmth in a bedroom setting.
Figure 8: Internal view illustrating heat distribution from the Oil Filled Radiator.
4.4 Maintenance
- Always unplug the radiator and allow it to cool completely before cleaning.
- Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Do not immerse the radiator in water.
- Store the radiator in a cool, dry place when not in use.
4.5 Specifications
| Attribute | Value |
|---|---|
| Brand | PELONIS |
| Model Number | PHO15A2AGW |
| Heat Output | 600W, 900W, 1500W |
| Burner Type | Radiant |
| Indoor/Outdoor Usage | Indoor |
| Fuel Type | Electric |
| Voltage | 120 Volts (AC) |
| Special Feature | Adjustable Thermostat, Portability, Over-heat Protection, Tip-over Safety Switch |
5. Troubleshooting
- Heater not turning on:
- Ensure the power cord is securely plugged into a working 120V AC outlet.
- Verify the unit's power switch is in the 'ON' position and the thermostat is set above the current room temperature.
- Check for tripped circuit breakers in your home's electrical panel.
- For the Ceramic Tower Heater, ensure the remote control batteries are functional if using the remote.
- Heater not producing heat:
- Confirm the desired heat setting (High, Low, ECO for Ceramic; 600W, 900W, 1500W for Radiator) is selected.
- Adjust the thermostat to a higher setting than the current room temperature.
- Ensure no obstructions are blocking the air intake or output vents.
- Unusual noises or odors:
- A slight odor may occur during initial use; this is normal and should dissipate quickly.
- If loud or persistent noises occur, discontinue use and contact customer support.
- Tip-over protection activated:
- If the heater shuts off unexpectedly, ensure it is placed on a flat, stable surface. If it was knocked over, place it upright and it should resume operation.
6. Warranty and Support
PELONIS products are manufactured to the highest quality standards. For detailed warranty information, product support, or service inquiries, please refer to the warranty card included with your product or visit the official PELONIS website. Please retain your purchase receipt as proof of purchase for any warranty claims.
