ZOMBIES CAT Transformers TF-T06 Wireless Earbuds User Manual

1. Introduction

Welcome to the user manual for your ZOMBIES CAT Transformers TF-T06 Wireless Earbuds. This guide provides detailed instructions on how to set up, operate, maintain, and troubleshoot your new earbuds. Please read this manual carefully to ensure optimal performance and longevity of your device.

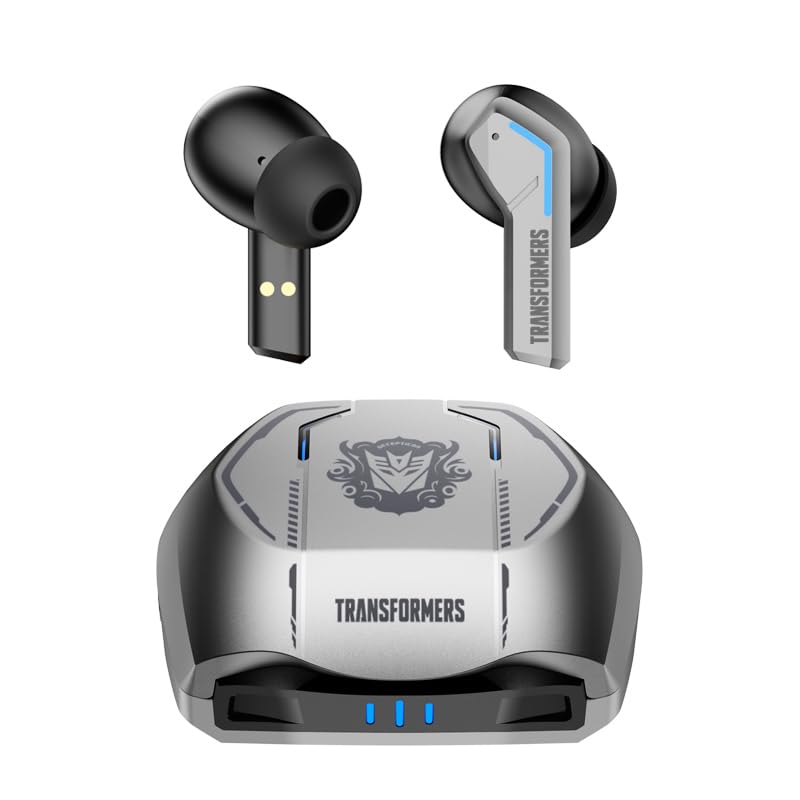

Image 1.1: The Transformers TF-T06 Wireless Earbuds and their charging case.

2. Package Contents

Verify that all items are present in your package:

• Transformers In-Ear Headphones (2 units)
• Earbuds Charging Case (1 unit)
• Type-C Charging Cable (1 unit)
• User Manual (This document)

Image 2.1: The TF-T06 Earbuds, charging case, and packaging.

3. Product Overview

3.1 Earbud Design and Ergonomics

The TF-T06 earbuds are designed for a comfortable and secure fit within the ear, ensuring stability during various activities. Their lightweight and skin-friendly construction allows for extended wear without discomfort.

Image 3.1: An earbud shown in an ear, highlighting its ergonomic design for comfortable wear.

3.2 Smart Touch Controls

Each earbud features a touch-sensitive area for controlling various functions without needing to access your connected device. The controls are intuitive and responsive.

Image 3.2: Visual representation of the smart touch control functions on the earbuds.

• Play/Pause: Single tap on either earbud.
• Next Track: Double tap on the right earbud.
• Previous Track: Double tap on the left earbud.
• Volume Up: Triple tap on the right earbud.
• Volume Down: Triple tap on the left earbud.
• Answer/End Call: Single tap on either earbud during an incoming call or active call.
• Reject Call: Press and hold either earbud for 2 seconds during an incoming call.
• Activate Voice Assistant: Press and hold either earbud for 2 seconds (when not on a call).

4. Setup

4.1 Charging the Earbuds and Case

Before first use, fully charge the earbuds and the charging case.

1. Place the earbuds into the charging case. Ensure they are correctly seated; magnetic contacts will hold them in place.
2. Connect the Type-C charging cable to the charging port on the case and the other end to a USB power adapter (not included).
3. The indicator lights on the charging case will illuminate to show charging status. A full charge typically takes approximately 3 hours for the case.
4. Once fully charged, disconnect the charging cable. The earbuds will charge automatically when placed in the powered case.

4.2 Initial Pairing with a Device

The TF-T06 earbuds feature one-step pairing for convenience.

1. Open the charging case. The earbuds will automatically power on and enter pairing mode.
2. On your smartphone, tablet, or other Bluetooth-enabled device, navigate to the Bluetooth settings.
3. Search for available devices and select "TF-T06" from the list.
4. Once connected, you will hear an audible confirmation, and the earbuds will be ready for use.

Image 4.1: The earbuds in their open charging case, indicating they are ready for Bluetooth pairing.

Note: After the initial pairing, the earbuds will automatically connect to the last paired device when removed from the charging case, provided Bluetooth is enabled on the device and it is within range.

5. Operating Instructions

5.1 Power On/Off

• Power On: Open the charging case, or press and hold the touch area on both earbuds for 3 seconds.
• Power Off: Place the earbuds back into the charging case and close the lid, or press and hold the touch area on both earbuds for 5 seconds.

5.2 Music Playback

Use the smart touch controls as described in Section 3.2 to manage your music.

5.3 Call Management

Handle incoming and active calls using the smart touch controls as described in Section 3.2. The built-in ENC noise-cancelling microphone ensures clear communication.

5.4 Voice Assistant

Activate your device's voice assistant (e.g., Siri, Google Assistant) by pressing and holding the touch area on either earbud for 2 seconds (when not on a call).

5.5 Sound Quality

The TF-T06 earbuds feature 10mm double-layer diaphragm drivers, delivering powerful bass, clear midrange, and bright treble for a high-fidelity audio experience.

Image 5.1: An illustration of the 10mm dynamic driver, responsible for the earbud's sound quality.

6. Maintenance

• Cleaning: Regularly clean the earbuds and charging case with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents.
• Water Resistance: The earbuds have an IPX4 waterproof rating, meaning they are resistant to splashing water and sweat. Do not submerge them in water or expose them to heavy rain. Ensure they are dry before placing them back in the charging case.
• Storage: When not in use, store the earbuds in their charging case to protect them and keep them charged. Store in a cool, dry place away from extreme temperatures.
• Battery Care: To prolong battery life, avoid fully discharging the earbuds and charging case frequently. Charge them regularly, even if not in constant use.

7. Troubleshooting

If you encounter issues with your TF-T06 earbuds, refer to the following common solutions:

• Earbuds not pairing:
  • Ensure both earbuds are charged.
  • Turn off Bluetooth on your device and turn it back on.
  • Forget "TF-T06" in your device's Bluetooth settings and attempt to pair again.
  • Restart your device.
• Only one earbud working:
  • Ensure both earbuds are charged.
  • Place both earbuds back into the charging case, close the lid, wait a few seconds, then open the lid and remove them.
  • Try resetting the earbuds (refer to specific reset instructions if available in a separate quick start guide, or try forgetting the device and re-pairing).
• No sound or low volume:
  • Check the volume level on both your earbuds and your connected device.
  • Ensure the earbuds are properly connected to your device.
  • Clean any debris from the earbud speaker mesh.
• Charging issues:
  • Ensure the charging cable is securely connected to both the case and the power source.
  • Try a different charging cable or power adapter.
  • Clean the charging contacts on the earbuds and inside the case.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided at the point of purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
