Aveek Mini Karaoke Machine V9 User Manual

1. Introduction

Thank you for choosing the Aveek Mini Karaoke Machine V9. This portable Bluetooth speaker with wireless microphones is designed to provide an enjoyable and interactive audio experience. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and longevity of your device.

2. Package Contents

Upon unpacking, please verify that all items listed below are included:

• 1 x Aveek Mini Karaoke Speaker
• 2 x Wireless Microphones
• 1 x USB Charging Cable
• 1 x User Manual (this document)

Image: Contents of the Aveek Mini Karaoke Machine V9 package, showing the speaker, two wireless microphones, a charging cable, and the user manual.

3. Product Overview

The Aveek Mini Karaoke Machine V9 combines a portable Bluetooth speaker with two wireless microphones, offering versatile entertainment options. It features vibrant LED lights, multiple voice changing effects, and broad compatibility with various audio sources.

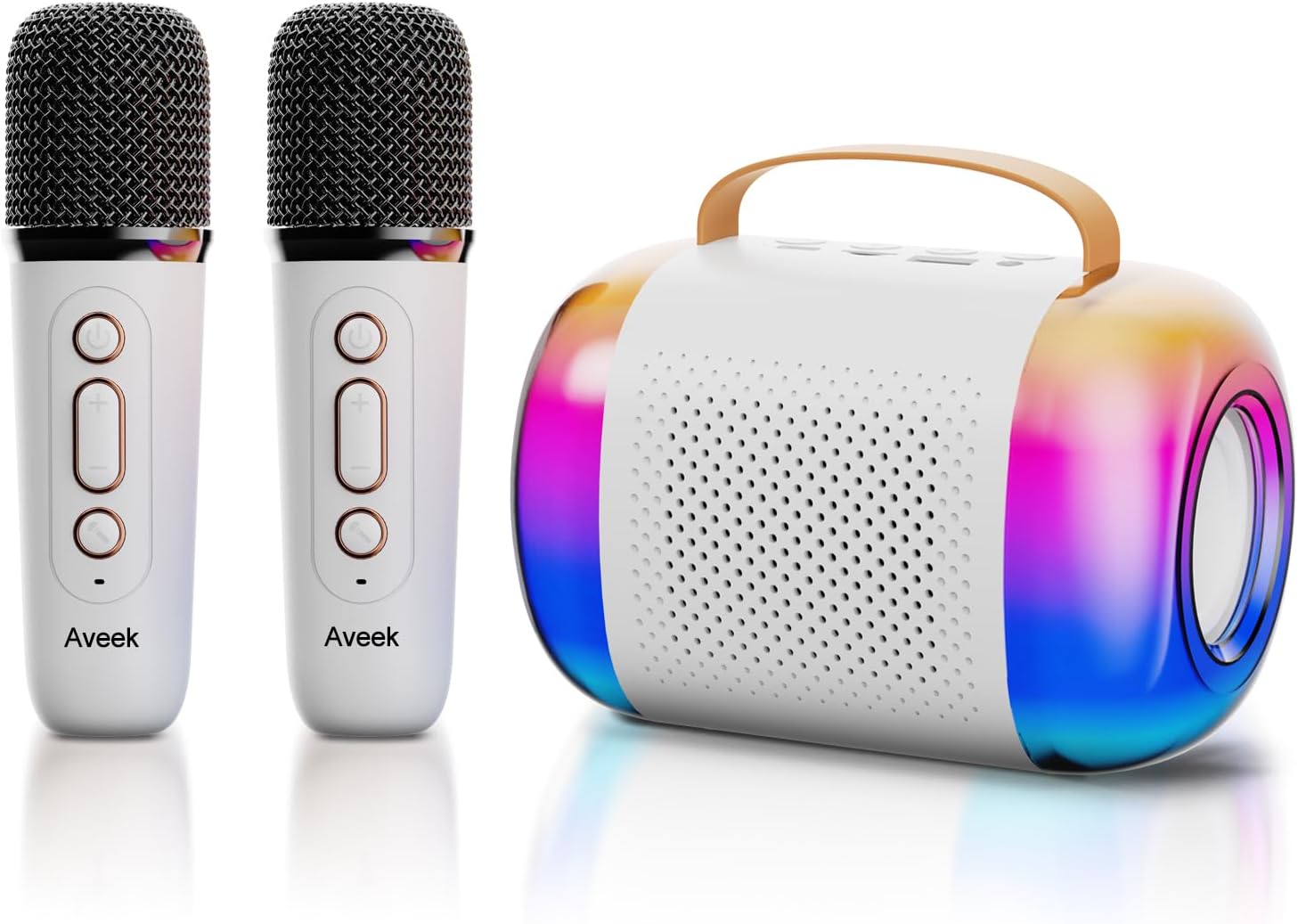

Image: The Aveek Mini Karaoke Machine V9, featuring the main speaker unit with colorful LED lights and two accompanying white wireless microphones.

Speaker Features:

• Bluetooth 5.3 Connectivity: Ensures stable wireless connection up to 50 feet.
• Multiple Playback Options: Supports Bluetooth, TF card, USB drive, and AUX input.
• Dynamic LED Lights: 5 ambient light modes that synchronize with music rhythm.
• Portable Design: Lightweight with a convenient handle for easy transport.
• High-Quality Sound: Equipped with 2 x 52 tweeters and a 4060 bass diaphragm for clear stereo sound.

Image: An exploded view of the Aveek Mini Karaoke Machine V9 speaker, illustrating its internal audio components including tweeters and a bass diaphragm.

Microphone Features:

• Wireless Operation: Provides freedom of movement during performances.
• Voice Changer: Includes 4 magic voice effects (Original, Female, Male, Baby, Monster).
• Rechargeable: Built-in Lithium Polymer batteries.

Image: A visual representation of the five voice changing options available on the Aveek Mini Karaoke Machine V9, including original, female, male, baby, and monster voices.

4. Setup Instructions

4.1 Charging the Device

The karaoke machine speaker and microphones are equipped with rechargeable Lithium Polymer batteries. Use the provided USB charging cable to charge them.

• Connect the USB charging cable to the Type-C charging port on the speaker and microphones.
• Plug the other end of the USB cable into a compatible USB power adapter (not included) or a computer USB port.
• The indicator light will show charging status (Red for charging, Blue for Bluetooth connection).
• Charging Time: Speaker: 3.5-4 hours; Microphones: 2.5 hours.
• Working Time: Speaker: 5-6 hours; Microphones: 3-4 hours.

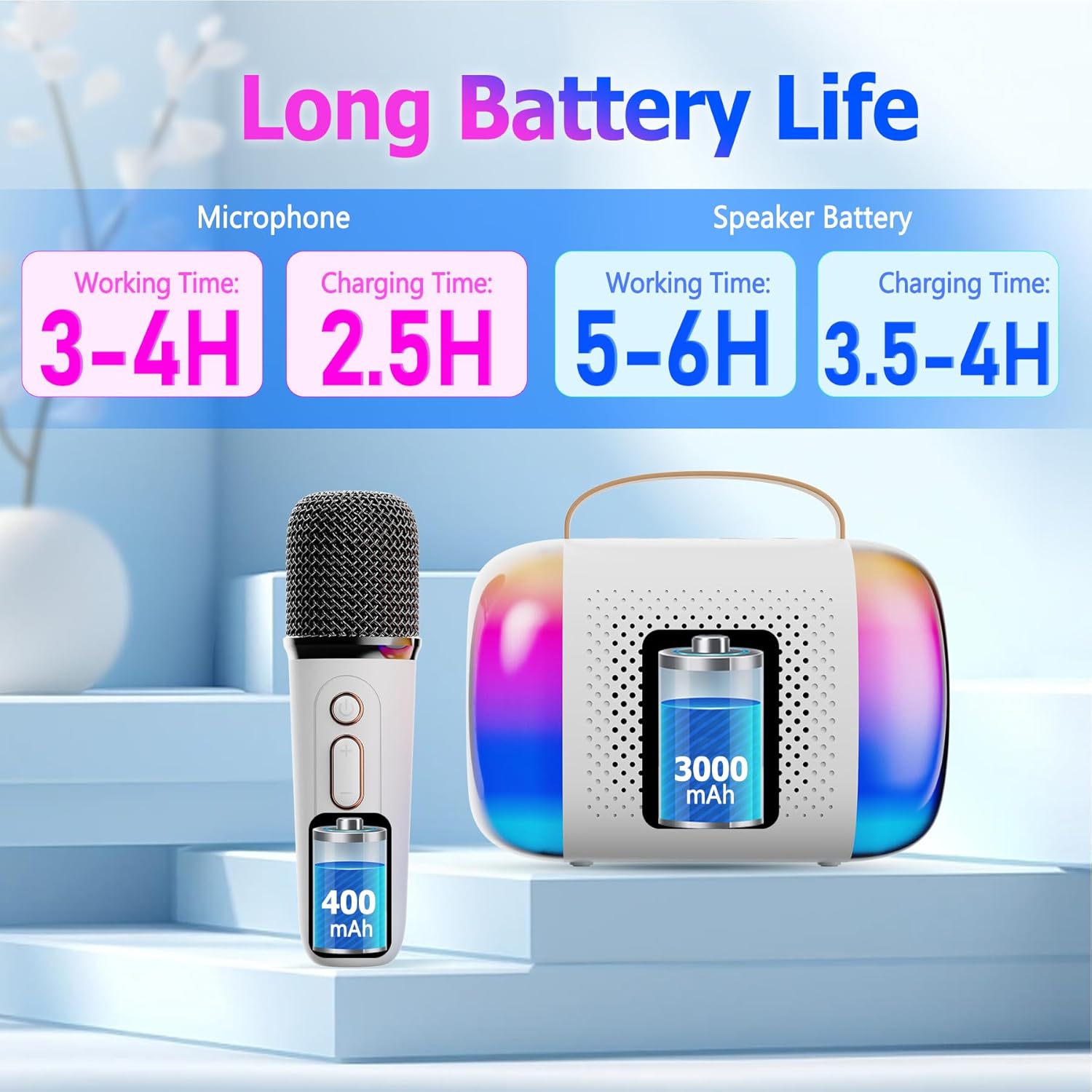

Image: A diagram illustrating the working and charging times for both the Aveek Mini Karaoke Machine V9 speaker and its wireless microphones.

4.2 Pairing Microphones with Speaker

The microphones are designed to automatically pair with the speaker when both are powered on. Ensure both devices are charged before attempting to pair.

1. Power on the speaker by long pressing the Power ON/OFF Key.
2. Power on each microphone by long pressing its Microphone ON/OFF button.
3. The microphones should automatically connect to the speaker. A blue indicator light on the microphone signifies a successful Bluetooth connection.

4.3 Connecting to a Bluetooth Device (Phone, Tablet, PC)

To play music through the speaker, connect it to your preferred Bluetooth-enabled device.

1. Ensure the karaoke speaker is powered on and in Bluetooth pairing mode (usually indicated by a flashing light).
2. On your device (phone, tablet, PC), navigate to Bluetooth settings.
3. Search for available devices and select "Aveek V9" (or similar name) to connect.
4. Once connected, you can play music from your device through the karaoke speaker.

Image: The Aveek Mini Karaoke Machine V9 demonstrating its Bluetooth 5.3 connectivity and various input options including USB Drive, TF Card, Bluetooth, and Headphone/AUX.

5. Operating Instructions

5.1 Speaker Controls

Image: Detailed diagram of the Aveek Mini Karaoke Machine V9 speaker, labeling its indicator light, Type-C charging port, TF card slot, USB-A drive interface, AUX 3.5mm audio input, and control buttons (-, +, Mode, Power ON/OFF).

• Power ON/OFF Key: Long press to turn on/off. Short press to play/pause music.
• Mode Key: Double click to switch light modes. Long press to turn on/off the color lights.
• - Key: Long press for previous music. Short press to decrease volume (3 levels).
• + Key: Long press for next music. Short press to increase volume (3 levels).
• Indicator Light: Red for charging, Blue for Bluetooth connection.
• Type-C Charging Port: For charging the speaker.
• TF Card Slot: Insert a TF card for music playback.
• USB-A USB Drive Interface: Insert a USB drive for music playback.
• AUX 3.5mm Audio Input: Connect external audio devices via AUX cable.

5.2 Microphone Controls

Image: Detailed diagram of the Aveek Mini Karaoke Machine V9 wireless microphone, labeling its Microphone ON/OFF button, Bluetooth/Charging Indicator, Type-C Charging Port, and control buttons (Power ON/OFF, +, -).

• Microphone ON/OFF: Long press to turn the mic on/off. Short press to change voice mode. Double click to open/close accompaniment.
• Power ON/OFF Key: Long press to turn on/off. Short press to adjust microphone/reverberation/accompaniment. Double click playback pause.
• + Key: Long press to play the next music. Short press to increase volume + / reverb volume +.
• - Key: Short press to decrease reverb volume - / accompaniment volume -. Long press to play the previous music.
• Bluetooth/Charging Indicator: Blue light for Bluetooth connection, Red light for charging.
• Type-C Charging Port: For charging the microphone.

5.3 Voice Changer Functions

The microphones feature 4 unique voice changing effects in addition to the original voice. To cycle through these modes, short press the Microphone ON/OFF button.

• Original Voice
• Female Voice
• Male Voice
• Baby Voice
• Monster Voice

5.4 Light Modes

The speaker features 5 ambient LED light modes that can be changed by double-clicking the Mode Key on the speaker. Long press the Mode Key to turn the lights on or off.

6. Maintenance

• Cleaning: Use a soft, dry cloth to clean the speaker and microphones. Do not use liquid cleaners or abrasive materials.
• Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: To prolong battery life, avoid fully discharging the batteries frequently. Charge the device regularly, even if not in use for extended periods.
• Water Exposure: This device is not waterproof. Avoid exposure to water or high humidity.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the product packaging or contact Aveek customer service directly. Keep your purchase receipt for any warranty claims.
