VirtuFit VF11007 Vibration Plate Fitness Instruction Manual

1. Introduction

Thank you for choosing the VirtuFit VF11007 Vibration Plate Fitness machine. This manual provides essential information for the safe and effective use of your new fitness equipment. Please read it thoroughly before operation and retain it for future reference.

Figure 1: The VirtuFit VF11007 Vibration Plate, including the remote control and resistance bands.

2. Safety Information

Before using the vibration plate, please observe the following safety precautions:

• Consult a physician before starting any new exercise program, especially if you have pre-existing medical conditions.
• Ensure the vibration plate is placed on a stable, level surface.
• Do not use the machine if you are pregnant, have a pacemaker, or suffer from severe osteoporosis, epilepsy, or acute thrombosis.
• Keep children and pets away from the machine during operation.
• Always wear appropriate athletic footwear.
• Stop exercising immediately if you feel dizzy, nauseous, or experience any pain.
• Unplug the machine when not in use and before cleaning.

3. Setup

The VirtuFit VF11007 Vibration Plate requires minimal setup. Follow these steps:

1. Unpacking: Carefully remove all components from the packaging. Verify that all parts are present: the vibration plate, remote control, power cable, and resistance bands.
2. Placement: Position the vibration plate on a flat, stable, and non-slip surface. Ensure there is enough clear space around the unit for safe operation.
3. Power Connection: Plug the power cable into the vibration plate's power input, then into a suitable electrical outlet.
4. Resistance Bands (Optional): If desired, attach the resistance bands to the designated attachment points on the sides of the vibration plate.

Figure 2: Resistance bands ready for attachment to the vibration plate.

4. Operating Instructions

The VirtuFit VF11007 features an intuitive display and a convenient remote control for easy operation.

4.1. Control Panel and Display

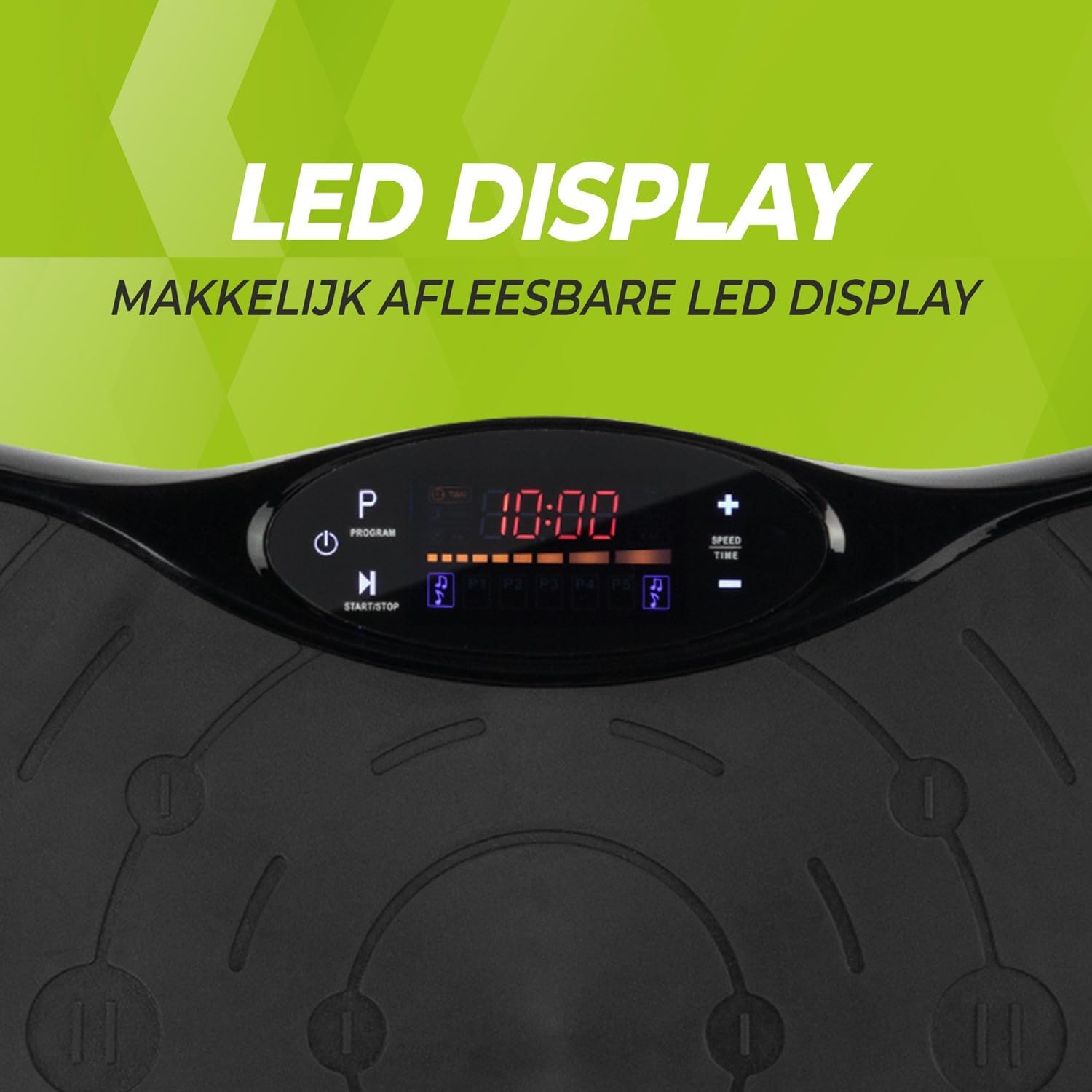

Figure 3: Detailed view of the LED display, showing time, program, and speed settings.

The integrated computer features an LED display showing time, speed, and program information. Buttons on the panel allow for basic control.

• Power Button: Turns the unit on/off.
• Start/Stop Button: Initiates or pauses manual operation.
• Program Button (P): Cycles through the pre-set programs.
• Speed +/- Buttons: Adjusts the vibration speed in manual mode.
• Time +/- Buttons: Adjusts the exercise duration in manual mode.

4.2. Remote Control

The remote control provides full functionality, allowing you to adjust settings without interrupting your workout.

Figure 4: The remote control for convenient adjustment of settings.

• Power Button: Turns the unit on/off.
• Start/Stop Button: Initiates or pauses manual operation.
• Program Button (P): Selects one of the 5 automatic programs or the manual program.
• Speed +/- Buttons: Increases or decreases the vibration speed (99 levels).
• Time +/- Buttons: Adjusts the exercise duration.
• Music Controls: Play/Pause, Next/Previous track, Volume +/- for Bluetooth audio.

4.3. Exercise Programs

The vibration plate offers 10 training programs, including 5 automatic programs (P1-P5) and a manual program.

• Automatic Programs (P1-P5): These programs automatically vary the speed over a 10-minute duration. Select the desired program using the 'P' button on the control panel or remote.
• Manual Program: Allows you to set your preferred speed (1-99) and duration. Use the Speed +/- and Time +/- buttons to customize your workout.

Program Speed Examples (for a 10-minute duration):

Note: These are example speed progressions. Actual speeds may vary slightly.

4.4. Bluetooth Speaker and USB Port

The vibration plate includes an integrated Bluetooth speaker and a USB charging port.

Figure 5: Location of the integrated Bluetooth speaker.

1. Bluetooth Connection: Turn on the vibration plate. Activate Bluetooth on your smartphone or tablet and search for "VirtuFit" or a similar device name. Pair your device.
2. Music Playback: Once connected, you can play music through the integrated speakers. Use your device or the remote control to manage playback and volume.
3. USB Charging: Connect your phone or tablet to the USB port to charge it during your workout.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your VirtuFit Vibration Plate.

• Cleaning: Wipe the surface of the vibration plate with a soft, damp cloth after each use. Do not use abrasive cleaners or solvents.
• Storage: Store the machine in a cool, dry place away from direct sunlight and moisture.
• Inspection: Periodically check the power cord for any damage. Ensure all connections are secure.
• Anti-Slip Surface: The anti-slip rubber surface is designed for durability. Keep it clean to maintain its grip.

Figure 6: The durable anti-slip rubber surface for secure footing.

6. Troubleshooting

If you encounter any issues with your VirtuFit Vibration Plate, refer to the following common problems and solutions:

If the problem persists, please contact customer support.

7. Specifications

Key technical specifications for the VirtuFit VF11007 Vibration Plate:

• Model Number: VF11007
• Brand: VirtuFit
• Dimensions (L x W x H): 54 x 12.5 x 32 cm
• Weight: 7.5 kg
• Material: ABS rubber
• Control Type: Remote control
• Display Type: Graphic display (LED)
• Maximum Speed Levels: 99
• Number of Programs: 10
• Operating Mode: Automatic / Manual
• Power Source: Electric cable
• Integrated Features: Bluetooth speaker, USB charging port

8. Warranty Information

VirtuFit products are manufactured to high-quality standards. This product is covered by the standard legal warranty applicable in your region. Please retain your proof of purchase for any warranty claims.

For specific warranty terms and conditions, please refer to the VirtuFit official website or contact your retailer.

9. Customer Support

Should you require assistance, have questions, or need to report an issue, please contact VirtuFit customer support or your authorized retailer.

For more information, visit the official VirtuFit website: VirtuFit Brand Store
