1. Introduction and Overview
This manual provides essential instructions for the safe operation, maintenance, and care of your HHH PRO MAX 125cc Youth ATV. The Vitacci Max 125 is designed as a beginner-friendly quad, featuring a 125cc four-stroke engine and a fully automatic transmission with reverse, ensuring ease of use for younger riders. Please read this manual thoroughly before operating the ATV to ensure safety and optimal performance.

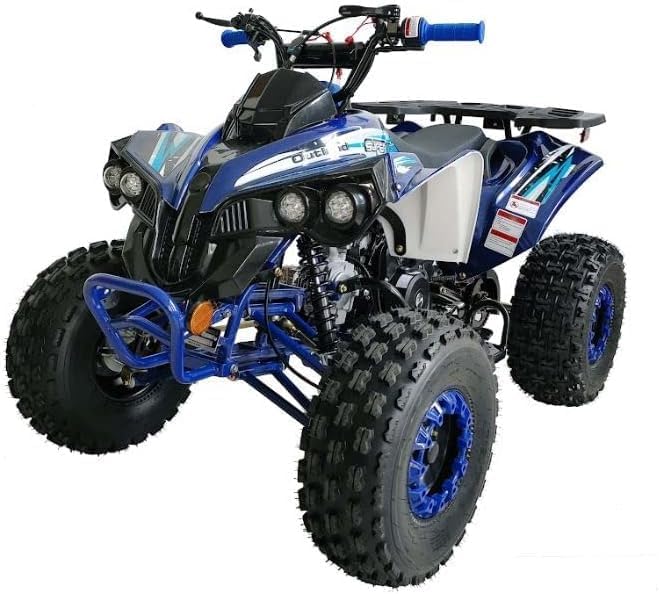

Image 1.1: Front view of the HHH PRO MAX 125cc Youth ATV in blue.
Image 1.2: Two HHH PRO MAX 125cc Youth ATVs in green, showcasing the design.
2. Safety Information
Operating an ATV can be hazardous. Always prioritize safety. This ATV is intended for youth riders and requires adult supervision. Failure to follow safety instructions can result in serious injury or death.
2.1 Important Safety Features
- LED Headlights and Tail Light: Enhance visibility during operation.
- Safety Stop Switch: Allows for immediate engine shutdown in emergencies.
- Speed Governor: Limits the maximum speed for beginner riders, adjustable for varying skill levels.
2.2 General Safety Guidelines
- Always wear an approved helmet, eye protection, gloves, long pants, and sturdy boots.
- Never carry passengers. This ATV is designed for a single rider.
- Do not operate on public roads. This ATV is for off-road use only.
- Maintain a safe distance from other vehicles and obstacles.
- Never operate under the influence of alcohol or drugs.
- Always supervise youth riders.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Image 2.1: Detail of the front bumper and LED headlights, highlighting safety features.
3. Setup and Pre-Ride Checks
While the ATV is designed for straightforward assembly, it is crucial to perform thorough checks before the first ride and before each subsequent ride to ensure all components are secure and functioning correctly.
3.1 Initial Setup
- Unpacking: Carefully remove the ATV from its packaging. Retain packaging materials for potential future transport or warranty claims.
- Handlebar Installation: Securely attach the handlebars according to the assembly instructions provided separately or consult a qualified technician.
- Wheel Installation: Ensure all wheels are properly installed and lug nuts are tightened to the manufacturer's specifications.
- Fluid Levels: Check engine oil, brake fluid, and fuel levels. Top up as necessary with recommended fluids.
- Battery Connection: Connect the battery terminals, ensuring a secure fit.
3.2 Pre-Ride Inspection
- Tires: Inspect tire pressure and condition. Ensure no cuts or punctures.
- Brakes: Test front and rear brakes for proper function and responsiveness.
- Lights: Verify that headlights, tail lights, and brake lights are working.
- Throttle: Check for smooth operation and ensure it returns to the idle position when released.
- Steering: Confirm steering moves freely and without excessive play.
- Loose Parts: Visually inspect for any loose nuts, bolts, or other components.
4. Operating Instructions
Understanding how to properly operate your HHH PRO MAX 125cc ATV is key to a safe and enjoyable experience.
4.1 Starting the Engine
- Ensure the ATV is on a level surface with the parking brake engaged.
- Turn the ignition key to the "ON" position.
- If the engine is cold, apply the choke (if equipped and necessary).
- Press the electric start button. Release once the engine starts.
- Allow the engine to warm up for a few moments before riding.
4.2 Automatic Transmission with Reverse
The PRO MAX 125cc ATV features a fully automatic transmission, simplifying operation. To engage forward or reverse, use the gear selector lever. Always ensure the ATV is completely stopped before shifting gears.
- Forward: Select the "D" (Drive) position.
- Reverse: Select the "R" (Reverse) position.
- Neutral: Select the "N" (Neutral) position for starting or idling.
4.3 Braking
The ATV is equipped with a Drum/Hydraulic Disc brake system. Apply both front and rear brakes smoothly and evenly for effective stopping. Avoid sudden, hard braking, especially on loose or uneven terrain.
Image 4.1: Red HHH PRO MAX 125cc ATV demonstrating off-road capability.
Image 4.2: Blue HHH PRO MAX 125cc ATV in an outdoor setting.
5. Maintenance
Regular maintenance is essential for the longevity and safe operation of your HHH PRO MAX 125cc ATV. This ATV is designed for low-maintenance riding, but routine checks are still necessary.
5.1 Routine Checks
- Oil Changes: Refer to the engine manufacturer's guidelines for oil change intervals. Use recommended oil types.
- Air Filter: Clean or replace the air filter regularly, especially when riding in dusty conditions.
- Spark Plug: Inspect and clean or replace the spark plug as needed.
- Chain Lubrication: Keep the drive chain clean and properly lubricated.
- Brake Adjustment: Check brake pad wear and adjust brakes for optimal performance.
- Tire Pressure: Maintain correct tire pressure as specified in the specifications section.
- Suspension: Inspect suspension components for damage or leaks.
Image 5.1: Detail of the front suspension and tire, important for regular inspection.
Image 5.2: Close-up of a rear wheel, showing tire tread and rim detail.
6. Troubleshooting
This section provides basic troubleshooting steps for common issues. For more complex problems, consult a qualified technician.
6.1 Engine Does Not Start
- Check Fuel: Ensure there is sufficient fuel in the tank.
- Check Battery: Verify battery connections are secure and the battery is charged.
- Check Spark Plug: Inspect the spark plug for fouling or damage.
- Safety Switch: Ensure the safety stop switch is in the "RUN" position.
6.2 Loss of Power
- Air Filter: A clogged air filter can restrict airflow and reduce power. Clean or replace.
- Fuel System: Check for fuel blockages or contaminated fuel.
- Spark Plug: A worn or fouled spark plug can lead to misfires and power loss.
7. Specifications
Key technical specifications for the HHH PRO MAX 125cc Youth ATV.
| Feature | Specification |
|---|---|
| Model Name | PRO MAX 125 ATV |
| Engine Type | 125cc, 4-stroke |
| Transmission | Automatic with Reverse |
| Maximum Load | 166 Pounds |
| Product Dimensions (L x W x H) | 55.5" x 30.5" x 37.9" |
| Front Wheel Size | 19x7-8 |
| Rear Wheel Size | 18x9.5-8 |
| Suspension Type | Dual Coil-over Front, Single Coil-over Monoshock Rear |
| Brake Style | Drum/Hydraulic Disc |
| Special Features | LED Headlights, Safety Stop Switch, Speed Governor, Tail Light |
| Item Weight | 300 Pounds |
| UPC | 734025507045 |
Image 7.1: Product dimensions of the HHH PRO MAX 125cc ATV.
Image 7.2: Engine comparison, highlighting the 125cc Zongshen engine used in this model.
8. Warranty and Support
8.1 Warranty Information
The HHH PRO MAX 125cc Youth ATV comes with a 30-day warranty for replacement parts. This warranty covers manufacturing defects in parts for a period of 30 days from the date of purchase. Please retain your proof of purchase for warranty claims.
8.2 Customer Support
For any questions, technical assistance, or warranty claims, please contact customer support. Refer to your purchase documentation or the seller's information for contact details. You can also visit the HHH Store on Amazon for additional information.
