1. Product Overview
The Neff S155ECX06E N 50 is a fully integrated smart dishwasher designed for efficient and quiet operation. It features advanced washing programs, flexible basket systems, and smart connectivity for enhanced user experience.
Figure 1.1: Front view of the Neff S155ECX06E N 50 fully integrated dishwasher with the door open, revealing the interior racks and the top-mounted control panel.
Key Features:
- Flex 1 Basket System: Flexible elements in the lower basket and an extra cutlery drawer for versatile loading.
- TimeLight: Projects the remaining program time onto the floor.
- Open Dry: Automatic door opening during the drying phase for improved drying results.
- Chef 70°C Program: Professional program for heavily soiled dishes.
- Favourite Program: Quick access to your preferred settings and programs.
- Home Connect: Wi-Fi connectivity for remote control and additional functions.
2. Setup and Installation
This section provides essential information for the proper setup and installation of your Neff S155ECX06E dishwasher. Ensure all safety guidelines are followed during installation.
Dimensions:
- Height: 81.5 cm
- Width: 59.8 cm
- Depth: 55 cm
- Weight: 42.7 kg
The dishwasher is designed for full integration into kitchen cabinetry. Refer to the installation diagram for detailed measurements and connection points.
Figure 2.1: Technical diagram illustrating the precise dimensions and required clearances for installing the Neff S155ECX06E dishwasher, including water and electrical connections.
Electrical and Water Connections:
- Voltage: 240 Volts
- Ensure connections are made by a qualified professional according to local regulations.
3. Operating Instructions
This section details how to operate your Neff S155ECX06E dishwasher, including program selection, special functions, and loading recommendations.
Control Panel:
The control panel is located on the top edge of the dishwasher door and features touch controls with English text. It displays the remaining time and allows for program selection and function activation.
Figure 3.1: Detailed view of the dishwasher's control panel, showing buttons for programs like Eco, Auto, Chef, and special functions such as Extra Dry and Power Zone, along with a digital display for time.
Available Programs:
- Eco 50 °C: Energy-efficient program for normally soiled dishes.
- Auto 45-65 °C: Automatically adjusts cleaning intensity based on soil level.
- Chef 70 °C: Intensive program for heavily soiled pots and pans.
- Short 60 °C: Faster program for lightly soiled dishes.
- Glass 40 °C: Gentle program for delicate glassware.
- Favourite: Customizable program for frequently used settings.
- Pre-rinse: For rinsing dishes before a full wash cycle.
Special Functions:
- Remote Start: Initiate or manage cycles via the Home Connect app.
- Extra Shine: Enhances drying and adds extra shine to dishes.
- Power Zone: Increases spray pressure in the lower basket for stubborn dirt.
- Extra Speed: Reduces program duration.
- Add-On Functions (via Home Connect app): HygienePlus, Silence on Demand.
Loading the Dishwasher:
The Flex 1 basket system offers versatile loading options. Utilize the flexible cutlery drawer and adjustable upper basket for optimal space utilization.
Figure 3.2: The interior of the dishwasher, highlighting the Flex 1 basket system with its adjustable upper basket, lower basket, and dedicated cutlery drawer.
- Flexible Cutlery Drawer: Designed for knives, forks, and spoons.
- Upper Basket: Adjustable in height with RackMatic® (3 levels) for taller items. Includes 2 foldable support rows and 2 cup shelves.
- Lower Basket: Features comfortable wheels and a rack stopper to prevent rolling. Includes 2 foldable support rows and 2 cup shelves.
Figure 3.3: A close-up of the flexible cutlery drawer, demonstrating how various utensils and small items can be organized for effective cleaning.
Figure 3.4: The upper basket configured for loading glasses and smaller plates, showcasing its capacity and arrangement flexibility.

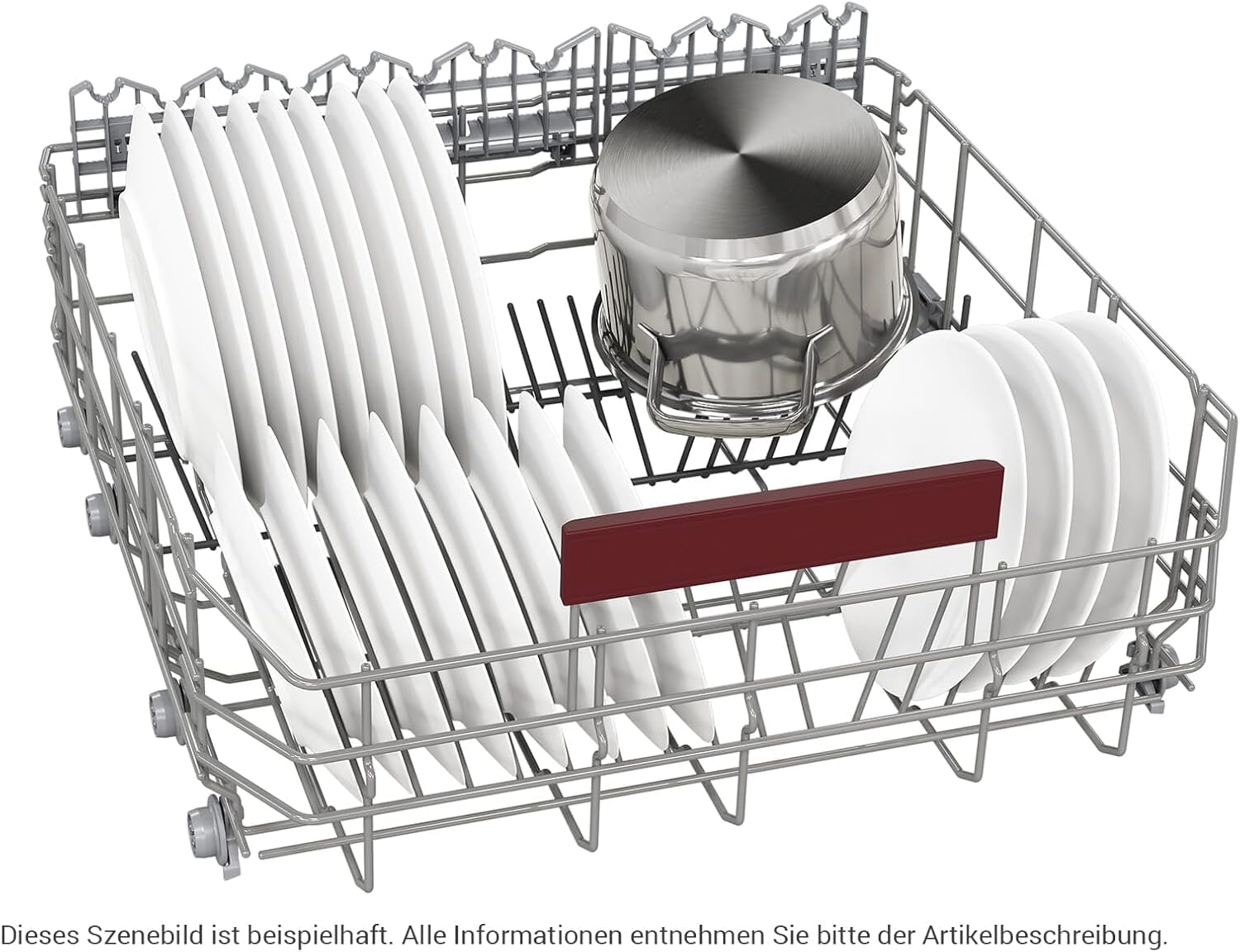

Figure 3.5: The lower basket, illustrating how larger plates and pots can be efficiently arranged for thorough cleaning.
Detergent Dispenser:
The dishwasher features a dosage assistant for optimal detergent distribution. Use appropriate dishwasher detergent, rinse aid, and salt as needed.
Figure 3.6: The detergent dispenser compartment, shown with a dishwasher tablet correctly placed for the wash cycle.
4. Maintenance and Care
Regular maintenance ensures the longevity and optimal performance of your Neff S155ECX06E dishwasher.
Cleaning the Dishwasher:
- EasyClean Function: Utilize the EasyClean program for internal cleaning.
- Self-Cleaning Filter: The dishwasher is equipped with a self-cleaning filter system (3-wave filtering) to remove food particles. Periodically check and clean the filter if necessary.
- Automatic Cleaner: The appliance features an automatic cleaning function.
- Interior Material: The interior tub and base are made of stainless steel, which is durable and easy to clean.
Glass Protection:
- The dishwasher includes integrated glass protection to care for delicate items.
5. Troubleshooting
For common operational issues, refer to the full instruction manual provided with your appliance. This section provides general guidance.
Common Issues:
- Dishes not drying properly: Ensure rinse aid dispenser is filled. The Open Dry feature assists with drying.
- Poor cleaning results: Check filter for blockages, ensure spray arms are not obstructed, and use appropriate detergent.
- Error codes: Consult the comprehensive manual for specific error code interpretations and solutions.
6. Specifications
Detailed technical specifications for the Neff S155ECX06E N 50 dishwasher.
| Feature | Specification |
|---|---|
| Model Name | S155ECX06E |
| Energy Efficiency Class | C |
| Energy Consumption (per 100 cycles) | 75 kWh |
| Water Consumption (per cycle) | 9 liters |
| Capacity | 14 place settings |
| Program Duration (Eco) | 3:20 (h:min) |
| Noise Level | 40 dB (A) re 1 pW |
| Acoustic Efficiency Class | B |
| Dimensions (H x W x D) | 81.5 x 59.8 x 55 cm |
| Weight | 42.7 kg |
| Internal Material | Stainless Steel |
| Installation Type | Fully Integrated |
| Special Features | Self-cleaning, Smart, Automatic Program, Home Connect, Open Dry, TimeLight |
7. Warranty and Support
Neff provides comprehensive support for its products. For detailed warranty information and customer service, please refer to the official Neff website or contact your local dealer.
Aqua Stop Guarantee:
The appliance is equipped with an Aqua Stop system, which provides a long-life guarantee against water damage. This guarantee is valid under the conditions specified by Neff.
Returns and Warranty Information:
For information regarding returns within 30 days of receipt or issues with defective/damaged products, please consult the retailer's return policy or the official Neff warranty documentation. Specific details for marketplace purchases may vary.
Manufacturer: Neff
Country of Origin: France
First Available: February 1, 2024
