Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Lamomo Outdoor Wall Sconce. This product features a durable aluminum alloy construction, tempered clear glass, and integrated dusk-to-dawn and motion sensor capabilities, designed for outdoor use.
Safety Information
- Always turn off the power at the circuit breaker before beginning installation, maintenance, or bulb replacement.
- Consult a qualified electrician if you are unsure about the installation process.
- Ensure all wiring connections are secure and comply with local electrical codes.
- Do not exceed the maximum wattage specified for the bulb (60W).
- This fixture is designed for outdoor use only.
Package Contents
Verify that all components are present before installation:
- 2 x Lamomo Outdoor Wall Sconces
- 1 x User Manual (this document)
- Mounting Hardware Kit
Setup and Installation
Follow these steps to install your outdoor wall sconce. It is recommended to have two people for installation.
- Turn Off Power: Locate the circuit breaker controlling the outdoor lighting circuit and turn off the power.
- Prepare Mounting Surface: Ensure the mounting surface is clean, dry, and structurally sound.
- Install Mounting Bracket: Attach the provided mounting bracket to the junction box on your wall using the screws from the hardware kit. Ensure the bracket is level and secure.
- Wire the Fixture: Connect the fixture's wires to your household electrical wires. Typically, black to black (live), white to white (neutral), and green/bare copper to green/bare copper (ground). Use wire nuts to secure connections.
- Attach Fixture: Carefully align the sconce with the mounting bracket and secure it using the provided screws or nuts. Ensure the fixture is flush against the wall to maintain its waterproof seal.
- Install Bulb: Insert an E26 base bulb (not included) into the socket. Do not exceed 60 watts.
- Seal Bottom: The fixture features a sealed bottom to prevent insect entry. Ensure it is properly closed after bulb installation.
- Restore Power: Turn the power back on at the circuit breaker.
Image: Product dimensions and wiring diagram for installation.
Operating Instructions
Your Lamomo Outdoor Wall Sconce features three distinct lighting modes: TEST, AUTO, and PC. These modes are controlled by settings on the motion sensor unit located at the bottom of the fixture.
Image: Overview of the three lighting modes and sensor controls.
Mode Selection
- TEST Mode: This mode allows you to adjust the sensitivity of the motion detector. The light will turn on when motion is detected, day or night, and automatically turn off after approximately 5 seconds when motion ceases. Use this mode to verify sensor coverage and sensitivity.
- AUTO Mode: In this mode, the motion detector activates the light only at dusk or in low light conditions when movement is sensed within its coverage area. The light remains on as long as motion is detected. After motion stops, the light will stay on for a predetermined time (adjustable from 5 seconds to 3 minutes) before turning off automatically.
- PC Mode (Dusk to Dawn Sensor): This mode utilizes the built-in photocell sensor. The light will automatically turn on at dusk and turn off at dawn, regardless of motion detection. This mode provides continuous illumination during nighttime hours.
Adjusting Settings
The motion sensor unit typically has dials or switches for adjusting 'TIME' and 'SENSITIVITY'.
- TIME: Adjusts how long the light stays on after motion stops in AUTO Mode (typically 5 seconds to 3 minutes).
- SENSITIVITY: Adjusts the detection range of the motion sensor (typically 0 to 30 feet). Higher sensitivity means a wider detection range.
Maintenance
Cleaning
To maintain the appearance and functionality of your wall sconce:
- Ensure power is off before cleaning.
- Wipe the fixture with a soft, damp cloth.
- Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or glass.
Bulb Replacement
When replacing the bulb:
- Turn off power at the circuit breaker.
- Carefully unscrew the fixing nuts at the bottom of the fixture to access the bulb.
- Unscrew the old E26 bulb and replace it with a new E26 base bulb. Ensure the new bulb does not exceed 60 watts.
- Securely re-tighten the fixing nuts to maintain the sealed bottom.
- Restore power.

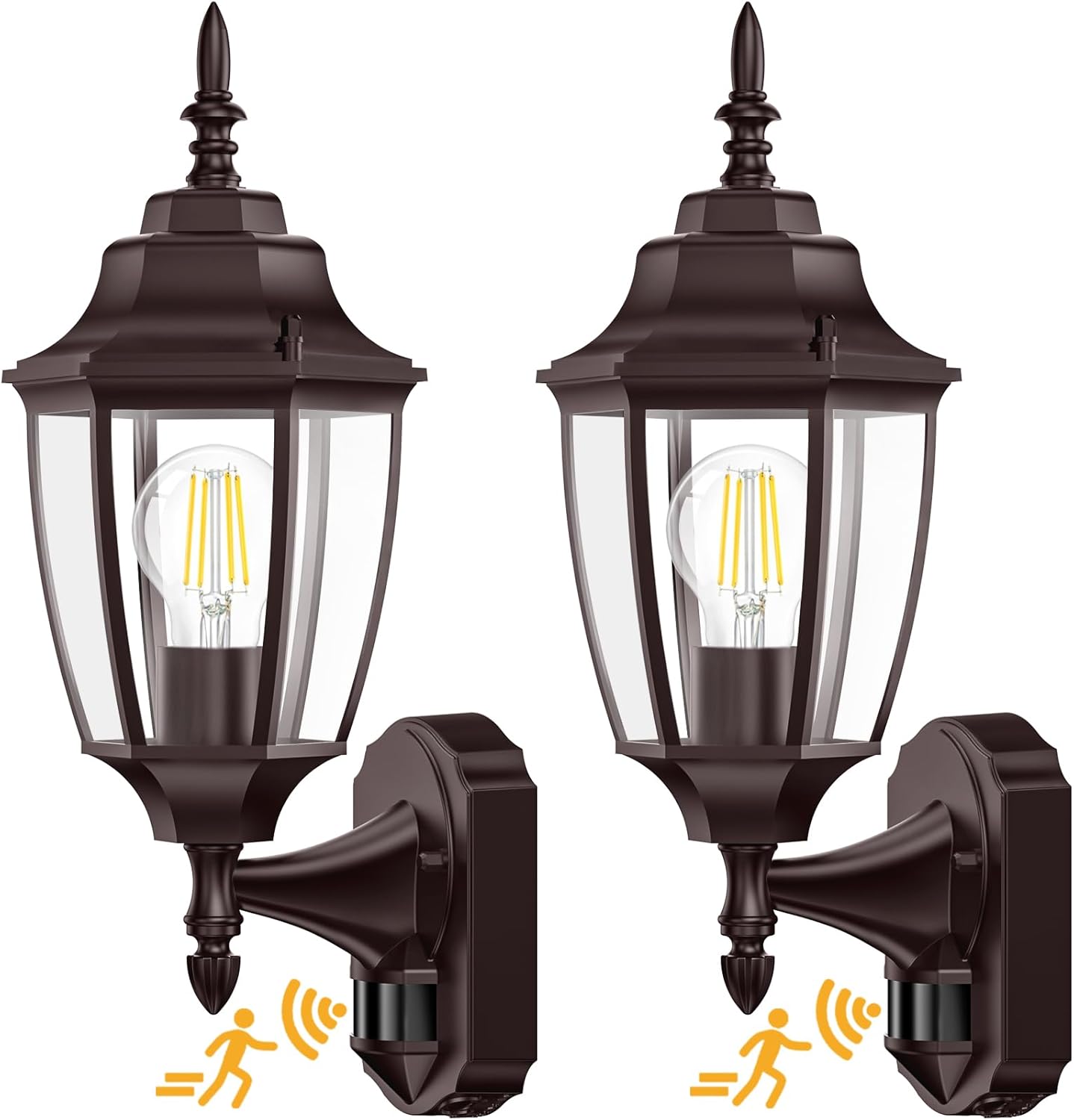

Image: Lamomo Outdoor Wall Sconces, illustrating the design for bulb access.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power; Loose wiring; Faulty bulb; Sensor in PC mode during day. | Check circuit breaker; Verify wiring connections; Replace bulb; Switch to TEST or AUTO mode for testing. |
| Motion sensor not detecting. | Sensor sensitivity too low; Obstruction; Sensor in PC mode. | Adjust sensitivity dial; Clear obstructions from sensor's view; Ensure sensor is in TEST or AUTO mode. |
| Light stays on continuously. | Sensor in PC mode; Constant motion detected; Sensor malfunction. | Switch to AUTO mode if motion detection is desired; Check for continuous motion sources; Contact support if issue persists. |
| Light flickers. | Loose bulb; Incompatible bulb; Unstable power supply. | Tighten bulb; Ensure E26 base and compatible type; Consult electrician for power supply issues. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Lamomo |
| Model Number | 0018-WU-SE-BUS |
| Color | Bronze |
| Material | Aluminum, Glass |
| Style | Traditional |
| Product Dimensions (per sconce) | 5"L x 15"W x 6"H |
| Indoor/Outdoor Usage | Outdoor |
| Power Source | Corded Electric |
| Special Features | Dusk to Dawn, Motion Sensor, Sealed Bottom, Waterproof, Weather Resistant |
| Voltage | 120 Volts (AC) |
| Bulb Base | E26 |
| Max Wattage | 60 watts |
| Water Resistance Level | Waterproof |
| Mounting Type | Wall Mount |
| Item Weight (per pack) | Approx. 4.93 pounds |
Warranty Information
This Lamomo Outdoor Wall Sconce comes with a 24-month limited warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.
Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, or to initiate a claim, please contact Lamomo customer support.
Support
If you encounter any issues or have questions regarding your Lamomo Outdoor Wall Sconce that are not addressed in this manual, please contact Lamomo customer support for assistance. Our team is available to help with installation, troubleshooting, and product inquiries.
For the most up-to-date contact information, please refer to the official Lamomo website or your purchase documentation.
