Introduction
This manual provides detailed instructions for the assembly, safe use, and maintenance of your HUANLEGO 6-Drawer Dresser, Model HLG066. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Safety Information
Your safety is paramount. Please adhere to the following guidelines to prevent injury or damage to the product.
- Anti-Tipping Device: Always install the included anti-tipping device to securely anchor the dresser to the wall. This prevents accidental tipping, which can cause serious injury.
- Weight Limits: Do not exceed the specified weight limits for the desktop and drawers. The desktop supports up to 220 lbs (100 kg), and each drawer supports up to 30 lbs (13.6 kg).
- Assembly: Assembly should ideally be performed by two adults. Ensure all hardware is tightened securely before use.
- Placement: Place the dresser on a flat, stable surface. Avoid placing it near heat sources or in direct sunlight to prevent material degradation.
- Children: Keep children away from the assembly area. Do not allow children to climb on or play with the dresser.
Package Contents
Before assembly, verify that all components are present and undamaged. If any parts are missing or defective, please contact customer service.
Typical package contents include:
- Dresser panels (top, bottom, sides, back)
- Drawer panels (front, back, sides, bottom)
- Drawer slides
- Knobs and other hardware (screws, dowels, cam locks)
- Anti-tipping kit
- Assembly instructions (this manual)
Specifications
| Feature | Detail |
|---|---|
| Brand | HUANLEGO |
| Model Name | HLG066 |
| Overall Dimensions (L x W x H) | 47.3" x 15.7" x 31.5" (120.1 cm x 39.9 cm x 80 cm) |
| Drawer Dimensions (L x W x H) | 21.5" x 13.8" x 8.4" (54.6 cm x 35.1 cm x 21.3 cm) |
| Number of Drawers | 6 |
| Desktop Weight Capacity | 220 lbs (100 kg) |
| Drawer Weight Capacity (each) | 30 lbs (13.6 kg) |
| Material | Particle Board |
| Color | White |
| Assembly Required | Yes |
| Item Weight | 89.1 pounds (40.4 kg) |
This diagram illustrates the overall dimensions of the dresser: 47.3 inches (width), 15.7 inches (depth), and 31.5 inches (height). It also details the internal drawer dimensions: 21.5 inches (length), 13.77 inches (width), and 8.4 inches (height). Load capacities are indicated as 50 lbs per drawer and 300 lbs for the desktop.
Setup and Assembly
Assembly is required for this dresser. It is recommended to have two people for assembly to ensure stability and ease of construction. All necessary components are labeled, and instructions are provided within the package. Power tools can expedite the process but are not strictly required.
- Unpack and Identify: Carefully unpack all components and hardware. Lay them out on a clean, soft surface to prevent scratches. Match each part to its corresponding label in the instruction manual.
- Assemble the Frame: Begin by assembling the main frame of the dresser according to the step-by-step diagrams in the included manual. Ensure all connections are secure.
- Install Drawer Slides: Attach the drawer slides to the dresser frame and to the drawer sides as indicated in the instructions. Ensure they are aligned correctly for smooth operation.
- Assemble Drawers: Construct each of the six drawers. Insert the drawer bottoms and secure all panels.
- Attach Knobs: Fasten the black square knobs to the front of each drawer.
- Insert Drawers: Carefully slide the assembled drawers into their respective slots in the dresser frame.
- Install Anti-Tipping Device: This is a critical safety step. Securely attach the anti-tipping device to the back of the dresser and to a wall stud using the provided hardware. Follow the specific instructions for the anti-tipping kit.

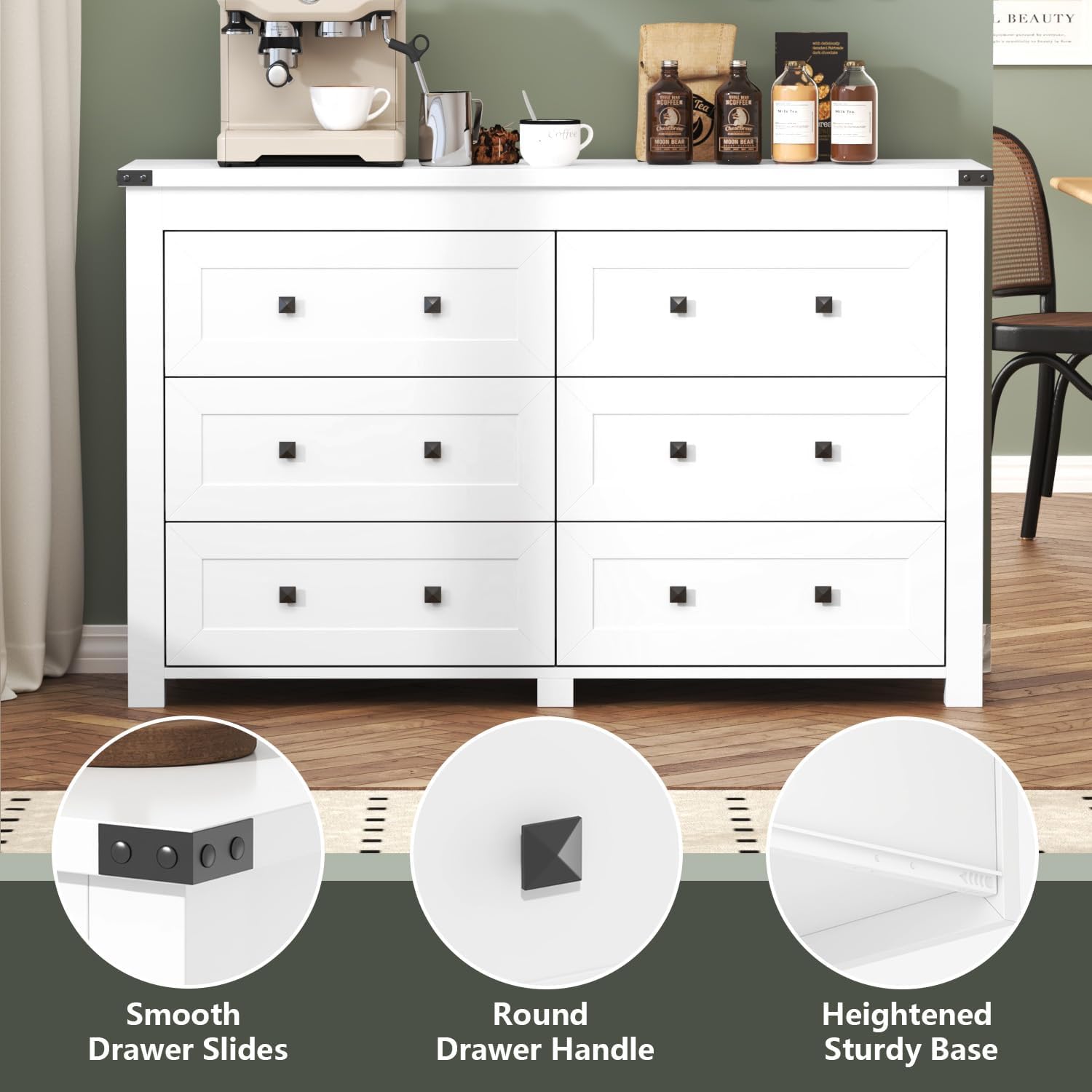

This image provides close-up views of specific features: smooth drawer slides for easy operation, round black drawer handles for ergonomic use, and a heightened sturdy base designed for stability and durability.
Usage and Operation
The HUANLEGO 6-Drawer Dresser is designed for organized storage in various rooms.
- Drawer Functionality: The drawers are equipped with smooth-glide slides for easy opening and closing. Avoid forcing drawers if they feel stuck; check for obstructions.
- Storage Capacity: Each drawer is designed to hold a variety of items, such as clothing, linens, or office supplies. Refer to the specifications for individual drawer weight limits.
- Desktop Use: The sturdy desktop can be used to display decorative items, lamps, or as a TV stand for televisions up to 50 inches, provided the total weight does not exceed 220 lbs.
- Versatile Placement: This dresser is suitable for bedrooms, living rooms, hallways, entryways, closets, and home offices.
The white HUANLEGO 6-Drawer Dresser is shown with several drawers partially open, displaying neatly folded clothing and other items inside. This illustrates the practical storage capabilities and accessibility of the drawers.
The dresser is shown supporting a television, emphasizing its suitability as a TV stand. Callouts point to features such as solid construction, quality materials, smooth drawers, and sturdy table legs, reinforcing its durability and functionality.
An infographic demonstrating the storage capacity of the dresser's drawers. It indicates that the dresser can hold over 30 shirts, 20 hats, 60 pairs of socks, 20 pairs of pants, 40 pieces of underwear, and 40 tissues, highlighting its organizational potential.
Maintenance
Proper care will extend the life and appearance of your dresser.
- Cleaning: Wipe the dresser with a dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
- Spills: Immediately wipe up any spills with a soft, dry cloth to prevent staining or water damage.
- Hardware: Periodically check all screws and fasteners to ensure they remain tight. Retighten as necessary.
- Avoid Sharp Objects: Keep sharp objects away from the dresser's surfaces to prevent scratches.
Troubleshooting
Here are solutions to common issues you might encounter:
- Drawers are difficult to open/close: Check if the drawer slides are properly aligned and free of obstructions. Ensure all screws on the slides are tightened. Avoid overloading drawers beyond their weight capacity.
- Dresser feels unstable: Verify that the dresser is placed on a level surface. Ensure all assembly hardware is securely tightened. Confirm the anti-tipping device is correctly installed and anchored to the wall.
- Missing parts: If you find any parts missing during assembly, refer to the 'Warranty and Support' section to contact customer service for assistance.
Warranty and Support
HUANLEGO provides professional online and telephone customer service. If you have any questions regarding assembly, missing parts, or product issues, please contact us directly. We are committed to resolving any problems you may encounter.
Please refer to your purchase documentation for specific warranty details and contact information.
