Könighaus Infrared Heater 1000W Eco Model P-1000 User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your Könighaus 1000W Eco Infrared Heater, Model P-1000. Please read these instructions carefully before installation and use, and retain them for future reference. This infrared heater is designed to provide comfortable and efficient heating for indoor spaces.

Image 1.1: Front view of the Könighaus 1000W Eco Infrared Heater. This image displays the sleek, minimalist design of the heater panel, highlighting its suitability for modern interiors. The panel is white with a thin frame, and a small Könighaus logo is visible at the bottom left.

2. Safety Instructions

Always observe the following safety precautions to reduce the risk of fire, electric shock, or injury:

• Read all instructions before using this heater.
• Do not use this heater outdoors or in wet locations.
• Do not operate any heater with a damaged cord or plug, or after the heater malfunctions or has been dropped or damaged in any manner.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• To disconnect heater, turn controls to off, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• The heater features double overheat protection to ensure safety.
• The heater is rated IP44 for splash protection, making it suitable for use in bathrooms (zone 2 and 3) but not directly in the shower area.

Image 2.1: Illustration of safety features. This image shows a parent and child in a room with the heater, highlighting safety icons for IP44 splash protection and double overheat protection, along with a 5-year warranty badge. It emphasizes the product's safety for household use.

3. Package Contents

Upon opening the package, please verify that all components are present and undamaged:

• Könighaus Infrared Heater (1000W Eco Model P-1000)
• Mounting material (screws, dowels, spacers, drilling template)
• 1.80 m power cable with Europlug
• User Manual

Optional accessories (not included with all models):

• Thermostat (standard or smart)
• Caster feet for freestanding use

Image 3.1: Overview of mounting accessories and optional components. This image displays the heater panel alongside icons representing included mounting hardware (screws, dowels), optional thermostat, optional caster feet, and the standard Europlug power cable. It visually confirms the items mentioned in the package contents.

4. Setup and Installation

The Könighaus Infrared Heater can be mounted on a wall or used freestanding with optional caster feet. Ensure the installation location is suitable and adheres to safety guidelines.

4.1 Wall Mounting

1. Choose Location: Select a wall location that is clear of obstructions and at least 0.9 meters (3 feet) away from combustible materials. Ensure there is a power outlet nearby.
2. Mark Drilling Points: Use the provided drilling template to accurately mark the positions for the mounting holes on the wall.
3. Drill Holes: Drill holes at the marked positions using an appropriate drill bit for your wall type.
4. Insert Dowels: Insert the provided dowels into the drilled holes.
5. Attach Spacers/Brackets: Secure the mounting spacers or brackets to the wall using the screws.
6. Mount Heater: Carefully lift the infrared heater and attach it to the installed brackets/spacers. Ensure it is securely fastened.
7. Connect Power: Plug the 1.80 m power cable into a suitable wall outlet.

Note: For optimal use, especially in larger rooms or for precise temperature control, the use of a thermostat is recommended. If using an optional thermostat, follow its specific installation and connection instructions.

4.2 Freestanding Use (with optional caster feet)

1. Attach Caster Feet: If using optional caster feet, securely attach them to the bottom of the heater panel according to the instructions provided with the feet.
2. Position Heater: Place the heater on a stable, level surface, ensuring it is at least 0.9 meters (3 feet) away from combustible materials.
3. Connect Power: Plug the 1.80 m power cable into a suitable wall outlet.

5. Operating Instructions

The Könighaus Infrared Heater operates by emitting infrared radiation, which directly heats objects and surfaces in the room, similar to natural sunlight. This method provides a comfortable and uniform heat distribution without circulating air, making it beneficial for allergy sufferers.

5.1 Basic Operation

1. Power On: Once the heater is securely installed and plugged into a power outlet, it is ready for operation.
2. Temperature Control (with Thermostat): If your model includes or is connected to a thermostat (standard or smart), use the thermostat to set your desired room temperature. The heater will automatically turn on and off to maintain this temperature.
3. Without Thermostat: If no thermostat is used, the heater will operate continuously when plugged in. It is recommended to use a timer or manually unplug the unit when heating is not required to conserve energy.
4. Heating Time: The heater typically reaches its operating temperature within 2 to 4 minutes, providing rapid warmth.

5.2 Heating Capacity

The 1000W Eco model is suitable for heating areas of approximately 14 to 26 square meters. Refer to the table below for general guidance on heating capacities for different wattages:

Table 5.1: Heating capacities and dimensions for various Könighaus infrared heater models. This table provides a quick reference for users to understand the appropriate room size for their heater's wattage and its physical dimensions.

Image 5.1: Illustration of pleasant ambient climate provided by the heater. This image shows a person relaxing in a room with the heater, highlighting benefits such as "Heats like sun rays," "Simple and elegant," "Silent," and "No odor." It visually explains the user experience of infrared heating.

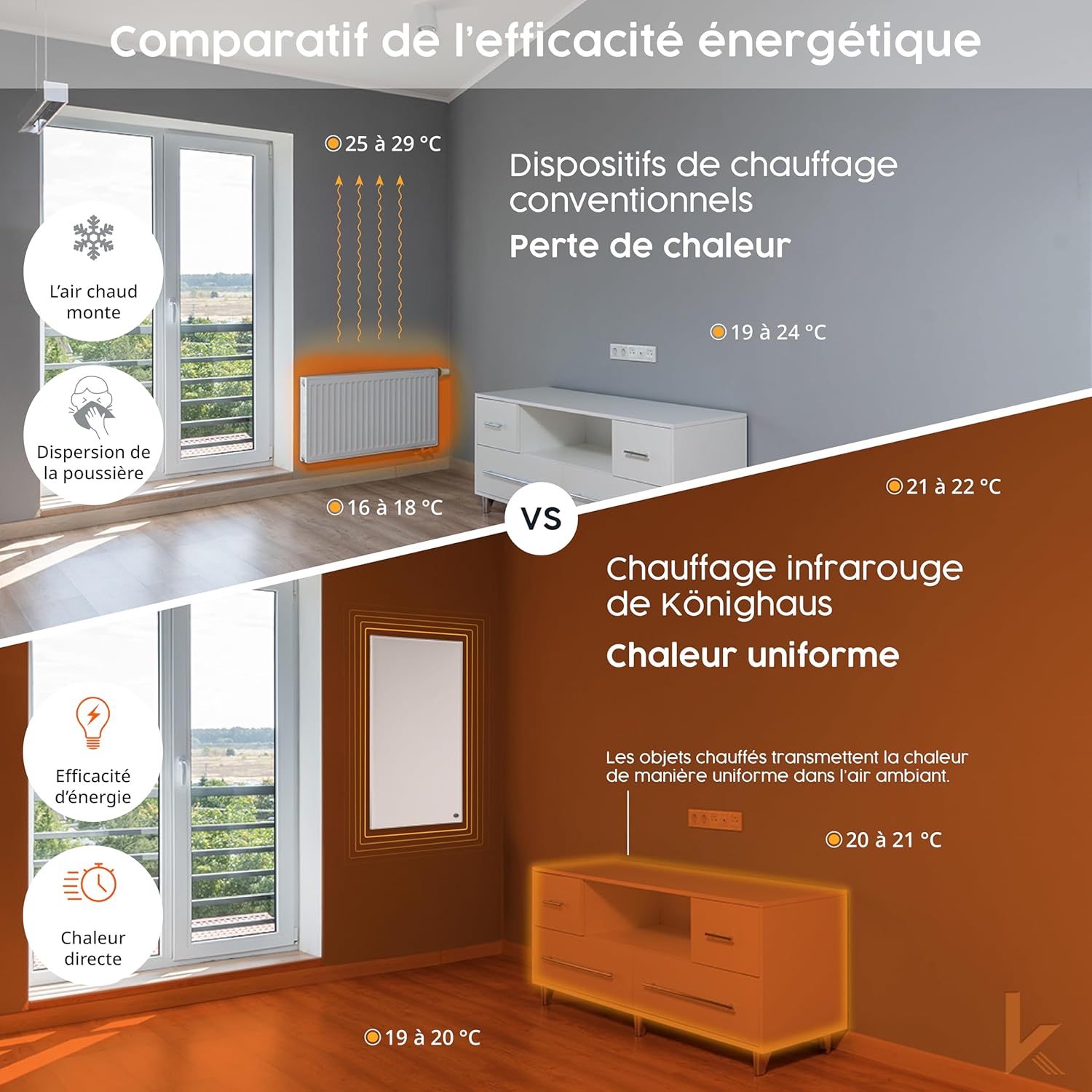

Image 5.2: Energy efficiency comparison between conventional heating and Könighaus infrared heating. This image contrasts how conventional heating (air rises, dust dispersion, heat loss through windows) differs from infrared heating (uniform heat, direct heat, energy efficiency). It illustrates the principle of infrared heating and its advantages.

6. Maintenance

The Könighaus Infrared Heater is designed for maintenance-free operation. Regular cleaning is sufficient to keep it in optimal condition.

• Cleaning: Before cleaning, ensure the heater is unplugged and completely cool. Wipe the surface with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface.
• Storage: If storing the heater for an extended period, ensure it is clean and dry. Store it in a cool, dry place, preferably in its original packaging to protect it from dust and damage.
• Inspection: Periodically inspect the power cord and plug for any signs of damage. If any damage is found, discontinue use and contact customer support.

7. Troubleshooting

If you encounter any issues with your Könighaus Infrared Heater, refer to the following common troubleshooting steps:

• Heater does not turn on:
  • Ensure the power cord is securely plugged into a working electrical outlet.
  • Check if the circuit breaker has tripped.
  • If using a thermostat, ensure it is set to a temperature higher than the current room temperature and is functioning correctly.
• Heater is not producing enough heat:
  • Verify that the heater's wattage is appropriate for the room size (refer to Section 5.2).
  • Ensure there are no obstructions blocking the heater's radiant surface.
  • Check for drafts or poor insulation in the room that might be affecting heating efficiency.
• Heater emits an unusual smell:
  • A slight odor may occur during the first few uses as manufacturing residues burn off. This is normal and should dissipate quickly.
  • If the smell persists or is strong/burning, immediately unplug the heater and contact customer support.
• Overheat protection activated:
  • The heater is equipped with double overheat protection. If it shuts off unexpectedly, unplug it and allow it to cool down for at least 30 minutes.
  • Check for any obstructions around the heater that might have caused it to overheat.
  • Plug it back in. If the issue persists, contact customer support.

If these steps do not resolve the issue, please contact Könighaus customer support for further assistance.

8. Specifications

Table 8.1: Technical specifications of the Könighaus 1000W Eco Infrared Heater. This table provides detailed technical data for the product, including its dimensions, power, voltage, and other key attributes.

9. Warranty and Support

Könighaus stands behind the quality of its infrared heaters.

• Manufacturer's Warranty: Your Könighaus Infrared Heater comes with a 5-year manufacturer's warranty, ensuring long-term reliability and peace of mind.
• Satisfaction Guarantee: A 30-day satisfaction guarantee is also provided, allowing you to experience the product with confidence.
• Customer Service: For any questions, technical support, or warranty claims, please contact Könighaus customer service.

Image 9.1: Illustration of Könighaus customer service. This image features a smiling customer service representative and highlights the company's commitment to customer satisfaction, including fast and competent assistance, personal support, and a satisfaction guarantee.

Image 9.2: Könighaus Infrared production process. This image shows a close-up of a worker assembling a heater panel, emphasizing the "hand-made with attention to detail" aspect and the "Tested and certified by TÜV" quality assurance.
