1. Important Safety Information
Please read this manual thoroughly before operating your new Advwin Mini Upright Freezer. Keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or damage to the appliance.
- Ensure the freezer is placed on a stable, level surface away from direct sunlight and heat sources.
- Do not block ventilation openings. Maintain adequate space around the freezer for proper air circulation.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Unplug the freezer from the power outlet before cleaning or performing maintenance.
- Do not touch frozen surfaces with wet hands, as this may cause skin adhesion.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
2. Product Overview
The Advwin 32L Mini Upright Freezer is a compact and efficient freezing solution designed for various settings including homes, dorms, and commercial spaces. It features a digital display for easy temperature control and an anti-bacterial door seal for food safety.
Figure 2.1: Front view of the Advwin 32L Mini Upright Freezer, showcasing its sleek black design and digital temperature display.
Figure 2.2: Interior view of the freezer, highlighting its 32L capacity and internal shelving for organized storage.
Figure 2.3: Detailed view of the side, illustrating the LED control panel and the adjustable leveling foot for stability.
Figure 2.4: The strong magnetic sealed door, ensuring efficient temperature retention and food preservation.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials, including the protective film on the exterior. Inspect the freezer for any signs of damage during transit. Retain packaging for future transport if needed.
3.2 Placement
Choose a location that is well-ventilated and away from direct sunlight or heat sources (e.g., oven, radiator). Ensure there is at least 10 cm of space around the back and sides of the freezer for proper air circulation and heat dissipation. The freezer is designed for indoor use only.
3.3 Leveling the Unit
The freezer is equipped with adjustable leveling legs. To ensure stable operation and proper door sealing, the unit must be level. Adjust the legs by turning them clockwise or counter-clockwise until the freezer is stable and level on the floor.
Figure 3.1: Adjustable leveling foot for balancing the unit on uneven surfaces.
3.4 Initial Power On
After placing and leveling the freezer, wait at least 2-4 hours before plugging it into a power outlet. This allows the refrigerant to settle. Plug the freezer into a dedicated and properly grounded electrical outlet. The digital display will illuminate.
4. Operating Instructions
4.1 Digital Temperature Control
The Advwin Mini Upright Freezer features an intuitive digital display for temperature adjustment. The temperature range is from -24°C to -14°C.
- The LCD display shows the actual internal temperature.
- When first turned on, the freezer has a factory setting of -16°C.
- Use the + and - buttons on the control panel to adjust the desired temperature.
Figure 4.1: Electronic temperature control panel with temperature adjustment and quick freeze mode indicators.
4.2 Quick Freeze Function
To rapidly freeze items, activate the Quick Freeze function. This function allows you to directly set the temperature to -18°C for faster freezing. Refer to the control panel diagram (Figure 4.1) for the Quick Freeze mode icon (snowflake).
4.3 Control Panel Lock
Your freezer has an automatic control panel lock. You may manually activate or deactivate the control panel lock by pressing the + and - buttons simultaneously for 3 seconds.
5. Maintenance
5.1 Cleaning the Freezer
Always unplug the freezer before cleaning. Clean the interior and exterior surfaces regularly with a soft cloth and a mild detergent. Do not use abrasive cleaners, sharp objects, or solvents. The anti-bacterial and anti-mildew door seal should be wiped clean to ensure optimal performance and hygiene.
5.2 Defrosting
This freezer is not frost-free and will accumulate frost over time. Defrost the freezer when the frost layer reaches approximately 5mm thickness. To defrost:
- Unplug the freezer from the power outlet.
- Remove all food items and store them in another freezer or cooler.
- Leave the freezer door open to allow the frost to melt naturally. Place towels or a shallow pan at the bottom to collect water.
- Once defrosted, wipe the interior dry with a clean cloth.
- Plug the freezer back in and allow it to reach the desired temperature before returning food items.
Do not use sharp objects or heating devices to remove frost, as this can damage the cooling system.
6. Troubleshooting
Before contacting customer support, please refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer does not operate. | No power supply; Power cord not properly plugged in; Circuit breaker tripped. | Check power outlet; Ensure cord is securely plugged in; Reset circuit breaker. |
| Temperature is not cold enough. | Door not closed properly; Frequent door opening; Ambient temperature too high; Excessive food load; Temperature setting too high. | Ensure door is sealed; Reduce frequency of door opening; Move freezer to cooler location; Do not overload; Adjust temperature setting lower. |
| Excessive noise. | Freezer is not level; Objects vibrating against the freezer; Normal compressor operation. | Adjust leveling legs; Ensure nothing is touching the freezer; Compressor noise is normal during operation. |
| Frost buildup. | Door not sealed properly; High humidity; Frequent door opening. | Check and clean door seal; Reduce humidity in room; Minimize door opening; Defrost as needed. |
7. Specifications
Technical specifications for the Advwin 32L Mini Upright Freezer (Model: BD-40G).
| Feature | Detail |
|---|---|
| Brand | ADVWIN |
| Model Number | BD-40G |
| Capacity | 32 Litres |
| Cooling Type | Compressor Cooling |
| Temperature Range | -24°C to -14°C |
| Refrigerant Type | R600a |
| Power | 220V/50Hz |
| Climate Type | SN/N/ST |
| Foaming Agent | C5H10 |
| Opening Angle | 180° |
| Item Weight | 15.23 Kilograms |
| Package Dimensions (L x W x H) | 58 x 56 x 51.6 cm |

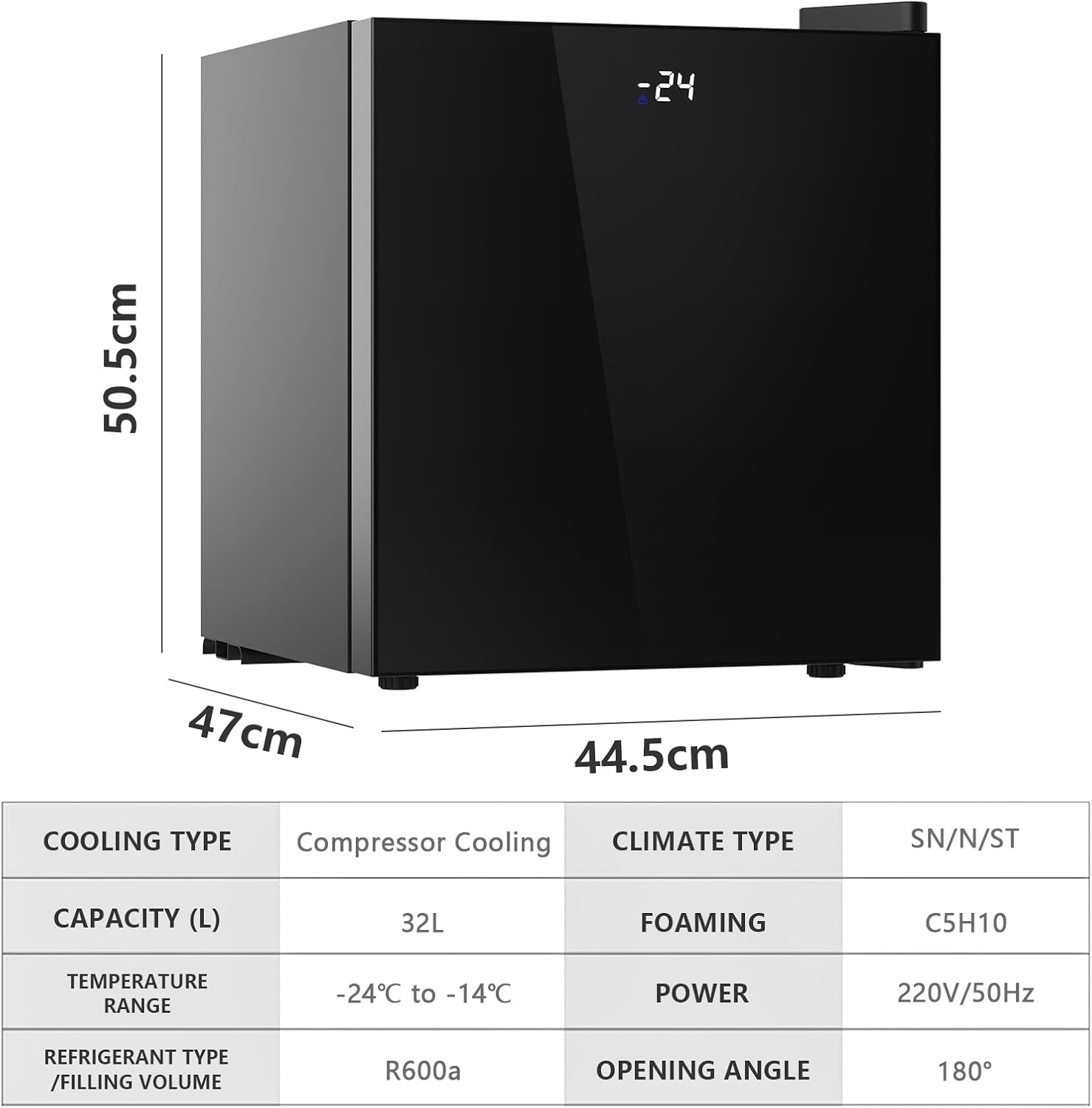

Figure 7.1: External dimensions and key specifications of the freezer.

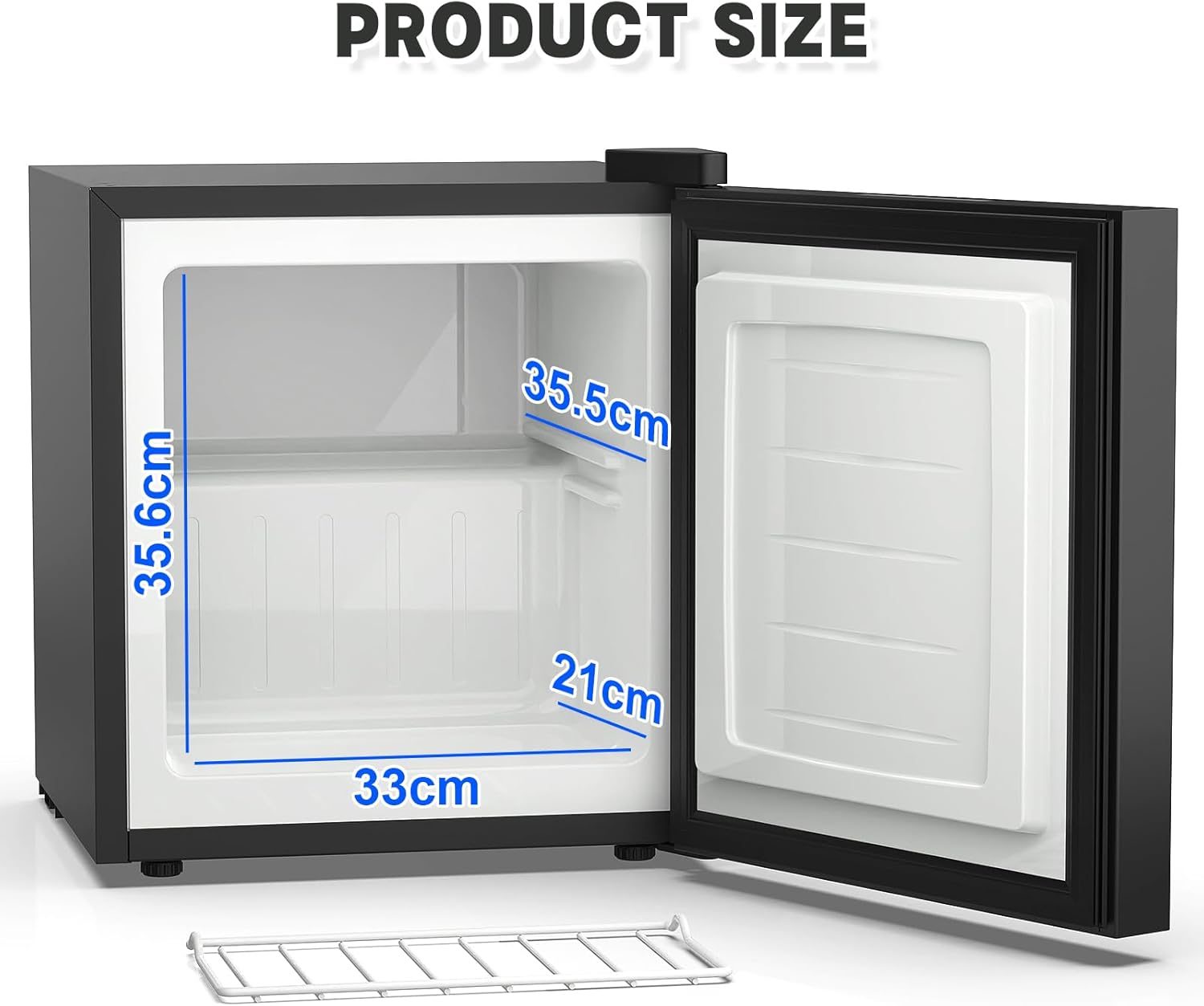

Figure 7.2: Internal dimensions of the freezer compartment.
8. Warranty and Customer Support
ADVWIN products are manufactured to high-quality standards. For warranty information, product registration, or technical assistance, please refer to the warranty card included with your purchase or visit the official ADVWIN website. Please have your model number (BD-40G) and purchase details ready when contacting support.
For additional support, you may also refer to the product guides and documents available on the retailer's website where you purchased the product.
